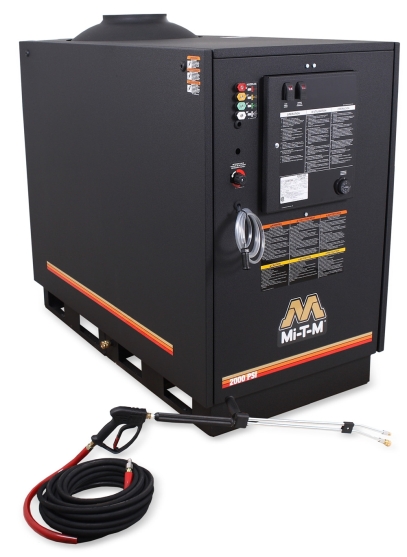

Mi-T-M HG-2004 Series LP/Natural Gas Pre
View Product Sheet
-
Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset trapping unloader, Thermal relief valve, Adjustable high pressure detergent
injection
-
Motor: Open drip-proof motor with manual thermal overload protection
-
Frame: Powder coated steel side panels and frame
-
Components: Pressure switch and over-pressure safety controls, 24-volt control system, Polyethylene float tank (4-gallon with in-line screen filter) 1/2-inch
schedule 80-coil heat exchanger, Adjustable thermostat, Electronic ignition with standing pilot light, Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch
stack
-
Unit Includes: Quick connect nozzles (0, 15, 25, 40 degree) 50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors,
Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with fixed detergent nozzle, 21-inch draft diverter; has 10-inch opening
-
Miscellaneous: Maximum outlet temperature is 200F (250F/121C outlet temperature with steam option)
|
Specifications
|
|
Model
|
HG-2004-1230
|
|
PSI
|
2000
|
|
HP/Motor
|
6.0 HP/230V, 1ph, 25.5A
|
|
GPM
|
4.2
|
|
BTU Per Hour-Natural Gas
|
338,000
|
|
BTU Per Hour-LP Gas
|
326,000
|
|
Net Weight
|
724 lbs.
|
|
Shipping Weight
|
844 lbs.
|
|
Length
|
56.5 in.
|
|
Width
|
29 in.
|
|
Height
|
49.75 in.
|
|
HX-0105
|
Liquid propane (vapor only)
|
|
HX-0106
|
Hour meter
|
|
HX-0107
|
Time delay shutdown
|
|
HX-0108
|
(1) remote station (auto start/stop N/A)
|
|
HX-0109
|
Time delay shutdown and first remote box (kit option)
|
|
HX-0110
|
Additional remotes (up to 3)
|
|
HX-0120
|
250°F steam upgrade
|
|
HX-0112
|
K7 unloader (flow activated) (auto start/stop N/A)
|
|
HX-0124
|
Auto start/stop and first remote option
|
*Cannot order HX-0107 & HX-0108 together, need to order HX-0109 instead.
*HX-0107 & HX-0108 can be ordered separately.
|
HOT WATER -BELT DRIVE 2000 PSI 3.6
Mfg. item #: HG-2004-1230
MTMHG-2004-1230
Call for freight quote on this item or we will confirm freight charges before shipping.1
OPTION-LIQUID PROPANE
Mfg. item #: HX-0105
MTMHX-0105
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
OPTION-HOUR METER
Mfg. item #: HX-0106
MTMHX-0106
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
OPTION-TIME-DELAY SHUTDOWN
Mfg. item #: HX-0107
MTMHX-0107
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
OPTION-FIRST REMOTE BOX -PLASTIC CONTROL BOX
Mfg. item #: HX-0108
MTMHX-0108
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
OPTION-TIME DELAY & 1ST REMOTE-PLASTIC CONTROL BOX
Mfg. item #: HX-0109
MTMHX-0109
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
OPTION-ADD 1 REMOTE-3 MAX/UNIT-PLASTIC CONTROL BOX
Mfg. item #: HX-0110
MTMHX-0110
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for price. MTMHX-0120
Call for price. MTMHX-0112
OPTION-1ST REMOTE W/AUTO S/S -PLASTIC CONTROL BOX
Mfg. item #: HX-0124
MTMHX-0124
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-7300-0003
MTMAW-7300-0003
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7300-0035
MTMAW-7300-0035
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7300-0004
MTMAW-7300-0004
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7500-0035
MTMAW-7500-0035
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-7500-0004
MTMAW-7500-0004
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7500-0055
MTMAW-7500-0055
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7020-8000
MTMAW-7020-8000
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7020-8001
MTMAW-7020-8001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-7015-1200
MTMAW-7015-1200
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7015-1800
MTMAW-7015-1800
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-7015-2400
MTMAW-7015-2400
Call for freight quote on this item or we will confirm freight charges before shipping.1
LOW PRESSURE CHEMICAL INJECTOR
Mfg. item #: AW-8400-0001
MTMAW-8400-0001
Call for freight quote on this item or we will confirm freight charges before shipping.1
Mfg. item #: AW-3000-0000
MTMAW-3000-0000
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
HOSE 3/8X50 4000PSI R1 GRAY
Mfg. item #: 851-0338
MTM851-0338
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: 851-0095
MTM851-0095
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-4018-0026
MTMAW-4018-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-4034-0026
MTMAW-4034-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-4059-0026
MTMAW-4059-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Mfg. item #: AW-4085-0016
MTMAW-4085-0016
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
