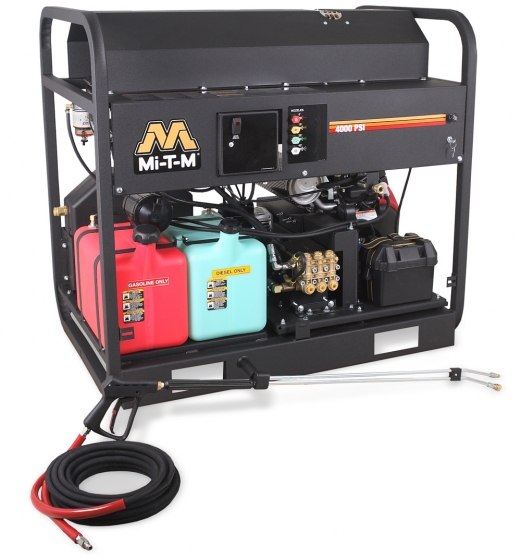

Mi-T-M HS-3006 Series Diesel Pressure Wa

HS-3006-0MDK HS-3505-0MDK HS-4005-0MDK
HS-3006-0MDK HS-3505-0MDK HS-4005-0MDK
HS-3505-1MGH HS-3506-1MGH HS-4004-1MAH
HS-3505-1MGH HS-3506-1MGH HS-4004-1MAH





Models and Accessories
HS-3005-0MGV HOT WATER/GAS DRIVEN/OIL FIRED
HS-3505-1MGH HOT WATER/GAS DRIVEN/OIL FIRED
HS-3505-1MGK HOT WATER/GAS DRIVEN/OIL FIRED
HS-3506-1MGH HOT WATER/GAS DRIVEN/OIL FIRED
HS-4004-1MAK HOT WATER/GAS DRIVEN/OIL FIRED
HS-4004-1MAH HOT WATER/GAS DRIVEN/OIL FIRED
HS-3506-1MGK HOT WATER/GAS DRIVEN/OIL FIRED
HS-3008-1MGK HOT WATER/GAS DRIVEN/OIL FIRED
HS-3006-0MDK HOT WATER/DIESEL/OIL FIRED
HS-3505-0MDK HOT WATER/DIESEL/OIL FIRED
HS-4005-0MDK HOT WATER/DIESEL/OIL FIRED
Accessories and Options
20-1070A18 Removable painted front panel (fits All models)
20-1366A52 Black powder coated rain cap, octagonal (fits All models)
50-0177 Stack adapter (fits All models)
850-0324 Gasket (for 50-0177) (fits All models)
AW-5740-0000 Wheel kit (fits All models)
AW-6000-1006 Hot water skid equipment cover (fits All models)
AW-8400-0021 Low pressure detergent injector (fits All models, except HS-3506 and HS-3006)
HX-0130 Three-way ball valve (fits All models)
HX-0131 High pressure detergent injector, K7 (fits 3000 to 3500-PSI models)
HX-0133 Steam combination 250 deg F, K7 (fits HS-3005 and HS-3505 models)
HX-0135 Steam combination 250 deg F, K7 (fits HS-3506-1MGH)
HX-0136 Steam combination 250 deg F, K7 (fits HS-3006-0MDK)
HX-0138 Steam combination 250 deg F (fits HS-3005-0MGV Requires trapping unloader)
HX-0139 Steam combination 250 deg F (fits HS-3505 models Requires trapping unloader)
HX-0140 Steam combination 250 deg F (fits HS-3506-1MGH Requires trapping unloader)
HX-0141 Steam combination 250 deg F (fits HS-3006-0MDK Requires trapping unloader)
HX-0142 Steam combination 250 degF (fits 4000-PSI models)
HX-0143 Trapping unloader (fits HS-3006 and HS-3506 models)
HX-0144 Dual gun (fits HS-3006 and HS-3506 models Requires trapping unloader)
HX-0145 Adjustable thermostat, 86-248 deg F (fits All models)
HX-0146 Hour meter (fits All models)
HX-0147 Four point lifting capability (fits All models)
HX-0148 Adjustable detergent valve (fits All models, Requires trapping unloader)
HX-0200 Trapping unloader (fits HS-3005 and HS-3505 models)
HX-0252 Pressure washer option for PWR-10-0ME1 trailer-mount package (fits HS-3505-1MGH)
PRESSURE WASHER ACCESSORIES
AW-7500-0035 ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001 ROTARY SURFACE CLEANER - 28 inch HEAD
AW-7015-2400 24' TELESCOPIC EXTENTION POLES
AW-3000-0000 WET SANDBLASTER ATTACHMENT
851-0338 4000 PSI HOSE WITH Q/C
851-0095 GUN & WAND ASSEMBLY
AW-4018-0026 ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026 HOUSE and DECK WASH (4 GALLON PER CASE)
AW-4059-0026 HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016 PUMP OIL(12 PINTS PER CASE)



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset unloader
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Kubota diesel engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, K7 flow actuated unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HS-3006-0MDK
PSI 3000
GPM 5.6
HP/Engine 15.5 HP Kubota
Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 836 lbs.
Shipping Weight 940 lbs.
Length 56.5 in.
Width 34 in.
Height 46 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset unloader,
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Kubota diesel engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, K7 flow actuated unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HS-3505-0MDK
PSI 3500
GPM 4.7
HP/Engine 15.5 HP Kubota
Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 836 lbs.
Shipping Weight 940 lbs.
Length 56.5 in.
Width 34 in.
Height 46 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset unloader,
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Kubota diesel engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, Trapping unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F
Specifications
Model HS-4005-0MDK
PSI 4000
GPM 4.5
HP/Engine 15.5 HP Kubota
Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
Net Weight 836 lbs.
Shipping Weight 940 lbs.
Length 56.5 in.
Width 34 in.
Height 46 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset unloader,
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Honda OHV gasoline engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time)  Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, K7 flow actuated unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HS-3505-1MGH
PSI 3500
GPM 4.7
Displacement/Engine 688cc Honda OHV
Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 750 lbs.
Shipping Weight 854 lbs.
Length 50 in.
Width 34 in.
Height 46 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Factory preset unloader,
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Honda OHV gasoline engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, K7 flow actuated unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HS-3506-1MGH
PSI 3500
GPM 5.6
Displacement/Engine 688cc Honda OHV
Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 760 lbs.
Shipping Weight 854 lbs.
Length 50 in.
Width 34 in.
Height 46 in.



View Product Sheet

  • Pump: Belt drive triplex piston AR pump with ceramic plungers, Factory preset unloader,
  • Forged brass manifold, 80-mesh, high volume, stainless-steel screen inlet water strainer
  • Engine: Industrial Honda OHV gasoline engine with electric start (battery included)
  • Frame: Heavy-duty powder coated 1 1/2-inch steel square tube frame
  • Components: Pressure relief valve protects against excessive system pressure, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner and engine fuel tanks, 1/2-inch schedule 80-coil with stainless-steel wrap, Heavy-duty dual cogged belt drive system, High quality fuel filter/water separator ensures clean fuel supply, 2900-watt generator delivers clean power to the burner, Trapping unloader
  • Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree)  50-foot x 3/8-inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with safety lock-off
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HS-4004-1MAH
PSI 4000
GPM 4.0
Displacement/Engine 688cc Honda OHV
Fuel Capacity 10.0 gallon
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 3.37 gph
BTU Per Hour 471,800
Net Weight 750 lbs.
Shipping Weight 854 lbs.
Length 50 in.
Width 34 in.
Height 46 in.



HS-3005-0MGV
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3005-0MGV
MTMHS-3005-0MGV
lease to own for as little as:$140 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,024.22

39
HS-3505-1MGH
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3505-1MGH
MTMHS-3505-1MGH
lease to own for as little as:$158 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,880.66

39
HS-3505-1MGK
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3505-1MGK
MTMHS-3505-1MGK
lease to own for as little as:$152 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,616.68

39
HS-3506-1MGH
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3506-1MGH
MTMHS-3506-1MGH
lease to own for as little as:$162 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,096.17

39
HS-4004-1MAK
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-4004-1MAK
MTMHS-4004-1MAK
lease to own for as little as:$154 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,677.30

39
HS-4004-1MAH
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-4004-1MAH
MTMHS-4004-1MAH
lease to own for as little as:$160 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,998.84

39
HS-3506-1MGK
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3506-1MGK
MTMHS-3506-1MGK
lease to own for as little as:$159 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$7,959.49

39
HS-3008-1MGK
HOT WATER/GAS DRIVEN/OIL FIRED
Mfg. item #: HS-3008-1MGK
MTMHS-3008-1MGK
lease to own for as little as:$172 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,594.42

39
HS-3006-0MDK
HOT WATER/DIESEL/OIL FIRED
Mfg. item #: HS-3006-0MDK
MTMHS-3006-0MDK
lease to own for as little as:$273 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,637.91

39
HS-3505-0MDK
HOT WATER/DIESEL/OIL FIRED
Mfg. item #: HS-3505-0MDK
MTMHS-3505-0MDK
lease to own for as little as:$273 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,637.91

39
HS-4005-0MDK
HOT WATER/DIESEL/OIL FIRED
Mfg. item #: HS-4005-0MDK
MTMHS-4005-0MDK
lease to own for as little as:$284 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$14,211.78

39
20-1070A18
PANEL/FRONT COVER
Mfg. item #: 20-1070A18
MTM20-1070A18
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

205
20-1366A52
RAIN CAP - BLACK
Mfg. item #: 20-1366A52
MTM20-1366A52
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

205
50-0177
STACK ADAPTER ASSY
Mfg. item #: 50-0177
MTM50-0177
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

205
850-0324
INSULATION GASKET
Mfg. item #: 850-0324
MTM850-0324
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

205
AW-5740-0000
WHEEL KIT FOR SKID UNITS
Mfg. item #: AW-5740-0000
MTMAW-5740-0000
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-6000-1006
COVER/SKID UNIT 58LX36DX48H
Mfg. item #: AW-6000-1006
MTMAW-6000-1006
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-8400-0021
ACC-CHEM INJ 2.1MM 3-5 GPM
Mfg. item #: AW-8400-0021
MTMAW-8400-0021
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0130
OPTION-3 WAY BALL VALVE
Mfg. item #: HX-0130
MTMHX-0130
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0131
OPTION-DETERGENT K7
Mfg. item #: HX-0131
MTMHX-0131
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0133
OPTN-STEAM K7 HS-3005/6&3505/6
Mfg. item #: HX-0133
MTMHX-0133
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0135
OPTION-STEAM K7 HS-3506
Mfg. item #: HX-0135
MTMHX-0135
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

459
HX-0136
OPTION-STEAM K7 HS-3006
Mfg. item #: HX-0136
MTMHX-0136
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

459
HX-0138
OPTION-STEAM ST261 HS-3005
Mfg. item #: HX-0138
MTMHX-0138
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0139
OPTION-STEAM ST261 HS-3505
Mfg. item #: HX-0139
MTMHX-0139
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0140
OPTION-STEAM ST261 HS-3506
Mfg. item #: HX-0140
MTMHX-0140
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0141
OPTION-STEAM ST261 HS-3006
Mfg. item #: HX-0141
MTMHX-0141
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0142
OPTION-STEAM HS-4004/4005
Mfg. item #: HX-0142
MTMHX-0142
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0143
OPTION-TRAP UNLOADER 6GPM UNIT
Mfg. item #: HX-0143
MTMHX-0143
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0144
OPTION-DUAL GUN HS-3006/3506
Mfg. item #: HX-0144
MTMHX-0144
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0145
OPTION-ADJ THERMO-HS UNITS
Mfg. item #: HX-0145
MTMHX-0145
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0146
OPTION-HOUR METER-HS UNITS
Mfg. item #: HX-0146
MTMHX-0146
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0147
OPTION-LIFTING HOOK-HS UNITS
Mfg. item #: HX-0147
MTMHX-0147
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0148
OPTION-DETERGENT PSI TRAPPING
Mfg. item #: HX-0148
MTMHX-0148
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0200
OPTION-TRAP UNLOADER 5GPM UNIT
Mfg. item #: HX-0200
MTMHX-0200
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
HX-0252
OPTION-HS/HVS PWR TRAILER UNIT
Mfg. item #: HX-0252
MTMHX-0252
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-7500-0035
ACC-ROTATE NOZZLE 6000PSI #3.5
Mfg. item #: AW-7500-0035
MTMAW-7500-0035
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

205
AW-7020-8001
28 SURFACE CLEANER
Mfg. item #: AW-7020-8001
MTMAW-7020-8001
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-7015-2400
24 TELESCOPIC EXTENTION POLES
Mfg. item #: AW-7015-2400
MTMAW-7015-2400
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

459
AW-3000-0000
KIT-SANDBLAST
Mfg. item #: AW-3000-0000
MTMAW-3000-0000
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

459
851-0338
HOSE 3/8X50 4000PSI R1 GRAY
Mfg. item #: 851-0338
MTM851-0338
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
851-0095
GUN, BLACK WAND GRIP W/QC
Mfg. item #: 851-0095
MTM851-0095
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-4018-0026
ALL PURPOSE - GALLON
Mfg. item #: AW-4018-0026
MTMAW-4018-0026
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-4034-0026
HEAVY DUTY DEGREASER - GALLON
Mfg. item #: AW-4034-0026
MTMAW-4034-0026
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-4059-0026
DECK & HOUSE WASH - GALLON
Mfg. item #: AW-4059-0026
MTMAW-4059-0026
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
AW-4085-0016
Mfg. item #: AW-4085-0016
MTMAW-4085-0016
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

39
Copyright © 2024 Smith-Hamilton, Inc
0.030 240423 11:25
