Mi-T-M HSE Series Electric Pressure Washers

HSE-1002-0MG10 HSE-1002-0MM11 HSE-1002-0MM11 HSE-1002-0MM11
HSE-1002-0MG10 HSE-1002-0MM11 HSE-1502-0MG10 HSE-1502-0MG11
HSE-1002-0MM11 HSE-1002-0MM11 HSE-2504-0M10 HSE-2504-0M30
HSE-2003-0MG10 HSE-2003-0MG11 HSE-2504-0M10 HSE-2504-0M30
HSE-3004-0M10 HSE-3004-0M30 HSE-3504-0M10 HSE-3504-0M30
HSE-3004-0M10 HSE-3004-0M30 HSE-3504-0M10 HSE-3504-0M30





Models and Accessories
HSE-1002-0MM11 HOT WATER/ELEC/OIL FIRED
HSE-1502-0MM11 HOT WATER/ELEC/OIL FIRED
HSE-1002-0MG10 HOT WATER/ELEC/OIL FIRED
HSE-2003-0MM11 HOT WATER/ELEC/OIL FIRED
HSE-1502-0MG10 HOT WATER/ELEC/OIL FIRED
HSE-2003-0MG10 HOT WATER/ELEC/OIL FIRED
HSE-2504-0M30 HOT WATER/ELECTRIC/OIL FIRED
HSE-2504-0M10 HOT WATER/ELECTRIC/OIL FIRED
HSE-3004-0M30 HOT WATER/ELECTRIC/OIL FIRED
HSE-3004-0M10 HOT WATER/ELECTRIC/OIL FIRED
HSE-3504-0M30 HOT WATER/ELECTRIC/OIL FIRED
HSE-3504-0M10 HOT WATER/ELECTRIC/OIL FIRED
Options and Accessories
50-0161 High pressure detergent injector (fits All models)
850-0433 50-ft. x 3⁄8-in. high pressure hose (fits All models)
HX-0232 300 deg F steam (fits HSE-1002-0MG10)
HX-0233 Adjustable thermostat, 86-248 deg F (fits All models)
HX-0235 Hour meter (fits All models)
HX-0237 Auto start/stop (fits HSE-1002-0MM11)
HX-0238 Time delay shutdown (fits HSE-1002-0MM11)
HX-0239 300 deg F steam (fits HSE-1002-0MM11)
HX-0240 300 deg F steam (fits HSE-2003-0MG10)
HX-0241 300 deg F steam (fits HSE-2003-0MM11)
HX-0243 Auto start/stop (fits 2000-PSI models)
HX-0244 Time delay shutdown (fits 2000-PSI models)
HX-0245 300 deg F steam (fits HSE-1502-0MM11)
HX-0246 300 deg F steam (fits HSE-1502-0MG10)
HX-0275 Auto start/stop (fits HSE-1502-0MM11)
HX-0276 Time delay shutdown (fits HSE-1502-0MM11)
PRESSURE WASHER ACCESSORIES
AW-7500-0035 ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001 ROTARY SURFACE CLEANER - 28" HEAD
AW-7015-2400 24' TELESCOPIC EXTENTION POLES
AW-3000-0000 WET SANDBLASTER ATTACHMENT
851-0338 4000 PSI HOSE WITH Q/C
851-0095 GUN & WAND ASSEMBLY
AW-4018-0026 ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026 HOUSE and DECK WASH (4 GALLON PER CASE)
AW-4059-0026 HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016 PUMP OIL(12 PINTS PER CASE)



View Product Sheet

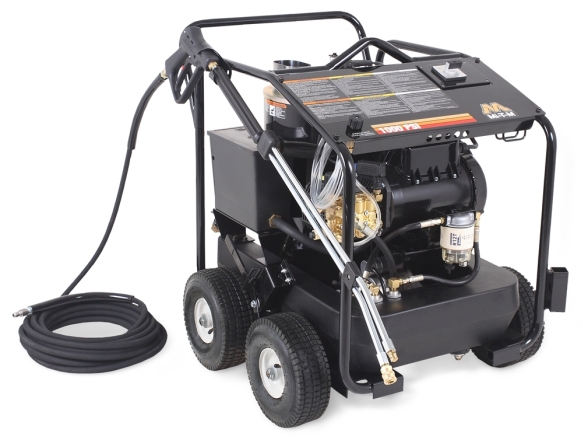

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-1002-0MG10
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 1.5 HP, 120V, 1ph,15.0A
PUMP General
Mi-T-M NO. 3-0071
PLUG TYPE NEMA 5-15P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.33 gph
BTU PER
HOUR
186,000
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 418 lb.
NET WT 295 lb.





View Product Sheet

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-1002-0MM11
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 1.5 HP, 120V, 1ph,15.0A
PUMP Mi-T-M
Mi-T-M NO. 3-0383
PLUG TYPE NEMA 5-15P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.33 gph
BTU PER
HOUR
186,000
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 410 lb.
NET WT 237 lb.



View Product Sheet

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-1502-0MG10
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 2.0 HP, 120V, 1Ø, 19.0A
PUMP General
Mi-T-M NO. 3-0071
PLUG TYPE NEMA 5-20P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.21 gph
BTU PER
HOUR
169,000
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 422 lb.
NET WT 299 lb.



View Product Sheet

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-1502-0MM11
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 2.0 HP, 120V, 1Ø, 19.0A
PUMP Mi-T-M
Mi-T-M NO. 3-0383
PLUG TYPE NEMA 5-20P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.21 gph
BTU PER
HOUR
169,000
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 414 lb.
NET WT 291 lb.





View Product Sheet

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-2003-0MG10
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 4.0 HP, 230V, 1Ø, 18.0A
PUMP General
Mi-T-M NO. 3-0168
PLUG TYPE NEMA 6-20P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.48 gph
BTU PER
HOUR
207,200
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 439 lb.
NET WT 316 lb.





View Product Sheet

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:

  • Forged brass manifold
  • Thermal relief valve
  • High pressure detergent injector (Available as an option on 0MM11 models)

Motor:

  • Totally enclosed fan-cooled electric motor with manual thermal overload protection
  • 35-foot power cord

Frame:

  • Reinforced powder coated steel tube frame with center balanced lift
  • Convenient gun/wand holder and hose wrap
  • 13-inch flat-free tires

Components:

  • Energy-efficient top-fired heat exchanger
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:

  • Temperature rise 150 deg F/66 deg C above ambient, maximum outlet temperature is 200 deg F

Unit Includes:

  • Quick connect nozzles - 0, 15, 25 and 40 deg
  • 50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects
  • Professional-grade insulated trigger gun with safety lock-off
  • Adjustable pressure insulated dual lance

Limited Warranties:

  • 1 year electric motor
  • 3 year coil
  • 7 year General and Mi-T-M pumps

Certification:

  • CSA Certified - US and Canada
Specifications
MODEL NUMBER HSE-2003-0MM11
PSI 1000
GPM 2.0
HORSEPOWER/MOTOR 4.0 HP, 230V, 1Ø, 18.0A
PUMP Mi-T-M
Mi-T-M NO. 3-0420
PLUG TYPE NEMA 6-20P
BURNER FUEL
TANK CAP.
4.0 gallons
BURNER
FUEL CONS.
1.48 gph
BTU PER
HOUR
207,200
DIMENSIONS
(LxWxH)
43x29.5x36.5in.
SHIP WT. 431 lb.
NET WT 308 lb.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord with ground fault circuit interrupter
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time)  Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors  Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F
Specifications
Model HSE-2504-0M10
PSI 2500
GPM 3.2
Plug Type NEMA 6-30P
HP/Motor 6.0/230V, 1ph, 25.0A
Burner Fuel Tank Cap. 10.0
Burner Fuel Cons. 2.10 gph
BTU Per Hour 294,000
Net Weight 569 lbs.
Shipping Weight 699 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes Â· Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off,  Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications
Model HSE-2504-0M30
PSI 2500
GPM 3.2
HP/Motor 6.0/230-460V, 3ph, 16.0A
Burner Fuel Tank Cap. 10.0 gallon
Plug Type NEMA L15-20P
Burner Fuel Cons. 2.10 gph
BTU Per Hour 294,000
Net Weight 558 lbs.
Shipping Weight 688 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, Maximum outlet temperature is 200F
Specifications
Model HSE-3004-0M10
PSI 3000
GPM 3.5
HP/Motor 8.0/230V, 1ph, 36.0A
Plug Type NEMA 6-50P
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 2.10 gph
BTU Per Hour 294,000
Net Weight 607 lbs.
Shipping Weight 737 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications
Model HSE-3004-0M30
PSI 3000
GPM 3.5
HP/Motor 8.0/230-460V, 3ph, 24.0A
Plug Type NEMA L15-30P
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 2.10 gph
BTU Per Hour 294,000
Net Weight 602 lbs.
Shipping Weight 732 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time)  Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications
Model HSE-3504-0M10
PSI 3500
GPM 3.3
HP/Motor 10.0/230V, 1ph, 39.0A
Plug Type NEMA 6-50P
Burner Fuel Tank Cap. 10.0
Burner Fuel Cons. 2.1 gph
BTU Per Hour 294,000
Net Weight 631 lbs.
Shipping Weight 761 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



View Product Sheet

  • Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, High pressure detergent injection
  • Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 35-foot power cord
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Electric cord hanger, Powder coated steel gun/wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Float tank, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time)  Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Electrodes are self-gapping for proper ignition and combustion, Energy efficient top-fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, Heavy-duty dual cogged belt drive system to prevent slippage
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications
Model HSE-3504-0M30
PSI 3500
GPM 3.3
HP/Motor 10.0/230-460V, 3ph, 28.0A
Plug Type NEMA L15-30P
Burner Fuel Tank Cap. 10.0 gallon
Burner Fuel Cons. 2.10 gph
BTU Per Hour 294,000
Net Weight 612 lbs.
Shipping Weight 742 lbs.
Length 49.5 in.
Width 28 in.
Height 40.5 in.



HSE-1002-0MM11
HOT WATER -DIRECT DRIVE 1000 PSI 2.0 GPM 1.5 HP ELECTRIC
Mfg. item #: HSE-1002-0MM11
MTMHSE-1002-{04
lease to own for as little as:$66 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,300.84

104
HSE-1502-0MM11
HOT WATER -DIRECT DRIVE 1500 PSI 2.0 GPM 2.0 HP ELECTRIC
Mfg. item #: HSE-1502-0MM11
MTMHSE-1502-{01
lease to own for as little as:$70 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,485.52

104
HSE-1002-0MG10
HOT WATER -DIRECT DRIVE 1000 PSI 2.0 GPM 1.5 HP ELECTRIC
Mfg. item #: HSE-1002-0MG10
MTMHSE-1002-{03
lease to own for as little as:$71 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,539.22

104
HSE-2003-0MM11
HOT WATER -DIRECT DRIVE 2000 PSI 2.8 GPM 4.0 HP ELECTRIC
Mfg. item #: HSE-2003-0MM11
MTMHSE-2003-{01
lease to own for as little as:$75 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,732.12

104
HSE-1502-0MG10
HOT WATER -DIRECT DRIVE 1500 PSI 2.0 GPM 2.0 HP ELECTRIC
Mfg. item #: HSE-1502-0MG10
MTMHSE-1502-{02
lease to own for as little as:$75 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,736.51

104
HSE-2003-0MG10
HOT WATER -DIRECT DRIVE 2000 PSI 2.8 GPM 4.0 HP ELECTRIC
Mfg. item #: HSE-2003-0MG10
MTMHSE-2003-{02
lease to own for as little as:$81 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$4,034.63

104
HSE-2504-0M30
HOT WATER -BELT DRIVE 2500 PSI 3.2 GPM 6.0 HP ELECTRIC PH3
Mfg. item #: HSE-2504-0M30
MTMHSE-2504-{01
lease to own for as little as:$115 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,732.54

104
HSE-2504-0M10
HOT WATER -BELT DRIVE 2500 PSI 3.2 GPM 6.0 HP ELECTRIC PH1
Mfg. item #: HSE-2504-0M10
MTMHSE-2504-{00
lease to own for as little as:$115 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,746.23

104
HSE-3004-0M30
HOT WATER -BELT DRIVE 3000 PSI 3.5 GPM 8.0 HP ELECTRIC PH3
Mfg. item #: HSE-3004-0M30
MTMHSE-3004-{01
lease to own for as little as:$119 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,971.47

104
HSE-3004-0M10
HOT WATER -BELT DRIVE 3000 PSI 3.5 GPM 8.0 HP ELECTRIC PH1
Mfg. item #: HSE-3004-0M10
MTMHSE-3004-{00
lease to own for as little as:$124 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,223.01

104
HSE-3504-0M30
HOT WATER -BELT DRIVE 3500 PSI 3.3 GPM 10.0 HP ELECTRIC PH3
Mfg. item #: HSE-3504-0M30
MTMHSE-3504-{01
lease to own for as little as:$125 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,233.97

104
HSE-3504-0M10
HOT WATER -BELT DRIVE 3500 PSI 3.3 GPM 10.0 HP ELECTRIC PH1
Mfg. item #: HSE-3504-0M10
MTMHSE-3504-{00
lease to own for as little as:$131 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,545.80

104
50-0161
ASSY-HIGH PRESSURE CHEM. INJ.
Mfg. item #: 50-0161
MTM50-0161
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$87.75

104
850-0433
EXTENSION HOSE ASSY 50FT W/QC
Mfg. item #: 850-0433
MTM850-0433
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$184.27

104
HX-0232
OPTION-300F STEAM-FLOAT TANK
Mfg. item #: HX-0232
MTMHX-0232
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$368.50

104
HX-0233
OPTION - ADJ THERMOSTAT 250F
Mfg. item #: HX-0233
MTMHX-0233
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$110.02

104
HX-0235
OPTION - HOUR METER
Mfg. item #: HX-0235
MTMHX-0235
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$85.35

104
HX-0237
OPTION - AUTO START/STOP
Mfg. item #: HX-0237
MTMHX-0237
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$471.80

104
HX-0238
OPTION - TIME DELAY SHUTDOWN
Mfg. item #: HX-0238
MTMHX-0238
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$446.46

104
HX-0239
OPTION - 300F STEAM
Mfg. item #: HX-0239
MTMHX-0239
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$440.61

104
HX-0240
OPTION-300F STEAM-FLOAT TANK
Mfg. item #: HX-0240
MTMHX-0240
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$372.37

104
HX-0241
OPTION - 300F STEAM
Mfg. item #: HX-0241
MTMHX-0241
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$435.74

104
HX-0243
OPTION - AUTO S/S
Mfg. item #: HX-0243
MTMHX-0243
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$537.11

104
HX-0244
OPTION - TIME DELAY SHUTDOWN
Mfg. item #: HX-0244
MTMHX-0244
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$511.28

104
HX-0245
OPTION - 300F STEAM
Mfg. item #: HX-0245
MTMHX-0245
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$418.68

104
HX-0246
OPTION-300F STEAM-FLOAT TANK
Mfg. item #: HX-0246
MTMHX-0246
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$368.00

104
HX-0275
OPTION - AUTO START/STOP
Mfg. item #: HX-0275
MTMHX-0275
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$422.58

104
HX-0276
OPTION - TIME DELAY SHUTDOWN
Mfg. item #: HX-0276
MTMHX-0276
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$368.50

104
AW-7500-0035
Mfg. item #: AW-7500-0035
MTMAW-7500-0035
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$188.50

104
AW-7020-8001
Mfg. item #: AW-7020-8001
MTMAW-7020-8001
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,918.08

104
AW-7015-2400
Mfg. item #: AW-7015-2400
MTMAW-7015-2400
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

230
AW-3000-0000
Mfg. item #: AW-3000-0000
MTMAW-3000-0000
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$267.50

104
851-0338
HOSE 3/8X50 4000PSI R1 GRAY
Mfg. item #: 851-0338
MTM851-0338
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$177.98

104
851-0095
Mfg. item #: 851-0095
MTM851-0095
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$107.02

104
AW-4018-0026
Mfg. item #: AW-4018-0026
MTMAW-4018-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

104
AW-4034-0026
Mfg. item #: AW-4034-0026
MTMAW-4034-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

104
AW-4059-0026
Mfg. item #: AW-4059-0026
MTMAW-4059-0026
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$23.00

104
AW-4085-0016
Mfg. item #: AW-4085-0016
MTMAW-4085-0016
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$16.00

104
Copyright © 2022 Smith-Hamilton, Inc
0.029 221115 11:31
