Mi-T-M HSP-2403 Series Gas Pressure Wash

HSP-2403-0MGH HSP-2403-0MGR HSP-3003-3MGH HSP-3504-3MGH
HSP-2403-0MGH HSP-2403-0MGR HSP-3003-3MGH HSP-3504-3MGH





Models and Accessories
HSP-2503-0MMM HOT WATER/GAS/OIL FIRED
HSP-2503-0MMK HOT WATER/GAS/OIL FIRED
HSP-2503-0MMH HOT WATER/GAS/OIL FIRED
HSP-3504-3MGM HOT WATER PORTABLE WASHER
HSP-3504-3MGK HOT WATER PORTABLE WASHER
HSP-3003-3MGM HOT WATER/GAS/OIL FIRED
HSP-3504-3MGH HOT WATER PORTABLE WASHER
HSP-3504-3MGV HOT WATER PORTABLE WASHER
HSP-3003-3MGH HOT WATER PORTABLE WASHER
HSP-3003-3MGK HOT WATER/GAS/OIL FIRED
Options and Accessories
HX-0098 Electric start - sealed battery included HSP-3504-3MGH
HX-0233 Adjustable thermostat 2500-PSI models
HX-0234 Low pressure detergent injector 2500-PSI models
HX-0236 Hour meter 2500-PSI models
HX-0274 Rain cap 3000 to 3500-PSI models
HX-0279 Hour meter 3000 to 3500-PSI models
HX-0280 Adjustable thermostat 3000 to 3500-PSI models
HX-0281 Hour meter / adjustable thermostat 3000 to 3500-PSI models
50-0161 High pressure detergent injector All models
850-0433 50-ft. x 3⁄8-in. high pressure hose 3500-PSI models
851-0262 50-ft. x 3⁄8-in. high pressure hose 2500 to 3000-PSI models
PRESSURE WASHER ACCESSORIES
AW-7500-0035 ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001 ROTARY SURFACE CLEANER - 28" HEAD
AW-7015-2400 24' TELESCOPIC EXTENTION POLES
AW-3000-0000 WET SANDBLASTER ATTACHMENT
851-0338 4000 PSI HOSE WITH Q/C
851-0095 GUN & WAND ASSEMBLY
AW-4018-0026 ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026 HOUSE & DECK WASH (4 GALLON PER CASE)
AW-4059-0026 HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016 PUMP OIL(12 PINTS PER CASE)







View Product Sheet

  • Pump: Direct drive triplex piston AR pump, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, Low pressure detergent injection
  • Engine: Performance-proven Honda OHV engine with low-oil protection and recoil start
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Patented Electro Magnetic Firing (EMF) System, Energy efficient top fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, On/off burner switch
  • Unit Includes:  50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous:  Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications

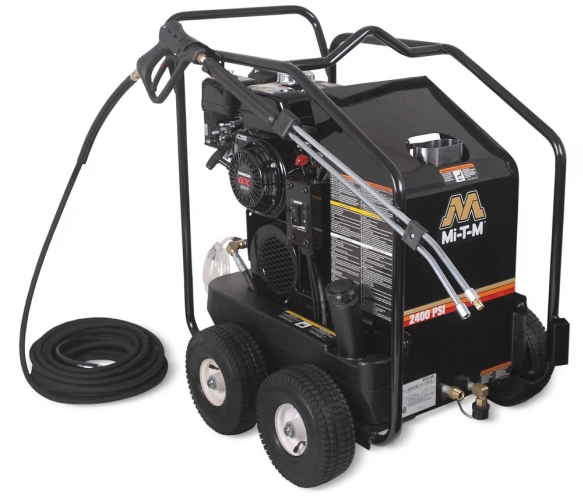

Model HSP-2403-0MGH
PSI 2400
GPM 2.6
Displacement/Engine 196cc Honda OHV
Gas Tank Cap. 0.97 gallon
Burner Fuel Tank Cap. 4.0 gallon
Burner Fuel Cons. 1.53 gph
BTU Per Hour 205,000
Net Weight 269 lbs.
Shipping Weight 385 lbs.
Length 38 in.
Width 30 in.
Height 38 in.



View Product Sheet

  • Pump: Direct drive triplex piston AR pump, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, Low pressure detergent injection
  • Engine: Performance-proven Subaru OHC engine with low-oil protection and recoil start
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time), Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Patented Electro Magnetic Firing (EMF) System, Energy efficient top fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, On/off burner switch
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications

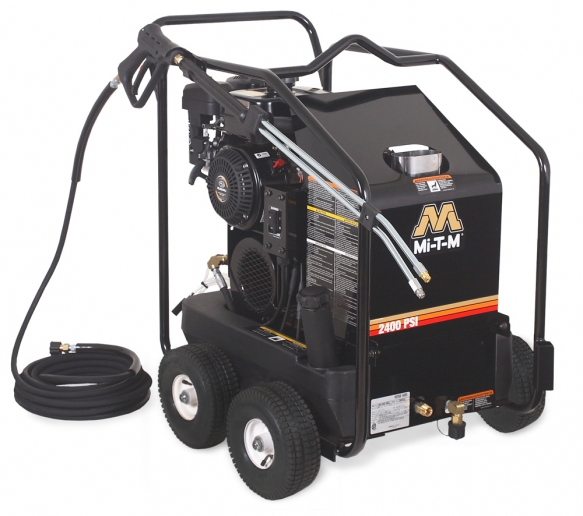

Model HSP-2403-0MGR
PSI 2400
GPM 2.6
Displacement/Engine 211cc Subaru OHC
Gas Tank Cap. 0.95 gallon
Burner Fuel Tank Cap. 4.0 gallon
Burner Fuel Cons. 1.53 gph
BTU Per Hour 205,000
Net Weight 269 lbs.
Shipping Weight 385 lbs.
Length 38 in.
Width 30 in.
Height 38 in.



View Product Sheet

  • Pump: Direct drive triplex piston AR pump, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, Low pressure detergent injection
  • Engine: Performance-proven Honda OHV engine with low-oil protection and recoil start
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time) Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Patented Electro Magnetic Firing (EMF) System, Energy efficient top fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, On/off burner switch
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications

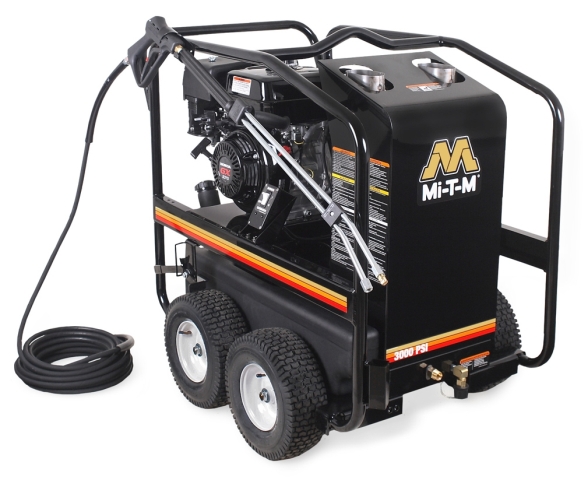

Model HSP-3003-3MGH
PSI 3000
GPM 2.9
Displacement/Engine 270cc Honda OHV
Gas Tank Cap. 1.59 gallon
Burner Fuel Tank Cap. 5.5 gallon
Burner Fuel Cons. 1.84 gph
BTU Per Hour 253,000
Net Weight 407 lbs.
Shipping Weight 530 lbs.
Length 43 in.
Width 30 in.
Height 41 in.



View Product Sheet

  • Pump: Direct drive triplex piston AR pump, Stainless-steel and brass unloader valve, Forged brass manifold, Thermal relief valve, Low pressure detergent injection
  • Engine: Performance-proven Honda OHV engine with low-oil protection and recoil start
  • Frame: Reinforced powder coated steel tube frame with center balanced lifting hook, Powder coated steel hose reel mounting bracket, Wand holder, Solid steel threaded axles, Four pneumatic tires with tubes, Locking tire brake
  • Components: High quality fuel filter/water separator ensures clean fuel supply, Complete system diagnostic board, Pressure and high limit safety controls, No. 1 or No. 2 diesel or kerosene fired burner (Bio-fuel not approved at this time)  Polyethylene burner fuel tank, Easy coil drain helps prevent freezing in cold weather, Patented Electro Magnetic Firing (EMF) System, Energy efficient top fired powder coated heat exchanger designed for convenient trouble-shooting and easy maintenance, On/off burner switch
  • Unit Includes: 50-foot x 3/8-inch steel wire-braided pressure hose with screw connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance with 15-degree fixed and detergent nozzle
  • Miscellaneous: Temperature rise 150F/66C above ambient, maximum outlet temperature is 200F

Specifications

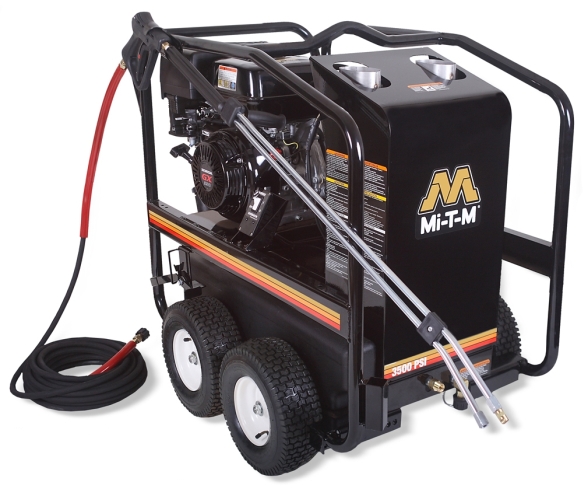

Model HSP-3504-3MGH
PSI 3500
GPM 3.3
Displacement/Engine 389cc Honda OHV
Gas Tank Cap. 1.70 gallon
Burner Fuel Tank Cap. 5.5 gallon
Burner Fuel Cons. 2.14 gph
BTU Per Hour 294,000
Net Weight 428 lbs.
Shipping Weight 551 lbs.
Length 43 in.
Width 30 in.
Height 41 in.
