Mi-T-M Portable Single Stage Electric Air Compress



AM1-HE15-03M 3-Gallon Single Stage Electric	AM1-HE02-04M 4-Gallon Single Stage Electric	AM1-PE02-05M 5 Gallon Single Stage Electric	AM1-HE02-05M 5-Gallon Single Stage Electric

AM1-PE02-08M 8-Gallon Single Stage Electric	AM1-PE15-08M 8-Gallon Single Stage Electric	AM1-PE02-20M 20-Gallon Single Stage Electric	AM1-PE15-20M 20-Gallon Single Stage Electric

Models
AM1-HE15-03M	3-Gallon Single Stage Electric
AM1-HE02-04M	4-Gallon Single Stage Electric
AM1-PE02-05M	5 Gallon Single Stage Electric
AM1-HE02-05M	5-Gallon Single Stage Electric
AM1-PE02-08M	8-Gallon Single Stage Electric
AM1-PE15-08M	8-Gallon Single Stage Electric
AM1-PE02-20M	20-Gallon Single Stage Electric
AM1-PE15-20M	20-Gallon Single Stage Electric
Options
AW-6000-1002	Equipment cover (fits All models)
AX-0002	Auto drain/regulator/plastic bowl (fits All models)
AX-0003	Manual drain/regulator/metal bowl (fits All models)
AX-0008	Dual control - continuous run and auto start/stop (fits All models)
AX-0027	Stationary kit (fits All models)
AX-0002	Auto drain/regulator/plastic bowl
AX-0003	Manual drain/regulator/metal bowl
AX-0005	Dual control - continuos run and auto start/stop
AX-0008	Dual control - continuos run and auto start/stop
AX-0027	Stationary kit
AX-0078	Stationary option

3-Gallon Single Stage Electric

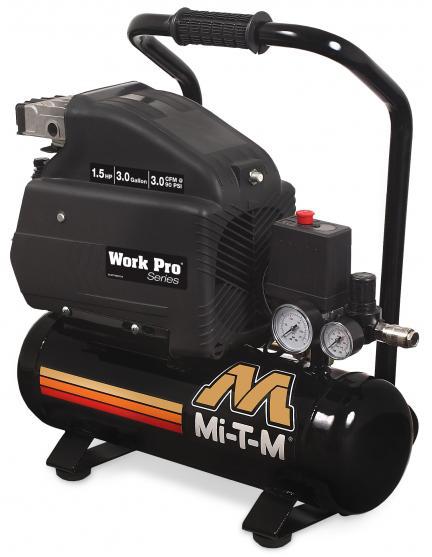

AM1-HE15-03M 3-Gallon Single Stage Electric

The perfect size for jobs around the house or small workshop. Completely portable, the Work ProÃÂ® Series delivers great air power for drills, grinders and nail guns. This single stage compressor is built to perform and built to last.

Compressor Pump:

Quality single stage compressor
Cast iron cylinder
Oil lubricated aluminum crankcase
Copper line discharge hose
Cartridge air filter

Motor:

120V single-phase 60-Hz. motor with 15-amp plug
Thermal overload motor protection

Frame:

3-gallon powder coated tank assembly
Protective pump/motor housing
Powder coated steel frame design
Rubber handle for cushioned grip
Rubber isolators

Components:

Regulator and two gauges for tank and outlet pressure
Drain valves and pressure relief valve
Start/stop control set at 95 to 125-PSI
Industrial interchange quick connect fittings

Specifications
Model	AM1-HE15-03M
CFM at 90 PSI	3
Horsepower/ Motor	1.5 HP, 120V, 15.0A
Compressor	Single stage
Cylinder	Cast iron
Tank Size	3-gallon
Type	Hand carry
Plug Type	NEMA 5-15P
Net Weight	41 lbs.
Shipping Weight	46 lbs.
Length	22.5 in.
Width	10.5 in.
Height	22.25 in.

4-Gallon Single Stage Electric

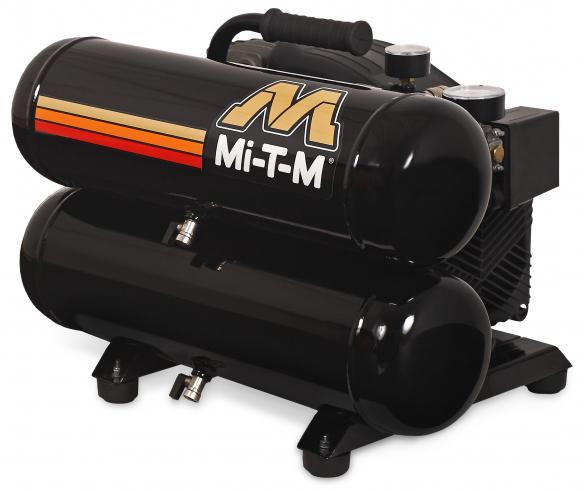

AM1-HE02-04M 4-Gallon Single Stage Electric

The perfect size for jobs around the house or small workshop. Completely portable, the Work ProÃâÃÂ® Series delivers great air power for drills, grinders and nail guns. This single stage compressor is built to perform and built to last.

Compressor Pump:

Quality single stage compressor
Cast iron cylinder
Oil lubricated aluminum crankcase
Copper line discharge hose
Cartridge air filter

Motor:

120V single-phase 60-Hz. motor with 15-amp plug
Thermal overload motor protection

Frame:

4-gallon powder coated tank assembly
Protective pump/motor housing
Powder coated steel frame design
Rubber handle for cushioned grip
Rubber isolators

Components:

Regulator and two gauges for tank and outlet pressure
Drain valves and pressure relief valve
Start/stop control set at 95 to 125-PSI
Industrial interchange quick connect fittings

Specifications
Model	AM1-HE02-04M
CFM at 90 PSI	4.2
Horsepower/ Motor	2.0 HP, 120V, 15.0A
Compressor	Single stage
Cylinder	Cast iron
Tank Size	4-gallon
Type	Hand carry
Plug Type	NEMA 5-15P
Net Weight	60 lbs.
Shipping Weight	68 lbs.
Length	21.5 in.
Width	16 in.
Height	15.75 in.

5- Gallon Single Stage Electric

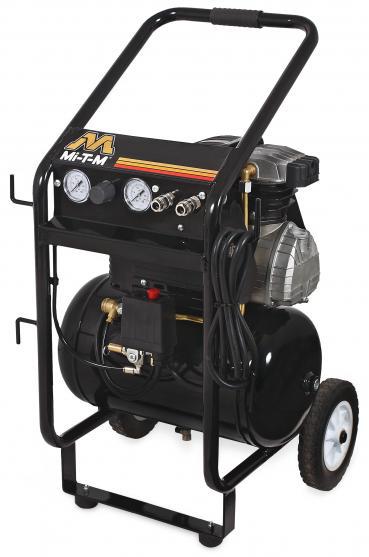

AM1-PE02-05M 5 Gallon Single Stage Electric

The perfect size for jobs around the house or small workshop. Completely portable, the Work Pro Series delivers great air power for drills, grinders and nail guns. This single stage compressor is built to perform and built to last.

Compressor Pump:

Quality single stage compressor
Cast iron cylinder
Oil lubricated aluminum crankcase
Copper line discharge hose
Cartridge air filter

Motor

120V single-phase 60-Hz. motor with 15-amp plug
Thermal overload motor protection

Frame

5-gallon powder coated tank assembly
Protective pump/motor housing
Powder coated steel frame design
Rubber handle for cushioned grip
Rubber isolators

Components:

Regulator and two gauges for tank and outlet pressure
Drain valves and pressure relief valve
Start/stop control set at 95 to 125-PSI
Industrial interchange quick connect fittings

Specifications
Model	AM1-PE02-05M
CFM at 90 PSI	4.2
Horsepower/ Motor	2.0 HP, 120V, 15.0A
Compressor	Single stage
Cylinder	Cast iron
Tank Size	5-gallon
Type	Portable
Plug Type	NEMA 5-15P
Net Weight	69 lbs.
Shipping Weight	79 lbs.
Length	19.75 in.
Width	19 in.
Height	33.5 in.

5-Gallon Single Stage Electric - AM1-HE02-05M

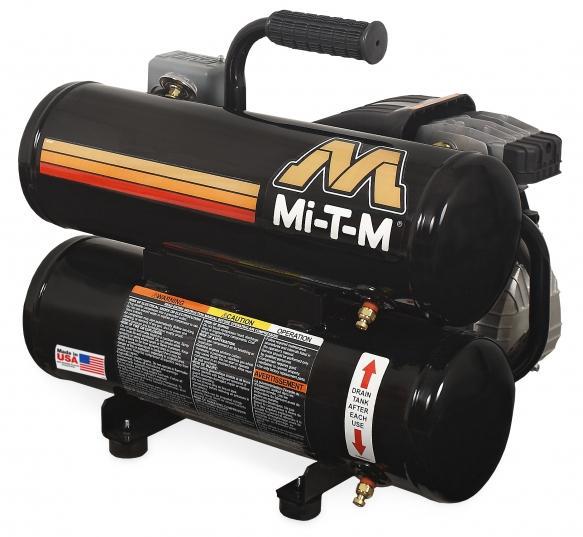

AM1-HE02-05M 5-Gallon Single Stage Electric

Easy to use yet big on performance, this 5-gallon air compressor is the perfect tool for any jobsite where electricity is accessible. Perfect for finishing work, it provides enough power for nail guns and drills.

Compressor Pump:

Oil lubricated aluminum crankcase
Stainless-steel braided discharge hose
Inlet air filter

Motor:

Thermal overload motor protection

Frame:

Powder coated tank assembly
Protective pump/motor housing

Components:

Regulator and two gauges for tank and outlet pressure
Drain and pressure relief valves
Start/stop control set at 95 to 125-PSI
Industrial interchange quick connect fittings

Limited Warranties:

1 Year Compressor Pump Warranty
1 Year Electric Motor

Certification:

CSA Certified
US and Canada

Specifications
Model	AM1-HE02-05M
CFM at 100 PSI	4.2
HP/Motor	2.0/120V, 15.0A Electric
Compressor	Single stage
Cylinder	Cast iron
Tank Size	5-gallon
Plug Type	NEMA 5-15P
Net Weight	61 lbs.
Shipping Weight	70 lbs.
Length	20.5 in.
Width	15.5 in.
Height	17.5 in.

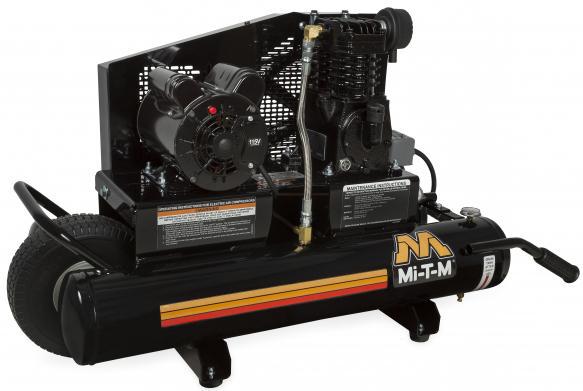

AM1-PE02-08M 8-Gallon Single Stage Electric

The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns. Its portability makes it a great choice on many jobsites.

Compressor Pump:

Quality cast iron single stage compressor
Stainless-steel braided discharge hose
Splash lubricated cast iron crankcase to extend the hours of performance
Cast iron head for heat dissipation
Large canister intake filter
Oil level sight indicator

Motor:

Industrial UL-listed electric motor
Auto start/stop (continuous run optional)
Thermal overload protection

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Convenient lifting handles
10-inch flat-free tire

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
Industrial grade pressure switch
10-inch flywheel for extra cooling and longer life
Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications
Model	AM1-PE02-08M
CFM at 90 PSI	9.2
HP/Motor	2.0/120V, 18.8A Electric
Compressor	Single stage, cast iron
Plug Type	NEMA 5-20P
Net Weight	183 lbs.
Shipping Weight	203 lbs.
Length	44.5 in.
Width	18.5 in.
Height	25 in.

Options
AX-0078	Stationary option
AX-0005	Dual control - continuos run and auto start/stop
AX-0003	Manual drain/regulator/metal bowl
AX-0002	Auto drain/regulator/plastic bowl

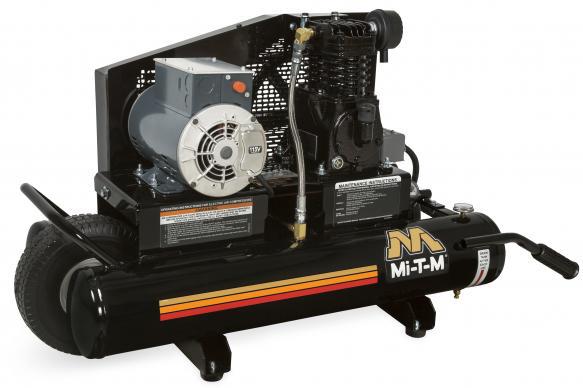

AM1-PE15-08M 8-Gallon Single Stage Electric

Compressor Pump:

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Motor:

Auto start/stop - continuous run optional
Thermal overload motor protection

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard
10-inch flat-free tire

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
Industrial grade pressure switch
10-inch fly wheel
Start/stop control set at 95 to 125-PSI (Not on continous run models)

Specifications
Model Number	AM1-PE15-08M
CFM at 90 PSI	7.3
Horsepower/ Motor	1.5 HP, 120V, 13.2A
Compressor	Single stage, cast iron
Tank Size	8-gallon
Plug Type	NEMA 5-15P
Net Weight	170 lbs.
Shipping Weight	190 lbs.
Length	44.5 in
Width	18.5 in
Height	25 in

Options
AX-0003	Manual drain/regulator/metal bowl
AX-0002	Auto drain/regulator/plastic bowl
AX-0078	Stationary option
AX-0005	Dual control - continuos run and auto start/stop

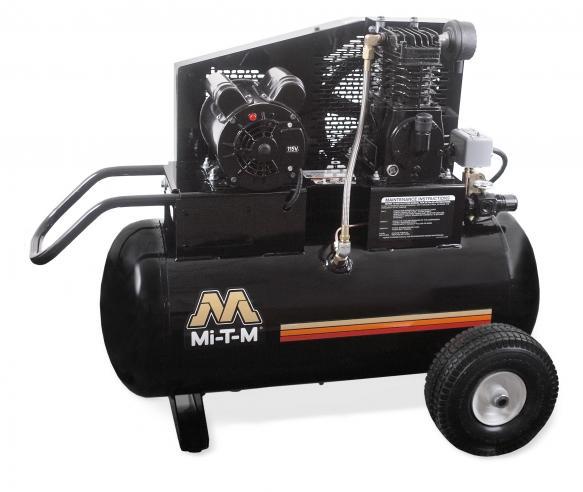

AM1-PE02-20M 20-Gallon Single Stage Electric

Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.

Compressor Pump:

Quality cast iron single stage compressor
Splash lubricated cast iron crankcase to extend the hours of performance
Cast iron head for heat dissipation
Large canister intake filter
Stainless-steel braided discharge hose
Oil level sight indicator

Motor:

Industrial UL-listed electric motor
Auto start/stop (continuous run optional)
Thermal overload motor protection

Frame:

Powder coated ASME coded 20-gallon receiver tank
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Convenient lifting handle
10-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
10-inch fly wheel for extra cooling and longer life
Manual drain valves for proper maintenance
Belt tightening system pulls engine straight to ensure constant belt alignment
Industrial grade pressure switch

Specifications
Model Number	AM1-PE02-20M
CFM at 90 PSI	9.2
Horsepower/ Motor	2.0 HP, 120V, 18.8A
Plug Type	NEMA 5-20P
Compressor	Single stage, cast iron
Tank Size	20-gallon
Net Weight	203 lbs
Shipping Weight	272 lbs
Length	40 in
Width	24 in
Height	32 in.

Options
AX-0027	Stationary kit
AX-0008	Dual control - continuos run and auto start/stop
AX-0003	Manual drain/regulator/metal bowl
AX-0002	Auto drain/regulator/plastic bowl

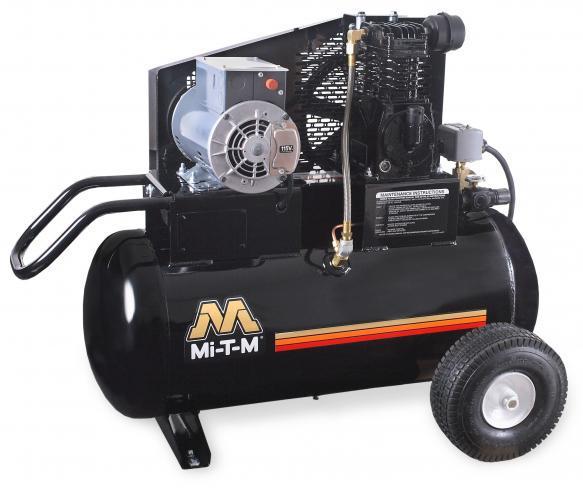

AM1-PE15-20M 20-Gallon Single Stage Electric

Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.

Compressor Pump

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Motor:

Auto start/stop - continuous run optional
Thermal overload motor protection

Frame:

Powder coated ASME coded 20-gallon receiver tank
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard
10-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
10-inch fly wheel
Manual drain valves for proper maintenance Â· Industrial grade pressure switch


Model Number	AM1-PE15-20M
CFM at 90 PSI	7.3
Horsepower/ Motor	1.5HP, 120V, 13.2A
Compressor	Single stage, cast iron
Tank Size	20-gallon
Plug Type	NEMA 5-15P
Net Weight	196 lbs.
Shipping Weight	265 lbs
Length	40 in
Width	24 in
Height	32 in.

Options
AX-0027	Stationary kit
AX-0002	Auto drain/regulator/plastic bowl
AX-0008	Dual control - continuos run and auto start/stop
AX-0003	Manual drain/regulator/metal bowl

Accessories
17-0053	AIR QC PLUG-1/4 IIS-1/4 FPT
17-0049	AIR QC PLUG-1/4 IIS-1/4 MPT
17-0050	AIR QC PLUG-1/4 AS-1/4 MPT
17-0054	AIR QC PLUG-1/4 AS-1/4 FPT
17-0052	AIR QC PLUG-1/4 ARO-1/4 MPT
17-0056	AIR QC PLUG-1/4 ARO-1/4 FPT
23-0017	BUSHING 1/4F X 3/8M HEX BRASS
23-0069	BARB 1/4MP X 3/8 HOSE-BRASS
17-0051	AIR QC PLUG-1/4 LS-1/4 MPT
17-0055	AIR QC PLUG-1/4 LS-1/4 FPT
23-0051	BARB 1/4MPX1/4 HOSE STD BRASS
23-0052	BARB 3/8MP X1/4 HOSE STD-BRASS
24-0010	NIPPLE 3/8" HEX - STEEL
24-0146	HEX NIPPLE 1/4M X 3/8M
17-0061	AIR QC PLUG-3/8 IIS-3/8 MPT
23-0073	BARB 3/8MP X 3/8 HOSE - BRASS
23-0103	NIPPLE 1/4M X 1/4M HEX-BRASS
24-0031	NIPPLE 1/2M X 1/2M HEX - STEEL
24-0145	HEX NIPPLE 1/4 MNPT X 1/4 MNPT
17-0062	AIR QC PLUG-3/8 IIS-3/8 FPT
23-0002	COUPLER 1/4F X 1/4F HEX-BRASS
23-0415	AIR HOSE SPLICER 1/4" BARBED
23-0416	AIR HOSE SPLICER 3/8" BARBED
24-0265	NIPPLE 1/2M X 1/4M HEX-STEEL
17-0044	AIR QC SOCKET-1/4 AS-1/4 MPT
24-0024	NIPPLE 1/2MPX3/8MP HEX - STEEL
AT-3002	AIR CHUCK-BALL FOOT
17-0043	AIR QC SOCKET-1/4 IIS-1/4 MPT
17-0045	AIR QC SOCKET-1/4 IIS-1/4 FPT
17-0048	AIR QC SOCKET-1/4 ARO-1/4 FPT
23-0050	ELBOW 3/8MX1/2"HOSE BARB-BRASS
19-0215	PLASTIC AIR FILTER COMPLETE
19-0226	AIR FILTER REPLACEMENT
17-0068	AIR QC SOCKET-1/4 IIS-3/8 MPT
19-0218	2" PAPER FILTER ELEMENT
19-0082	FILTER ELEMENT
AT-4008-M	AIR FILTER
17-0046	AIR QC SOCKET-1/4 AS-1/4 FPT
17-0067	AIR QC SOCKET-1/4 IIS-3/8 FPT
AW-0017-0045K	AIR QC SET-IIS-1/4F SOC 1/4MP
19-0220	PAPER FILTER ELEMENT
17-0047	AIR QC SOCKET-1/4 LS-1/4 FPT
19-0217	AIR FILTER ASSY 2.5"DIA-3/8MPT
AW-0017-0046K	AIR QC SET-AS-1/4F SOC 1/4 MP
AT-3004	AIR BLOWGUN-STANDARD
AT-3005	AIR BLOWGUN-SAFETY
AT-4007-M	AIR FILTER
17-0060	AIR QC SOCKET-3/8 IIS-3/8 FPT
17-0059	AIR QC SOCKET-3/8 IIS-3/8 MPT
22-0271	GAUGE 300PSI 1.5DIA-1/8NPTBKMT
22-0446	GAUGE 250PSI 40MM DIA-1/8NPT
AT-3001	AIR CHUCK-DUAL FOOT DIRECT
22-0326	REGULATOR - 1/4" NPT 250 PSI
19-0219	AIR FILTER ASSY 4.25"DIA-1"MPT
23-0414	AIR/WATER ADAPTER
19-0083	AIR FILTER ASSY 3.25"DIA-1/2MP
17-4952	COUPLER TEST BAR - AIR
15-0231	AIR HOSE-3/8"X25' PVC
AT-3007	AIR BLOWGUN 1 FT RUBBER TIP
70-0357	KIT-ENG OIL DRAIN
AT-3008	AIR BLOWGUN 2 FT RUBBER TIP
15-0230	AIR HOSE-3/8"X50' PVC
70-0358	KIT-ENGINE OIL DRAIN GX240-390
70-0380	KIT-ENGINE OIL DRAIN EX13-27
19-0240	AIR FILTER ASSY 4 X 1/2" NPT
AT-3009	AIR BLOWGUN 4 FT RUBBER TIP
854-0085	AIR HOSE ASSY-50' PVC W/QC'S
15-0327	AIR HOSE 3/8"X25' 1/4MNPT
19-0225	AIR FILTER ASSY 6"DIA X 3/4MPT
AT-3003	AIR INFLATOR-DELUXE
22-0231	REGULATOR
AT-4004-M	AIR FILTER-1/4" POLY BOWL
AT-4006-M	AIR FILTER-3/8" POLY BOWL
AW-9301-AT02	AIR COMPRESSOR ACCESSORY KIT
15-0328	AIR HOSE 3/8"X50' 1/4MNPT
AT-4005-M	AIR FILTER-1/2" METAL BOWL
AT-4009-M	LUBRICATOR-1/4" POLY BOWL
AT-4010-M	LUBRICATOR-3/8" POLY BOWL
AT-4011-M	FILTER/REGULATOR-3/8"
22-0358	REGULATOR 1/2"
AT-4012-M	DRAIN-1/4" AUTO ELECTRIC
