MultiQuip Water Trailers

Models
WT5C
WT5HP
WT8C
WT8HP

Water Trailers
WT5C	WATER TRAILER 525G TRLR70
WTE5C	WATER TRAILER 525G TRLR70 ELEC
WT5HP	WATER TRAILER 525G HP TRLR70
WTE5HP	WATER TRAILER 525G HP TRLR70 ELEC
WT8C	800-gallon water trailer with 2 inch centrifugal pump
WTE8C	WT8 Series, Electric Brakes
WT8CHR	WT8 Series, Electric Brakes, Hose reel assembly included
WTE8CHR	WT8 Series, Electric Brakes, Hose Reel assembly included
WT8HP	800-gallon water trailer with 2"high pressure centrifugal pump, hose reel included
WT5HR	ASM HOSE REEL WT5C
QP2HLF	Pump-Cent QP2H Less Frame for WT5C
QP205SHLF	Pump QP205SH Less Frame WT Series
Water Trailer Accessories
29228	Coupler 2 Ball Adjustable 8000
29369	PINTLE EYE 3 14K BLACK POWDER COAT
EE57033	Coupler 2 Adj Channel Mnt 7k
EE56638	Coupler 2-5/16 Adj Channel Mnt 12.5k

The WT5C (surge brakes) & WTE5C (electric brakes) are industrial 525 Gal. Mobile Water Trailers with trusted MQ 2ÃÆÃÂ¢ÃÂ¢Ã¢â¬Å¡ÃÂ¬ Centrifugal Pumps

WT5-Series-Internal-Tank-Support-Installation-rev-0-instructions

WT5C-WTE5C-rev-10-parts-manual

WT5C-WT5CSG Safety Chains Inspection SB WT20191031

TRLR70XF Brake Cover Instructions

WT5C Hose Reel Assembly Installation Instructions Rev 0

WT5C
WT5C (surge brakes)
WTE5C (electric brakes)
are industrial 525 Gal. Mobile Water Trailers with trusted MQ 2â Centrifugal Pumps

The Multiquip WT5C Water Trailer is ready to tackle a host of assignments to include: Dust Control, Emergency Fire Fighting Response, Construction, Agricultural Support and Equipment Wash Down. This mobile unit features: DOT approved Double-Axle Trailer, trusted high-flow MQ QP2H Centrifugal Pump, flexible Suction/Discharge manifold system with simple valve operations, and a rugged 525 GAL polyethylene Water Tank. The model WTE5C provides electric brakes

Features:

Store up to 525 gallons of water in a durable polyethylene water tank with integrated baffles to support water movement during transportation
Dependable performance with Multiquip QP2H 2 inch centrifugal pump
Components protected from damage by low profile manifold assembly
Switch easily from suction to discharge mode by turning a single manifold lever
Rear spray bar operates under pressurized or gravity feed settings
Quickly fill tank through 2in diameter steel pipe with QD coupler or vented 12in diameter fill port
Rapid hose setup with standard Quick Disconnect (cam and groove) fittings
Transport hoses and accessories in convenient steel storage bin
Safe towing and braking assured by a dual axle trailer and rugged hydraulic brake system
Convenient Hose Kit provided (2in x 20ft Suction and 2in x 50ft Discharge)

Specifications
Capacity	500 Gal.
Water Tank Material	525 Gal. Polyethylene
Fill Port	12 inch vented port
Fill Rate	Five minutes full fill at full throttle
Fill Methods	Municipal fire hydrant - QD; 1.5 inch and 2 inch Q/D cam and groove; Two standard garden hose adapters
Delivery Methods	1.5inch and 2 inch Left/Rt. (QD Couplers), three garden hose valves, rear spray bar
Pump Model	Multiquip QP2H 2 in.
Pump Type	Centrifugal
Flow / Head	158 GPM / 115 Ft.
Overall Length	146 in	3708.4 mm
Overall Width	68 in	1727.2 mm
Overall Height	80 in	2032 mm
Shipping Weight	1,428 lb	647.73 kg

The WT5HP (surge brakes) & WTE5HP (electric brakes) are industrial 525 Gal. Mobile Water Trailers with powerful MQ 2ÃÆÃÂ¢ÃÂ¢Ã¢â¬Å¡ÃÂ¬ High Pressure Centrifugal Pumps

WT5-Series-Internal-Tank-Support-Installation-rev-0-instructions

WT5HP-WTE5HP-rev-9-parts-manual

WT5HP
WT5HP (surge brakes)
WTE5HP (electric brakes) are industrial 525 Gal. Mobile Water Trailers with powerful MQ 2â High Pressure Centrifugal Pumps

The Multiquip WT5HP Water Trailer is ready to tackle a host of assignments to include: Dust Control, Emergency Fire Fighting Response, Construction, Agricultural Support and Equipment Wash Down. This mobile unit features: DOT/NHSTA approved Double-Axle Trailer, powerful high psi MQ QP205SH Centrifugal Pump, flexible Suction/Discharge manifold system with simple valve operations, hose reel assembly, and a rugged 525 GAL polyethylene Water Tank. The model WTE5HP provides electric brakes.

Features:

Store up to 525 gallons of water in a durable polyethylene water tank with integrated baffles to support water movement during transportation
Dependable high pressure performance with Multiquip QP205SH 2 inch centrifugal pump
QP205SH delivers 106 GPM/230 Ft HEAD/100 psi
Components protected from damage by low profile manifold assembly
Attached industrial Hose Reel assembly (1in x 50ft contractor hose and fog spray nozzle)
Switch easily from suction to discharge mode by turning a single manifold lever
Rear spray bar operates under pressurized or gravity feed settings
Quickly fill tank through 2in diameter steel pipe with QD coupler or vented 12in diameter fill port
Rapid hose setup with standard Quick Disconnect (cam and groove) fittings
Transport hoses and accessories in convenient steel storage bin
Safe towing and braking assured by a dual axle trailer and rugged hydraulic brake system
Convenient Hose Kit provided (2in x 20ft Suction)

specfications
Capacity	525 Gal.
Water Tank Material	525 Gal. Polyethylene
Fill Port	12 inch vented port
Fill Rate	Five minutes full fill at full throttle
Fill Methods	Municipal fire hydrant - QD 1.5 inch and 2 inch Q/D cam and groove Two standard garden hose adapters
Delivery Methods	1.5 and 2 inch Left/Rt. (QD Couplers), three garden hose valves, rear spray bar
Pump Model	MQ QP205SH 2 in.
Pump Type	High Pressure Centrifugal
Flow / Head	106 GPM / 230 Ft.
Overall Length	146 in	3708.4 mm
Overall Width	68 in	1727.2 mm
Overall Height	80 in	2032 mm
Operating Weight	1,428 lb	647.73 kg

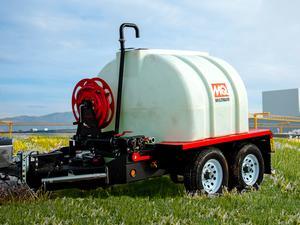

WT8C 800-gallon water trailer with 2" centrifugal pump

WT8C-WT8HP-series-rev-0-ops-manual

WT8C-Series-Hose-Reel-Installation-rev-0-instructions

Also Avaliable as:

WTE8C WT8 Series, Electric Brakes
WT8CHR WT8 Series, Electric Brakes, Hose reel assembly included
WTE8CHR WT8 Series, Electric Brakes, Hose Reel assembly included

The new 800-gallon water trailer delivers unmatched durability, efficiency, and versatility. Its in-frame water pump stays protected, while the intuitive manifold system allows seamless switching between suction and discharge. 2 x 20' quick coupler suction hose and 2 x 50' quick coupler discharge hose included. Designed for dust control, firefighting, construction, and more, itâs built to perform in the toughest conditions. Available with hydraulic brakes (WT8C) or electric brakes (WTE8C).

Features:

Store up to 800 gallons of clear water in a durable 3/8" polypropylene water tank
Dependable perfromance with Multiquip QP2H 2" centrifugal pump
Uniquely molded shape makes it stronger and resistant to warping
Water pump is set in the frame to provide added protection from damage
Intuitive manifold system allows seamless switching between suction and discharge simply by turning a lever
Rear spray bar delivers efficient water distribution with coverage up to 16â x 62â area
Quickly fill tank through a 2â diameter steel pipe with quick discharge coupler or through the 12â fill hole on top
Heavy duty tandem axle trailer
Ideal for dust control, emergency firefighting, construction, agricultural support and equipment wash down
Comes standard with convenient Hose Kit provided (2" x 20' Suction & 2" x 50' Discharge)
Made 100% in U.S.

Specifications
Capacity	800 Gal.
Water Tank Material	Polypropyene - 3/8" wall
Delivery Methods	1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar
Pump Model	Multiquip QP2H 2" centrifugal pump
Flow / Head	106 GPM / 230 Ft.
Overall Length	138 in	3,505 mm
Overall Width	77 in	1,955 mm
Overall Height	95 in	2,413 mm
Operating Weight	9,100 lb	4,128 kg
Shipping Weight	2,200 lb	998 kg

WT8C-WT8HP-series-rev-0-ops-manual

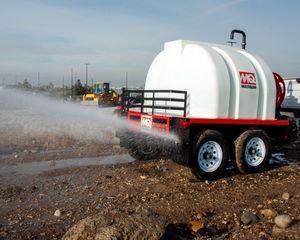

WT8HP - 800-gallon water trailer with 2"high pressure centrifugal pump, hose reel included

The new 800-gallon water trailer with high pressure pump delivers unmatched durability, efficiency, and versatility. Its in-frame water pump stays protected, while the intuitive manifold system allows seamless switching between suction and discharge. 2 x 20' quick coupler suction hose and 1 x 50' hose reel assembly included. Designed with larger project requriing a forceful flow rate in mind, it is perfect for firefighting, dust control, construction projects, and more, It’s built to perform in the toughest conditions. Available with with hydraulic brakes (WT8HP) or electric brakes (WTE8HP)

Features:

Store up to 800 gallons of clear water in a durable 3/8" polypropylene water tank
Dependable performance with Multiquip QP205SH 2 in. centrifugal pump
Uniquely molded shape makes it stronger and resistant to warping
High pressure water pump is set in the frame to provide added protection from damage
Intuitive manifold system allows seamless switching between suction and discharge simply by turning a lever
Rear spray bar delivers efficient water distribution with coverage up to 16’ x 62’ area
Quickly fill tank through a 2” diameter steel pipe with quick discharge coupler or through the 12” fill hole on top
Heavy duty tandem axle trailer
Ideal for dust control, emergency firefighting, construction, agricultural support and equipment wash down
Comes standard with convenient 2" x 20' Suction Hose Kit and convenient 1 x 50' hose reel assembly
Made 100% in U.S.

Specifications
Capacity	800 Gal.
Water Tank Material	Polypropyene - 3/8" wall
Fill Rate	106 GPM / 230 Ft.
Delivery Methods	1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar
Pump Model	Multiquip QP205SH
Pump Type	2" high pressure centrifugal pump
Flow / Head	106 GPM / 230 Ft.
Overall Length	138 in	3,505 mm
Overall Width	77 in	1,955 mm
Overall Height	95 in	2,413 mm
Operating Weight	9,100 lb	4,128 kg
Shipping Weight	2,200 lb	998 kg
