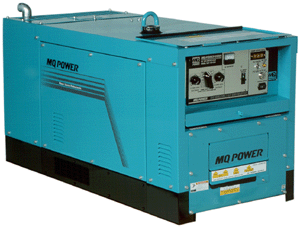

MultiQuip BLW-400SSW Welder


At a Glance
Details
Specifications
More Information
Accessories

BLW400SS

Multiquip's full-featured, engine-driven welder/generator lines are ideal for an astounding number of job site applications

This rugged diesel-powered combination welder/generator can draw AC power and serve as a welder simultaneously because it sparks up to 400 amps as a welder and 14kW as a generator (single phase). A 31-horsepower Kubota V1205 engine powers the BLW-400SS which continues to give operators the smoother arc characteristics and more consistent, quality welds they desire

There are no further details.

Specifications
Performance Data
Prime Output KW (KVA):	14 KW
Sound Level dB(A) - full load 23 feet	67.5
Rated Voltage:	34V Single, 27V Double
Current Range	70-400 Amps (Single), 35-200 Amps (Double)
Duty Cycle:	100% @ 350 Amps
Maximum Output - Amps:	400 Amps (Single), 200 Amps (Double)
Amperage:	n/a
Continuous Amps	116/58
Frequency / Phase	60 Hz Single Phase
Duty:	Continuous
Capacity	One man @ 400 Amp/Two man @ 200 Amp
Rated Speed:	n/a
Power Source
Displacement cu. in (cc):	1189 cc
Engine Cooling System:	n/a
Bore x Stroke (mm):	n/a
Fuel Consumption - full load - gph (lph):	1.61 gph
Fuel Consumption - 3/4 load - gph (lph):	n/a
Fuel Consumption - 1/2 load - gph (lph):	n/a
Fuel Consumption - 1/4 load - gph (lph):	n/a
Engine Coolant Capacity - gal (liters):	1.6 gal
Fuel Tank Capacity - gal (liters):	10.5 gal
Engine Design:	4-cycle, water cooled, direct injection
Engine Model:	V1205
Engine HP; rpm:	31 HP, 3600 RPM
Oil Capacity - gal (liters):	1.3 Gal
Engine Make:	Kubota
Starting System:	Starting System:
No. Cylinders:	4
Voltage/Phase:	120/240 V
Rated Output:	n/a
Dimensions
Overall Height - in. (cm):	34
Overall Length - in. (cm):	61
Operating Weight lbs. (kg):	Operating Weight lbs. (kg):
Overall Width in. (cm):	29

There is no further information.

There are no listed accessories.
