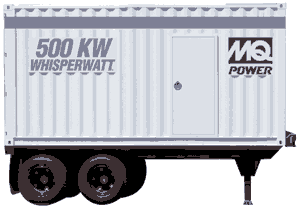

MultiQuip EGC-500DD Generator

s-h alt


MQ Power's WhisperWatt containerized generators boast superior workmanship and attention to detail.

The EGC-500DD features an oversized cooling system with three layers of sound-attenuating insulation, durable diamond-plated flooring, and a ladder and fuel platform for easy accessibility to the fuel tank. Standby output is 500kW and prime output 450kW. Powered by a 765-horsepower, V-8 Detroit Diesel engine, the EGC-500DD is fitted with an 800-gallon (3,040 liters) fuel tank

There are no further details.


Performance Data
Prime Output KW (KVA) 485 KW (606 KVA) @ 60HZ
Frequency 60Hz
Voltage Regulation- no load to full load +/- 2%
Generator Design Revolving Field, PMG
Frequency Regulation- no load to full load Isochronous
Frequency Regulation- steady state +/- 0.25%
Power Source
Displacement 984
Fuel Consumption- full load- gph 34.9
Fuel Consumption- 3/4 load-gph 26.8
Fuel Consumption-1/2 load- gph 19
Fuel Consumption- 1/4 load- gph 11.4
Fuel Tank Capacity- gal 800
Engine Design Turbocharged, Air to Air Intercooler
Engine Model TAD1631GE
Engine HP; rpm 730,1800
Engine Make Volvo
No. of Cylinders 6
Overall Height-in 102
Overall Length- in. 238
Overall Width- in 96
Generator Accessories
Automatic Start/Stop Control Standard
Battery Charger Standard
Engine Pre-Heater Standard
ISO Chassis Option
Fuel Filtering System- 2 Micron Option
Oil Reserve with Level Control Option
Fueling Platform Option
Access Ladders Option
Digital Control with NFPA shutdowns Standard
Double Wall Fuel Tank- 700 gal Option
Crankcase Ventilation Filtering System Standard
There is no further information.
There are no listed accessories.
