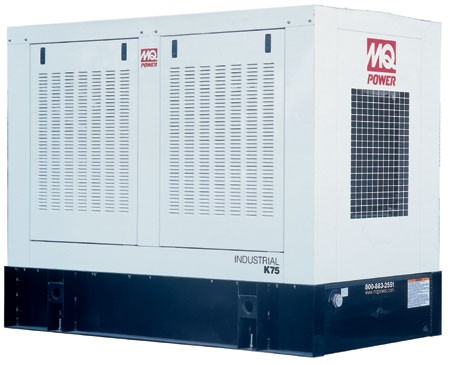

MultiQuip KD-75 Generator

KD75V
MQ Power's industrial generators feature the expertise and sophistication of our portable units but are built with the muscle and dependability required of an industrial unit.

The KD75V is the most compact generator in the industrial series line and produces 94kVA/75kW (standby) and 85kVA/68kW (prime) at 60 Hertz. Its 115-horsepower, 4-cycle Volvo diesel engine meets EPA emissions standards for mobile off-highway machines and it utilizes an encapsulated electronic voltage regulator to precisely regulate the current into the exciter field. Voltage regulation is +/-1 percent no load to full load.

There are no further details.

Specifications
Performance Data
Amps - Single Phase 120V	260
Amps - Three Phase - 240V	226
Amps - Three Phase - 480V	113
Voltage Regulation - no load to full load	+/- 1%
Maximum Amps @ 12	260
Maximum Amps @ 240V	250
Power Source
Displacement cu. in (cc):	290 (4.76 liter)
Bore x Stroke (mm):	4.25 (108) x 5.12 (130)
Fuel Consumption - full load - gph (lph):	6.1 (22.1)
Fuel Consumption - 3/4 load - gph (lph):	4.6 (17.3)
Fuel Consumption - 1/2 load - gph (lph):	3.1 (11.7)
Fuel Consumption - 1/4 load - gph (lph):	1.9 (7.1)
Engine Model	TD520GE 4-cycle, turbocharged
Fuel Type	Diesel
Engine Make	Volvo
Engine RPM	1,800
Dimensions
Wet Weight lbs. (kg):	2,460 (1,116)
Dry Weight lbs. (kg):	2,392 (1,085)
