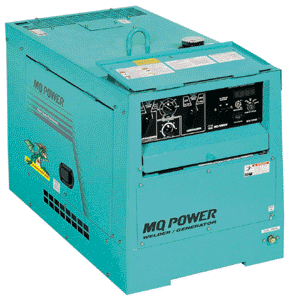

MultiQuip SDW-225SS Welder

SDW-225SS

This model delivers up to 225 amps of DC welding power in CC (constant current) or CV (constant voltage) mode. As a generator it provides up to 6kW of 120/240 volt AC power. This unit can be simultaneously used as welder and generator.

  • Suits SMAW, FCAW, GMAW, GTAW and ACAC welding processes

  • Operates as a 6kW generator and 225-amp welder

  • Powered by a 12.3-hp Kubota Z482 diesel engine

  • Brushless machine with a weather-resistant housing

  • Regulates voltage at 2%t

  • Low noise level of only 68.7dBA

  • Also available in light tower configuration as model MLTSDW7

  • Full instrumentation including controls for both CC and CV

GENERATOR FEATURES
AC Power Output (Single Phase) 6 kW
Cycle 50/60 Hz
Voltage 120/240 V
Amperage 50/25 A
Voltage Regulation 2 %
Receptacles NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L14-30R 125/250V Twist-Lock 30A
UNIT SPECIFICATIONS
DC Voltage CC: 28 V CV: 15-28 V
DC Current CC: 225 A CV: 225 A
Current Range 50-225 A
Max Duty Cycle w/ Full Amps Availible 100% @200 A
Welding Processes SMAW, FCAW, GMAW, GTAW, ACAC
Fuel Tank Capacity 6.6 gal 30 L
Fuel Consumption at Rated Load 0.6 gph
DIMENSIONS & WEIGHTS
Overall Length 46 in
Overall Width 26 in
Overall Height 32 in
Shipping Dimensions 46 x 26 x 36 in
Operating Weight 735 lb
Shipping Weight 770 lb

Click Here To Download The Manual

There is no further information.
There are no listed accessories.


s-h alt
SDW225SSAWR
Mfg. item #: SDW225SSAWR
MULSDW225SSAWR
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
Call for Price

596
SDW225AT10W
Mfg. item #: SDW225AT10W
MULSDW225AT10W
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

596
SDW225SSA
Mfg. item #: SDW225SSA
MULSDW225SSA
Mutiquip machines1007
Call for Price

596
