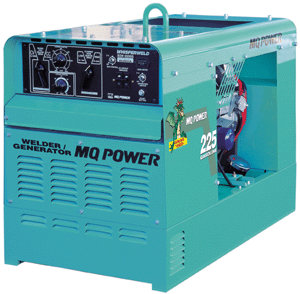

MultiQuip SGW-225SS Welder


SGW225SS

Features and Benefits

  • Simultaneous DC and AC operation

  • Low fuel consumption

  • Quiet operation

  • 100% duty cycle

  • Electric starting system; 120/240 AC voltage

  • Optional wheel kit

There are no further details.
PERFORMANCE DATA
Prime Output KW (KVA) 7.2 Kw Single Phase
Rated Voltage 28 Volts
Current Range 50 to 225 Amps
Duty Cycle 100% @ 200 Amps
Voltage Range 15 to 28 Volts
Maximum Output - Amps 225 Amps
Amperage 60/30
ENGINE SPECIFICATIONS
Model GX-610
Engine HP; rpm: 14.4 HP, 3600
Oil Capacity - gal (liters): 0.4 Gallons
Engine Make: Honda
No. Cylinders: 2
Voltage/Phase: 120/240 Volt
POWER SOURCE
Displacement cu.in (cc): 614 cc
Engine Cooling System: Air Cooled
Bore x Stroke (mm): 77 mm x 66 mm
Fuel Consumption - full load - gph (lph): 0.76 GPH
Fuel Tank Capacity - gal (liters): 9.2 Gallons
DIMENSIONS
Overall Height - in. 33
Overall Length - in 43
There is no further information.
There are no listed accessories.
Call for price. MULSGW225SS
TRLRMP
Mfg. item #: TRLRMP
MULTRLRMP
FREE shipping when ordered with a machine from this manufacturer.20
$1,389.09

6
