Norton Walk Behind Saws

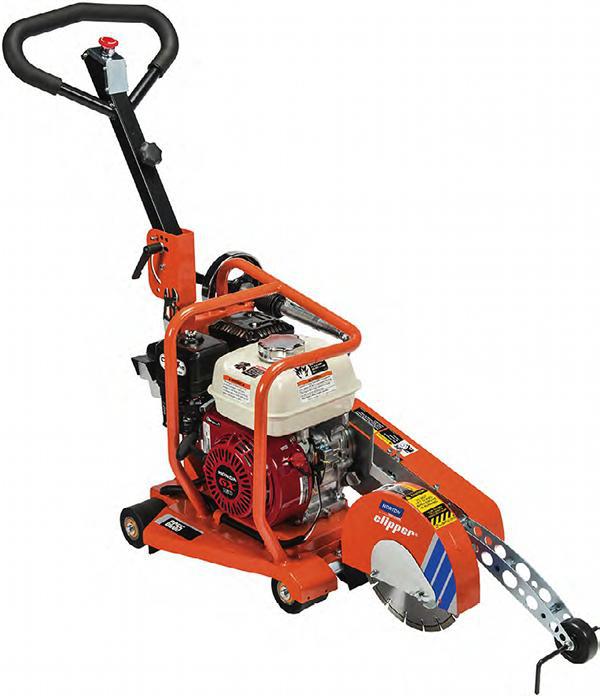

GC55 EARLY ENTRY/GREEN SMALL PUSH SAWS

GC55 EARLY ENTRY/GREEN SMALL PUSH SAWS

With a compact, light-weight design backed by the reliable Honda 5HP gasoline engine, the GC55 early entry saw is intended for a variety of applications. From green, cured or decorative concrete cutting to expansion joints, the features of this small push saw are hard to beat in a single saw. The low, wide profile of the frame, along with the front mount blade, contribute to producing a more disciplined cut

  • Gasoline Engine Mounted with the dependable Honda 5.5HP engine for best performance.
  • Front Blade Mount Additional weight helps keep the blade in the cut.
  • Fold-Down Design Easy storage and transport



SPECIFICATIONS
Model GC55
Product Number 70184630005 6
Blade Guard Capacity  in. (mm) 10 (254)
Maximum Depth of Cut  in. (mm) 3-3/4 (95)
Arbor Size  in. (mm) 5/8 (15.9)
Blade Flange Diameter  in. (mm) 3-5/64 (78)
Blade Shaft RPM 3,000
Blade Shaft Diameter  in. (mm) 7/8 (20)
Blade Shaft Bearings Sealed Radial Bearings
Blade Shaft Drive 1 Cogged
Blade Guard Attachment All Steel
Blade Control Screw Feed
Axle  Front  in. (mm) 55/64 (22)
Axle  Rear  in. (mm) 55/64 (22)
Wheels Front  in. (mm) D x W x B 3-3/8x2-3/4x25/32 (85x70x20)
Wheels  Rear  in. (mm) D x W x B 3-3/8x2-3/4x25/32 (85x70x20)
Handle Bars/Adjustment Length  in. (mm) 6 (152.4)
Control Push
Chassis Heavy Duty Stamped Steel with Reinforcements
Power Source Single Cylinder 4 Cycle
Motor/Engine Type Honda GX160
Maximum Horsepower 5.5 HP (4.1 kW)
Net Horse Power 4.8 HP (3.6 kW)
Displacement  cu. In (l) 9.9 cu in (0.16 l)
Bore  in. (mm) 2.7 (68)
Stroke  in. (mm) 1.8 (45)
Cylinders/Cycle Single Cylinder 4 Cycle
Fuel Capacity gal. (l) .95 (3.6 l)
Oil Capacity  qt. (l) .63 (.6 l)
Air Filter Four Stage Cyclone
Starter Manual
Engine Cooling Forced Air
Height  in (mm) 24-7/32 (615)
Minimum Saw Length (Transport)  in. (mm) 32 (813)
Maximum Saw Length (Working) in. (mm) 42-29/32 (1090)
Maximum Pointer Length  in. (mm) 8-7/32 (209)
Frame Width  in. (mm) 13-11/16 (348)
Saw Width  in. (mm) 18-1/8 (460)
Front (Outside to Outside Wheel Width)  in. (mm) 8-21/32 (220)
Rear (Outside to Outside Wheel Width)  in. (mm) 13 (330)
Blade to Wall in. (mm) 7-1/2 (190)
Wheel Base Length  in. (mm) 19 (483)
Weight Crated  lbs (kg) 135 (61)
Weight Uncrated  lbs (kg) 115 (52)

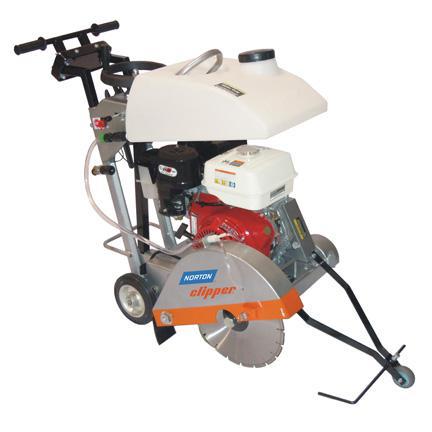

C1318P GASOLINE SMALL PUSH SAWS

C1318P GASOLINE SMALL PUSH SAWS

The next generation of 13HP saws. The C1318P features shock-absorbing handle bars. The new sleek design of the water tank, with increased capacity and improved securing, adds an additional 1.5 gallons of water over the cut. And, a newly-designed belt tensioning system helps keep the saw cutting tried and true. All these features, coupled with the Honda 13HP engine, makes the C1318P the premiere choice for rental and service work.

  • Vibration Reducing Handle Bars Shock-absorbing handle bars reduce vibrations up to 40 percent.
  • Quick Belt Tensioning Provides fast and accurate belt tensioning.
  • Fast Blade Guard Lock No hassle, blade guard securing lock
SPECIFICATIONS
Model C1318P
Product Number 70184642453 0
Blade Guard Capacity  in. (mm) 18 (457)
Maximum Depth of Cut  in. (mm) 6-5/8 (168)
Arbor Size  in. (mm) 1 (25)
Blade Flange Diameter  in. (mm) 4-1/2 (114)
Blade Shaft RPM    2573 RPM
Blade Shaft Diameter  in. (mm) 1.18 (30)
Blade Shaft Bearings Heavy Duty Pillow Block
Blade Shaft Drive Single 10 Groove Belt
Blade Guard Attachment Hinged, All Steel
Blade Control Hand Wheel/Screw Feed
Axle Front  in. (mm) .78 (20)
Axle Rear  in. (mm) .78 (20)
Wheels  Front D x W x B  in. (mm) 4.92x1.96x.78 (125x50x20)
Wheels  Rear D x W x B  in. (mm) 8x1-1/4x.78 (203x32x20)
Handle Bars/Adjustment Length 6-1/4 (160)
Transmission NA
Control Push
Speed NA
Chassis Heavy Duty Steel Box with Longitudinal and Horizontal Reinforcements
Power Source Gasoline, Single Cylinder 4 Cycle
Engine Type Honda GX390
Maximum Horsepower 13 HP (9.5 kW)
Net Horsepower 11 HP (8.2 kW)
Displacement  cu. In. (l) 23.7 cu in (0.39)
Bore  in. (mm) 3.5 (88)
Stroke  in. (mm) 2.5 (64)
Cylinders/Cycle Single Cylinder 4 Cycle
Fuel Capacity  gal. (l) 1.79 gal. (6.5 l)
Oil Capacity  qt. (l) 1.16 qt. (1.1 l)
Air Filter    Four Stage Cyclone
Starter Manual
Engine Cooling Forced Air
Height 39 (990)
Minimum Saw Length (Transport)  in. (mm) 33-1/2 (850)
Maximum Saw Length (Working)  in. (mm) 61-1/2 (1,5610
Maximum Pointer Length  in. (mm) 20-7/8 (528)
Frame Width  in. (mm) 16-1/2 (421)
Saw Width  in. (mm) 22 (609)
Front (Outside to Outside Wheel Width)  in. (mm) 10-7/16 (265)
Rear (Outside to Outside Wheel Width)  in. (mm)  16.89 (429)
Blade to Wall  in. (mm) 4-1/2 (114)
Wheel Base Length  in. (mm) 13 (332)
Weight Crated  lbs (kg) 240 (109)
Weight Uncrated  lbs (kg) 220 (100)



20HP GASOLINE MID-RANGE SELF-PROPELLED SAWS

20HP GASOLINE MID-RANGE SELF-PROPELLED SAWS

Manufactured with an uncomplicated, reinforced frame design to withstand the harshness of job cutting requirements on mid-sized jobs. Blade capabilities of 16, 20 or 24. The self-propelled hydrostatic transmission and the 4-V belt drive transfers maximum power to the blade shaft for ease of operation with dependable performance.

  • Simple Maintenance Design Easy to get to belt tensioning for quick replacements.
  • Spindle-Saver Blade Flanges Allows blade to sit on inner flange instead of shaft for replacement of flange only instead of complete shaft.
  • Raised Axle Heavy-duty boxed-in design resists bending and flexing during transport.
SPECIFICATIONS
Model  C2020SS
Product Number 70184627370 1
Blade Guard Capacity  in. (mm) 20 (356)
Maximum Depth of Cut  in. (mm) 7-5/8 (193)
Arbor Size in. (mm) 1 (25)
Blade Flange Diameter  in. (mm) 4-1/2 (114)
Blade Shaft RPM 2520 RPM
Blade Shaft Diameter  in. (mm) 1-1/4 (32)
Blade Shaft Bearings Heavy Duty Pillow Block
Blade Shaft Drive 4 Belts
Blade Guard Attachment Pivoting, All Steel
Blade Control Hand Wheel/Screw Feed
Axle  Front  in. (mm) 3/4 (19)
Axle  Rear  in. (mm) 3/4 (19)
Wheels  Front D x W x B  in. (mm) 5x2x3/4 (127x50x19)
Wheels  Rear D x W x B  in. (mm) 6x2x3/4 (152x50x19)
Handle Bars/Adjustment Length 20-5/8 (530)
Transmission Eaton Hydrostatic
Control Roller Gear
Speed 0-220 FPM
Chassis Heavy duty jig-welded box frame
Power Source Gasoline, 2 Cylinders 4 Cycle
Engine Type Honda GX620
Maximum Horsepower 20 HP (14.9 kW)
Net Horsepower 18.1 HP (13.5 kW)
Displacement  cu. In. (l) 37.5 cu in (.614 l)
Bore  in. (mm) 3.3 (77)
Stroke in. (mm) 2.6 (66)
Cylinders/Cycle Two Cylinder 4 Cycle
Fuel Capacity  gal (l) 2.12 gal. (8.03 l)
Oil Capacity  qt (l) 1.90 qt. (1.8 l)
Air Filter Four Stage Honda
Starter Electric
Engine Cooling Forced Air
Height 40 (1,016)
Minimum Saw Length (Transport)  in. (mm) 56 (1,142)
Maximum Saw Length (Working)  in. (mm) 114 (2,896)
Maximum Pointer Length  in. (mm) 40 (1,016)
Frame Width  in. (mm) 17 (432)
Saw Width  in. (mm) 26 (660)
Front (Outside to Outside Wheel Width)  in. (mm) 14-3/16 (360)
Rear (Outside to Outside Wheel Width)  in. (mm) 15-1/4 (388)
Blade to Wall  in. (mm) 2-9/16 (65)
Wheel Base Length  in. (mm) 16-1/6 (407)
Weight Crated  lbs (kg) 468 (212)
Weight Uncrated –lbs (kg) 428 (195)



Models and Accessories
GC55 Early Entry Saw
C1318P 13hp Push Saw
C2020SS 20hp Self Propelled Saw
CON10WT 10 inch x .060x5/8 Norton Classic
EE10110 10 inch Blade for Early Entry Saw
CHWCGP1812 18 inch x.125x1 Norton Classic
CGWASP1812 18 inch x.125x1 Charger
CHWMMGP2001 20 inch x.125x1  Norton Classic
CHWCGP2012 20 inch x.125x1 Norton Classic
CHWASP2012 20 inch x.125x1 Norton Classic Asphalt
SILMBR20125 20 inch x.125x1 Silencio



GC55
EARLY ENTRY SAW
Mfg. item #: GC55
NORGC55
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,057.50

26
C1318P
13HP PUSH SAW
Mfg. item #: C1318P
NORC1318P
lease to own for as little as:$55 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,741.63

26
C2020SS
20HP SELF PROPELLED SAW
Mfg. item #: C2020SS
NORC2020SS
lease to own for as little as:$122 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$6,091.28

26
CON10WT
10X.060X5/8 NORTON CLASSIC
Mfg. item #: CON10WT
NORCON10WT
FREE shipping when ordered with a machine from this manufacturer.20
$40.01

26
EE10110
10 BLADE FOR EARLY ENTRY SAW
Mfg. item #: EE10110
NOREE10110
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$239.94

26
CHWCGP1812
18 X.125X1 NORTON CLASSIC
Mfg. item #: CHWCGP1812
NORCHWCGP1812
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$307.92

26
CGWASP1812
18X.125X1 CHARGER
Mfg. item #: CGWASP1812
NORCGWASP1812
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$566.53

26
CHWMMGP2001
20X.125X1 NORTON CLASSIC
Mfg. item #: CHWMMGP2001
NORCHWMMGP2001
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$319.92

26
CHWCGP2012
20X.125X1 NORTON CLASSIC
Mfg. item #: CHWCGP2012
NORCHWCGP2012
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$327.92

26
CHWASP2012
20X.125X1 NORTON CLASSIC ASPHALT
Mfg. item #: CHWASP2012
NORCHWASP2012
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$463.88

26
SILMBR20125
20 X.125X1 SILENCIO
Mfg. item #: SILMBR20125
NORSILMBR20125
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$466.55

26
