NOVA PEN PLUS JAW SET
Code: 6034
One of our most popular new released jaw sets yet, this versatile accessory for your NOVA chuck
will quickly become a favorite.
The new NOVA Pen Plus Jaws easily convert your NOVA chuck into a fast and accurate Pen Blank drilling
facility. The big jaw profile provides a vibration free, solid grip for all sizes of pen blanks and an accurate centered hole every time. Being able to finely control the drill feed on
the lathe is a big advantage to prevent break out on those delicate pen walls. Also perfect for squaring up the pen blank ends after gluing in the pen kit tubes.
These unique jaws are designed especially to hold pen blanks for drilling. But there a lot more to them than that their solid, heavy duty design means
not only will they hold Pen blanks securely, but they are also powerful enough to handle larger and longer spigot work (the in Pen Plus!) . These heavy duty jaws secured by two screws for each jaw
segment have an internal profile to accept square turning blanks. With a rock solid grip over 1-1/2 inch long these jaws can handle larger squares and rounds with ease and minimal
vibration. Also perfect for squaring up the pen blank ends after gluing in the pen kit tubes.
This is truly a versatile jaw that will quickly become one of your favorites.
Sizes:
-
Square (Contracting) Grip : From 0.3937 inch up
to over 1 inch. Length of turnings from jaws up to 9 inch
-
Rounds (Contracting ) Grip: From under 1/2 inch (actual: 0.4561
inch) up to over 3/4 inch. Length of turnings from jaws up to 10 inch
-
Rounds (Expanding) Grip: From 1.37 inch up to over 2.5 inch.
Length of turnings from jaws, up to 10 inch
-
These unique jaws are designed especially to hold pen blanks for
drilling. But their solid, heavy duty design means not only will they hold Pen blanks securely, but they are also powerful enough to handle larger and longer spigot work (the Plus in Pen
Plus!)
-
These Pen Plus jaws open up a new world of square turning projects.
You can do square lidded boxes, square finnials, hollow form turning such as peppermills and much more.
Features/Benefits:
-
Solid, long design means the Pen Blank is gripped firmly without movement
drill your pen blanks accurately and cleanly
-
Fast to use, way faster than using a drill press
-
Plus factor hold long square stock firmly and accurately for wider project
use beyond just pens
-
Fits on all NOVA chucks
-
Super convenient for small run pen making all operations are based around
the lathe
-
2 Year Warranty
-
Comprehensive instruction manual included
-
This is a two piece jaw set.
Our
testers have loved it:
Also you have much better control of the feed so you don't destroy your blank. It can even handle
drilling blanks that are not quite square something that darn near impossible with a drill press.
Using the Pen Plus jaws for drilling pen blanks is just magic! They drilled a dead accurate hole
every time during my tests. I could also use them to square up the blank ends after gluing in the tubes, as well as gripping the blanks securely for any other task you might
need.
Wow! I could believe the rock solid grip it gave me with a 1/2 inch square turning over 10 inch long.
I was able to do shaping and hollowing right out the end very impressive!
To operate:
Simply mount a drill chuck into the tail stock of your lathe and slide up the drill bit to the pen blank
mounted in the NOVA Pen Plus Jaws. Lock down the tail stock and wind and drill out the hole to take the brass tube. Being mounted on a lathe the turner has more control over motor speed and a much
better control of the feed speed.
NOVA Mini Jaws Package
Code: 6027

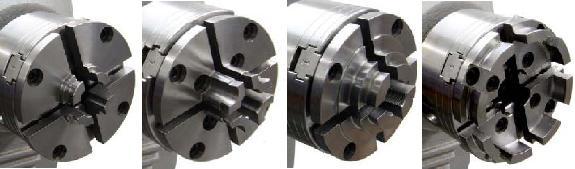

NOVA Mini jaws set is designed to enrich NOVA jaw offering in mini turning area. This package consists of 4 types of jaws: NOVA 20mm jaw, NOVA
Mini Spigot jaw, NOVA Mini Step Jaw and NOVA 70mm jaw, .
They are ideal to use on NOVA Midi chuck for midi/mini work. These jaws can also be purchased individually at some retailers and
online.
Features and Benefits:
-
A great range of smaller projects can be mounted and turned using either the expansion mode (mostly for bowls) or the contraction mode
(mostly for spigots)
-
Made from medium tensile carbon K1045 steel to provide maximum structural strength.
-
Standard Woodworm Screw can be used with these jaws
-
2 year warranty
-
Able to be used on all Teknatool Chucks in the range. For more on this, see below.
Jaw Travel Range Table
|
Imperial
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
Mini 20mm Jaws
|
Precision Midi*
|
0.79
|
1.63
|
0.39
|
0.79
|
0.32
|
1.18
|
|
Nova G3
|
0.79
|
1.63
|
0.39
|
0.79
|
0.32
|
1.18
|
|
SuperNova2
|
0.79
|
1.63
|
0.39
|
0.79
|
0.32
|
1.18
|
|
Titan
|
0.79
|
2
|
0.39
|
1.18
|
0.32
|
1.57
|
|
Mini Spigot Jaws
|
Precision Midi*
|
1
|
1.77
|
0.39
|
1.22
|
0.32
|
1.18
|
|
Nova G3
|
1
|
1.77
|
0.39
|
1.22
|
0.32
|
1.18
|
|
SuperNova2
|
1
|
1.77
|
0.39
|
1.22
|
0.32
|
1.18
|
|
Titan
|
1
|
2.16
|
0.39
|
1.61
|
0.32
|
1.57
|
|
Mini Step JAW
|
Precision Midi Step 1
|
1.06
|
1.93
|
Not Applicable
|
Not Applicable
|
|
Precision Midi Step 2
|
1.45
|
2.28
|
0.36
|
1.1
|
0.41
|
1.24
|
|
Nova G3 Step1
|
1.06
|
1.93
|
Not Applicable
|
Not Applicable
|
|
Nova G3 Step2
|
1.45
|
2.28
|
0.36
|
1.1
|
0.41
|
1.24
|
|
SN2 Step 1
|
1.06
|
1.93
|
Not Applicable
|
Not Applicable
|
|
SN2 Step 2
|
1.45
|
2.28
|
0.36
|
1.1
|
0.41
|
1.24
|
|
Titan Step1
|
1.06
|
2.32
|
Not Applicable
|
Not Applicable
|
|
Titan Step2
|
1.45
|
2.72
|
0.36
|
1.5
|
0.41
|
1.63
|
|
70mm Jaws
|
Precision Midi*
|
2.76
|
3.54
|
1.46
|
2.56
|
2.2
|
3
|
|
Nova G3
|
2.76
|
3.54
|
1.46
|
2.56
|
2.2
|
3
|
|
SuperNova2
|
2.76
|
3.54
|
1.46
|
2.56
|
2.2
|
3
|
|
Titan
|
2.76
|
3.94
|
1.46
|
2.95
|
2.2
|
3.43
|
|
Metric
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
Mini 20mm Jaws
|
Precision Midi*
|
20
|
41.5
|
10
|
20
|
8
|
30
|
|
Nova G3
|
20
|
41.5
|
10
|
20
|
8
|
30
|
|
SuperNova2
|
20
|
41.5
|
10
|
20
|
8
|
30
|
|
Titan
|
20
|
51.5
|
10
|
30
|
8
|
40
|
|
Mini Spigot Jaws
|
Precision Midi*
|
25
|
45
|
10
|
31
|
8
|
30
|
|
Nova G3
|
25
|
45
|
10
|
31
|
8
|
30
|
|
SuperNova2
|
25
|
45
|
10
|
31
|
8
|
30
|
|
Titan
|
25
|
55
|
10
|
41
|
8
|
40
|
|
Mini Step JAW
|
Precision Midi Step 1
|
27
|
49
|
Not Applicable
|
Not Applicable
|
|
Precision Midi Step 2
|
37
|
58
|
9
|
28
|
10.5
|
31.5
|
|
Nova G3 Step1
|
27
|
49
|
Not Applicable
|
Not Applicable
|
|
Nova G3 Step2
|
37
|
58
|
9
|
28
|
10.5
|
31.5
|
|
SN2 Step 1
|
27
|
49
|
Not Applicable
|
Not Applicable
|
|
SN2 Step 2
|
37
|
58
|
9
|
28
|
10.5
|
31.5
|
|
Titan Step1
|
27
|
59
|
Not Applicable
|
Not Applicable
|
|
Titan Step2
|
37
|
69
|
9
|
38
|
10.5
|
41.5
|
|
70mm Jaws
|
Precision Midi*
|
70
|
90
|
37
|
65
|
56
|
77
|
|
Nova G3
|
70
|
90
|
37
|
65
|
56
|
77
|
|
SuperNova2
|
70
|
90
|
37
|
65
|
56
|
77
|
|
Titan
|
70
|
100
|
37
|
75
|
56
|
8
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 25mm (1 inch) JAW SET
Code: JS25N
|
One of our most popular and convenient jaws for small bowl and small unsupported spigot turning work. Designed for small
bowl (expanding dovetail mounting up to 6 inch dia) and small spigot (contracting mode) free end turning work (up to 5 inch long). Idea for mini/midi lathe gripping work below size that can
be handled by the Standard 50mm Jaws
|
|
Features and Benefits:
-
Quick and easy to use for small bowls and small unsupported spigot work
-
A great range of smaller projects can be mounted and turned using either the expansion mode (mostly for bowls) or the contraction mode
(mostly for spigots)
-
Quick mounting makes them ideal for smaller projects
-
Multiple turned pieces (i.e. lace bobbins) can be turned from dowel stock
-
Made from medium tensile carbon K1045 steel to provide maximum structural strength.
-
Standard Woodworm Screw can be used with these jaws
-
2 year warranty
-
Able to be used on all Teknatool Chucks in the range. For more on this, see below.
Jaw Travel Range Table
|
Imperial
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
25mm JAW
|
Precision Midi
|
1.024
|
1.417
|
0.354
|
0.709
|
0.394
|
0.787
|
|
Nova G3
|
1.024
|
1.811
|
0.354
|
1.102
|
0.394
|
1.220
|
|
SuperNova2
|
1.024
|
1.811
|
0.354
|
1.102
|
0.394
|
1.220
|
|
Titan
|
1.024
|
2.205
|
0.354
|
1.496
|
0.394
|
1.614
|
|
Metric
|
|
Jaw Set & Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
25mm JAW
|
Precision Midi
|
26
|
36
|
9
|
18
|
10
|
20
|
|
Nova G3
|
26
|
46
|
9
|
28
|
10
|
31
|
|
SuperNova2
|
26
|
46
|
9
|
28
|
10
|
31
|
|
Titan
|
26
|
56
|
9
|
38
|
10
|
41
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA PIN JAW SET
Code: JSPIN
|
These special 25mm extended jaws are designed to act like a pin chuck - expanding into a pre-bored hole.
 This is an especially useful technique for free form edge bowls. A real big advantage over Pin Chucks
though is that you don't have to bore to an exact size - any size between the minimum and just under the maximum expansion will do.
The longer jaws allow for a very powerful spigot grip for all smaller work like lace bobbins (up to 6 inch length) and delicate pots etc. The jaws also have a
dovetail to mount small bowls (up to 6 inch dia).
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
PIN JAW
|
Precision Midi*
|
1.024
|
1.378
|
0.276
|
0.669
|
0.394
|
0.748
|
|
Nova G3
|
1.024
|
1.811
|
0.276
|
1.102
|
0.394
|
1.220
|
|
SuperNova2
|
1.024
|
1.811
|
0.276
|
1.102
|
0.394
|
1.220
|
|
Titan
|
1.024
|
2.244
|
0.276
|
1.496
|
0.394
|
1.614
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
PIN JAW
|
Precision Midi*
|
26
|
35
|
7
|
17
|
10
|
19
|
|
Nova G3
|
26
|
46
|
7
|
28
|
10
|
31
|
|
SuperNova2
|
26
|
46
|
7
|
28
|
10
|
31
|
|
Titan
|
26
|
57
|
7
|
38
|
10
|
41
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 35mm Bowl Jaw set (1.35")
Code: 6019
|
The 35mm bowl jaws fit perfectly into the current jaw range, picking up a small gap left between the 25mm and the 50mm.
These jaws are perfect for small to medium sizes with maximum grip, provided by the dovetail.
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
35mm Bowl JAW
|
Precision Midi*
|
1.496
|
1.850
|
0.315
|
0.709
|
0.394
|
0.748
|
|
Nova G3
|
1.496
|
2.323
|
0.315
|
1.142
|
0.394
|
1.220
|
|
SuperNova2
|
1.496
|
2.323
|
0.315
|
1.142
|
0.394
|
1.220
|
|
Titan
|
1.496
|
2.717
|
0.315
|
1.535
|
0.394
|
1.614
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
35mm Bowl JAW
|
Precision Midi*
|
38
|
47
|
8
|
18
|
10
|
19
|
|
Nova G3
|
38
|
59
|
8
|
29
|
10
|
31
|
|
SuperNova2
|
38
|
59
|
8
|
29
|
10
|
31
|
|
Titan
|
38
|
69
|
8
|
39
|
10
|
41
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 50mm (2 inch) JAW SET
Code: JS50N
|
These jaws are standard with all NOVA chuck standard versions (excluding Nova Titan, which has the PowerGrip Jaw as standard).
Versatile all round jaw to get you started, before moving on to more specialized jaws. Able to handle both bowl and spigot projects.
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
50mm JAW
|
Precision Midi*
|
2.008
|
2.402
|
1.220
|
1.614
|
1.654
|
2.047
|
|
Nova G3
|
2.008
|
2.835
|
1.220
|
2.047
|
1.654
|
2.520
|
|
SuperNova2
|
2.008
|
2.835
|
1.220
|
2.047
|
1.654
|
2.520
|
|
Titan
|
2.008
|
3.228
|
1.220
|
2.441
|
1.654
|
2.874
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
50mm JAW
|
Precision Midi*
|
51
|
61
|
31
|
41
|
42
|
52
|
|
Nova G3
|
51
|
72
|
31
|
52
|
42
|
64
|
|
SuperNova2
|
51
|
72
|
31
|
52
|
42
|
64
|
|
Titan
|
51
|
82
|
31
|
62
|
42
|
73
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 75mm (3 inch) JAW SET
Code: 6014
This jaw set is very versatile, has great holding power for large bowls and also moderate hollow forms.
Features and benefits
-
The dovetail walls are 3 x the thickness of conventional jaw types for rugged work holding for larger/heavier bo wl work.
-
Screws go right through the wall section to add more securing force where itâs needed most.
-
Deep smooth walled dovetail holds wood gently but very firmly.
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
75mm BOWL JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3**
|
3.189
|
4.016
|
1.339
|
2.165
|
1.831
|
2.657
|
|
SuperNova2
|
3.189
|
4.016
|
1.339
|
2.165
|
1.831
|
2.657
|
|
Titan
|
3.189
|
4.409
|
1.339
|
2.480
|
1.831
|
3.051
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
75mm BOWL JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
81
|
102
|
34
|
55
|
46.5
|
67.5
|
|
SuperNova2
|
81
|
102
|
34
|
55
|
46.5
|
67.5
|
|
Titan
|
81
|
112
|
34
|
63
|
46.5
|
77.5
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 75mm Long Nosed Jaw set (3 inch)
Code: 6017
This unique long nosed jaws set has a 50mm 2 inch rise above their mounting base means very long reach
deep inside of bowls.
|
Features and Benefits:
-
Tremendous holding power externally and internally â very versatile jaw.
-
Ideal for green wood turning.
-
Internal features dovetail grip for holding footed bo wls and other footed work pieces.
-
Internal powergrip for holding spigoted work pieces
|
|
Jaw Travel Range Table
Imperial (Inch)
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
Long Nose JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
2.126
|
2.874
|
1.142
|
1.969
|
1.575
|
2.362
|
|
SuperNova2
|
2.126
|
2.874
|
1.142
|
1.969
|
1.575
|
2.362
|
|
Titan
|
2.126
|
3.346
|
1.142
|
2.402
|
1.575
|
2.835
|
Metric (mm)
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
Long Nose JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3**
|
54
|
73
|
29
|
50
|
40
|
60
|
|
SuperNova2
|
54
|
73
|
29
|
50
|
40
|
60
|
|
Titan
|
54
|
85
|
29
|
61
|
40
|
72
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
|
NOVA Step Jaw Set
Code: JS75DT
|
These step jaws are designed primarily to grip in the contracting mode, the base (foot) of footed bowls.
The step sizes provide optimum gripping for three foot sizes with minimal crush damaged wood. There is also an expanding dovetail made for alternative recess gripping of bowls. Can hold
bowls up to 12 inch in diameter
Optimum Step sizes:
-
42mm (1.65 inch)
-
50mm (2 inch)
-
64mm (2.5 inch)
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
STEP JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3 Step 1
|
Not Applicable
|
1.181
|
2.008
|
1.634
|
2.461
|
|
Nova G3 Step 2
|
Not Applicable
|
1.417
|
2.244
|
1.988
|
2.815
|
|
Nova G3 Step 3
|
3.051
|
3.839
|
1.772
|
2.598
|
2.500
|
3.287
|
|
SN2 Step1
|
Not Applicable
|
1.181
|
2.008
|
1.634
|
2.461
|
|
SN2 Step2
|
Not Applicable
|
1.417
|
2.244
|
1.988
|
2.815
|
|
SN2 Step3
|
3.051
|
3.839
|
1.772
|
2.598
|
2.500
|
3.287
|
|
Titan Step1
|
Not Applicable
|
1.181
|
2.402
|
1.634
|
2.894
|
|
Titan Step2
|
Not Applicable
|
1.417
|
2.638
|
1.988
|
3.209
|
|
Titan Step3
|
3.051
|
4.272
|
1.772
|
2.992
|
2.500
|
3.681
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
STEP JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3 Step1
|
Not Applicable
|
30
|
51
|
41.5
|
62.5
|
|
Nova G3 Step2
|
Not Applicable
|
36
|
57
|
50.5
|
71.5
|
|
Nova G3 Step3
|
77.5
|
97.5
|
45
|
66
|
63.5
|
83.5
|
|
SN2 Step 1
|
Not Applicable
|
30
|
51
|
41.5
|
62.5
|
|
SN2 Step 2
|
Not Applicable
|
36
|
57
|
50.5
|
71.5
|
|
SN2 Step 3
|
77.5
|
97.5
|
45
|
66
|
63.5
|
83.5
|
|
Titan Step1
|
Not Applicable
|
30
|
61
|
41.5
|
73.5
|
|
Titan Step2
|
Not Applicable
|
36
|
67
|
50.5
|
81.5
|
|
Titan Step3
|
77.5
|
108.5
|
45
|
76
|
63.5
|
93.5
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 35mm (1.375 inch) and 45mm (1.8 inch) Spigot Jaw set
Code: JS-SP35 (35mm); JS- SP45 (45mm)
|
Specially designed to provide a strong grip both in the contracting (gripping round or square spigots) and in the expanding mode with up to 10 inch long work
piece.
|
|
Features and Benefits
-
Ideal for long, unsupported hollow bo xes and vases. Their serrated tooth form makes for a very powerful grip that just wont let go.
-
35mm (1.375 inch) Nova Spigot Jaw set can handle spigots up to 50mm (2 inch) and minimum down to 30mm (13/36 inch).
-
45mm (1.8 inch) Nova Spigot Jaw set can handle spigots up to 60mm (2.38 inch) and minimum down to 38mm (1.5 inch).
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
35mm SPIGOT JAW
|
Precision Midi*
|
2.047
|
2.402
|
0.984
|
1.378
|
1.220
|
1.575
|
|
Nova G3
|
2.047
|
2.835
|
0.984
|
1.772
|
1.220
|
1.969
|
|
SuperNova2
|
2.047
|
2.835
|
0.984
|
1.772
|
1.220
|
1.969
|
|
Titan
|
2.047
|
3.268
|
0.984
|
2.165
|
1.220
|
2.362
|
|
45mm SPIGOT JAW
|
Precision Midi*
|
2.047
|
2.402
|
1.220
|
1.575
|
1.614
|
1.969
|
|
Nova G3
|
2.047
|
2.835
|
1.220
|
2.008
|
1.614
|
2.402
|
|
SuperNova2
|
2.047
|
2.835
|
1.220
|
2.008
|
1.614
|
2.402
|
|
Titan
|
2.047
|
3.228
|
1.220
|
2.402
|
1.614
|
2.795
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
35mm SPIGOT JAW
|
Precision Midi*
|
52
|
61
|
25
|
35
|
31
|
40
|
|
Nova G3
|
52
|
72
|
25
|
45
|
31
|
50
|
|
SuperNova2
|
52
|
72
|
25
|
45
|
31
|
50
|
|
Titan
|
52
|
83
|
25
|
55
|
31
|
60
|
|
45mm SPIGOT JAW
|
Precision Midi*
|
52
|
61
|
31
|
40
|
41
|
50
|
|
Nova G3
|
52
|
72
|
31
|
51
|
41
|
61
|
|
SuperNova2
|
52
|
72
|
31
|
51
|
41
|
61
|
|
Titan
|
52
|
82
|
31
|
61
|
41
|
71
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 100mm (4 inch) JAW SET
Code: JS100N
|
The 100mm jaw sets are designed for an expanded dovetail grip (up to 14 inch dia), reverse dovetail grip for gripping footed bowls, limited spigot facility (up
to 6 inch long) and provision to mount false wooden jaws, so customised jaws can be made for special purposes. They are made for a larger range of work than the standard 50mm jaws or Step
Jaws.
One of our most popular jaws to mount 12-14 inch bowls.
Can mount false wooden jaws, so customised jaws can be made for special purposes.
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set & Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
100mm JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
3.819
|
4.646
|
2.205
|
3.031
|
3.071
|
3.898
|
|
SuperNova2
|
3.819
|
4.646
|
2.205
|
3.031
|
3.071
|
3.898
|
|
Titan
|
3.819
|
5.039
|
2.205
|
3.425
|
3.071
|
4.291
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
100mm JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
97
|
118
|
56
|
77
|
78
|
99
|
|
SuperNova2
|
97
|
118
|
56
|
77
|
78
|
99
|
|
Titan
|
97
|
128
|
56
|
87
|
78
|
109
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA 130mm (5 inch) JAW SET
Code: JS130N
The big brother to the 100mm jaw set, for large work.
Can mount false wooden jaws, so customised jaws can be made for special purposes. (Require Fastenings)
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
130mm JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
SuperNova2
|
5.000
|
5.787
|
3.031
|
3.819
|
4.213
|
5.039
|
|
Titan
|
5.000
|
6.181
|
3.031
|
4.213
|
4.213
|
5.433
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
130mm JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
SuperNova2
|
127
|
147
|
77
|
97
|
107
|
128
|
|
Titan
|
127
|
157
|
77
|
107
|
107
|
138
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA PowerGrip Jaw set
Code: PJSN
|
The most powerful jaw available for large spigot/hollow form turning on the SuperNova2.
 Also a multi purpose jaw for bowl turners and hollow form turners.
Dovetail sizes fit neatly between the 75mm (3 inch) and the 130mm (5 inch) Jumbo Jaw sets.
Included with all standard versions of the Nova Titan Chuck.
|
|
Jaw Travel Range Table
|
Imperial (Inch)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
POWERGRIP JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
SuperNova2
|
3.740
|
4.567
|
2.165
|
2.992
|
3.031
|
3.858
|
|
Titan
|
3.740
|
4.961
|
2.165
|
3.386
|
3.031
|
4.252
|
|
Metric (mm)
|
|
Jaw Set and Chuck Suitability
|
Expanding Action Specifications
|
Contracting Action Specifications
|
|
Jaw Set
|
Suitable Chuck
|
Square Stock
|
Spigot Mode
|
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
POWERGRIP JAW
|
Precision Midi*
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
Nova G3
|
Not Recommended
|
Not Recommended
|
Not Recommended
|
|
SuperNova2
|
95
|
116
|
55
|
76
|
77
|
98
|
|
Titan
|
95
|
126
|
55
|
86
|
77
|
108
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
NOVA Cole Jaw set and NOVA Mini Cole Jaw set
Code: JSCOLE -- Cole Jaw Set; 6006 -- Mini Cole Jaw Set
|
A versatile set designed for re-chucking of bowls to remove chuck marks, add decoration or to re-shape the bottoms of bowls that have already been turned.
Other Nova jaw sets can be fitted to the Cole Jaws making a combination jaw facility â expanding dovetail facility for mounting bowls/platters and a reverse
dovetail for mounting footed bowls/platters.
 Many advantages over traditional vacuum chucking. Customisable with false wooden jaws.
Standard Cole Jaws are suitable for lathes with minimum 12â/300mm swing diameter.
Mini Cole Jaws are suitable for lathes with a minimum 8â/203mm swing
diameter.
New! Accessory Buffer Kit containing 2 different buffer profiles
|
|
|
Features and Benefits
-
Fast, easy way to re-chuck bo wls
-
More cost effective than Vacuum Chucking
-
Fits all Teknatool Chucks
-
Holds Range of Bowl Sizes Safely
-
Other Jaws can be mounted
-
Exceptional Structural Strength
|
|
TIPS N TRICKS!
 While traditionally these type of jaws are used in the compression mode - depending on the bowl shape,
the jaws can be used to grip in either the contracting or expanding mode.
To ensure best grip, the bowl should have a positive or negative flair towards the edge of the bowl.
Try and avoid straight sided bowls where the grip will be less efficient. Best cutting technique is to have a cutting action with the chisel such that much of
the force is directed towards the headstock, not across the face.
|
|
CUSTOMISING THE COLE JAW USING WOODEN JAWS
 If larger or heavier bowls need to be re-chucked, then the customer can
make their own customised wooden jaws.
These should be fastened onto each jaw segment using two screw
positions. The customer should give careful consideration into the type of holding situation
that is required before false wooden jaws are made, to ensure adequate gripping is acheived.
Jaw segments can be made from Medium Density Fibreboard (MDF)
|
|
Jaw Travel Range Table
Imperial (Inch)
|
Jaw Set and Chuck Suitability
|
External Bowl Grip
|
Internal Bowl Grip
|
|
Jaw Set
|
Suitable Chuck
|
|
Max
|
Max
|
|
COLE JAW
|
Precision Midi*
|
8.661
|
~ 11
|
|
Nova G3
|
9.291
|
~ 11
|
|
SuperNova2
|
9.291
|
~ 11
|
|
Titan
|
9.449
|
|
|
MINI COLE JAW
|
Precision Midi*
|
6.181
|
~8.5
|
|
Nova G3
|
6.693
|
~8.5
|
|
SuperNova2
|
6.693
|
~8.5
|
|
Titan
|
7.087
|
|
Metric (mm)
|
Jaw Set & Chuck Suitability
|
External Bowl Grip
|
Internal Bowl Grip
|
|
Jaw Set
|
Suitable Chuck
|
|
Max
|
Max
|
|
COLE JAW
|
Precision Midi*
|
220
|
~280
|
|
Nova G3
|
236
|
~280
|
|
SuperNova2
|
236
|
~280
|
|
Titan
|
240
|
|
|
MINI COLE JAW
|
Precision Midi*
|
157
|
~215
|
|
Nova G3
|
170
|
~215
|
|
SuperNova2
|
170
|
~215
|
|
Titan
|
180
|
|
Please note, Tolerance of +/-1mm on all measurements
* Measurements with stop-screw
** Recommended with Caution
|
NOVA Soft Jaw Set
Code: 6021
|

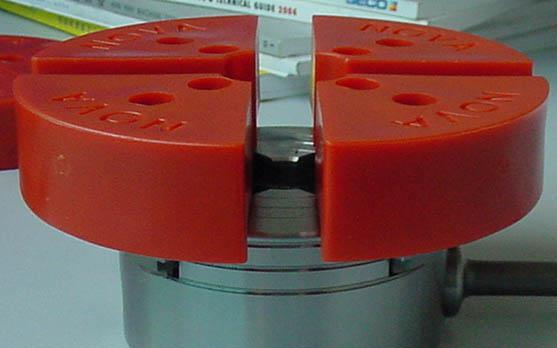

NOVA Soft Jaws Set are 4 segments of high quality soft nylon jaws which
are able to be cut and customised by the user to their specific requirements. It is designed to allow woodturners make up a special set of jaws for a job and store them away with
the jigs and templates for the project.
|
|
Features and Benefits:
-
Easy to use - The four segments of quality nylon can be turned to shape using standard
tools. They can be turned, sawn, drilled or tapped.
-
Markless holding - Being made of nylon, they also hold most woods without marking.
-
Vibrant colour - The vibrant NOVA red colour makes it easy to see profiles. By machining the profile after mounting, you can eliminate any
errors that may have added up from mounting the jaws to chuck then to the spindle.
-
Maximum holding - You can get full diameter holding on your specific work piece as you can turn out to the exact diameter
required.
-
Thick jaw body - user can profile any shape they wish limited only by the fastening heads which are embedded 22.5 mm from the face of the jaws.
This gives the turner a great deal of flexibility in what they can do.
Product Technical Specification
-
Material: Nylon
-
Outer ring diameter when close: 120mm (4.7 inch)
-
Thickness: 27mm (1 inch)
-
Weight: 275g (whole set)
Tips when you customise the soft jaw:
It is recommended to use a scraper that is about 1/2 inch wide with an end that is 90 degrees to the side of the scraper. It will cut on both sides and on the end.
Recommended bevel angle is about 70 degrees.
When scraping nylon, the tool rest must be as close to the work as possible and you must always use a light touch.
Run your lathe at a speed between 1700 and 2000 rpm for best cutting.
You must take extra care when machining the Jaws so that you do not cut so deep as to hit the screw heads.
NOVA CHUCK INSERT/ADAPTORS
|
Teknatool uses an easy and inexpensive insert/adaptor system on all its NOVA chucks (apart from the obsolete Compac chuck)

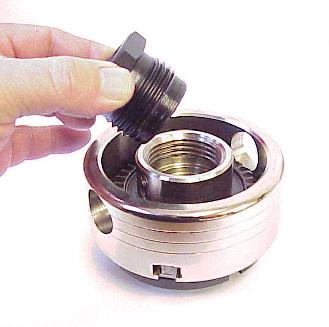

The insert has different lathe spindle thread sizes internally, and simply screws into the back of your Nova chucks. Once the insert is in place,
you can then put your chuck onto your lathe.
Features and Benefits:
-
Adapts any NOVA chuck to almost any lathe spindle at low cost.
-
The insert/adaptor versions of NOVA chucks all use the same insert/adaptor system to ensure maximum adaptability and flexibility for the
user.
|
|
HOW DOES THE INSERT SYSTEM WORK?
The insert fits into the back of the chuck and onto your lathe headstock spindle. We have the largest range of
inserts to fit many different popular lathe models. The inserts are threaded both inside and out. The outside thread is made to fit into the NOVA Chucks. The inside thread comes in a variety of
sizes, which one you need will depend on what lathe you have. See the insert thread listing below for more details. If you are not sure what lathe thread you have, see our FAQ on how you can
identify this thread
In order to help you find the most suitable adaptor, we provide the following table for you.
The first refers to the list of insert/adaptors that we manufacture. Check with us if your lathe is not listed, we update our inserts all the time.
The second table refers to the thread sizes which we direct thread into the chuck body - as such, these do not require insert/adaptors. A directly threaded chuck body cannot be altered to
an insert type body or another thread size once threaded, so it pays to be sure that your lathe thread size is not covered by the insert/adaptors first!
OPTIONAL ACCESSORIES
Insert Spanner. Makes it easy to get inserts off and onto your chuck and lathe. Dual ended, sizes useful for other applications on Nova
lathes.
Insert/Adaptor Listing for Nova chucks
|
Code
|
Description
|
Thread Size
|
Lathe Match (where known)
|
|
12NS
|
INSERT 2
|
M20x2 RH (Metric)
|
Tyme Cub
|
|
I3NS
|
INSERT 3
|
M20x1.5 RH (Metric)
|
Electra Beckum / Multico Sumaro
|
|
I6NS
|
INSERT 6
|
3/4 inch Plain Bore
|
|
|
I7NS
|
INSERT 7
|
1 1/8 inch 8 TPI UN(NOT UNC)
|
Oliver
|
|
I8NS
|
INSERT 8
|
7/8 inch 12 NS LH
|
|
|
I9NS
|
INSERT 9
|
3/4 inch 16 TPI RH with 6mm register
|
|
|
IANS
|
INSERT A
|
3/4 inch 4TPI BSP RH
|
Teknatool TL1000 (Pre 1986)
|
|
IBNS
|
INSERT B
|
3/4 inch 4TPI BSP LH
|
Teknatool TL1000 (Pre 1986)
|
|
ICNS
|
INSERT C
|
1 inch 10TPI BSF RH
|
Teknatool TL1000, Woodfast, Durden
|
|
IDNS
|
INSERT D
|
1 inch 8TPI UNC RH
|
Delta, Rockwell, Golding, General, Teknatool Comet (North America) & Mercury Lathes
|
|
IENS
|
INSERT E
|
1 inch 12TPI UNF RH
|
Myford ML8, Turnstyler
|
|
IFNS
|
INSERT F
|
5/8 inch Plain Bore RH
|
|
|
IHNS
|
INSERT H
|
3/4 inch 10TPI BSW RH
|
Rockwell / Homecraft
|
|
IINS
|
INSERT I
|
M24x3 RH (Metric)
|
B Line, Arundel K600/K450
|
|
IJNS
|
INSERT J
|
1 1/8 inch 12 TPI RH
|
Myford Mystro, Masterlathe (NZ)
|
|
IKNS
|
INSERT K
|
M18x2.5 RH (Metric)
|
Elu DB 180
|
|
ILNS
|
INSERT L
|
1-1/4 inch 8 TPI RH
|
Designed for Teknatool 1-1/4 inch thread reversible operation lathes
|
|
IMNS
|
INSERT M
|
1 inch 10TPI BSF LH
|
Teknatool TL1000, Woodfast / Durden
|
|
INNS
|
INSERT N
|
Blank. Can be threaded up to 28mm (1-1/8 inch to match your lathe size
|
Once threaded, this blank adapator cannot be re-threaded.
|
|
IONS
|
INSERT O
|
1-1/8 inch 7 TPI BSW RH
|
Morton
|
|
IQNS
|
INSERT Q
|
M30x3.5 RH (Metric)
|
Teknatool TL1500/3000/Comet (European and Southern Hemisphere), Woodfast
|
|
ISNS
|
INSERT S
|
5/8 inch Plain Bore
|
Designed Specifically for Shopsmith Pro V, Power Pro Machines.
|
|
ITNS
|
INSERT T
|
1inch8 TPI Dual Threaded LH and RH
|
|
|
IUNS
|
INSERT U
|
1-1/8inch 12 TPI UNF RH
|
Taiwanese
|
|
IVNS
|
INSERT V
|
7/8 inch 4 TPI NF RH
|
|
|
IYNS
|
INSERT Y
|
1-1/4 inch 8 TPI RH
|
For lathes don't have reverse turning ability.
|
|
IWNS
|
INSERT W
|
M25x2 RH (Metric)
|
Tyme Avon ('83 on) and Classic, Tanner SD165; Selbix Springwood; Sorby (some markets); Cotech
|
|
IXNS
|
INSERT X
|
1 inch 8 TPI RH reversible
|
Designed specifically for the NOVA Comet II Midi Lathe, features lock for the reverse function.
|
