Teknatool Lathe Accessories

NOVA SWING AWAY ACCESSORY



 Code: 9007 - Notes: Only compatible with DVR XP and NOVA 1624-44 bed. Only recommended to use on lathe mounted on NOVA stands.

The NOVA Swing Away Accessory is an additional accessory unit for the Lathe Bed Extension Accessory. It enables the user to quickly and easily swing away extra bed lengths and/or the tailstock of the lathe if not in use.

Made from high quality cast iron, this is the perfect companion to both the Nova 1624 and the Nova XP DVR lathes and Bed Extensions, enabling the user to very quickly swing away extra bed extensions and bring them back to position as needed.

nova swing away accessory

Features and Benefits

  • swing awaySpace Saving. Attach an extra bed extension accessory to your NOVA lathe (1624 or DVR XP) for longer projects, use the Swing Away Accessory to swing the extra bed piece out of the way when not required. Saves you space when you are not needing the extra capacity, without having to remove the extra bed length.
  • Easy to Swing Away. Simply move the tailstock to the end of the lathe bed, and then swing the bed and tailstock away to allow full access to the NOVA lathe headstock. Really useful for some operations like deep hollowing of vases.

  • swing awayPerfect accessory for bowl turners. Bowl turners in particular often struggle with tailstocks - essential for some operations they can get in the way for others! While NOVA lathes have a fantastic full swivel headstock, sometimes you need to have your lathe head aligned along the bed. This attachment allows you to quickly and easily move your tailstock out of the way without needing to remove it from the lathe altogether, or worry about getting the heavy tailstock back on!

  • Dependable Performance. Solid cast iron, CAD designed and tested for optimum strength. The pieces are cast from a high grade cast iron with solid section thickness, designed to withstand extremely high stresses with practically no distortion.

  • Great permanent addition to your NOVA lathe. Saves time when using extra bed extension, easily swing away the bed/tailstock when not in use. No need to keep mounting and un-mounting your extra bed extension and/or tailstock.

Product Technical Specification

  • Weight: 4.61kgs/10.16lbs
  • For NOVA 1624 and DVR XP lathes only
  • 203mm/7.99 inch Radius, 180 degrees of swing

Standard Equipment

  • 2 cast iron hinged pieces

  • Fastenings

  • Manual

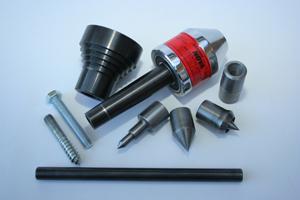

NOVA LIVE CENTER SYSTEM

Code: 5015

This unique combination centre system provides a high quality, comprehensive tailstock support for virtually all spindle turning requirements.

It has over 7 functions in one handy unit. Precision machined and 3 bearings for maximum long life.

nova live center

Features and Benefits

  • Fast, precise and powerful tailstock support system.
  • Designed for the tough demands of modern woodturning
  • 2 year warranty
  • Versatile over 6 functions in one handy unit
  • Quick change tapers.  Fast mounting of centre pieces.
  • Long life quality triple bearing system
  • Fits all lathes with standard MT tailstock quill
  • Includes unique stepped cone system as standard, allowing ultra fast and convenient mounting of work.
  • Can handle both heavy and delicate work
  • Can handle both hard and soft woods
  • Hollow centre allows the user to drill through centre. Great for cable access for lamps etc
  • Instruction manual included

Standard Parts

1 quick change Morse Taper (2MT)

Fits all NOVA lathes and other lathes have 2MT.

However, for lathes with 1 or 3 MT, by using appropriate adaptor, this unit can be fitted also.*

* 4MT or larger adaptor should not be used.


morse taper

Threaded Centre

This centre has an internal thread to mount either a bolt or a screw (hanger bolt)

This enables the centre to be used to mount wooden plugs, disks or mandrels as support pieces for turning either bowl work or spindle applications.

With it's internal cone form, this centre can also be used for quick centreless mounting of squares or rounds up to 8mm for spindle applications.

This centre is also needed to mount the large stepped cone accessory.


threaded center

Miniature Extension Centre

This item is designed to support thin work or small, delicate turnings.

The diameter of the stem is 1/4 inch so this centre can double as a 1/4 inch pen mandrel.

Two of these centres could be used for each half of the pen mandrel - one being fixed in the Live Centre, the other being located in the headstock spindle.


extension center

60 degree centre

It is good all purpose centre designed for a wide variety of applications. Ideal for medium to hardwoods.

60 degree center

Hollow cup centre and point

Ideal for softwood support, the Hollow Cup Centre comes with it's own demountable centre point.

By using the hollow cup centre, turners will able to dig a hole within the spidle item.

hollow cup center and point

Stepped Cone

The Stepped cone is a quick and convenient way to mount centreless rounds up to 40mm(19/16 inch), split turning or other work without a centre. Reverse mounting of cone allows wedge fit of hollow section work.

Needs the Threaded Centre to mount it on the Live Centre.



stepped cone

Accessories

NOVA Tailstock Chuck Adaptor (NEW!) Code: 5016chuck adaptor

The Tailstock Adaptor is a brand new accessory for the Nova Live Centre System.

  • Allows for perfect alignment when remounting work to turn the other side in dead or live mode, saving you time and material normally wasted in truing work piece up

  • In live mode it can also be used to support work with a chuck e.g. in conjunction with vacuum chucking.

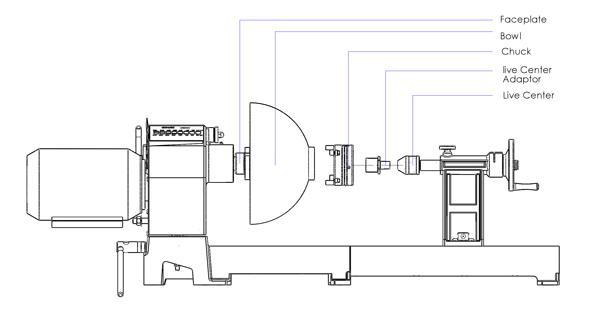

diagram



NOVA Tailstock Chuck Adaptor

Code: 5016

The Tailstock Adaptor is a brand new accessory for the Nova Live Centre System.

  • Allows for perfect alignment when remounting work to turn the other side in dead or live mode, saving you time and material normally wasted in truing work piece up

  • In live mode it can also be used to support work with a chuck e.g. in conjunction with vacuum chucking.

chuck adaptor
tailstock adaptor
diagram

tailstock adaptorFeatures and Benefits

  • Ensures the most accurate remounting of projects.

  • Fits all NOVA chucks and NOVA lathe tailstocks, tailstocks with 2MT internal shafts.

  • Fits the NOVA Live Centre System – or can also be used individually as a dead centre.

  • Quick mounting.

  • Made from medium tensile carbon K1045 steel to provide maximum structural strength.

  • 2 year warranty



Specifications

  • 1 1/4 inch 8TPI RH (USA, Canada, Australasia and UK)

  • Material: Carbon Steel

  • Fits all 2MT tailstocks – only for use when the lathe is not powered



NOVA OUTRIGGER LATHE ACCESSORY (BLACK) SKU: 55223

NOVA Outrigger Accessory (Black) adds swing capacity in the outboard function for your NOVA Galaxi, DVR XP, 1624 and 1624 II Lathes. This optional accessory allows you to turn up to 29 inch diameter platters and bowls in the outboard mode on your NOVA Galaxi, DVR XP, 1624 or or 1624 II lathe. Made from solid cast iron, providing rigid strength and stablity. Arms are easy to articulate and the camlocks make it fast and easy to move into position and lock. In the new black color specifically to match your NOVA Galaxi and NOVA 1624 II lathes, but will fit on the older lathe models as specified as well.

SKU: 55223

• Adds 29 inch / 740mm swing capacity to your outboard
• Solid Cast Iron
• Vibration dampening
• Quick to add, remove or move out of the way
• For NOVA Galaxi, XP, 1624 and 1624 II Lathes

WARRANTY: 2-Year Full Replacement

nova outrigger unit









NOVA BED EXTENSION LATHE ACCESSORY

NOVA Bed Extension Accessory in Black adds between centre capacity for your NOVA DVR 2024, DVR XP, 1624 and 1624II Lathes. Each extension adds 20 inch between centre capacity. Add as many extensions as you require for your project. Easy to install. Made from solid cast iron, with CAD designed webbing throughout, providing rigid strength and stablity. In the new Black color, with new decaling designed to work best with the 1624 II lathe, but able to be used on the older lathe models mentioned above. Comes with instructions and fastenings.

NOVA BED EXTENSION LATHE ACCESSORY (BLACK)

Features:

  • Adds 20 inch between centre capacity to your NOVA lathe
  • Webbed design for extra strength
  • Vibration dampening
  • Soild Cast Iron
  • For DVR 2024, XP, 1624 and 1624 II Lathes
  • WARRANTY: 2-Year Full Replacement



NOVA TOOLRESTS

The toolrest is one of the most important features on any lathe. The rest should allow for maximum flexibility of chisel movement and provide adequate chisel support as close to the cutting edge as possible. All the toolrests manufactured come with the standard size shank of 1 inch to fit the Nova Lathes.

NOVA Woodsurfer Bowl Rest
bowl rest
Code: 9006

The NOVA Woodsurfer bowl rest provides rock solid stability for turning of all bowls.

Made from high quality cast iron, the Woodsurfer is the perfect companion to the large bowl capacities on both the NOVA 1624 and the NOVA XP DVR lathes.

bowl rest in useFeatures and benefits

  • Dependable Performance. Solid cast iron upper section, CAD designed and tested for optimum strength. The NOVA Woodsurfer Bowl Rest is cast from a high grade cast iron with solid section thickness and CAD generated gussets at critical points. Designed to withstand extremely high stresses with practically no distortion.
  • Sturdy enough to cope with the big bowl turning capacity the NOVA 1624 and DVR XP has – 29 inch bowls (with optional outrigger accessory)
  • Designed Specifically for Bowl Turning. CAD designed and thoroughly user tested , the curved shape optimises performance of the chisel when turning bowls.
  • Solid 1 inch/25mm Shank. Provides a rock solid platform for turning. Industry standard 1 inch/25mm shank means that the NOVA Woodsurfer Bowl Rest will fit other lathes.



toolrest 300mmToolrest 300mm
Code: TR300/1

Toolrest made out of solid cast iron top. 300mm/12 inch long, it comes with a sturdy 1 inch shank for solid support. This size comes standard with most NOVA lathes (Comet II excluded)



toolrest 100mmToolrest 100mm
Code: TR100/1

Toolrest 100mm/4 inch long, with a solid cast iron top and 1 inch shank. Handy for smaller work when you don't want a toolrest to get in the way.





80mm Faceplate80mm Faceplate
Code:SFP80(specify thread size)

Made out of a solid steel billet, this faceplate is strong and robust. The small faceplate is often convenient for initial workholding or even quite large pieces. One of the advantages they offer is their small contact area allowing maximum freedom while shaping behind a bowl. But because they are a small faceplate with reduced contact area, they do need to be made strong. The NOVA 80mm faceplate does deliver with its quality solid steel design. The faceplate is coated with a rust protective black finish.

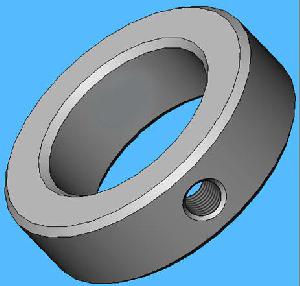

NOVA Toolrest Collar Ring

Code: 27007

The Nova Toolrest Collar ring can be locked onto the tool shaft for maintaining your tool rest at the fixed height. Therefore you don't need to worry about the height of your toolrest, when you adjust your toolrest to a different direction.

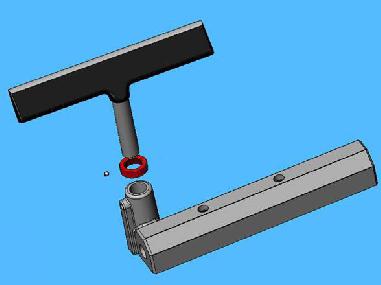

toolrest ringtoolrest collar

Features at a glance

  • A simple collar to provide a fixed height for the Toolrest, saving the turner from having to find the same height again each time.
  • Enables the turner to return to a preset height again instantly.
  • Gives a consistent, reliable, set height where height accuracy is critical.
  • 1 inch internal diameter collar, for all NOVA lathes as well as other lathes with a 1 inch Toolrest shaft, which encompasses a majority of the lathes on the market.
  • Made from quality steel with chamfered edges for users protection.


Uses

  • Indexing (see pictures below)
  • Bowl profiling
  • Great for beginner turners especially - you can set it to the correct height setting for different chisels.

Example of using the unit for indexing:

bowlsturning  turning 2

Standard Equipment:

  • Collar Ring
  • Grub Screw
  • Fibre wash
  • Allan key



Models and Accessories
25054 Cast Iron Stand for DVR XP and 1624-44 Lathe
25048 Hybrid Stand for DVR XP and 1624-44 Lathe
57073 Outrigger Unit for 2024 Lathe
55223 Outrigger Unit for DVR XP and 1624-44 Lathes
9007 Nova Lathe Swing Away Bed
55224 Nova Bed Extension Accessory in Black
47050 Comet II Stand
47001 Comet II Bed Extension
6002 Faceplate Ring 130mm
6001 Faceplate Ring 100mm
9006 Woodsurfer Bowl Rest w/1 inch Post
6008 Dovetail Chisel
TR300/1 Toolrest 300mm 1 inch Shank
5016 Tailstock Chuck Adaptor
6000 Faceplate Ring 50mm
LHB Lathe Hand Wheel
TR100/1 Toolrest 100mm 1 inch Shank
6030 Cole Jaw Buffer Kit
2MTLC 2 MT Simple Live Center
2MTSPUR 2 MT Spur Center
10006 Woodworm Screw
NCSC Nova Chuck Spu Center
2MTNA Acruline 2 MT Alignment System
6021 Soft Jaws
23079 Nova Universal Spanner Wrench
SFP80L 3 inch Faceplate (80mm) 1-1/4 inch 8 TPI
FP150L 6 inch Faceplate
47009 Finger Jig
WWCJ Cole Jaw Woodworm Screw
CJFK Cole jaw Fastening Kit
27007 Toolrest Collar Ring
10051 10 in 1 Chuck Gage
5015 Nova Live Center System
9032 Magnetic Base Lamp with 19 inch Gooseneck
