Oliver Tablesaws

Oliver 10 inch Jobsite Table Saw 2HP 15A 115V - NO STAND Oliver 10 inch Professional Table Saw 1.75HP 1Ph w/36 inch Rails Oliver 10 inch Professional Table Saw 1.75HP 1Ph w/52 inch Rails Oliver 10 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails Oliver 10 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails
10 inch Jobsite Table Saw 2HP 15A 115V - NO STAND 10 inch Professional Table Saw 1.75HP 1Ph w/36 inch Rails 10 inch Professional Table Saw 1.75HP 1Ph w/52 inch Rails 10 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails 10 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails
Oliver 10 inch Heavy Duty Table Saw 5HP 3Ph w/36 inch Rails Oliver 10 inch Heavy Duty Table Saw 5HP 3Ph w/Side Table w/52 inch Rails Oliver 12 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails Oliver 12 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails Oliver 12 inch Heavy Duty Table Saw 7.5HP 3Ph w/36 inch Rails
10 inch Heavy Duty Table Saw 5HP 3Ph w/36 inch Rails 10 inch Heavy Duty Table Saw 5HP 3Ph w/Side Table w/52 inch Rails 12 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails 12 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails 12 inch Heavy Duty Table Saw 7.5HP 3Ph w/36 inch Rails
Oliver 12 inch Heavy Duty Table Saw 7.5HP 3Ph w/Side Table w/52 inch Rails Oliver 14 inch Heavy Duty Tablesaw 7.5HP 230V/460V 3Ph w/52 inch Rails Oliver 16 inch Heavy Duty Tablesaw 10HP 230V/460V 3Ph w/52 inch Rails
12 inch Heavy Duty Table Saw 7.5HP 3Ph w/Side Table w/52 inch Rails 14 inch Heavy Duty Tablesaw 7.5HP 230V/460V 3Ph w/52 inch Rails 16 inch Heavy Duty Tablesaw 10HP 230V/460V 3Ph w/52 inch Rails



Models
10 inch Jobsite Table Saw
10010.002 10 inch Jobsite Table Saw 2HP 15A 115V - NO STAND
10 inch Professional Table Saw
10040.001 10 inch Professional Table Saw 1.75HP 1Ph w/36 inch Rails
10040.002 10 inch Professional Table Saw 1.75HP 1Ph w/52 inch Rails
10 inch Heavy Duty Table Saw
4016.003 10 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails
4016.003-A001 10 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails
4016.004 10 inch Heavy Duty Table Saw 5HP 3Ph w/36 inch Rails
4016.004-A001 10 inch Heavy Duty Table Saw 5HP 3Ph w/Side Table w/52 inch Rails
12 inch Heavy Duty Table Saw
4045.003 12 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rails
4045.003-A001 12 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rails
4045.004 12 inch Heavy Duty Table Saw 7.5HP 3Ph w/36 inch Rails
4045.004-A001 12 inch Heavy Duty Table Saw 7.5HP 3Ph w/Side Table w/52 inch Rails
14 inch and16 inch Heavy Duty Table Saw
4065.002 14 inch Heavy Duty Tablesaw 7.5HP 230V/460V 3Ph w/52 inch Rails
4065.003 16 inch Heavy Duty Tablesaw 10HP 230V/460V 3Ph w/52 inch Rails
Table Saw Accessories
10 inch Jobsite Table Saw Accessories
10010.A001 Folding Roller Stand for 10010.002 Tablesaw
10010.A004 Pre-Cut Dado Table Insert
10010.A005 Zero Clearance Table Insert
10010.A006 Zero Clearance Dado Insert
10 inch Professional Table Saw Accessories
10040.A002 Zero Clearance Table Insert
10040.A003 Pre-Cut Dado Table Insert
10040.A004 230V Magnetic Switch Conversion Kit
10040.A005 Zero Clearance Dado Insert
A-TS SD 5/8 inch Arbor Sanding Disc Set for 10010, 10040, 4016
10 inch Heavy Duty Table Saw Accessories
4016.A002 Rear Extension Table  24 inch x 36 inch
4016.A004 Zero Clearance Table Insert Blade
4016.A005 Zero Clearance Table Insert Dado
A-TS SD 5/8 inch Arbor Sanding Disc Set for 10010, 10040, 4016
12 inch Heavy Duty Table Saw Accessories
4045.A002 Rear Extension Table  24 inch x 36 inch
4045.A004 Zero Clearance Table Insert Blade
4045.A005 Zero Clearance Table Insert Dado
14 inch and 16 inch Heavy Duty Table Saw Accessories
4065.A001 14 inch Blade Conversion Kit for M-4065.003 including Blade Guard Assembly (guard/splitter/anti-kick back fingers), Table Insert, and Riving Knife.
4065.A002 16 inch Blade Conversion Kit for M-4065.002 including Blade Guard Assembly (guard/splitter/anti-kick back fingers), Table Insert, and Riving Knife.
4065.A003 Zero Clearance Blade Insert
4065.A004 Zero Clearance Dado Insert

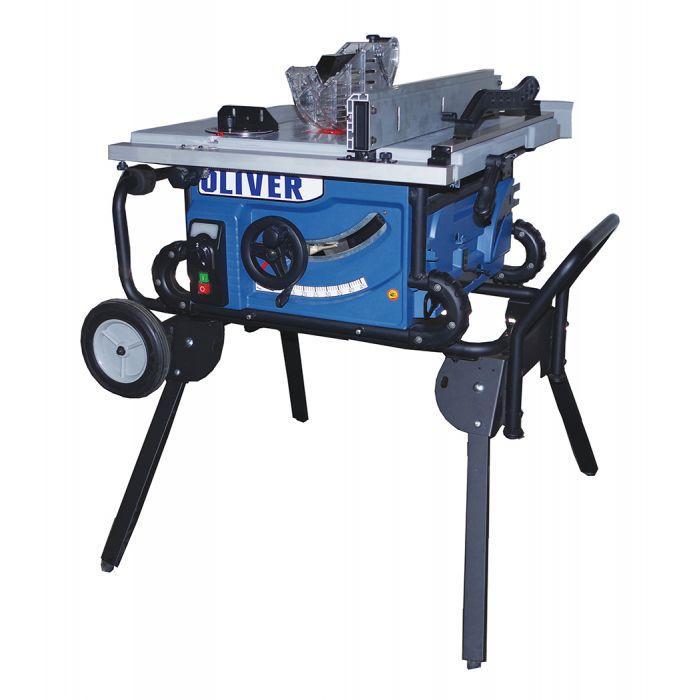

10" Jobsite Table Saw and Roller Stand

10 inch Jobsite Table Saw and Roller Stand - 10010

  • All accessories included at no extra cost: 10 inch 40T Carbide Tip Blade, Riving Knife, Miter Gauge, Blade Table Insert, Push Stick
  • Rapid blade elevation for quicker set-up.
  • Lighted overload indicator prevents motor damage and will protect if the blade is blocked.
  • Variable speed motor is easy to adjust and produces constant torque over the entire RPM range.
  • Magnetic switch prevents unwanted start after power interruption.
  • Rip fence features L-shaped attachment for use with thin stock.
  • Fence lock for precise cuts and safe transportation.
  • On-board tool and accessory storage.
  • Left tilt blade for added safety.
  • Arbor lock for quick blade change.
  • Blade guard features a quick release for easy blade access
  • Riving knife included for non-through cuts.
  • Built in 2-1/2 inch port for efficient dust management.
  • Adjustable rear material support safely handles large work pieces.
  • 2 in 1 Machine. Blade can be replaced with a sanding disc for greater versatility.
  • Constant torque feature allows heavy sanding with 10 inch disc at any speed.
  • Available Fold-up stand features roller wheels for easy transportation at jobsite.
  • Light weight aluminum table for easy lifting.



Model Number 10010
Ph 1
Rail Length 28 inch
Stock Number 10010.001
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Maximum Depth of Cut at 90° 3-1/8 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Max Dado Size: 13/16 inch x 8 inch
Maximum Rip to Right of Blade: 28 inch
Variable Speed Blade or Disc RPM: 2,000 to 4,200
Table Dimensions 25-3/16 inch D x 22-7/16 inch W
Table Height 34 inch
Motor 2HP, 1Ph, 115V (15 Amp)
Net Weight 90 lbs
Gross Weight 110 lbs



 10" Professional Table Saw - 1.75HP 1Ph with 36" Rail - 10040

 10 inch Professional Table Saw - 1.75HP 1Ph with 36 inch Rail - 10040

  • Large precision ground table with cast iron extension wings.
  • Cabinet mounted blade trunnion.
  • Spindle lock for easy blade changes.
  • Built in storage for fence, blade guard, miter gauge, and riving knife.
  • Saw blade included.
  • Poly V-belt for long life and smooth operation.
  • Extension table and legs included with 52 inch model.
  • Quick mount and release blade guard.
  • Riving knife included.
  • Built in wheels with locks for mobility.
  • Industrial switch with large OFF paddle.
  • Dust shroud and hose for efficient dust management.
  • Motor includes thermo overload reset switch for added protection.



Specifications
Model Number 10040
Ph 1Ph
Rail Length 1Ph w/36 inch Rail
Stock Number 10040
Stock No. (36 inch ) 10040.001
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 4,500 RPM
Maximum Depth of Cut at 90° 3-1/8 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 36 inch
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch Ø
Table Dimensions w/o Extensions 27 inch D x 20 inch W
Wing Size 27 inch x 12 inch
Table Height 35 inch
Motor 1Ph 1.75 HP, 1Ph, 115V/220V Prewired 115V (14.8/7.4 Amp)
Overall Dimensions 32 inch x 67 inch
Net Weight 266 lbs.
Gross Weight 275 lbs.



 10" Professional Table Saw 1.75HP 1Ph with 52" Rail - 10040

 10 inch Professional Table Saw 1.75HP 1Ph with 52 inch Rail - 10040

  • Large precision ground table with cast iron extension wings.
  • Cabinet mounted blade trunnion.
  • Spindle lock for easy blade changes.
  • Built in storage for fence, blade guard, miter gauge, and riving knife.
  • Saw blade included.
  • Poly V-belt for long life and smooth operation.
  • Extension table and legs included with 52 inch model.
  • Quick mount and release blade guard.
  • Riving knife included.
  • Built in wheels with locks for mobility.
  • Industrial switch with large OFF paddle.
  • Dust shroud and hose for efficient dust management.
  • Motor includes thermo overload reset switch for added protection.



Specifications
Model Number 10040
Ph 1Ph
Rail Length 1Ph w/52 inch Rail
Stock Number 10040
Stock No. (36 inch ) 10040.002
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 4,500 RPM
Maximum Depth of Cut at 90° 3-1/8 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 52 inch
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch Ø
Table Dimensions w/o Extensions 27 inch D x 20 inch W
Wing Size 27 inch x 12 inch
Table Height 35 inch
Motor 1Ph 1.75 HP, 1Ph, 115V/220V Prewired 115V (14.8/7.4 Amp)
Overall Dimensions 32 inch x 83 inch
Net Weight 266 lbs.
Gross Weight 275 lbs.



 10" Table Saw - 4016.003 - 5HP, 1PH with 36" Rail

 10 inch Table Saw - 4016.003 - 5HP, 1PH with 36 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 5/8 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy adjustments.
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 36 inch rip capacity.
  • 36 inch rail includes (2) cast iron extension wings.
  • Optional rear support table available.
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in single phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4016.003
Ph 1Ph
Rail Length w/36' Rail
Stock Number 4016
Stock No. (5HP, 1Ph) 4016.003
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90° 3 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 36 inch or 52 inch with side table
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 27 inch D x 21-1/4 inch W
Wing Size 27 inch x 12 inch
Table Height 36 inch
Motor 1Ph 5HP, 1Ph, 220V Only (18 amps)
Overall Dimensions 74 inch L x 32--1/2 inch W x 40 inch H
Net Weight 480 lbs.
Gross Weight 720 lbs.



 10" Table Saw - 4016.003.A001 - 5HP, 1PH with 52" Rail

 10 inch Table Saw - 4016.003.A001 - 5HP, 1PH with 52 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 5/8 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy adjustments.
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52 inch rip capacity.
  • 52 inch rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in single phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4016.003
Ph 1Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 4016
Stock No. (5HP, 1Ph) 4016.003.A001
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90° 3 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 52 inch with side table
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 27 inch D x 21-1/4 inch W
Wing Size 27 inch x 12 inch
Table Height 36 inch
Motor 1Ph 5HP, 1Ph, 220V Only (18 amps)
Overall Dimensions 74 inch L x 32--1/2 inch W x 40 inch H
Net Weight 480 lbs.
Gross Weight 720 lbs.
 10" Table Saw - 4016.004 - 5HP, 3PH with 36" Rail

 10 inch Table Saw - 4016.004 - 5HP, 3PH with 36 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 5/8 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy adjustments.
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 36 inch rip capacity.
  • 36 inch rail includes (2) cast iron extension wings.
  • Optional rear support table available.
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in three phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4016.004
Ph 3Ph
Rail Length w/36' Rail
Stock Number 4016
Stock No. (5HP, 3Ph) 4016.004
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90° 3 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 36 inch
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 27 inch D x 21-1/4 inch W
Wing Size 27 inch x 12 inch
Table Height 36 inch
Motor 3Ph 5HP, 3Ph, 220V/440V Prewired 220V (15/7.5 Amp)
Overall Dimensions 74 inch L x 32--1/2 inch W x 40 inch H
Net Weight 480 lbs.
Gross Weight 720 lbs.



 10" Table Saw - 4016.004.A001 - 5HP, 3PH with 52" Rail

 10 inch Table Saw - 4016.004.A001 - 5HP, 3PH with 52 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 5/8 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy adjustments.
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52 inch rip capacity.
  • 52 inch rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in three phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4016.004.A001
Ph 3Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 4016
Stock No. (5HP, 3Ph) 4016.004.A001
Blade Diameter 10 inch
Arbor Diameter 5/8 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90° 3 inch
Maximum Depth of Cut at 45° 2-1/4 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 52 inch with side table
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 27 inch D x 21-1/4 inch W
Wing Size 27 inch x 12 inch
Table Height 36 inch
Motor 3Ph 5HP, 3Ph, 220V/440V Prewired 220V (15/7.5 Amp)
Overall Dimensions 74 inch L x 32-1/2 inch W x 40 inch H
Net Weight 480 lbs.
Gross Weight 720 lbs.



 12" Table Saw - 4045.003 - 5HP, 1PH, 36" Rail

 12 inch Table Saw - 4045.003 - 5HP, 1PH, 36 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 36 inch rip capacity.
  • 36 inch rail includes (2) cast iron extension wings.
  • Optional rear support table available.
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in single phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4045.003
Ph 1Ph
Rail Length 1Ph w/36 inch Rail
Stock Number 0
Stock No. (5HP, 1Ph) 4045.003
Blade Diameter 12 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90 deg 4 inch
Maximum Depth of Cut at 45 deg 2-2/3 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 36 inch Rail
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 30-3/4 inch D x 24 inch W
Wing Size 30-3/4 inch x 12 inch
Table Height 36 inch
Motor 1Ph 5HP, 1Ph, 220V Only (18 Amp)
Overall Dimensions 75 inch L x 45 inch W x 41 inch H
Net Weight 550 lbs.
Gross Weight 750 lbs.



 12" Table Saw - 4045.003.A001 - 5HP, 1PH, 52" Rail

 12 inch Table Saw - 4045.003.A001 - 5HP, 1PH, 52 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52 inch rip capacity.
  • 52 inch rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in single phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4045.003
Ph 1Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 0
Stock No. (5HP, 1Ph) 4045.003.A001
Blade Diameter 12 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90 deg 4 inch
Maximum Depth of Cut at 45 deg 2-2/3 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 52 inch Rail
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 30-3/4 inch D x 24 inch W
Wing Size 30-3/4 inch x 12 inch
Table Height 36 inch
Motor 1Ph 5HP, 1Ph, 220V Only (18 Amp)
Overall Dimensions 75 inch L x 45 inch W x 41 inch H
Net Weight 550 lbs.
Gross Weight 750 lbs.



 12" Table Saw - 4045.004 - 7.5HP, 3PH, 36" Rail

 12 inch Table Saw - 4045.004 - 7.5HP, 3PH, 36 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 36 inch rip capacity.
  • 36 inch rail includes (2) cast iron extension wings.
  • Optional rear support table available.
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in three phase.
  • Miter gauge included.
  • Blade not included.
Specifications
Model Number 4045.004
Ph 3Ph
Rail Length w/36' Rail
Stock Number 0
Stock No. (5HP, 3Ph) 4045.004
Blade Diameter 12 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90° 4 inch
Maximum Depth of Cut at 45° 2-2/3 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 36 inch Rail
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 30-3/4 inch D x 24 inch W
Wing Size 30-3/4 inch x 12 inch
Table Height 36 inch
Motor 3Ph 7.5HP, 3Ph, 220V/440V Prewired 220V (20/10 Amp)
Overall Dimensions 75 inch L x 45 inch W x 41 inch H
Net Weight 550 lbs.
Gross Weight 750 lbs.
 12" Table Saw - 4045.004.A001 - 7.5HP, 3PH, 52" Rail

 12 inch Table Saw - 4045.004.A001 - 7.5HP, 3PH, 52 inch Rail

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.
  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1 inch arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./
  • Includes digital readout of blade tilt.
  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52 inch rip capacity.
  • 52 inch rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.
  • Powerful TEFC motor available in three phase.
  • Miter gauge included.
  • Blade not included.



Specifications
Model Number 4045.004
Ph 3Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 0
Stock No. (5HP, 1Ph) 4045.004.A001
Blade Diameter 12 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,450 RPM
Maximum Depth of Cut at 90 deg 4 inch
Maximum Depth of Cut at 45 deg 2-2/3 inch
Maximum Width of Dado 13/16 inch
Maximum Cut to Right of Blade 52 inch Rail
Maximum Cut to Left of Blade 12 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 30-3/4 inch D x 24 inch W
Wing Size 30-3/4 inch x 12 inch
Table Height 36 inch
Footprint 7.5HP, 3Ph, 220V/440V Prewired 220V (20/10 Amp)
Overall Dimensions 75 inch L x 45 inch W x 41 inch H
Net Weight 550 lbs.
Gross Weight 750 lbs.



 14" Table Saw - 4065.002 - 7.5HP, 3PH, 230V/460V - 52" Rail

            14 inch Table Saw - 4065.002 - 7.5HP, 3PH, 230V/460V - 52 inch Rail

Introducing the Ultimate Woodworking Powerhouse: The 4065.002 14 inch Industrial Table Saw! Are you tired of compromising on the quality of your woodworking projects due to inadequate tools? Look no further! Our 4065.002 Industrial Table Saw is here to revolutionize your woodworking experience. Crafted with precision and designed for efficiency, this table saw is your gateway to unparalleled craftsmanship.

Our machine has the capability to transform into a 16 inch table saw, thanks to the availability of our optional 16 inch blade conversion kit. This comprehensive kit encompasses essential components such as the blade guard assembly (comprising a guard, splitter, and anti-kickback fingers), a table insert, and a riving knife. You can easily identify this kit with the SKU number A-4065.A002.

Key Features That Set Us Apart:

  • Power and Performance: The 7.5HP 3Ph (14 inch ) model, both offering exceptional power to effortlessly tackle even the toughest cuts.
  • Cutting-Edge Technology: Equipped with magnetic controls and a lockout key, safety is paramount. The Digital Read Outs (DRO) for blade height and angle ensure accurate and consistent cuts every time.
  • Stability Redefined: The large precision ground table, side table, and impressive 52 inch rip capacity provide a rock-solid foundation for your projects, enabling you to work with confidence and precision.
  • Mobility and Adaptability: The extra-wide base, paired with heavy-duty adjustable casters, guarantees stability and allows you to move your workstation with ease.
  • Dust Management Perfected: A fully enclosed cabinet design ensures efficient dust management, keeping your workspace clean and your focus on what matters most - your craft.
  • Uncompromising Precision: The precision ground 1 inch arbor ensures that your cuts are smooth and accurate, enhancing the overall quality of your work.
  • Versatile Angles: The wide-stance heavy-duty trunnion boasts a left-tilting blade, enabling you to make versatile cuts with ease.
  • Ready to Create: Each saw comes with a general-purpose blade (14 inch 72T), making your projects a reality from the moment you set up.
  • Effortless Adjustments: The large chrome hand wheels are designed for your convenience, allowing easy and precise adjustments on the fly.

Elevate your woodworking game with the 4065.002 Industrial Table Saw. It's not just a tool; it's a masterpiece of engineering that empowers you to unleash your creativity without limits. Experience the thrill of precise cuts, the joy of craftsmanship, and the satisfaction of bringing your visions to life.Don't settle for mediocrity; choose excellence with the 4065.002 Industrial Table Saw. Your projects deserve nothing less.

Specifications
Model Number 4065.002
Ph 3Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 4065.002
Stock No. (52 inch ) 4065.002
Stock No. (7.5HP, 3Ph) 4065.002
Blade Diameter 14 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,800 RPM
Maximum Depth of Cut at 90° 5-1/8 inch
Maximum Depth of Cut at 45° 3-5/8 inch
Maximum Width of Dado 11/16 inch
Dado Diameter (Optional) 12 inch
Max Dado Size: 12 inch
Maximum Cut to Right of Blade 52 inch Rail
Maximum Cut to Left of Blade 10 inch
Maximum Rip to Right of Blade: 52 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 35-13/16“(L) x 39 inch (D)
Wing Size 42-1/2 inch (L) x 39 inch (D)
Table Dimensions 78-5/16 inch (L) x 39 inch (D)
Table Height 44 inch
Motor 3PH, 220V Prewired. Optional 440V Available.
Motor 3Ph 7.5HP
Footprint 74 inch (L) x 39 inch (D)
Overall Dimensions 82“(L) x 48 inch (D) x 44 inch (H)
Net Weight 814 lbs
Gross Weight 1,092 lbs.



 16" Table Saw - 4065.003 - 10HP, 3PH, 230V/460V - 52" Rail

 16 inch Table Saw - 4065.003 - 10HP, 3PH, 230V/460V - 52 inch Rail

Introducing the Ultimate Woodworking Powerhouse: The 4065.003 16 inch Industrial Table Saw! Are you tired of compromising on the quality of your woodworking projects due to inadequate tools? Look no further! Our 4065.003 Industrial Table Saw is here to revolutionize your woodworking experience. Crafted with precision and designed for efficiency, this table saw is your gateway to unparalleled craftsmanship.

Our machine has the capability to transform into a 14 inch table saw, thanks to the availability of our optional 14 inch blade conversion kit. This comprehensive kit encompasses essential components such as the blade guard assembly (comprising a guard, splitter, and anti-kickback fingers), a table insert, and a riving knife. You can easily identify this kit with the SKU number A-4065.A001.


Key Features That Set Us Apart:

  • Power and Performance: the 10HP 3Ph (16 inch ) model, both offering exceptional power to effortlessly tackle even the toughest cuts.
  • Cutting-Edge Technology: Equipped with magnetic controls and a lockout key, safety is paramount. The Digital Read Outs (DRO) for blade height and angle ensure accurate and consistent cuts every time.
  • Stability Redefined: The large precision ground table, side table, and impressive 52 inch rip capacity provide a rock-solid foundation for your projects, enabling you to work with confidence and precision.
  • Mobility and Adaptability: The extra-wide base, paired with heavy-duty adjustable casters, guarantees stability and allows you to move your workstation with ease.
  • Dust Management Perfected: A fully enclosed cabinet design ensures efficient dust management, keeping your workspace clean and your focus on what matters most - your craft.
  • Uncompromising Precision: The precision ground 1 inch arbor ensures that your cuts are smooth and accurate, enhancing the overall quality of your work.
  • Versatile Angles: The wide-stance heavy-duty trunnion boasts a left-tilting blade, enabling you to make versatile cuts with ease.
  • Ready to Create: Each saw comes with a general-purpose blade (16 inch 80T), making your projects a reality from the moment you set up.
  • Effortless Adjustments: The large chrome hand wheels are designed for your convenience, allowing easy and precise adjustments on the fly.

Elevate your woodworking game with the 4065.003 Industrial Table Saw. It's not just a tool; it's a masterpiece of engineering that empowers you to unleash your creativity without limits. Experience the thrill of precise cuts, the joy of craftsmanship, and the satisfaction of bringing your visions to life.

Dont settle for mediocrity; choose excellence with the 4065.003 Industrial Table Saw. Your projects deserve nothing less.



Model Number 4065.003
Ph 3Ph
Rail Length w/Side Table w/52 inch Rail
Stock Number 4065.003
Stock No. (52 inch ) 4065.003
Stock No. (7.5HP, 3Ph) 4065.003
Blade Diameter 16 inch
Arbor Diameter 1 inch
Blade Tilt Left
Arbor Speed 3,800 RPM
Maximum Depth of Cut at 90° 6-1/8 inch
Maximum Depth of Cut at 45° 4-3/8 inch
Maximum Width of Dado 11/16 inch
Dado Diameter (Optional) 12 inch
Max Dado Size: 12 inch
Maximum Cut to Right of Blade 52 inch Rail
Maximum Cut to Left of Blade 10 inch
Maximum Rip to Right of Blade: 52 inch
Dust Port Diameter 4 inch
Table Dimensions w/o Extensions 35-13/16 inch (L) x 39 inch (D)
Wing Size 42-1/2 inch (L) x 39 inch (D)
Table Dimensions 78-5/16 inch (L) x 39 inch (D)
Table Height 44 inch
Motor 3PH, 220V Prewired. Optional 440V Available.
Motor 3Ph 10HP
Footprint 74 inch (L) x 39 inch (D)
Overall Dimensions 82 inch (L) x 48 inch (D) x 44 inch (H)
Net Weight 814 lbs
Gross Weight 1,092 lbs.



10010.002
10 JOBSITE TABLE SAW 2HP 15A 115V - NO STAND
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 10010.002
OLV10010.002
Call for freight quote on this item or we will confirm freight charges before shipping.1
$569.99

39
10040.001
10 PROFESSIONAL TABLE SAW 1.75HP 1PH W/36 RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 10040.001
OLV10040.001
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,699.99

39   1
10040.002
10 PROFESSIONAL TABLE SAW 1.75HP 1PH W/52 RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 10040.002
OLV10040.002
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,899.99

39
4016.003
10 HEAVY DUTY TABLE SAW 5HP 1PH W/36" RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 4016.003
OLV4016.003
lease to own for as little as:$64 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,499.99

39
4016.003-A001
10" HEAVY DUTY TABLE SAW 5HP 1PH W/SIDE TABLE W/52" RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 4016.003-A001
OLV4016.003-{02
lease to own for as little as:$67 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,699.99

39
4016.004
10 HEAVY DUTY TABLE SAW 5HP 3PH W/36" RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 4016.004
OLV4016.004
lease to own for as little as:$73 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,999.99

39
4016.004-A001
10" HEAVY DUTY TABLE SAW 5HP 3PH W/SIDE TABLE W/52" RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 4016.004-A001
OLV4016.004-{02
lease to own for as little as:$78 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,249.99

39
4045.003
12" HEAVY DUTY TABLE SAW 5HP 1PH W/36" RAILS
ADD TO CART OR CALL 800-458-3687 X1 FOR YOUR EXCLUSIVE BROTHER-IN-LAW PRICE ON THIS OLIVER ITEM
Mfg. item #: 4045.003
OLV4045.003
lease to own for as little as:$82 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,499.99

39
4045.003-A001
12" HEAVY DUTY TABLE SAW 5HP 1PH W/SIDE TABLE W/52" RAILS
SOUTHERN TOOL SPECIAL = FREE SHIPPING, RESIDENTIAL AND/OR LIFTGATE EXTRA
Mfg. item #: 4045.003-A001
OLV4045.003-{01
lease to own for as little as:$96 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$4,799.99

39
4045.004
12" HEAVY DUTY TABLE SAW 7.5HP 3PH W/36" RAILS
SOUTHERN TOOL SPECIAL = FREE SHIPPING, RESIDENTIAL AND/OR LIFTGATE EXTRA
Mfg. item #: 4045.004
OLV4045.004
lease to own for as little as:$92 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$4,599.99

39
4045.004-A001
12" HEAVY DUTY TABLE SAW 7.5HP 3PH W/SIDE TABLE W/52" RAILS
SOUTHERN TOOL SPECIAL = FREE SHIPPING, RESIDENTIAL AND/OR LIFTGATE EXTRA
Mfg. item #: 4045.004-A001
OLV4045.004-{01
lease to own for as little as:$98 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$4,899.99

39
4065.002
14 HEAVY DUTY TABLESAW 7.5HP 230V/460V 3PH W/52 RAILS
SOUTHERN TOOL SPECIAL = FREE SHIPPING, RESIDENTIAL AND/OR LIFTGATE EXTRA
Mfg. item #: 4065.002
OLV4065.002
lease to own for as little as:$124 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$6,199.99

39
4065.003
16 HEAVY DUTY TABLESAW 10HP 230V/460V 3PH W/52 RAILS
SOUTHERN TOOL SPECIAL = FREE SHIPPING, RESIDENTIAL AND/OR LIFTGATE EXTRA
Mfg. item #: 4065.003
OLV4065.003
lease to own for as little as:$128 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$6,399.99

39
10010.A001
FOLDING ROLLER STAND FOR 10010.002 TABLESAW
Mfg. item #: 10010.A001
OLV10010.A001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$149.99

39
10010.A004
PRE-CUT DADO TABLE INSERT
Mfg. item #: 10010.A004
OLV10010.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
10010.A005
ZERO CLEARANCE TABLE INSERT
Mfg. item #: 10010.A005
OLV10010.A005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$39.99

39
10010.A006
ZERO CLEARANCE DADO INSERT
Mfg. item #: 10010.A006
OLV10010.A006
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
10040.A002
ZERO CLEARANCE TABLE INSERT
Mfg. item #: 10040.A002
OLV10040.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
10040.A003
PRE-CUT DADO TABLE INSERT
Mfg. item #: 10040.A003
OLV10040.A003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
10040.A004
230V MAGNETIC SWITCH CONVERSION KIT
Mfg. item #: 10040.A004
OLV10040.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$89.99

39
10040.A005
ZERO CLEARANCE DADO INSERT
Mfg. item #: 10040.A005
OLV10040.A005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
A-TS SD
5/8 ARBOR SANDING DISC SET FOR 10010, 10040, 4016
Mfg. item #: A-TS SD
OLVA-TS SD
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$29.99

39
4016.A002
REAR EXTENSION TABLE 24 X 36
Mfg. item #: 4016.A002
OLV4016.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$399.99

39
4016.A004
ZERO CLEARANCE TABLE INSERT BLADE
Mfg. item #: 4016.A004
OLV4016.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
4016.A005
ZERO CLEARANCE TABLE INSERT DADO
Mfg. item #: 4016.A005
OLV4016.A005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.99

39
4045.A002
REAR EXTENSION TABLE 24 X 36
Mfg. item #: 4045.A002
OLV4045.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$399.99

39
4045.A004
ZERO CLEARANCE TABLE INSERT BLADE
Mfg. item #: 4045.A004
OLV4045.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$69.99

39
4045.A005
ZERO CLEARANCE TABLE INSERT DADO
Mfg. item #: 4045.A005
OLV4045.A005
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$69.99

39
4065.A001
14 BLADE CONVERSION KIT FOR M-4065.003 INCLUDING BLADE GUARD ASSEMBLY (GUARD/SPLITTER/ANTI-KICK BACK FINGERS), TABLE INSERT, AND RIVING KNIFE.
Mfg. item #: 4065.A001
OLV4065.A001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$399.99

39
4065.A002
16 BLADE CONVERSION KIT FOR M-4065.002 INCLUDING BLADE GUARD ASSEMBLY (GUARD/SPLITTER/ANTI-KICK BACK FINGERS), TABLE INSERT, AND RIVING KNIFE.
Mfg. item #: 4065.A002
OLV4065.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$449.99

39
4065.A003
ZERO CLEARANCE BLADE INSERT
Mfg. item #: 4065.A003
OLV4065.A003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$99.99

39
4065.A004
ZERO CLEARANCE DADO INSERT
Mfg. item #: 4065.A004
OLV4065.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$99.99

39
Copyright © 2024 Smith-Hamilton, Inc
0.081 240227 06:30
