Oliver 10 inch Table Saws
Click here to download manual

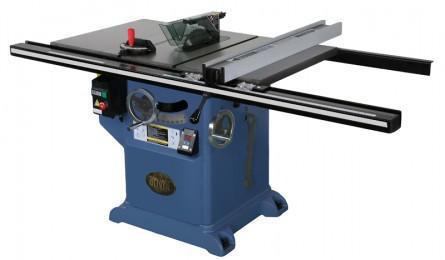

The Oliver 4016 10 inch Table Saw is like a luxury sports car powerful and smooth. With a 5HP motor, its got torque to spare for big jobs. And like the best
luxury cars, this machine runs smooth. Where others tout the nickel test, we do the dime test. This is due in part to our poly v-belt drive system belts that run smoother, with less vibration,
giving you the highest quality cut available. Top it all off with Olivers Optimus square tube fence and a digital blade angle readout system and you've got a saw that tears it up with accuracy
and in style. Give your Oliver Dealer a call and find out more reasons why the 4016 could be perfect for your shop.
Features:
-
Large precision ground table provides a stable work surface.
-
Cast iron base offers a steady platform.
-

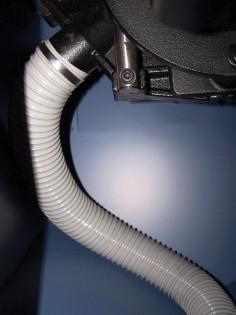

Fully enclosed cabinet and blade dust shroud for better dust management.
-
Wide stance trunnion features a left tilt blade.
-

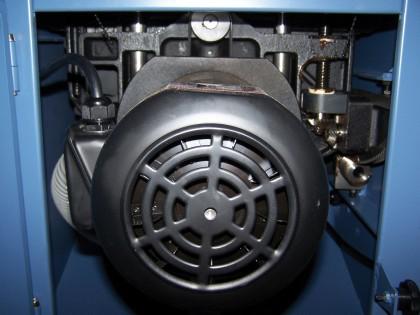

Poly V-belt drive smoothly transfers power to the blade.
-

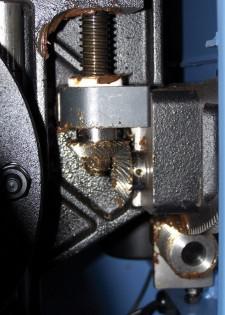

Hydraulic assisted blade lift mechanism for easy adjustment.
-
Large chrome hand wheels allow easy adjustments.
-
Includes digital readout of blade tilt.
-

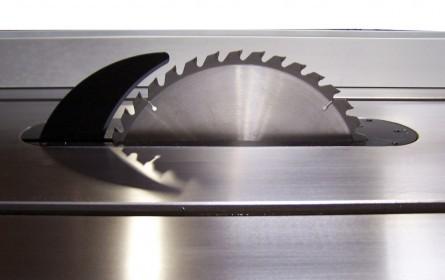

Riving knife splitter for added safety against kick-back.
-
Optimus T-square fence available in 36 or 52 inch capacity.
-
Optional side and rear support tables available.
-
Magnetic controls with emergency off switch.
-
Powerful TEFC motor available in single or three-phase.
-
Miter gauge included.
-
Optional 440/460 volt available special order only. Additional cost/parts may apply.
|
Specifications
|
|
Model No.Model No.
|
4016
|
|
Stock No. (5HP, 1Ph)
|
4016.003
|
|
Stock No. (5HP, 3Ph)
|
4016.004
|
|
Blade Diameter (in.)
|
10
|
|
Arbor Diameter (in.)
|
5/8
|
|
Max Width Dado
|
13/16 inch
|
Maximum Depth of Cut
at 90 Degrees
|
3 inch
|
|
Maximum Depth of Cut at 45 Degrees
|
2-1/4 inch
|
Maximum Cut to the
Right of Blade
|
36 inch
|
|
Maximum Cut to the Left of Blade
|
12 inch
|
|
Dust Port Diameter
|
4 inch
|
Table Dimensions
w/Extensions (L x W/in.)
|
27 x 33-1/3 inch
|
|
Table Height
|
36 inch
|
|
Blade Tilt
|
Left
|
|
Arbor Speed
|
3,450 RPM
|
|
Motor
|
5HP, 1Ph, 220V Only (18 apms)
5HP, 3Ph, 220V/440V, Prewired 220V (12 amps 220V, 6 amps 440V) Additional cost and parts for 440/460/480V may apply.
|
|
Overall Dimensions (L x W x H/in.)
|
74 x 32 1/2 x 40 inch
|
|
Net Weight
|
490 lbs
|
|
Gross Weight
|
650 lbs.
|
|
10 inch TABLE SAW
|
|
4016.003
|
10 inch Heavy Duty Table Saw 5HP 1Ph w/36 inch Rail
|
|
4016.003-A001
|
10 inch Heavy Duty Table Saw 5HP 1Ph w/Side Table w/52 inch Rail - Table Saws that are ordered with a 52 inch rail and a side table do not come with the right
cast extension wing.
|
|
4016.004
|
10 inch Heavy Duty Table Saw 5HP 3Ph w/36 inch Rail
|
|
4016.004-A001
|
10 inch Heavy Duty Table Saw 5HP 3Ph w/Side Table w/52 inch Rail - Table Saws that are ordered with a 52 inch rail and a side table do not come with the right
cast extension wing.
|
|
10 inch TABLE SAW OPTIONAL ACCESSORIES
|
|
4016.A002
|
Rear Extension Table 24 x 36 inch
|
|
812
|
Circular Saw Blade Sharpener
|
|
Finally, a sharpener for every home shop that will make your cutting job more efficient and easier at anytime and anywhere. All you need is the 0812 Circular
Blade
Sharpener and a hand grinder with our included diamond grinding wheel, and you can save your workshop upkeep and have your blades in prime condition for efficiency and safety
assurance.
Easy to use and almost hands free grinding allows you to
configure the sharpener to work with blades from 7.5 to 12 inch in diameter with 5/8 or 1 inch arbor.
Packaging Size
-
NW/GW: 24lbs/26.5lbs
-
10 x 20 x 18.5 inch
-
4 inch Angle grinder required for use
(Not Included)
|
Features:
-
Sharpens circular saw blades from 7.5 to 12 inch diameter.
-
Portable compact design.
-
Sturdy die casting iron base.
-
4 inch diamond blade included
-
Suitable for regular blades and carbide tip blades.
-
2 Year Limited Warranty
|
Oliver cicular saw blade sharpener
|
|
812
|
Circular Saw Blade Sharpener
|
10 HEAVY DUTY TABLE SAW 5HP 1PH W/36" RAIL
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST
Mfg. item #: 4016.003
OLV4016.003
lease to own for as little as:$64 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
10" HEAVY DUTY TABLE SAW 5HP 1PH W/SIDE TABLE W/52" RAIL
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST
Mfg. item #: 4016.003-A001
OLV4016.003-{02
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
10 HEAVY DUTY TABLE SAW 5HP 3PH W/36" RAIL
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST
Mfg. item #: 4016.004
OLV4016.004
lease to own for as little as:$74 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
10" HEAVY DUTY TABLE SAW 5HP 3PH W/SIDE TABLE W/52" RAIL
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST
Mfg. item #: 4016.004-A001
OLV4016.004-{02
lease to own for as little as:$78 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
REAR EXTENSION TABLE 24 X 36
Mfg. item #: 4016.A002
OLV4016.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - SAW BLADE SHARPENER
Mfg. item #: 812
OLV812
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
