Oliver 22 inch Planer

22âââ€Ã…¡ÃƒÆ’‚¬ Planer with 4-Knife HSS Straight Cutterhead - 4455 22âââ€Ã…¡Ãƒâ€šÃ‚¬ Planer with Byrd Shelix Cutterhead - 4455B

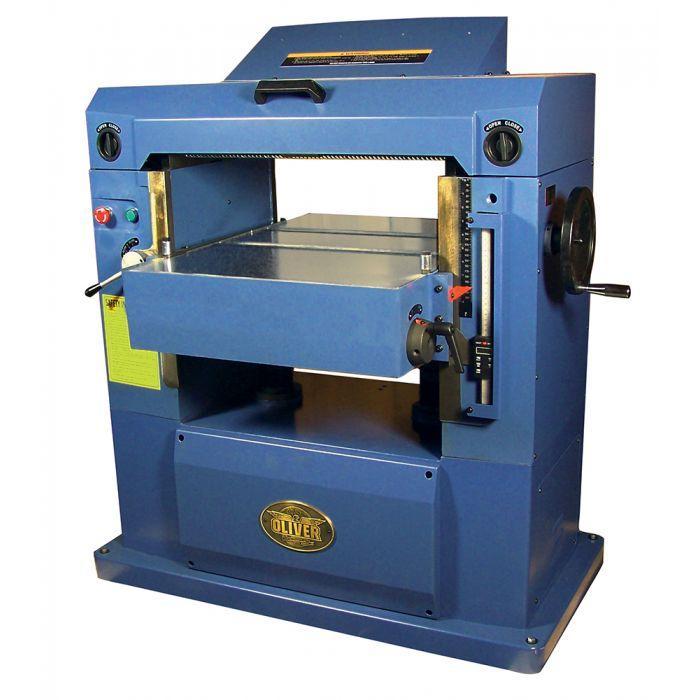

Oliver 4455 - 22 inch Planer
with 4-Knife HSS Straight Cutterhead 		Oliver 4455B 22 inch Planer
with Byrd Shelix Cutterhead



22 INCH PLANER Models
4455.001 22 inch Planer with 4 Knife HSS Straight Cutterhead 7.5HP 1Ph
4455.002 22 inch Planer with 4 Knife HSS Straight Cutterhead 10HP 3Ph
4455.103B 22 inch Planer with Byrd Shelix Cutterhead 7.5HP 1Ph
4455.104B 22 inch Planer with Bryd Shelix Cutterhead 10HP 3Ph
22 INCH PLANER OPTIONAL ACCESSORIES
4455.A001 Replacement Straight Knives HSS (4)
4455.A002 22 inch Straight Knife Cutterhead
P-30MMTCT 2 Side TCT Helical Insert  Sold as 1 each
4455.A101 22 inch TCT 2 Side Insert Helical Cutterhead





22†Planer with 4-Knife HSS Straight Cutterhead - 4455

Click here to download manual

Oliver 4455 - 22 inch Planer with 4-Knife HSS Straight Cutterhead

Features:

  • Massive cast iron construction throughout.
  • Polished built-in table roller assists movement of rough stock.
  • Segmented infeed roller and sectional chip breaker easily handle rough stock.
  • 2-speed gear box provides the perfect feed rate.
  • Magnetic controls with emergency off switch for safer operation.
  • Digital readout allows precise thickness settings.
  • Hinged access to cutter head and feed rollers for quick set-up.
  • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
  • 5 inch dust chute easily handles chip removal.
  • 3 V-belt drive smoothly transfers power to drive train and cutter head.
  • Powerful TEFC motor available in single or three-phase.
Specifications Model 4455
Model Number 4455
Stock No. (7.5HP, 1Ph, Straight) 4455.001
Stock No. (10HP, 3Ph, Straight) 4455.002
Maximum Stock Width 22 inch
Maximum Stock Thickness 9 inch
Minimum Stock Thickness 1/8 inch
Minimum Stock Length 10 inch
Dust Port Diameter 5 inch
Minimum CFM Required 900 CFM
Infeed Roller Diameter 3 inch
Outfeed Roller Diameter 3-5/16 inch
Feed Speeds 20 and 30 FPM
Bed Rollers 2, Adjustable
Table Size 23-3/4 x 32-1/4 inch
Cutterhead Diameter 3 inch
Cutterhead Speed 5,000 RPM
Number of Knives (straight) 4
Number of Knives Byrd 110 Inserts
Footprint 44 L x 22 W inch
Table Support 2-Column
Motor 1Ph 7.5HP, 220V Only (38 Amp)
Motor 3Ph 10HP, 240V/440V, Prewired 220V (26/13 Amp)
Overall Dimensions 45 W x 32 D x 50 H inch
Net Weight 1,340 lbs.
Gross Weight 1,550 lbs.



22†Planer with Byrd Shelix Cutterhead - 4455B

Click here to download manual

Oliver 4455B 22 inch Planer with Byrd Shelix Cutterhead

Features:

  • BYRD Shelix carbide inserts are indexed for quick changing.
  • Massive cast iron construction throughout.
  • Polished built-in table roller assists movement of rough stock.
  • Segmented infeed roller and sectional chip breaker easily handle rough stock.
  • 2-speed gear box provides the perfect feed rate.
  • Magnetic controls with emergency off switch for safer operation.
  • Digital readout allows precise thickness settings.
  • Hinged access to cutter head and feed rollers for quick set-up.
  • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
  • 5 inch dust chute easily handles chip removal.
  • 3 V-belt drive smoothly transfers power to drive train and cutter head.
  • Powerful TEFC motor available in single or three-phase.
Specifications 4455B
Model Number 4455B
Stock No. (7.5HP, 1Ph, Byrd) 4455.103.B
Stock No. (10HP, 3Ph, Byrd) 4455.104.B
Maximum Stock Width 22 inch
Maximum Stock Thickness 9 inch
Minimum Stock Thickness 1/8 inch
Minimum Stock Length 10 inch
Dust Port Diameter 5 inch
Minimum CFM Required 900 CFM
Infeed Roller Diameter 3 inch
Outfeed Roller Diameter 3-5/16" inch
Feed Speeds 20 and 30 FPM
Bed Rollers 2, Adjustable
Table Size 23-3/4 x 32-1/4 inch
Cutterhead Diameter 3 inch
Cutterhead Speed 5,000 RPM
Number of Knives (straight) 4
Number of Knives Byrd 110 Inserts
Footprint 44 L x 22 W inch
Table Support 2-Column
Motor 1Ph 7.5HP, 220V Only (38 Amp)
Motor 3Ph 10HP, 240V/440V , Prewired 220V (26/13 Amp)
Overall Dimensions 45 W x 32 D x 50 H inch
Net Weight 1,340 lbs
Gross Weight 1,550 lbs.



4455.001
22" PLANER WITH 4 KNIFE HSS STRAIGHT CUTTERHEAD 7.5HP 1PH
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST, IF ANY
Mfg. item #: 4455.001
OLV4455.001
lease to own for as little as:$145 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,824.99

1
4455.002
22" PLANER WITH 4 KNIFE HSS STRAIGHT CUTTERHEAD 10HP 3PH
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST, IF ANY
Mfg. item #: 4455.002
OLV4455.002
lease to own for as little as:$145 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,824.99

1
4455.103B
22" PLANER WITH BYRD SHELIX CUTTERHEAD 7.5HP 1PH
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST, IF ANY
Mfg. item #: 4455.103B
OLV4455.103B
lease to own for as little as:$182 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,824.99

1
4455.104B
22" PLANER WITH BYRD SHELIX CUTTERHEAD 10HP 3PH
CALL 800-458-3687 X1 FOR OUR BROTHER-IN-LAW DEALS & LOW FREIGHT COST, IF ANY
Mfg. item #: 4455.104B
OLV4455.104B
lease to own for as little as:$182 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,824.99

1
4455.A001
22 REPLACEMENT STRAIGHT KNIVES HSS (4)
Mfg. item #: 4455.A001
OLV4455.A001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$194.99

1
4455.A002
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - 22? STRAIGHT KNIFE CUTTERHEAD
Mfg. item #: 4455.A002
OLV4455.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

611
P-30MMTCT
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - 2 SIDE TCT HELICAL INSERTS (PACK OF
Mfg. item #: P-30MMTCT
OLVP-30MMTCT
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

611
4455.A101
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - 22? TCT 2 SIDE INSERT HELICAL CUTTE
Mfg. item #: 4455.A101
OLV4455.A101
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

611
