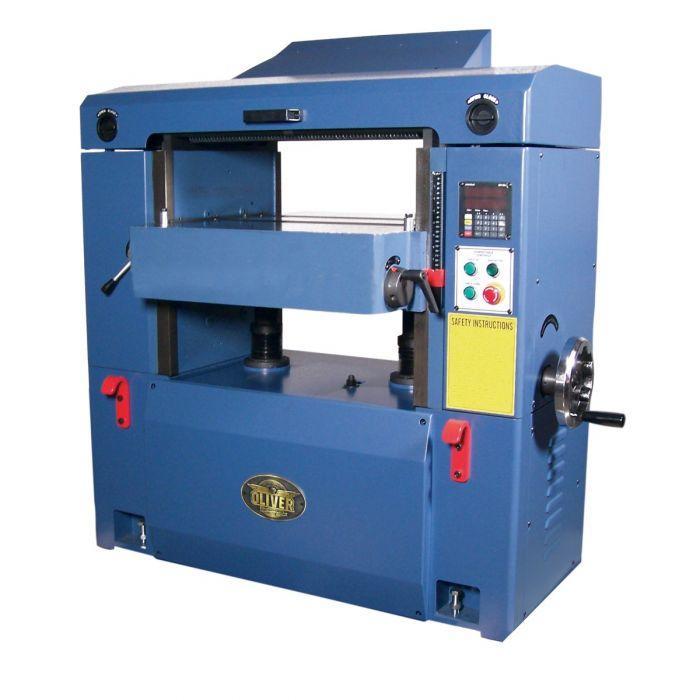

Oliver 4470 - 25 inch Planer
with 4-Knife HSS Straight Cutterhead
Oliver 4470B - 25 inch Planer
with Byrd Shelix Cutterhead



25 inch PLANER
4470.001 25 inch Planer with 4 Knife HSS Straight Cutterhead 10HP 1Ph
4470.002 25 inch Planer with 4 Knife HSS Straight Cutterhead 15HP 3Ph
4470.101B 25 inch Planer with Byrd Shelix Cutterhead 10HP 1Ph
4470.102B 25 inch Planer with Byrd Shelix Cutterhead 15HP 3Ph
25 inch PLANER OPTIONAL ACCESSORIES
4470.A001 Replacement Straight Knives HSS (4)
P-15MM4S 4 Side TCT Helical Insert (pack of 10)
P-30MMTCT 2 Side TCT Helical Inserts (pack of 10)





25†Planer with 4-Knife HSS Straight Cutterhead - 4470

Oliver 4470 - 25 inch Planer with 4-Knife HSS Straight Cutterhead

Features:

  • Massive cast iron construction throughout allows up to a 1/4 inch cut.
  • Polished built-in table roller assists movement of rough stock.
  • Segmented infeed roller and sectional chip breaker easily handle rough stock.
  • Dual outfeed rollers assist with heavy stock.
  • 3-speed gear box provides the perfect feed rate.
  • Magnetic controls with emergency off switch for safer operation.
  • Control panel with digital readout allows precise thickness settings.
  • Power assisted table makes for quick, accurate, adjustments.
  • Hinged access to cutter head and feed rollers for quick set-up.
  • 5 inch dust chute easily handles chip removal.
  • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
  • Powerful TEFC motor available in single or three-phase.
Specifications
Model Number 4470
Stock No. (10HP, 1Ph, Straight) 4470.001
Stock No. (15HP, 3Ph, Straight) 4470.002
Maximum Stock Width 25 inch
Maximum Stock Thickness 9-1/4 inch
Minimum Stock Thickness 1/8 inch Manual, 15/64 inch Automatic
Minimum Stock Length 10 inch
Dust Port Diameter 5 inch
Minimum CFM Required 900 CFM
Infeed Roller Diameter 3 inch
Steel Outfeed Roller Diameter 3 inch (x2)
Feed Speeds 20, 25 and 30 FPM
Bed Rollers 2, Adjustable
Table Size 26 x 32 inch
Cutterhead Diameter 3-3/8 inch
Cutterhead Speed 4,800 RPM
Number of Knives (straight) 4
Footprint 47-1/2 L x 21 W inch
Table Support 2-Column
Motor 1Ph 10HP, 240V Only (43 Amp)
Motor 3Ph 15HP, 240V/440V* Prewired 220V (37 Amps)
Overall Dimensions 46 L x 23 W x 56 H inch
Net Weight 1,732 lbs.
Gross Weight 1,850 lbs



25†Planer with Byrd Shelix Cutterhead - 4470B

Click here to download manual

Oliver 4470B - 25 inch Planer with Byrd Shelix Cutterhead

Featrues:

  • Helical carbide inserts are indexed for quick changing.
  • Massive cast iron construction throughout allows up to a 1/4 inch cut.
  • Polished built-in table roller assists movement of rough stock.
  • Segmented infeed roller and sectional chip breaker easily handle rough stock.
  • Dual outfeed rollers assist with heavy stock.
  • 3-speed gear box provides the perfect feed rate.
  • Magnetic controls with emergency off switch for safer operation.
  • Control panel with digital readout allows precise thickness settings.
  • Power assisted table makes for quick, accurate, adjustments.
  • Hinged access to cutter head and feed rollers for quick set-up.
  • 5 inch dust chute easily handles chip removal.
  • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
  • Powerful TEFC motor available in single or three-phase.
Specifications
Model Number 4470B
Stock No. (10HP, 1Ph, Byrd) 4470.101B
Stock No. (15HP, 3Ph, Byrd) 4470.102B
Stock Number 4470
Maximum Stock Width 25 inch
Maximum Stock Thickness 9-1/4 inch
Minimum Stock Thickness 1/8 inch Manual 15/64 inch Automatic
Minimum Stock Length 10 inch
Dust Port Diameter 5 inch
Minimum CFM Required 900 CFM
Infeed Roller Diameter 3 inch
Steel Outfeed Roller Diameter 3 inch (x2)
Feed Speeds 20, 25 and 30 FPM
Bed Rollers 2, Adjustable
Table Size 26 x 32 inch
Cutterhead Diameter 3-3/8 inch
Cutterhead Speed 4,800 RPM
Number of Knives Byrd 125
Footprint 47-1/2 L x 21 W inch
Table Support 2-Column
Motor 1Ph 10HP, 240V Only (43 Amps)
Motor 3Ph 15HP, 240V/440V  Prewired 220V (38/19 Amps)
Overall Dimensions 46 L x 23 W x 56 H inch
Net Weight 1,732 lbs.
Gross Weight 1,850 lbs



4470.001
25 PLANER WITH 4 KNIFE HSS STRAIGHT CUTTERHEAD 10HP 1PH
Mfg. item #: 4470.001
OLV4470.001
lease to own for as little as:$232 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$11,599.99

30
4470.002
25 PLANER WITH 4 KNIFE HSS STRAIGHT CUTTERHEAD 15HP 3PH
Mfg. item #: 4470.002
OLV4470.002
lease to own for as little as:$232 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$11,599.99

30
4470.101B
25 PLANER WITH BYRD SHELIX CUTTERHEAD 10HP 1PH
Mfg. item #: 4470.101B
OLV4470.101B
lease to own for as little as:$270 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,499.99

30
4470.102B
25 PLANER WITH BYRD SHELIX CUTTERHEAD 15HP 3PH
Mfg. item #: 4470.102B
OLV4470.102B
lease to own for as little as:$270 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,499.99

30
4470.A001
REPLACEMENT STRAIGHT KNIVES HSS (4)
Mfg. item #: 4470.A001
OLV4470.A001
Call for freight quote on this item or we will confirm freight charges before shipping.1
$179.99

30
P-15mm4S
4 SIDE TCT HELICAL INSERT (PACK OF 10) - 25 PLANER OPTIONAL ACCESSORIES - SHIPS GROUND UPS
Mfg. item #: P-15mm4S
OLVP-15MM4S
FREE shipping when ordered with a machine from this manufacturer.20
$80.99

130
P-30mmTCT
2 SIDE TCT HELICAL INSERTS (PACK OF 10) - 25 PLANER OPTIONAL ACCESSORIES - SHIPS GROUND UPS
Mfg. item #: P-30mmTCT
OLVP-30MMTCT
FREE shipping when ordered with a machine from this manufacturer.20
$107.99

130
