Oliver Classic Lathe

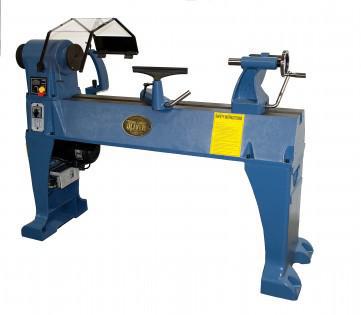

Oliver 2018 Classic Lathe


supernova 2 chuck   easy wood tools
The recomended Chuck for this lathe
is a Teknatool SuperNova 2
Click the image above for more infomation
Dont forget your turning tools
Check out or full line of easy wood tools




2018 Lathe Specification Sheet.pdf
2018_manual.pdf
2018_diagram.pdf
2018_partslist.pdf

The Oliver 2018 Classic Lathe brings the Lathe back to the Oliver Line, and in true Oliver fashion.  Starting with an all inclusive cast iron construction for torsional rigidity. Next, Oliver adds a reversible 2HP motor with a wide speed range for a variety of tasks.  In addition, an RPM meter displays an accurate turning rate so you can precisely adjust for any particular job.

Features:

  • All cast iron construction reduces vibration.
  • Sliding headstock allows outboard turning.
  • Safety guard included.
  • Digital readout of spindle speed for accurate adjustment.
  • Frequency inverter drive includes a wide range of spindle speeds.
  • Reversible motor allows a variety of operations.
  • Comparator included to allow easy replicate spindle projects.
  • Optional bed extension mounts in two positions.
  • Built-in spindle index features 36-positions.
Specifications
Model Number 2018
Stock Number (2 HP, 1Ph) 2018.002
Main Motor 2HP, 1 Ph, 220V Only
Swing Over Bed 18 inch
Distance Between Centers 42 inch (57 inch with extension)
Variable Speed 50-3,200 RPM
Speed Range 1 50-1,200 RPM
Speed Range 2 150-3,200 RPM
Spindle 1-1/4 inch-8 TPI RH headstock
Indexer Up to 36 Flutes
Spindle and Tailstock Tapers MT2
Spindle Bore 9/16 inch
Face Plate OD 6 inch
Centerline of Spindle to Floor 42-1/2 inch
Footprint (in) 69 x 19
Overall Dimension (in) 74 x 22 x 25
Net Weight 700 lbs
Gross Weight 725 lbs



THE NEW OLIVER 18" LATHE
2018.002 NEW Lathe 2HP 1Ph
CLASSIC LATHE ACCESSORIES
2018.A001 Tool Rest Riser Assembly
2018.A002 Extension Bed Assembly
2018.A003 Comparable Jig (Include in the machine)
2018.A004 Safety Guard (Indluded in the machine)



Woodworking Lathe Chucks, Tools & Duplicators
Teknatool Midi LAthe Chuck easy wood tools
TeknaTool Nova Precision Lathe
Chuck,Jaws & Inserts
Easy Lathe Tools & Chucks





JET CHUCK SET (719900)

JET Lathe Chuck Set 1 inch x 8TPI

To compliment our extensive line of woodturning lathes, JET is introducing a nickel plated chuck with five unique sets of jaws, to keep projects securely on your lathe. Inside the custom JET molded case you will find: 1x Nickel Plated Chuck 1 inch X 8TPI 1x 190mm Nickel Plated Face Plate with 16 Grip studs 1x Nickel Plated Pin jaws (inside grip range 5-43mm, outside grip range 22-60mm) 1x #1 Round jaws (inside grip range 38-73mm, outside grip range 48-87mm) 1x #2 Round jaws (inside grip range 66-100mm, outside grip range 77-117mm) 1x Internal/external step jaws (inside grip range 8-43mm, outside grip range 20-78mm) 2x Woodworm screw (1/2 and 3/8 inch) 1x T-handle 1x 100mm Hex wrench The Jet Chuck Set (719900) fits JET models JWL-1015, JWL-1221, JWL1440, or any lathe with a 1 inch x 8TPI Spindle Thread. To fit to JET JWL-1640 and JWL-1840 (or any 1-1/4" spindle thread) use the JET Lathe Chuck Adaptor (719903).

Features:

  • Fits JET Lathe Models JWL-1015, JWL1221, JWL1440 and other models with a 1"x 8 TPI spindle thread.
  • Packed securely in a hard plastic JET case with EVA foam.
  • Chuck is nickel plated to deter rust
  • Includes 5 sets of interchangeable jaws with self centering chuck for varying tasks
  • Stainless steel T-Handle adjusts jaws concentrically
  • Weight 11 lbs

JET CHUCK SET (719900)
Inside the custom JET molded case you will find:

  • Nickel Plated Chuck 1 inch X 8TPI
  • 190mm Nickel Plated Face Plate with 16 Grip studs
  • Nickel Plated Pin jaws (inside grip range 5-43mm, outside grip range 22-60mm)
  • #1 Round jaws (inside grip range 38-73mm, outside grip range 48-87mm)
  • #2 Round jaws (inside grip range 66-100mm, outside grip range 77-117mm)
  • Internal/external step jaws (inside grip range 8-43mm, outside grip range 20-78mm)
  • Woodworm screws (1/2 and 3/8 inch)
  • T-handle and Hex wrench The JET Chuck Set (719900) fits JET models JWL-1015, JWL-1221, JWL1440, or any lathe with a 1inch x 8TPI Spindle Thread



JET Woodturning Carbide Chisels 6 Piece Set - (719901)

JET Woodturning Carbide Chisels 6 Piece Set - (719901)

To compliment our extensive line of woodturning lathes, JET is introducing the Woodturning Chisel Set. Inside the custom JET wooden case you will find: 1x 11 inch Anodized Aluminum Handle 1x 10.5 inch Anodized Aluminum Handle Extension 1x Stainless Steel Tool Shaft 1x 11mm Square Carbide Cutting Blade 1x 11mm Square-Arc Carbide Cutting Blade 1x 12mm Round Carbide Cutting Blade 1x 28mm Carbide Diamond Cutting Blade 1x Star Key 1x Hex Wrench

Features:

  • JET Carbide Turning Tool Set includes 4 interchangeable cutting blades: Square (11mm), Square Arc (11mm), Round (12mm), and Diamond (28mm).
  • Light weight extendable anodized aluminum handle. Main handle is 11 inch with a 10.5 inch extension.
  • JET Carbide Turning Tool Set is packed in a custom wood case.
  • Stainless steel shaft will not rust
  • Carbide blades have a long cutting life


JET Woodturning Carbide Hollowing Chisels Set 5PC

JET Woodturning Carbide Hollowing Chisels Set 5PC

To compliment our extensive line of woodturning lathes, JET is introducing the Woodturning Hollowing Chisel Set. Inside the custom JET wooden case you will find: 1x 11 inch Anodized Aluminum Handle 1x 10.5 inch Anodized Aluminum Handle Extension 3x Tool Shafts 3x 8.9mm Round Carbide Cutting Blades 1x Star Key 1x Hex Wrench

Features:

  • JET Carbide Hollowing Chisels Set includes 3 interchangeable radius for hollowing while works on the lathe
  • Light weight extendable anodized aluminum handle. Main handle is 11 inch with a 10.5 inch extension.
  • JET Carbide Turning Tool Set is packed in a custom wood case.
  • Stainless steel shaft will not rust
  • Carbide blades have a long cutting life
Jet Chuck and Turning Tools
719900 JET Lathe Chuck
719901 JET Wood Turning Chisel Set
719902 JET Wood Turning Hollowing Chisel Set
719903 1 inch x 8TPI to 1-1/4 inch x 8TPI adaptor
719951 11mm Sq Carbide Insert 2PC
719952 11mm Sq Arc Carbide Insert 2PC
719953 12mm Round Carbide Insert 2PC
719954 28mm Diamond Carbide Insert 2PC
719955 8.9mm Round Carbide Insert 2PC



#1 BEST SELLING CHUCK
SUPER NOVA 2 CHUCK

This powerful and solid chuck is perfect for use on lathes with up to 20 inch/508mm swing. Brilliant all around geared chuck for a majority of users.

Packed with exciting innovative features and at a fantastically competitive price, the SuperNova 2 is the leading chuck of choice on the market today and reinforces NOVA as the leading brand in the chuck market.

Note: If your lathe is less than 20 inch diameter swing, please have a look at either the Nova Precision Midi or the Nova G3 chucks.  If your lathe has more than 20 inch diameter swing, please have a look at the NOVA Titan Chuck.

supernova 2 chuck

Features standard on all NOVA chucks:

  • Quality Materials.
  • Precision Machining.
  • Common Accessory Jaw Fixing Profile compatible across all NOVA chucks and accessories.
  • High Tech Precision Composite Jaw Slides.
  • Special Woodturning Dovetail Profile on Jaws.
  • Auto Safety Stop Feature. Jaw slides cant protrude past the chuck body.
  • Comprehensive Instructions.
  • Common Insert/Adaptor Fitting compatible across all NOVA chucks.
  • Safe Lock Woodworm Screw.
  • 2 Years Warranty

Additional SuperNova 2 Features and Benefits

  • supernova 2 backFully sealed composite indexing backing plate.  Made from ultra tough Duracon composite, reinforced with stranded glass fibres for extremely long life in tough conditions. Self lubricating properties. Unique indexing function built into backing plate. Holographic sticker for NOVA authenticity.
  • Powerful Geared Grip with Tuff Lock Technology. Precise, hardened geared action delivers incredible smooth strength. Solid, vibration free.
  • Single Handed Operation. Fast and convenient when mounting your project. More time spent turning and less time spent preparing.
  • Captured pinion and Ball nose Allen key with large, easy grip handle.  Fast, positive location, easy and comfortable to use. Rotation arrow for easy reference and fast opening and closing action. Unique, tilt away action, means it can be angled back in operation, away from work.
  • Body made from precision machined 1045 High Tensile Steel, with a polished self metal finish to allow for closer tolerances.
  • Able to take all NOVA accessories jaws. (except Titan Power grip, special designed for Titan Chuck.)

Product Technical Specification

  • Recommended for power workholding on lathes from 350mm (14 inch) to 508mm (20 inch) diameter swing.
  • Up to 736mm/29 inch diameter bowls (using PowerGrip accessory jaws)
  • Up to 482mm/19 inch length spigots (using PowerGrip accessory jaws)
  • Up to 310mm/12 inch bowl (using standard 50mm accessories jaw)
  • Up to 150mm/6 inch lengh x 10mm/4 inch diameter (using standard 50mm accessories jaw)
  • Full Packaged Weight (Std) 2.5kgs/5.512lbs
  • 24 Division Index built into the backing plate design.

Compatibilityjaws

Capable to take entire NOVA Jaws range. (except Titan Power Grip which specially designed for Titan Chuck)

Only NOVA Chucks give you the same jaw fixing system and same insert/adaptor system across all chuck models.

This means all accessory jaws in the range fit all the chucks in the range, including older chuck models, giving you the ultimate flexibility. In buying a NOVA chuck, you can be confident that whether you want to move up or down the range, any accessories you have invested in will Fit.

Standard Equipment

  • Chuck Body and Jaw Slides (Comes fully assembled)
  • 50mm/2 inch Jaws
  • Safe Lock Woodworm Screw
  • Manual and Fastenings
  • Display/Storage Box
  • T Bar Allen Head Handle with Soft Plastic Grip
  • Insert/Adaptor (some resellers may sell this separately, check with them)

Threads Covered:

  • Std Insert/Adaptor Type Chuck (Code 23055) Requires an insert to fit to lathe. Some resellers may sell this separately, check with them.

  • M33x3.5 Dedicated Threaded Chuck (Code 23062)







Teknatool Wood Turning Lathe Chucks, Jaws and Inserts
Teknatool Wood Turning Lathe Chucks
23055 Supernova2 Chuck Insert Version
IDNS Insert Nova 1"  8 TPI RH (For JWL-1442VSK)
ILNS Insert Nova 1 1/4"  8 TPI UNS (for JWL-1642EVS and JWL-1642EVS-2)
INNS Insert Nova Blank (Allows you to customize a insert for any lathe)

*** Chucks Require Seperate Insert for Final Insulation & Additional Jaws Sizes are Available ***

Easy Rougher - The Next Step in Woodturning

Ci1 DetailThe Easy Rougher is a carbide cutter woodturning tool that addresses fatigue, safety, and efficiency like no other type of tool on the market. Designed to be kept flat on the tool rest and level to the floor, the Easy Rougher will effortlessly hog away massive amounts of material for any woodturning process without the need for sharpening. The tool design provides support directly beneath the cutting edge transferring the cutting pressure downward allowing the lathe to take the pounding that you would normally suffer through when using a conventional bowl gouge for roughing. No more white knuckling a bowl gouge.

  • Cuts left, right and straight in without changing approach angle
  • Truly deeper cuts up to 1 inch off the diameter in one pass with the Full Size Rougher.
  • Requires very little physical strength or exertion
  • Your feet and hips stay in nearly the same position for the blank roughing process.
  • Very minimal handle bouncing on irregular shaped blanks
  • Reduced kick-back or sucking into work piece
  • Available Chip Deflector keeps most projectiles away from the face and neck
  • No intimidating cutting angles to learn and remember
  • No bevels to ride
  • No fear of a dangerous catch

Easy Finisher - Yet Another Innovation in Woodturning

Ci1 DetailWith another step forward in woodturning innovation, Easy Wood Tools now offers you a tool to take up where the Easy Rougher leaves off. The Easy Finisher has a round carbide cutter perfect for doing the inside work on smaller bowls and for larger coves on spindle work. Our carbide inserts are made in the USA and we are pleased to offer you a tool that is 100 percent made in America.

If you own one of our existing Easy Roughers, you well know by now that we deliver even more than we advertise, as hard as is was for you to believe before your first purchase. I assure you the productivity of this tool will exceed your highest expectations. You just can not predict the possibilities or joy this tool will provide you. In testing the prototypes for this new design, I found myself creating forms that were never even on my list to try because the dangers and complications of existing tools were just not worth the trouble.  Craig Jackson, Founder

Like the other Easy tools, the Easy Finishers are designed to be used with the tool rest set so that when the tool is held level the top of the cutter is on center. Then just keep it level to the floor and flat on the tool rest for all types of cuts... it does not get any easier than that. There are no complicated approach angles, or bevels to ride. The design of this tool allows the Easy Finisher to effortlessly cut from the center of a bowl out to the rim OR from the rim to the center! All without changing any angles whatsoever. You just stand in one spot and cut coming and going until you get to the shape you want.

The Easy Finisher utilizes the same carbide cutter technology as the Easy Rougher that reduces strain and fatigue, improves productivity, and virtually eliminates sharpening. It comes loaded with one round cutter and when it gets dull, you just rotate the cutter for a fresh cut. Please note: The round cutters are not interchangeable with the carbide cutters on the Easy Rougher tool bars.

When the cutter eventually gets dull, just loosen the retaining screw and rotate cutter about 1/4 of a turn, then re-tighten the screw.

We promise this tool will open up a whole new level of design possibilities for your craft and it will exceed your expectations. If not, return for a complete refund.

Replacement carbide cutter number is engraved right on the tool bar.

Available in four sizes - Mini, Mid-Size, Full-Size and Pro. See purchase page for all products, sizes and accessories.

Easy Rougher - The Next Step in Woodturning

Ci1 DetailThe Easy Detailer tools really pick up where other tools leave off and provide another level of woodturning creativity as the unique diamond cutter shape fits in tight places where the cutters on the other tools will just not fit.

These tools were designed for the primary purpose of doing the small intricate work and cutting final details on your projects such as small coves and beads on both spindle and bowl work. They are also very handy for cutting chuck tenons and making inside reverse angle cuts for inside chucking bowls with dovetail jaws. You may find they work well for hogging your green wood projects too.

The Easy Detailers are engineered to cut going straight in employing just the nose of the tool.

The Easy Detailer tools are engineered with a reduced relief angle to the long cuttings edges making the long edges less aggressive when held in contact with the wood as the nose of the tool is cutting. In use, the long edge is intended to perform as a "control surface" and serve to be in contact with the wood just behind the cut; much like a bevel is being rubbed.

For safety reasons, avoid plunging the tool so deep into the work at once to the depth you would have both sides of the cutter in contact with the wood too greatly at the same time. This could cause too much force at once and lead to binding of the tool in the groove.

Each diamond-shaped Easy Detailer cutter is engineered to fit all size Detailer tools in our current product line. When the cutter eventually dulls, just loosen the retaining screw and rotate cutter, then re-tighten the screw.

Replacement carbide cutter number is engraved right on the tool bar.
Available in four sizes - see purchase page for all products, sizes and accessories.

PART NUMBER DESCRIPTION
2200 MID-SIZE EASY ROUGHER
3200 PRO EASY ROUGHER
6300 MID-SIZE EASY FINISHER
3400 PRO EASY FINISHER
7300 MID-SIZE EASY DETAILER
3700 PRO EASY DETAILER



2018.002
LATHE 2HP 1PH
Mfg. item #: 2018.002
OLV2018.002
lease to own for as little as:$72 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,605.42

66
2018.A001
TOOL REST RISER ASSEMBLY
Mfg. item #: 2018.A001
OLV2018.A001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$189.99

66
2018.A002
EXTENSION BED ASSEMBLY
Mfg. item #: 2018.A002
OLV2018.A002
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$264.99

66
2018.A003
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - COMPARABLE JIG (INCLUDE IN THE MACH
Mfg. item #: 2018.A003
OLV2018.A003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

66
2018.A004
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - SAFETY GUARD (INDLUDED IN THE MACHI
Mfg. item #: 2018.A004
OLV2018.A004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

66
719900
++ JET LATHE CHUCK - SHIPS UPS/FEDEX GROUND
Mfg. item #: 719900
WMH719900
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
NEW ITEM
$434.60

19
719901
++ JET WOOD TURNING CHISEL SET - UPS/FEDEX GROUND
Mfg. item #: 719901
WMH719901
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
NEW ITEM
Call for Price

19
719902
+++ JET WOOD TURNING HOLLOWING CHISEL SET - SHIPS UPS/FEDEX GROUND
Mfg. item #: 719902
WMH719902
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
NEW ITEM
Call for Price

19
719903
+++ 1X8TPI TO 1-1/4X8TPI ADAPTOR UPS/FEDEX GROUND
Mfg. item #: 719903
WMH719903
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$34.27

19
719951
+++ 11MM SQ CARBIDE INSERT 2PC UPS/FEDEX GROUND
Mfg. item #: 719951
WMH719951
"Ships by UPS, see freight calculator at checkout."2
NEW ITEM
$45.70

19
719952
+++ 11MM SQ ARC CARBIDE INSERT 2PC UPS/FEDEX GROUND
Mfg. item #: 719952
WMH719952
"Ships by UPS, see freight calculator at checkout."2
NEW ITEM
$45.70

19
719953
+++ 12MM ROUND CARBIDE INSERT 2PC UPS/FEDEX GROUND
Mfg. item #: 719953
WMH719953
"Ships by UPS, see freight calculator at checkout."2
NEW ITEM
$45.70

19
719954
+++ 28MM DIAMOND CARBIDE INSERT 2PC UPS/FEDEX GROUND
Mfg. item #: 719954
WMH719954
"Ships by UPS, see freight calculator at checkout."2
NEW ITEM
$45.70

19
719955
+++ 8.9MM ROUND CARBIDE INSERT 2PC UPS/FEDEX GROUND
Mfg. item #: 719955
WMH719955
"Ships by UPS, see freight calculator at checkout."2
NEW ITEM
$45.70

19
23055
DISCONTINUED - SUPERNOVA2 CHUCK INSERT VERSION
Mfg. item #: 23055
TEK23055
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

240
IDNS
INSERT NOVA 1 8 TPI RH
Mfg. item #: IDNS
TEKIDNS
FREE freight on Teknatool orders over $500.00. No additional cost for residential and liftgate service.40
$29.99

143
ILNS
INSERT NOVA 1 1/4 8 TPI UNS
Mfg. item #: ILNS
TEKILNS
FREE freight on Teknatool orders over $500.00. No additional cost for residential and liftgate service.40
$29.99

143
INNS
INSERT NOVA BLANK
Mfg. item #: INNS
TEKINNS
FREE freight on Teknatool orders over $500.00. No additional cost for residential and liftgate service.40
$29.99

143
2200
TURNING TOOL (14 HANLDE / 3/8 X 7 SHAFT) - MID-SIZE EASY ROUGHER ** USE CI2-SQ - GENUINE EWT REPLACEMENT CARBIDE - REPLACEMENT CUTTER OPTION: CI2-R2
Mfg. item #: 2200
EASY2200
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$119.99

1444
3200
TURNING TOOL (20 HANLDE / 1/2 X 8 1/2 SHAFT) - PRO EASY ROUGHER ** USE CI1-R4 - GENUINE EWT REPLACEMENT CARBIDE - REPLACEMENT CUTTER OPTIONS: CI1-SQ OR CI1-R2
Mfg. item #: 3200
EASY3200
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$139.98

1444   1
6300
TURNING TOOL (14 HANLDE / 3/8 X 7 SHAFT) - MID-SIZE EASY FINISHER ** USE CI3 - GENUINE EWT REPLACEMENT CARBIDE
Mfg. item #: 6300
EASY6300
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$119.99

1444
3400
TURNING TOOL (20 HANLDE / 1/2 X 8 1/2 SHAFT) - PRO EASY FINISHER ** USE CI0 - GENUINE EWT REPLACEMENT CARBIDE
Mfg. item #: 3400
EASY3400
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$139.98

1444   1
7300
TURNING TOOL (14 HANLDE / 3/8 X 7 SHAFT) - MID-SIZE EASY DETAILER ** USE CI4 - GENUINE EWT REPLACEMENT CARBIDE
Mfg. item #: 7300
EASY7300
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$119.99

1444
3700
TURNING TOOL (20 HANLDE / 1/2 X 8 1/2 SHAFT) - PRO EASY DETAILER ** USE CI4 - GENUINE EWT REPLACEMENT CARBIDE
Mfg. item #: 3700
EASY3700
$9.95 Shipping & Handling on this item or Free Shipping on Easy Wood orders Over $150.001043
$139.98

1444   1
Copyright © 2021 Smith-Hamilton, Inc
0.022 211022 11:37
