Oztec Selection Chart

New Page 4

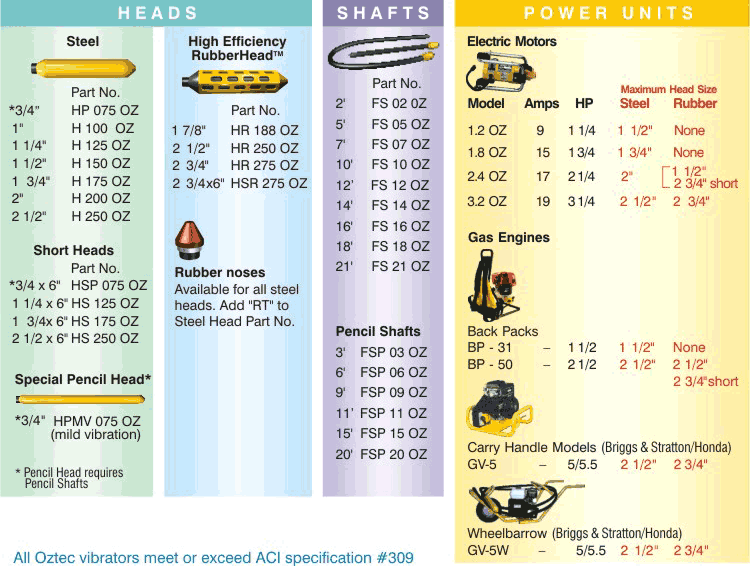

All Heads, Shafts and Power Units Are Interchangeable*
1. Select Head Size  2. Select Shaft Length 3. Select Power Unit (do Not Exceed Maximum Head Size)

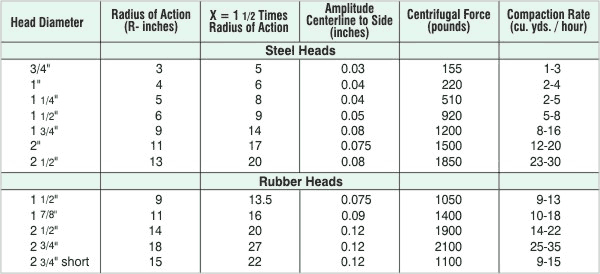

  Radius of Action - The most important bit of information needed for complete consolidation.
Radius of Action is the distance from the center of the vibrator to the outer edge, where complete consolidation takes place (see diagram).
For quality concrete Oztec lists conservative values for "Radius of Action". Complete consolidation is necessary for low slump concrete with close meshed reinforcement bars, high strength concrete and architectural concrete.
Radius of Action can be twice the listed values when slump is high or super plastisizers are used. It is important these values are used only as a general guide. Specifications are subject to change.

There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
