Maksiwa Sliding Panel Saws

BMS.1600.IR SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V BMS.3200.IR SLIDING PANEL SAW. 1 PHASE . 5HP 220V - 3 PHASE . 5HP 220V BMT.3200.IR SLIDING PANEL SAW TITANIUM. 1 PHASE . 5HP 220V BMP.3200.IR SLIDING PANEL SAW PLATINUM. 3 PHASE . 7.5HP 220V
BMS.1600.IR SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V BMS.3200.IR SLIDING PANEL SAW. 1 PHASE . 5HP 220V -
3 PHASE . 5HP 220V 		BMT.3200.IR SLIDING PANEL SAW TITANIUM. 1 PHASE . 5HP 220V BMP.3200.IR SLIDING PANEL SAW PLATINUM. 3 PHASE . 7.5HP 220V



Models and Accessories
BMS.1600.IR  SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V
BMS.3200.IR  SLIDING PANEL SAW. 1 PHASE . 5HP 220V - 3 PHASE . 5HP 220V
BMT.3200.IR  SLIDING PANEL SAW TITANIUM. 1 PHASE . 5HP 220V
BMP.3200.IR  SLIDING PANEL SAW PLATINUM. 3 PHASE . 7.5HP 220V



BMS.1600.IR SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V

Click here to download manual

BMS.1600.IR Sliding Panel Saw

Introducing the New BMS.1600.IR. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, Digital Rip Fence Readout, adjustable leveling feet, dual blade covers, two flip stops, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel.

If you have limited space on your shop but is looking for a powerful slider, the new BMS.1600.IR is your choice! This machine boasts a robust 5HP main motor, available in 1 Phase 220V. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 41″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.









Specifications
Info BMS.1600.IR
Main Motor 5 HP 4000 RPM 3.7 Kw
Max Blade Diameter 12 inch | 305mm
Main Blade Arbor 30mm
Main Blade Max Cutting Height at 90º 3 1/2 inch
Main Blade Max Cutting Height at 45º 2 1/2 inch
Scoring Motor 1 HP 8000 RPM .74Kw
Scoring Motor Blade 4 3/4 inch | 120mm
Scoring Blade Arbor 3/4 inch
Scoring Blade Type Conical
Max Ripping Capacity 35 1/2 inch | 900mm
Crosscut Capacity 63 inch
Crosscut fence max. (Closed/Open) 48 inch / 80 inch
Machine Working Dimension (LxWxH) 79 inch x 115 inch x 66 inch
Sliding Table Dimension 63 inch x 12 inch
Cast Iron Table dimension (LxWxH) 32 1/2 inch x 21 inch x 35 1/2 inch
Max Tilt 45 deg
Dust Collection Port 4 inch
Electrical Specs 1 PH 220V 30 Amps 60Hzs
Weight 1000 lbs

dimensions diagram

BMS.3200.IR SLIDING PANEL SAW. 1 PHASE . 5HP 220V - 3 PHASE . 5HP 220V

Click here to download manual

BMS.3200.IR Sliding Panel Saw

Introducing the New BMS.3200.IR 40-year Edition. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, adjustable leveling feet, dual blade covers, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel. All these improvements come at the same unbeatable price as before!

The new BMS.3200.IR boasts a robust 5HP main motor, available in both 1 Phase and 3 Phase 220V options, providing the versatility to suit various requirements. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 51″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.



bms.3200.ir-list

1. Mobile Arm
2. Mobile Table Support
3. Blade Tilt Control Handle
4. Adjustable Table Handle
5. Control Panel
6. Emergency Button /. Switches
7. Main Table Lock
8.  Sliding Table Handle 		9.  Adjustable Angle Guide
10. Wood Stopper
11. Rear Extension Table
12. Rip Dence with Micro Adjustments
13. Blade Protector Cover
14. Dust COllection Ports
15. Support Table
16. Sheet Clamp 		17. Flip Stoppers
18. Aluminum Table Guide
19. Measuring Table Metric and SAE
20. ALuminum Guide Extensions
21. Panel Pushing Handle
22. Blade Height Adjustment Handle
23. Scoring Blade Adjustment Handle


BMS3200_DIMENSIONS

Specifications
Technical Information BMS.3200.IR
Main Motor 5 HP/ 4000 RPM 3.7 Kw
Max Blade Diameter 12 inch | 305mm
Main Blade Arbor 1 3/16 inch | 30mm
Main Blade Max cutting Height at 90° 3 1/2 inch | 90mm
Main Blade Cutting Height at 45° 2 1/8 inch | 53mm
Scoring Motor 1 HP / 8000 RPM .74Kw
Scoring Motor Blade 4 3/4 inch | 12mm
Scoring Blade Arbor 3/4 inch | 20mm
Scoring Blade Type Conical
Max Ripping Capacity 51 inch | 1295mm
Crosscut Capacity 126 inch | 3200 mm
Crosscut Fence Capacity Closed/Open 74 3/4 inch / 108 inch | 1899 MM / 2743 mm
Machine Working Dimensions (LxWxH) 126 inch x 137 inch x 52 inch | 3200 x 3480 x 1321mm
Cast Iron Table Dimension (LxWxH) 31 1/2 inch x 21 inch x 34 3/4 inch | 800 X 553 X 883 mm
Sliding Table Dimension (LxW) 126 inch x 14 3/4 inch | 3200 x 375 mm
Dust Collection Port (2) 4 inch
Minimum Dust Collection Requirements 1000 CFM | 28m/min
Electrical Specs 1 Phase 220V 22 Amps 60 Hz

3 Phase 220V 11 Amps 60 Hz

Main Body Crate Dimensions (LxWxH) 88 inch x 48 inch x 43 inch | 2245 x 1130 x 1090 mm
Main Body Crate Weight Net/Gross 1102/1257 LBS | 500/ 570 KGS
Sliding Table Crate Dimensions (LxWxH) 140 inch x 19 inch x 8 1/2 inch | 3556 x 483 x 216 mm
Sliding Table Crate Weight Net/Gross 227/282 LBS | 103/128 KGS

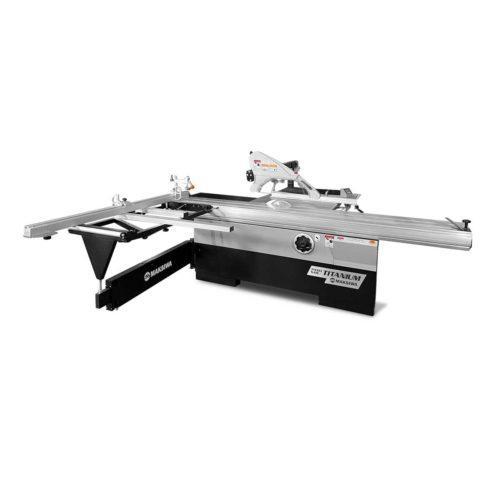

BMT.3200.IR SLIDING PANEL SAW TITANIUM. 1 PHASE . 5HP 220V

BMT.3200.IR Sliding Panel Saw

The Maksiwa BMT.3200.IR Titanium Sliding Panel Saw is extremely durable and incredibly smooth to operate. From the first drawing until the final product our engineering team had as one of their main objectives produce the most advanced Sliding Panel Saw in its category. Maksiwa always use superior components and materials to deliver the absolute best machines to you.

This Panel Saw delivers unapparelled smoothness and precision with our table system. Even with heavy loads the movement is a breeze.

Standard on the Maksiwa BMT.3200.IR is the dual overhead saw guard, which features a 4” Dust port.

bmt.3200.ir-list

1. Mobile Arm
2. Mobile Table Support
3. Blade Tilt Control Handle
4. Control Panel
5. Emergency Button /. Switches
6. Main Table Lock
7. Wood Stopper
8. Digital Display for Rip Fence 		9.   Rear Extension Table
10. Support Table
11. Rear Extension Table Guide
12. Panel Pushing Handle
13. Dual Blade Protector Cover
14. Dust Collection Ports
15. Side Extension table 		16. Wood Panel Clamp
17. Blade Height Adjustment Handle
18. Scoring Blade Adjustment T-Tool
19. Measuring Tape Metric and SAE
20. Aluminum Table Guide
21. Flip Stoppers
22. Aluminum Guide Extensions

bmt-3200-ir-features-dimensions

bmt-3200-capacity

SPECIFICATIONS
BMT.3200.IR SAE METRIC
Main Motor 5 HP / 4000 RPM 3.7 kw 5 HP / 4000 RPM 3.7 kw
Max Blade Diameter 12 inch 305 MM
Main Blade Arbor 1 3/16 inch 30 MM
Main Blade Max cutting Height at 90° 3 1/2 inch 90 MM
Main Blade Cutting Height at 45° 2 7/16 inch 63 MM
Scoring Motor 3/4 HP / 8000 RPM .55 kw 3/4 HP / 8000 RPM .55 kw
Scoring Motor Blade 4 3/4 inch 120 MM
Scoring Blade Arbor 3/4 inch 20 MM
Scoring Blade Type Conical Conical
Max Ripping Capacity 51 inch 1300 MM
Crosscut Capacity 126 inch 3200 MM
Crosscut Fence Capacity Closed/Open 78 inch /120 inch 1981/ 3048 MM
Machine Working Dimensions (LxWxH) 132 inch x 137 inch x 65 inch 3352 x 3479 x 1651 MM
Cast Iron Table Dimension 35 inch x 21 inch 896 x 548
Sliding Table Dimension 126 inch x 14 inch 3200 x 358 MM
Dust Collection Port (2) 4 inch 100 MM
Minimum Dust Collection Requirements 1000 CFM 28M/MIN
Electrical Specs 1 Phase 220V 30 Amps 60 Hz 1 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH) 83 inch x 45 inch x 45 inch 2108 x 1143 x 1143 MM
Main Body Crate Weight 1254 Lbs 569 Kgs
Sliding Table Crate Dimensions (LxWxH) 133 inch x 18 inch x 15 inch 3378 x 457 x 381 MM
Sliding Table Crate Weight 274 Lbs 124 Kgs







BMP.3200.IR SLIDING PANEL SAW PLATINUM. 3 PHASE . 7.5HP 220V

 BMP.3200.IR Sliding Panel Saw

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar.

Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), 45° miter and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located on an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switch from one to the other in a matter of seconds and move the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp and wedge clamp.

bmp-3200-ir-list

1. Mobile Arm
2. Mobile Table Support
3. Blade Tilt Control Handle
4. Wood Stopper
5. Mail Table Lock
6. Wood Panel Clamp
7. Rear Extension Table Guide 		8.   Digital Display for Rip Fence
9.   Support Table
10. Rear Extension Table
11. Emergency Button / Switches
12. Control Panel
13. Dual Blade Protector Cover 		14. Side Extension table
15. Scoring Blade Adjustment T-Tool
16. Measuring Tape
17. Aluminum Table Guide
18. Flip Stoppers
19. Aluminum Guide Extensions

BMP_Footprint

Specifications
Technical Information BMP.3200.IR
Main Motor 7.5 HP/ 4000 RPM 5.5 Kw
Max Blade Diameter 14 inch 355mm
Main Blade Arbor 1 3/16 inch 30mm
Main Blade Max cutting Height at 90° 3 1/2 inch 90 mm
Main Blade Cutting Height at 45° 2 7/16 inch 63mm
Scoring Motor 3/4 HP / 8000 RPM .74Kw
Scoring Motor Blade 4 3/4 inch 12mm
Scoring Blade Arbor 3/4 inch 20mm
Scoring Blade Type Conical
Max Ripping Capacity 51 inch 1295mm
Crosscut Capacity 126 inch 3200 mm
Crosscut Fence Capacity Closed/Open 78 inch / 120 inch 1981mm / 3048 mm
Machine Working Dimensions (LxWxH) 132 inch x 137 inch x 75 inch 3352 x 3479 x 1905 mm
Cast Iron Table Dimension (LxWxH) 35 inch x 21 inch x 34 inch 896 X 548 X 864 mm
Sliding Table Dimension (LxW) 126 inch x 14 inch 3200 x 358 mm
Dust Collection Port (2) 4 inch 100mm
Minimum Dust Collection Requirements 1000 CFM 28m/min
Electrical Specs 3 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH) 83 inch x 45 inch x 45 inch 2108x 1143 x 1143 mm
Main Body Crate Weight Net/Gross 1470 LBS 667 KGS
Sliding Table Crate Dimensions (LxWxH) 133 inch x 18 inch x 15 inch 3378 x 457 x 381 mm
Sliding Table Crate Weight Net/Gross 274 LBS 124 KGS



BMS.1600.IR
SLIDING PANEL SAW 1600 . 1 PHASE 5HP 220V (WGT = 945 LBS, DIMS = 40X40X35 ** MADE IN CHINA)
Mfg. item #: BMS.1600.IR
MSW-BMS.1600.IR
lease to own for as little as:$117 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$5,845.00

36572
BMS.3200.IR
SLIDING PANEL SAW. 1 PHASE . 5HP 220V - 3 PHASE . 5HP 220V (WGT = 1785 LBS, DIMS = 79X45X42 ** MADE IN CHINA)
Mfg. item #: BMS.3200.IR
MSW-BMS.3200.IR
lease to own for as little as:$170 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$8,499.00

36572
BMT.3200.IR
SLIDING PANEL SAW TITANIUM. 1 PHASE . 5HP 220V (WGT = 1600 LBS, DIMS = 83X46X43 ** MADE IN TAIWAN)
Mfg. item #: BMT.3200.IR
MSW-BMT.3200.IR
lease to own for as little as:$200 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$9,999.00

36572
BMP.3200.IR
SLIDING PANEL SAW PLATINUM. 3 PHASE . 7.5HP 220V (WGT = 1600 LBS, DIMS = 83X46X44 ** MADE IN TAIWAN)
Mfg. item #: BMP.3200.IR
MSW-BMP.3200.IR
lease to own for as little as:$231 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$11,549.00

36572
