Cantek Top and Bottom Planers

Cantek GT400BRD 16 inch Double Surface Planer Cantek GT635ARD 25 inch Double Surface Planer Cantek GT760ARD 30 inch Double Surface Planer
Cantek GT400BRD 16 inch
Double Surface Planer 		Cantek GT635ARD 25 inch
Double Surface Planer 		Cantek GT760ARD 30 inch
Double Surface Planer
Cantek GT610HI Cardan Shaft Drive Double Surface Planer Cantek GTM1020W 40 inch Double Surface Planer
Cantek GT610HI Cardan Shaft
Drive Double Surface Planer 		Cantek GTM1020W 40 inch
Double Surface Planer



Models
GT400BRD 16 inch X 6.7 inch Double Surface Planer (Chain Drive)
GT635ARD-8 25 inch X 8 inch Double Surface Planer (Chain Drive)
GT635ARD-16 25 inch X 16 inch Double Surface Planer (Chain Drive)
GT635ARD-20 25 inch x 20 inch Double Surface Planer (Chain Drive)
GT635ARD-24 25 inch x 24 inch Double Surface Planer (Chain Drive)
GT760ARD-8 30 inch x 8 inch Double Surface Planer (Chain Drive)
GT610HI 24 inch Cardan Shaft Drive Double Surface Planer
GTM1020W 40 inch Double Surface Planer (Chain Drive)

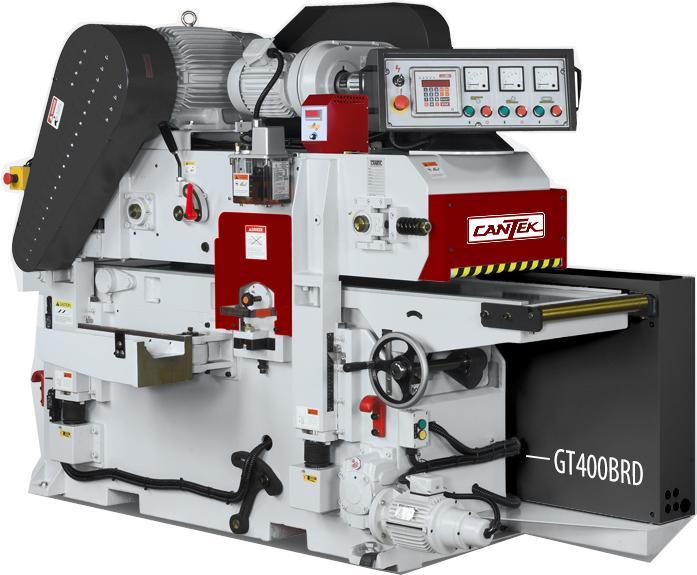

CANTEK | GT400BRD 16″ DOUBLE SURFACE PLANER



Cantek GT400BRD 16 inch Double Surface Planer

Plane your material efficiently in a single pass.

The Cantek GT400BRD 16 inch Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

Why Cantek GT400BRD 16 inch Double Surface Planer?

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting
  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001 inch / mm = 0.01mm resolution) for precise thickness control

Features:

  • 16 inch wide x 6.7 inch thick planing capacity
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 23 to 65 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance
  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Specifications
Maximum working width       16 inch       405mm
Maximum working thickness       6.7 inch       170mm
Minimum workpiece length       10 inch       250mm
Minimum working thickness       0.315 inch       8mm
Bottom jointing head motor       10 HP
Top planing head motor      15 HP
Feed motor       2 HP
Table elevation motor       1/2 HP
Cutterhead diameter      4 inch       101mm
Knife information       30mmx12mmx1.5mm      60 knives / head
Cutterhead speed       5000 RPM
Feed speed (variable)       23~65 FPM      8~24 m/min
Dust collection       2 at 5 inch diameter      2 at 125mm
able size       19 inch x 86 inch       482x2185mm
T Machine dimensions (LxWxH)       86.6 inch x 35.43 inch x 66.93 inch       2200x900x1700mm
Net weight       4180 Lbs.      1900 kgs
Packaging dimensions       90.5 inch x 37.4 inch x 72.83 inch       2350x1060x1940mm
Gross weight       4620 Lbs.      2100 kgs
Electrical Information       460/3/60 = 33 amps | 230/3/60 = 66 amps

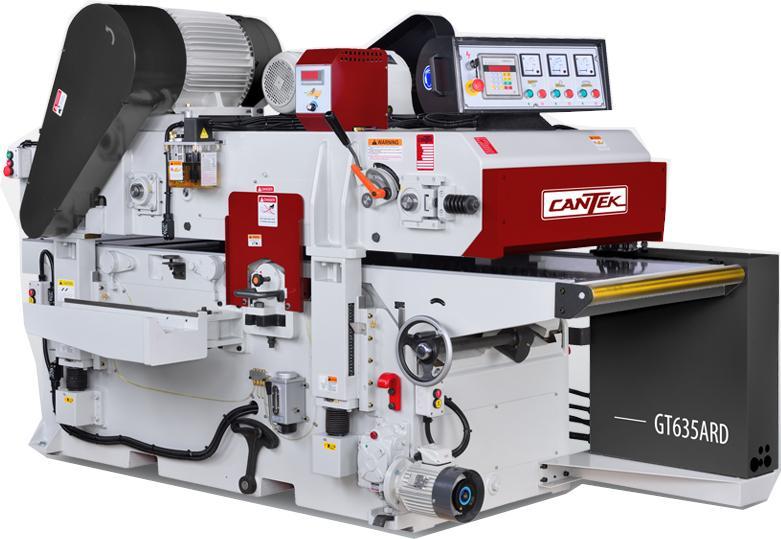

CANTEK | GT635ARD 25″ DOUBLE SURFACE PLANER



Cantek GT635ARD 25 inch Double Surface Planer

Plane your material efficiently in a single pass.

The Cantek GT635ARD 25 inch Double Surface Planer has a robust cast-iron body for industrial planing day in and day out. The helical insert knife cutterheads produce a smooth planed finish with maximum stock removal. A spring-loaded finger feed system passes the board over the bottom head with the capability of flattening cupped material. The precision digital control and motorized thickness adjustment accurately dimension your lumber. Available in 8 inch, 16 inch, 20 inch, and 24 inch thickness capacities!

Why Cantek GT635ARD 25 inch Double Surface Planer?

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting
  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001 inch / mm = 0.01mm resolution) for precise thickness control

Features:

  • 25 inch x 8 inch capacity as standard with optional 16 inch, 20 inch, 24 inch thickness capacity
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 26 to 80 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance
  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Specifications
Maximum working width       25 inch
Maximum working thickness       8 inch (16 inch, 20 inch, 24 inch optional, please inquire)
Minimum working thickness       0.315 inch
Minimum workpiece length       12.2 inch
Bottom head motor       20 HP
Top planing head motor       25 HP
Feed motor       5 HP
Table elevation motor       1/2 HP
Cutterhead diameter       4 inch
Knife dimensions       30mm x 12mm x 1.5mm w/ bevels (96 pcs per head)
Cutterhead speed       5400 RPM
Feed speed (variable)       26-80 FPM
Dust ports       2 at 6 inch
Table dimensions       27 inch x 103 inch (32 inch from the floor)
Machine voltage      460/3/60 = 69.7 amps 575/3/60 = 56 amps
Machine dimensions (LxWxH)       105 inch x 45.1 inch x 67.7 inch
Net weight       6600 lbs
Packaging dimensions       109 inch x 49 inch x 74 inch
Gross weight       7700 lbs

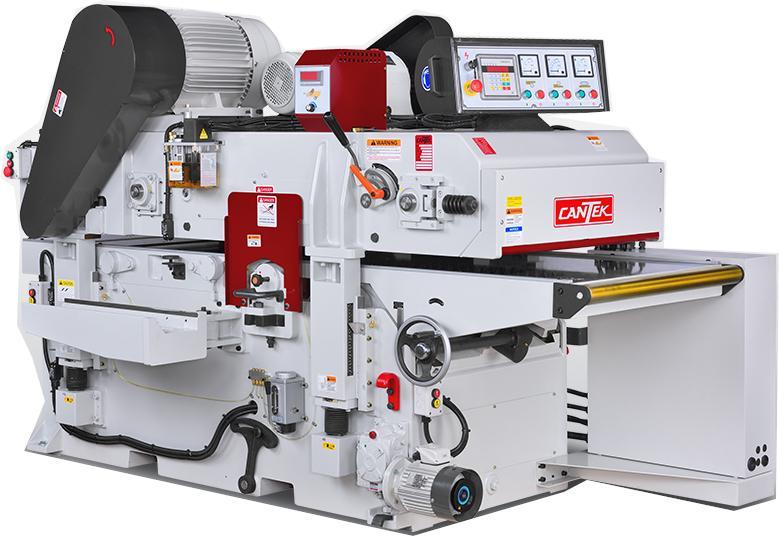

CANTEK | GT760ARD 30″ DOUBLE SURFACE PLANER



Cantek GT760ARD 30 inch Double Surface Planer

Plane your material efficiently in a single pass.

The Cantek GT760ARD 30 inch Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

Why Cantek GT760ARD 30 inch Double Surface Planer?

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting

Features:

  • 30 inch wide x 8 inch thickness capacity (optional 16 inch  and 20 inch opening)
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001 inch resolution) for precise thickness control
  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 26 to 79 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance
  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Specifications
Max. working width       30 inch
Max. working thickness       8 inch (16 inch , 20 inch optional)
Min. working thickness       0.4 inch
Min. workpiece length       12.2 inch
Bottom head motor       20 HP
Top planing head motor       25 HP
Feed motor       5 HP
Table elevation motor       1 HP
Cutterhead diameter       4 inch
Knife dimensions       30mmx12mmx1.5mm (114 pcs per head)
Cutterhead speed       5000 RPM
Feed speed (variable)       26-79 FPM
Dust ports       (2) 6 inch
Machine dimensions (LxWxH)       107 inch x 55 inch x 75.6 inch
Machine weight       7040 lbs
Packaging dimensions       110 inch x 55 inch x 77 inch
Shipping weight        7700 lbs
Electrical requirement       460/3/60 = 71 amps 575/3/60 = 57 amps

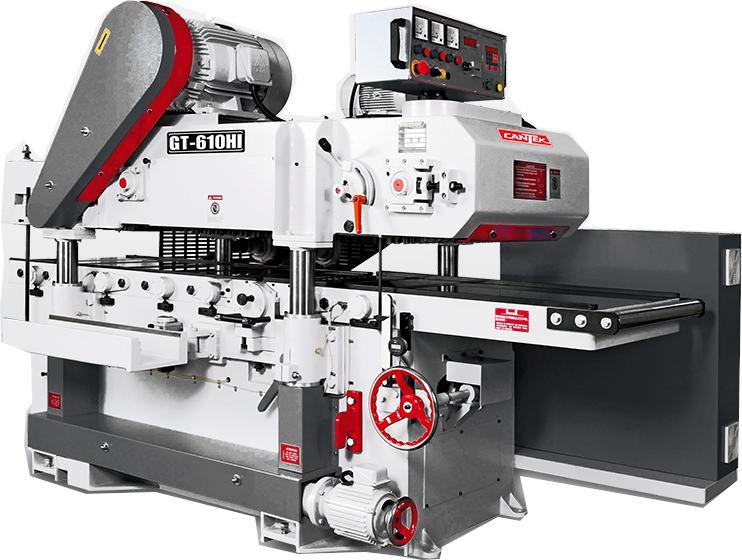

CANTEK | GT610HI CARDAN SHAFT DRIVE DOUBLE SURFACE PLANER



Cantek GT610HI Cardan Shaft Drive Double Surface Planer

High efficiency and high-speed double surface planing.

The Cantek GT610HI Cardan Shaft Drive Double Surface Planer is capable of speeds up to 98 feet per minute and its robust cast-iron body and industrial cardan drive system ensure high production planing day in and day out.  The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

Why Cantek GT610HI Cardan Shaft Drive Double Surface Planer?

  • Powerful 40HP top head motor and 30HP bottom head motor for maximum stock removal
  • Full cardan shaft feed system allowing for faster feed speeds up to 98 FPM
  • Planing capacity up to 24 inch wide and 8 inch thick
  • Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
  • (7) bed rollers including (3) driven rolls for superior feed speeds
  • Spiral insert knife cutterheads with 6 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality

Features:

  • Cast iron machine frame for superior vibration damping resulting in a long machine and bearing life
  • Chrome-plated tables and top and bottom for maximum wear resistance
  • Cutterheads are mounted in precision ABEC 7 RHP bearings
  • Feed system uses a spring-loaded pin arrangement to pass material over the bottom jointing head.
  • Sectional serrated infeed roll before the top cutterhead
  • Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
  • Digital thickness control for quickly and precisely setting the desired thickness
  • Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
  • Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
  • Easy to access swivel control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
  • Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on startup
  • Automatic lubrication to the conveyor feed system
  • High quality Schneider electrical components to CSA/UL standard
Specifications
Max. working width       24 inch       610mm
Max. working thickness       7.78 inch       200mm
Min. working thickness       0.472 inch       12mm
Min. working length       11.8 inch       300mm
Cutterhead RPM       4,600 RPM
Cutterhead diameter       5.3 inch       135mm
Cutterhead inserts       30x12x2.5mm 105 pc per head (x2)
Feed speed       30-98 FPM      10 – 30 m/min
Top cutterhead motor       40 HP
Bottom cutterhead motor       30 HP
Feed motor       5 HP
Dust ports       (2) 6 inch = 3500 CFM
Table Rolls       7 (3) driven
Opening hoist motor       1 HP
Machine weight       9,260 lbs      4200 kgs
Machine dimensions (LxWxH)       112 inch x 67 inch x 67 inch       2830x1700x1700mm
Shipping weight       9,700 lbs      4400 kgs
Shipping dimensions (LxWxH)       116 inch x 75 inch x 79 inch       2950x1900x2000mm
Machine electrics (Standard)       460/3/60 = 110 amps (Other voltages on request, factory order)





CANTEK | GTM1020W 40″ DOUBLE SURFACE PLANER



Cantek GTM1020W 40 inch Double Surface Planer

Wide double-sided planer with big capacity.

The Cantek GTM1020W 40 inch Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.  This wide planer is ideal for increasing production on narrow boards and capable of planning live edge slabs, countertops, table tops, door panels, and more.

Why Cantek GTM1020W 40 inch Double Surface Planer?

  • Big capacity of up to 40 inch wide x 11.8 inch thickness
  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting
  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001 inch / mm = 0.01mm resolution) for precise thickness control

Features:

  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Swiveling control panel for more ergonomic access to machine controls
  • Inverter variable speed control with feed speeds from 26 to 80 FPM
  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance
  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chip breaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Specifications
Maximum working Width      40 inch
Maximum working Thickness        11.8 inch
Minimum workpiece length       12.2 inch
Bottom Cutterhead motor       30 HP (Standard) – Optional 40HP
Top Cutterhead motor       40 HP (Standard) – Optional 50HP
Feed motor       7.5 HP
Table elevation motor       1 HP
Cutterhead diameter       5.16 inch
Knife information       30mm x 12mm x 1.5mm
Cutterhead speed       4000 RPM
Feed speed (variable)       23-65 FPM
Dust collection       4 at 6 inch  diameter
Table size       40 inch x 103 inch high
Machine dimensions (LxWxH)       108-1/4 inch x 76-3/4 inch x 74.8 inch
Net weight       12,125 lbs. (5511 kgs.)
Packaging dimensions       112.2 inch x 80.7 inch x 80.7 inch
Gross weight       12,787 lbs. (5812 kgs.)



GT400BRD
GT400BRD WOODWORKING 16 X 6.7 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 4260 LBS
Mfg. item #: GT400BRD
CANGT400BRD
lease to own for as little as:$553 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$27,625.00

53
GT635ARD-8
GT635ARD-8 WOODWORKING 25 X 8 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 7700 LBS
Mfg. item #: GT635ARD-8
CANGT635ARD-8
lease to own for as little as:$770 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$38,489.00

53
GT635ARD-16
GT635ARD-16 WOODWORKING 25 X 16 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 9240 LBS
Mfg. item #: GT635ARD-16
CANGT635ARD-16
lease to own for as little as:$846 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$42,309.00

53
GT635ARD-20
GT635ARD-20 WOODWORKING 25 X 20 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 9680 LBS
Mfg. item #: GT635ARD-20
CANGT635ARD-20
lease to own for as little as:$989 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$49,472.00

53
GT635ARD-24
GT635ARD-24 WOODWORKING 25 X 24 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 9880 LBS
Mfg. item #: GT635ARD-24
CANGT635ARD-24
lease to own for as little as:$1,009 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$50,427.00

53
GT760ARD-8
GT760ARD-8 WOODWORKING 30 X 8 DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 7700 LBS
Mfg. item #: GT760ARD-8
CANGT760ARD-8
lease to own for as little as:$902 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$45,078.00

53
GT610HI
GT610HI WOODWORKING 24" CARDAN SHAFT DRIVE DOUBLE SURFACE PLANER, WEIGHT = 10340 LBS
Mfg. item #: GT610HI
CANGT610HI
lease to own for as little as:$1,388 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$69,417.00

53
GTM1020W
GTM1020W WOODWORKING 40" DOUBLE SURFACE PLANER (CHAIN DRIVE), WEIGHT = 12787 LBS
Mfg. item #: GTM1020W
CANGTM1020W
lease to own for as little as:$1,643 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
NEW ITEM
$82,167.00

53
Copyright © 2026 Smith-Hamilton, Inc
0.009 260129 18:03
