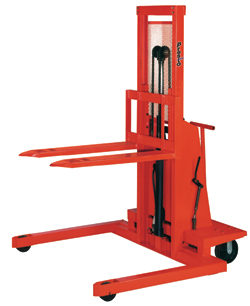

Presto Work Positioners

These low mast stackers are like portable lift tables. They can be used as transporters, stackers and mobile work positioners. Use them anywhere you need to vertically position loads but don't want to have a dedicated device.

Straddle

Features:

  • 2000 - 3000 lb capacity
  • 24 inch load centers
  • Lifting heights - 36 inch through 60 inch
  • Fixed mast
  • 2 inch thick x 6 1/4 inch wide x 42 inch long fixed steel forks
  • 17 inch high fork carriage
  • 14 inch fork I.D. and 26 1/2 inch fork O.D.
  • 2 inch lowered height
  • Steering wheel for greater mobility
  • Lifting speed 4 inch per second 2000 lb lift
  • Lifting speed 2 inch per second 3000 lb lift
  • Fixed base
  • Heavy-duty 12 volt battery
  • Built-in 15 amp tapering battery charger
  • Hand operated floor lock
  • Phenolic front load wheels
  • Polyurethane rear wheels 2000 lb models
  • Nylon rear wheels 3000 lb models
  • Optional slip-on platforms available
  • 48 inch long forks available
Specifications
Model Number Load Capacity Raised Height Lowered Height Dimensions
H / W / L 		Base Legs
I.D./O.D. 		Wheel Dia. Front/Rear Shipping Weight
WPS42 Series  42 inch I.D.  24 inch Load Center
WPS4236-20 2000 lbs 36 inch 2 inch 59x48x65 inch 42 / 48 inch 5 / 8 inch 720 lbs
WPS4248-20 2000 lbs 48 inch 2 inch 71x48x65 inch 42 / 48 inch 5 / 8 inch 745 lbs
WPS4260-20 2000 lbs 60 inch 2 inch 83x48x65 inch 42 / 48 inch 5 / 8 inch 770 lbs
WPS4236-30 3000 lbs 36 inch 2 inch 59x48x65 inch 42 / 48 inch 5 / 8 inch 750 lbs
WPS4248-30 3000 lbs 48 inch 2 inch 71x48x65 inch 42 / 48 inch 5 / 8 inch 775 lbs
WPS4260-30 3000 lbs 60 inch 2 inch 83x48x65 inch 42 / 48 inch 5 / 8 inch 800 lbs
WPS50 Series  50 inch I.D.  24 inch Load Center
WPS5036-20 2000 lbs 36 inch 2 inch 59x56x65 inch 50 / 56 inch 5 / 8 inch 730 lbs
WPS5048-20 2000 lbs 48 inch 2 inch 71x56x65 inch 50 / 56 inch 5 / 8 inch 755 lbs
WPS5060-20 2000 lbs 60 inch 2 inch 83x56x65 inch 50 / 56 inch 5 / 8 inch 780 lbs
WPS5036-30 3000 lbs 36 inch 2 inch 59x56x65 inch 50 / 56 inch 5 / 8 inch 760 lbs
WPS5048-30 3000 lbs 48 inch 2 inch 71x56x65 inch 50 / 56 inch 5 / 8 inch 785 lbs
WPS5060-30 3000 lbs 60 inch 2 inch 83x56x65 inch 50 / 56 inch 5 / 8 inch 810 lbs
There are no listed accessories.

WPS4236-20
2000#CAP 36 RAISED HT STRADDLE 42 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4236-20
PRSWPS4236-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS4248-20
2000#CAP 48 RAISED HT STRADDLE 42 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4248-20
PRSWPS4248-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS4260-20
2000#CAP 60 RAISED HT STRADDLE 42 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4260-20
PRSWPS4260-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS4236-30
3000#CAP 36 RAISED HT STRADDLE 42 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4236-30
PRSWPS4236-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS4248-30
3000#CAP 48 RAISED HT STRADDLE 42 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4248-30
PRSWPS4248-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS4260-30
3000#CAP 60 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS4260-30
PRSWPS4260-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5036-20
2000#CAP 36 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5036-20
PRSWPS5036-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5048-20
2000#CAP 48 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5048-20
PRSWPS5048-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5060-20
2000#CAP 60 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5060-20
PRSWPS5060-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5036-30
3000#CAP 36 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5036-30
PRSWPS5036-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5048-30
3000#CAP 48 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5048-30
PRSWPS5048-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
WPS5060-30
3000#CAP 60 RAISED HT STRADDLE 50 I
CALL 800-458-3687 X1 FOR OR BROTHER-IN-LAW PRICE AND FOR AVAILABILITY
Mfg. item #: WPS5060-30
PRSWPS5060-30
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

622
