Quietair Portable Evaporative Coolers

CALL 1-800-458-3687 FOR FREE FREIGHT
Some conditions may apply but never surprise handling charges when ordering

Quick move the QuietCool portable evaporative cooler to the hottest spot you have. Works great in stuffy areas such as factory shops, loading docks, greenhouses, garages, sporting events, livestock even outdoor dining areas like a company picnic or a Bar-B-Que turn QuietCool on and cool off quick. Its quick, it's quiet, its cool. QuietCool portable evaporable coolers are engineered efficient. They filter the air as it passes through the cooling media and discharges air up to twenty six degrees cooler than the incoming air. With the flip of a switch, it's cooler!

18 DIRECT DRIVE VARIABLE SPEED, 1/4 HP 120V, 4.4 AMPS, 3,000 CFM QC36D1 36 DIRECT DRIVE SINGLE SPEED, 1/2 HP 120V, 11.7 AMPS, 9,700 CFM QC36D1 36 DIRECT DRIVE SINGLE SPEED, 1/2 HP 120V, 11.7 AMPS, 9,700 CFM QUAQC36B1X 36 BELT DRIVE SINGLE SPEED, 3/4 HP 120V, 13.4 AMPS, 12,980 CFM QUAQC36B1X 36 BELT DRIVE THREE SPEED, 1/2 HP 120V, 13.4 AMPS, 9,700 CFM
QC18DVS 18 DIRECT DRIVE VARIABLE SPEED, 1/4 HP 120V, 4.4 AMPS, 3,000 CFM QC36D1 36 DIRECT DRIVE SINGLE SPEED, 1/2 HP 120V, 11.7 AMPS, 9,700 CFM QC36D1 36 DIRECT DRIVE SINGLE SPEED, 1/2 HP 120V, 11.7 AMPS, 9,700 CFM QUAQC36B1X 36 BELT DRIVE SINGLE SPEED, 3/4 HP 120V, 13.4 AMPS, 12,980 CFM QUAQC36B1X 36 BELT DRIVE THREE SPEED, 1/2 HP 120V, 13.4 AMPS, 9,700 CFM
QUAQC36DVS 36 DIVECT DRIVE VARIABLE SPEED, .625 HP 120V, 11.6 AMPS, 12,300 CFM QUAQC48B2 48 BELT DRIVE TWO SPEED, 1 HP 120V, 14.8 AMPS, 17,600 CFM  QC36B1XHL 36 inch Hazardous location Single speed belt drive 3/4 hp 120V, 10,900 cfm QC48B1XHL 48 HAZARDOUS LOCATION SINGLE SPEED BELT DRIVE 1HP, 17,600 CFM
QUAQC36DVS 36 DIVECT DRIVE VARIABLE SPEED, .625 HP 120V, 11.6 AMPS, 12,300 CFM QUAQC48B2 48 BELT DRIVE TWO SPEED, 1 HP 120V, 14.8 AMPS, 17,600 CFM QUAQC36B1XHL 36 inch HAZARDOUS LOCATION SINGLE SPEED BELT DRIVE 3/4 HP 120V, 10,900 CFM QUAQC48B1XHL 48 inch HAZARDOUS LOCATION SINGLE SPEED BELT DRIVE 3/4 HP 120V, 10,900 CFM



Quietcool Portable Evaporative Coolers
QC18DVS 18 inch Direct Drive Variable speed, 1/4 hp 120V, 4.4 amps, 3,000 cfm
QC36D1 36 inch Direct Drive Single speed, 1/2 hp 120V, 11.7 amps, 9,700 cfm
QC36B1 36 inch Belt Drive Single speed, 1/2 hp 120V, 12.4 amps, 9,700 cfm
QC36B1X 36 inch Belt Drive Single speed, 3/4 hp 120V, 13.4 amps, 12,980 cfm
QC36B3 36 inch Belt Drive Three speed, 1/2 hp 120V, 13.4 amps, 9,700 cfm
QC36DVS 36 inch Divect Drive Variable speed, .625 hp 120V, 11.6 amps, 12,300 cfm
QC48B2 48 inch Belt Drive Two Speed, 1 hp 120V, 14.8 amps, 17,600 cfm
QC36B1XHL 36 inch Hazardous location Single speed belt drive 3/4 hp 120V, 10,900 cfm

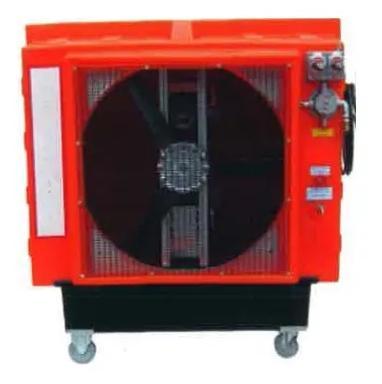

QC48B1XHL 48 inch Hazardous location Single speed belt drive 1HP, 17,600 CFM
Accessories
QC18PM 18 inch FILTER
QCTAB1 TABLETS-1
QCTAB2 TABLETS-2
QC36PM 36 inch FILTER
QCR2730 18 inch REAR GUARD
QC48PM 48 inch FILTER
QC18CK 18 inch CASTERS
QC18CC 18 inch COOLER COVER
CD30612 18 inch COOLING PADS
QCR6362 36 inch REAR GUARD
QCTAB12 TABLETS-12
QC36CC 36 inch COOLER COVER
QC48CC 48 inch COOLER COVER
QC18HB 18 inch HANGING BRACKET
QCAQS LOW WATER SWITCH (FACTORY INSTALLED)
QC18AL 18 inch ADJ LOUVER
QC36HB 36 inch HANGING BRACKET
CD48612 36 inch COOLING PADS
QC36DH 45° DEFLECTION HOOD
QCG1001 WATER STABILIZER
CD60612 48 inch COOLING PADS
QC36AL 36 inch ADJ LOUVER
QC18TA 18 inch TUBE ADAPTOR
QRT60 WATER RESVR
QC36TA 36 inch TUBE ADAPTOR
QC10X3RC/QC10X3SC 10 inch ROUGH WHEELS
QC48AL 48 inch ADJ LOUVER
QC48TA 48 inch TUBE ADAPTOR
QCTAB12C TABLETS-CARTON



Specifications

  • 18 inch Portable Evaporative Cooler
  • Direct Drive 1/4 Horsepower Variable Speed
  • CFM: 3,000
  • Spot Cools Area up to 900 sq.ft.
  • NSN: 4120-01-507-7036
  • Rotomold Housing
  • High efficiency, totally enclosed 1/4 HP motor at 120V 3.3A
  • 1/5HP Submersible Pump at 120V, 1.1A
  • Total Amps: 4.4
  • Total watts: 528
  • Size: 28 inch W x 54 inch H x 25 inch D
  • Ship Weight: 120 lbs.
QC18DVS 18" Portable Evaporative Coolers

Quick move the QuietCool portable evaporative cooler to the hottest spot you have. Works great in stuffy areas such as factory shops, loading docks, greenhouses, garages, sporting events, livestock even outdoor dining areas like a company picnic or a Bar B Que turn QuietCool on and cool off quick. Its quick, it's quiet, its cool. QuietCool portable evaporable coolers are engineered efficient. They filter the air as it passes through the cooling media and discharges air up to twenty six degrees cooler than the incoming air. With the flip of a switch, its cooler!

Benefits and Features

  • Maintenance Free - Engineered and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air can be cooled down as much as 26 F degrees  cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Accessories-not included - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Don't forget your cooler cover to protect your investment.

Construction

  • Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency 5/8 hp for a longer life.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool -
    Engineered - Efficient - Cooler - Amazing





quietaire QC36B1 - 36" Portable Evaporative Cooler

Model QC36B1 - 36 inch Portable Evaporative Cooler

Specifications

  • Belt Drive - 1/2 hp 1 s because we keep them in stock.
  • Fan - Industrial duty 9,700 at .15 SP
  • Motor - High efficiency, totally enclosed 1/2 hp 120v 7.4 Amps
  • Pump - Submersible 1/6 hp 120v, 5 amps
  • Total amps12.4
  • Total  watts1488
  • Size 61 1/2 inch W x 63 inch H x 32 1/2 inch D
  • NSN- 4120-01-449-7532

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.
  • Note: The QuietCool Portable Evaporative Cooler has ETL Approval #9800103 which conforms to UL standard 507.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life. The belt drive QuietCool model is the quietest operating portable evaporative cooler.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC36B1 - 36" Portable Evaporative Cooler

Model QC36B1X - 36 inch Portable Evaporative Cooler

Specifications

  • Belt Drive - 3/4 hp 1 speed belt drive
  • Fan - Industrial duty 10,900 at .15 SP
  • Motor - High efficiency, totally enclosed 3/4 hp 120v 8.4 Amps
  • Pump - Submersible 1/6 hp 120v, 5 amps
  • Total amps13.4
  • Total watts1608
  • Size 61 1/2 inch W x 63 inch H x 32 1/2 inch D
  • NSN- 4120-01-505-2011

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life. The belt drive QuietCool model is the quietest operating portable evaporative cooler. This 3/4 hp motor kicks up about 1,000 cfm more than our 1/2 hp model.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC36B3 - 36" Portable Evaporative Cooler

Model QC36B3 - 36 inch Portable Evaporative Cooler

Specifications

  • Belt Drive - 1/2 hp 3 speed belt drive
  • Fan - Industrial duty 9,700 cfm at .15 SP
  • Motor - High efficiency, moisture resistant designed for totally enclosed coolers. 1/2 hp 120v 8.9/6.3/3.2 Amps
  • Pump - Submersible, 1/6 hp 120v, 5 amps
  • Total amps13.9
  • Total watts1668
  • Size 61 1/2 inch W x 63 inch H x 32 1/2 inch D
  • NSN- 4120-01-449-7535

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.
  • Note: The QuietCool Portable Evaporative Cooler has ETL Approval #9800103 which conforms to UL standard 507.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life. The belt drive QuietCool model is the quietest operating portable evaporative cooler.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC36D1 36" Portable Evaporative Cooler

Model QC36D1 - 36 inch Portable Evaporative Cooler

Specifications

  • Direct Drive  - 1 speed QuietCool Portable Evaporative Cooler
  • Fan - Industrial duty, aluminum construction.  9,700 at .15 SP
  • Motor - High efficiency, totally enclosed 1/2 hp 120v 5 Amps
  • Pump - Submersible 1/6 hp 120v, 5 amps
  • Total amps11.76
  • Total  watts1411.2
  • Size 61 1/2 inch W x 63 inch H x 32 1/2 inch D
  • NSN- 4120-01-449-7531

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.
  • Note: The QuietCool Portable Evaporative Cooler has ETL Approval #9800103 which conforms to UL standard 507.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life. The belt drive QuietCool model is the quietest operating portable evaporative cooler.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC36DVS 36" Portable Evaporative Cooler

Model QC36DVS - 36 inch Portable Evaporative Cooler

Specifications

  • NEW!  QC36DVS - Direct Drive Variable Speed
  • 5/8 HP Motor - Designed for Portable Evaporative Coolers
  • Fan - Plastic Fan Blade for Maximum Corrosion Resistance
  • Plus - 10,900 CFM on High Setting
  • Pump - Submersible 1/6 hp 120v, 5 amps
  • Total amps 11.6
  • Total watts 1392
  • Size 61 1/2 inch W x 63 inch H x 32 1/2 inch D

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life. The belt drive QuietCool model is the quietest operating portable evaporative cooler.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC48B2 48" 1 hp 2 speed Portable Evaporative Cooler

Quick move the QuietCool portable evaporative cooler to the hottest spot you have. Works great in stuffy areas such as factory shops, loading docks, greenhouses, garages, sporting events, livestock even outdoor dining areas like a company picnic or a Bar-B-Que turn QuietCool on and cool off quick. Its quick, its quiet, it's cool. QuietCool portable evaporable coolers are engineered efficient. They filter the air as it passes through the cooling media and discharges air up to twenty six degrees cooler than the incoming air. With the flip of a switch, it's cooler!

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.

Options

  • Portable 60 gallon water reservoir is available where no water supply is readily accessible.
  • Large 10 inch semi-pneumatic rough terrain wheels .
  • Directional louvers for control the direction of the air flow.
  • Tube adaptor for distributing the cool air.
  • Water stabilizer to remove scale.
  • Cooler cover to protect your investment when not in use.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency 5/8 hp for a longer life.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing

Specifications

  • Belt Drive - 1 hp 2 speed belt drive
  • Fan - Industrial duty 17,600 on high, 11,300 on low
  • Motor - High efficiency, totally enclosed 1hp 120v 9.8 Amps
  • Pump - Submersible 1/6 hp 120v, 5 amps
  • Total amps14.8
  • Total  watts1776
  • Size 75.5 inch W x 79 inch H x 36 inch D



quietaire QC36B1XHL 36" Portable Evaporative Cooler

Model QC36B1XHL - 36 inch Portable Evaporative Cooler

Specifications

  • 36 inch Portable Evaporative Cooler
  • Explosion Proof
  • Belt Drive 3/4 Horsepower Single Speed
  • CFM: 10,900
  • Cools Area up to 2,500 sq.ft.
  • NSN: 4120-01-449-7776
  • Rotomold Housing
  • High efficiency, totally enclosed explosion proof 3/4 HP motor at 120V 10.3A
  • 1/2HP Self Priming & Explosion Proof Motor at 120V, 7.8A
  • Class I, Group D – Class II, Groups F and G
  • Total Amps: 18.1
  • Total watts: 2172
  • Size: 61.5 inch W x 63 inch H x 33 inch D
  • Ship Weight: 360 lbs.

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • No Sparks! - This unit is explosion proof.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

quietaire QC36B1XHL 36" Portable Evaporative Cooler

Model QC48B1XHL - 48 inch Portable Evaporative Cooler

Benefits and Features

  • Maintenance Free - Engineered by our Father and Son team of engineer's and manufactured to be virtually maintenance free.
  • Easy to operate - Needs only tap water and electricity to operate.
  • No waste - Engineered to be highly efficient, no water is wasted.
  • Easy to move - Completely portable, so anyone can roll it quickly to any hot area. Comes standard with straight and swivel casters.
  • Air flow - QuietCool is tested for maximum air flow at operating static pressure - ensuring you maximum air flow.
  • No Sparks! - This unit is explosion proof.
  • Amazingly Cooler air - Discharged air is down to 26 F degrees cooler than the incoming air. Amazing.
  • Filtered Air - Filters the air as is passes through the water saturated cooling media - eliminating many air borne particles.
  • Plus - Portable 60 gallon water reservoir is available where no water supply is readily accessible. Large 10 inch semi-pneumatic rough terrain wheels available too.

Construction

  • Direct from the Manufacturer - Engineered, Manufactured and Constructed in Houston with the highest quality parts available.
  • Housing - Constructed of rotomolded, corrosion free polyethelyne.
  • Fan - Industrial duty aluminum construction.
  • Fan Motor - Engineered to pull less Amps - saving you daily operating costs, plus high efficiency for a longer life.
  • Recirculating Pump - High efficiency, maintenance free, and corrosion resistant submersible water pump.
  • Float Valve - Corrosion and maintenance free plastic.
  • Water Lines / Fittings - All constructed with corrosion free materials.
  • Cooling Media - Cross corrugated angle fluted specially formulated cellulose material treated with a thermosetting resin. Specially designed for evaporative cooling so there is no excess load on the fan.
  • Support -  Thick aluminum angle bar at the top of QuietCool and thick galvanized steel angle bar at the bottom increases the integrity of the structure of the QuietCool unit. Makes it last longer.
  • Parts - Only QuietCool offers 18 interchangeable parts - when you need parts - we ship them because we keep them in stock.

The Bottom Line

  • QuietCool Engineering - Means Less operating cost - maximum efficency - maximum cooling - simple to operate - available parts - each QuietCool is tested under operating conditions before shipping - corrosion free - manufactured and constructed with quality materials for a longer life.
  • QuietCool - Direct from the Manufacturer
    Engineered - Efficient - Cooler - Amazing!

QC18DVS
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
18 DIRECT DRIVE VARIABLE SPEED, 1/4 HP 120V, 4.4 AMPS, 3,000 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC18DVS
QUAQC18DVS
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$1,544.25

25
QC36D1
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 DIRECT DRIVE SINGLE SPEED, 1/2 HP 120V, 11.7 AMPS, 9,700 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36D1
QUAQC36D1
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,393.32

25
QC36B1
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 BELT DRIVE SINGLE SPEED, 1/2 HP 120V, 12.4 AMPS, 9,700 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36B1
QUAQC36B1
lease to own for as little as:$51 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,534.44

25
QC36B1X
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 BELT DRIVE SINGLE SPEED, 3/4 HP 120V, 13.4 AMPS, 12,980 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36B1X
QUAQC36B1X
lease to own for as little as:$54 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,703.78

25
QC36B3
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 BELT DRIVE THREE SPEED, 1/2 HP 120V, 13.4 AMPS, 9,700 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36B3
QUAQC36B3
lease to own for as little as:$55 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,748.47

25
QC36DVS
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 DIVECT DRIVE VARIABLE SPEED, .625 HP 120V, 11.6 AMPS, 12,300 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36DVS
QUAQC36DVS
lease to own for as little as:$55 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$2,748.47

25
QC48B2
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
48 BELT DRIVE TWO SPEED, 1 HP 120V, 14.8 AMPS, 17,600 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC48B2
QUAQC48B2
lease to own for as little as:$74 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$3,682.22

25
QC36B1XHL
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
36 HAZARDOUS LOCATION SINGLE SPEED BELT DRIVE 3/4 HP 120V, 10,900 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC36B1XHL
QUAQC36B1XHL
lease to own for as little as:$151 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$7,561.84

25
QC48B1XHL
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS:
48 HAZARDOUS LOCATION SINGLE SPEED BELT DRIVE 1HP, 17,600 CFM ** PROUDLY MADE IN THE USA **
Mfg. item #: QC48B1XHL
QUAQC48B1XHL
lease to own for as little as:$174 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$8,702.56

25
QC18PM
18 FILTER
Mfg. item #: QC18PM
QUAQC18PM
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$13.86

25
QCTAB1
TABLETS-1
Mfg. item #: QCTAB1
QUAQCTAB1
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$15.70

25
QCTAB2
TABLETS-2
Mfg. item #: QCTAB2
QUAQCTAB2
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$24.02

25
QC36PM
36 FILTER
Mfg. item #: QC36PM
QUAQC36PM
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$24.02

25
QCR2730
18 REAR GUARD
Mfg. item #: QCR2730
QUAQCR2730
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$36.95

25
QC48PM
48 FILTER
Mfg. item #: QC48PM
QUAQC48PM
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$46.19

25
QC18CK
18 CASTERS
Mfg. item #: QC18CK
QUAQC18CK
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$47.11

25
QC18CC
18 COOLER COVER
Mfg. item #: QC18CC
QUAQC18CC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$56.35

25
CD30612
18 COOLING PADS
Mfg. item #: CD30612
QUACD30612
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$60.97

25
QCR6362
36 REAR GUARD
Mfg. item #: QCR6362
QUAQCR6362
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$89.60

25
QCTAB12
TABLETS-12
Mfg. item #: QCTAB12
QUAQCTAB12
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$88.36

25
QC36CC
36 COOLER COVER
Mfg. item #: QC36CC
QUAQC36CC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$88.36

25
QC48CC
48 COOLER COVER
Mfg. item #: QC48CC
QUAQC48CC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$142.94

25
QC18HB
18 HANGING BRACKET
Mfg. item #: QC18HB
QUAQC18HB
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$149.86

25
QCAQS
LOW WATER SWITCH (FACTORY INSTALLED)
Mfg. item #: QCAQS
QUAQCAQS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$159.62

25
QC18AL
18 ADJ LOUVER
Mfg. item #: QC18AL
QUAQC18AL
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$182.40

25
QC36HB
36 HANGING BRACKET
Mfg. item #: QC36HB
QUAQC36HB
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$211.11

25
CD48612
36 COOLING PADS
Mfg. item #: CD48612
QUACD48612
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$211.95

25
QC36DH
45¡ DEFLECTION HOOD
Mfg. item #: QC36DH
QUAQC36DH
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$235.60

25
QCG1001
WATER STABILIZER
Mfg. item #: QCG1001
QUAQCG1001
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$252.49

25
CD60612
48 COOLING PADS
Mfg. item #: CD60612
QUACD60612
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$339.46

25
QC36AL
36 ADJ LOUVER
Mfg. item #: QC36AL
QUAQC36AL
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$411.65

25
QC18TA
18 TUBE ADAPTOR
Mfg. item #: QC18TA
QUAQC18TA
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$463.20

25
QRT60
WATER RESVR
Mfg. item #: QRT60
QUAQRT60
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$518.92

25
QC36TA
36 TUBE ADAPTOR
Mfg. item #: QC36TA
QUAQC36TA
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$539.71

25
QC10X3RC/QC10X3
10 ROUGH WHEELS
Mfg. item #: QC10X3RC/QC10X3
QUAQC10X3RC/{00
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$594.60

25
QC48AL
48 ADJ LOUVER
Mfg. item #: QC48AL
QUAQC48AL
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$624.27

25
QC48TA
48 TUBE ADAPTOR
Mfg. item #: QC48TA
QUAQC48TA
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$801.11

25
QCTAB12C
TABLETS-CARTON
Mfg. item #: QCTAB12C
QUAQCTAB12C
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
NEW ITEM
$837.78

25
Copyright © 2025 Smith-Hamilton, Inc
0.027 250808 17:37
