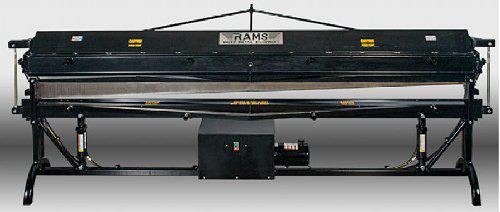

RAMS-2200 Series Shear/Brake Combo Machi

The RAMS 2200 Series Shear/Brake Combo machines are designed specifically for ease of use, flexibility and the convenience of the end user. The innovative fully hydraulic design is both compact and user friendly. Unlike your traditional sheet metal brake or hydraulic shear, RAMS wireless handheld remote allows one operator to precisely bend and shear at a safe distance. This heavy duty steel plate construction has the shear located directly below the brake for a quick transition between operations. The optional universal back gauge for either braking or shearing creates an effortless repetitive operation for long or short term production runs. These units are equipped with a 110-115V single phase motor.

Features:

  • Heavy All Steel Construction
  • Adjustable apron brace (for fine tuning bends)
  • (8) Material Support Arms
  • Wireless Handheld Remote
  • Compact Design
  • Hardened Shear Blades (Available on the HD models Only)
  • Single Phase Hydraulic System


Optional Accessories:

  • Wheel Kit
  • Radius Bar
  • Shear Back Stop
  • Electronic Brake Stop


s-h alt

Specifications

Model

RAMS-2210

RAMS-2208

RAMS-2210-HD

RAMS-2208-HD

 Bending Capacity

16 Ga. 5ft / 18 Ga. 10ft

16 Ga. 4ft / 18 Ga. 8ft

14 Ga. 5ft / 16 Ga. 10ft

14 Ga. 4ft / 16 Ga. 8ft

 Shearing Capacity

20 Ga. 5ft / 24 Ga. 10ft

20 Ga. 4ft / 24 Ga. 8ft

14 Ga. 5ft / 16 Ga. 10ft

14 Ga. 4ft / 16 Ga. 8ft

 Bending Length (in.)

120

96

120

96

 Shearing Length (in.)

120

96

120

96

 Shipping Weight (lbs.)

1600lbs.

1300lbs.

1800lbs.

1500lbs.

 Dimensions (in.)

136x45x65

112x45x65

136x45x65

112x45x65

The RAMS 2200 Series Shear/Brake Combo machines are designed specifically for ease of use, flexibility and the convenience of the end user. The innovative fully hydraulic design is both compact and user friendly. Unlike your traditional sheet metal brake or hydraulic shear, RAMS wireless handheld remote allows one operator to precisely bend and shear at a safe distance. This heavy duty steel plate construction has the shear located directly below the brake for a quick transition between operations. The optional universal back gauge for either braking or shearing creates an effortless repetitive operation for long or short term production runs. These units are equipped with a 110-115V single phase motor.



no listed accessories

RAMS-2210
NO LONGER AVAILABLE
Mfg. item #: RAMS-2210
RAMS-2210
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

986
RAMS-2208
NO LONGER AVAILABLE
Mfg. item #: RAMS-2208
RAMS-2208
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

986
RAMS-2210-HD
NO LONGER AVAILABLE
Mfg. item #: RAMS-2210-HD
RAMS-2210-HD
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

986
RAMS-2208-HD
NO LONGER AVAILABLE
Mfg. item #: RAMS-2208-HD
RAMS-2208-HD
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

986
