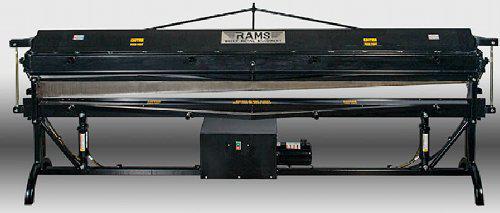

RAMS-2600 Finger Brake/Shear Combo Machi

The RAMS 2600 Series Finger Brake/Shear Combo machines, offered in both Residential and Heavy Duty Commercial models, have all the same features as our 2200 series Brake/Shear Combo units. The Heavy Duty Commercial models feature hardened steel blades which allow for an increased capacity of up to 14ga. mild steel. Offered in both 10' and 8' lengths the four sided replaceable shear blades are spring loaded and hold material in place while cutting in addition to acting as a safety guard. A fully adjustable apron with bushing pivots and a removable angle enables bends as close to a 1/2 inch apart. This model includes various sizes of removable fingers to allow the bending of complex parts not possible with other machines. The RAMS-2610 and RAMS-2610-HD models come with 10-6, 11-4, 4-3, and 4-2 inch fingers. The RAMS-2608 and RAMS-2608-HD models come with 8-6 , 8-4 , 4-3 and 4-2 inch fingers. These units are equipped with a 110-115V single phase motor.

Features:

  • Heavy All Steel Construction
  • Adjustable apron brace (for fine tuning bends)
  • (8) Material Support Arms
  • Wireless Handheld Remote
  • Compact Design
  • Hardened Shear Blades (Available on the HD models Only)
  • Single Phase Hydraulic System


Optional Accessories:

  • Wheel Kit
  • Radius Bar
  • Shear Back Stop
  • Electronic Brake Stop


s-h alt

Specifications

Model

RAMS-2610

RAMS-2608

RAMS-2610-HD

RAMS-2608-HD

 Bending Capacity

16 Ga. 5ft / 18 Ga. 10ft

16 Ga. 4ft / 18 Ga. 8ft

14 Ga. 5ft / 16 Ga. 10ft

14 Ga. 4ft / 16 Ga. 8ft

 Shearing Capacity

20 Ga. 5ft / 24 Ga. 10ft

20 Ga. 4ft / 24 Ga. 8ft

14 Ga. 5ft / 16 Ga. 10ft

14 Ga. 4ft / 16 Ga. 8ft

 Bending Length (in.)

120

96

120

96

 Max. Depth of Box

2 1/4

2 1/4

2 1/4

2 1/4

 Shearing Length (in.)

120

96

120

96

 Shipping Weight (lbs.)

2200lbs.

2000lbs.

2300lbs.

2100lbs.

 Dimensions (in.)

136x45x65

112x45x65

136x45x65

112x45x65

The RAMS 2600 Series Finger Brake/Shear Combo machines, offered in both Residential and Heavy Duty Commercial models, have all the same features as our 2200 series Brake/Shear Combo units. The Heavy Duty Commercial models feature hardened steel blades which allow for an increased capacity of up to 14ga. mild steel. Offered in both 10 and 8ft lengths the four sided replaceable shear blades are spring loaded and hold material in place while cutting in addition to acting as a safety guard. A fully adjustable apron with bushing pivots and a removable angle enables bends as close to a 1/2inch apart. This model includes various sizes of removable fingers to allow the bending of complex parts not possible with other machines. The RAMS-2610 and RAMS-2610-HD models come with 10-6, 11-4, 4-3, and 4-2 inch fingers. The RAMS-2608 and RAMS-2608-HD models come with 8-6 , 8-4 , 4-3 and 4-2 inch fingers. These units are equipped with a 110-115V single phase motor.
