RAMS 24 Ga Power Flanger

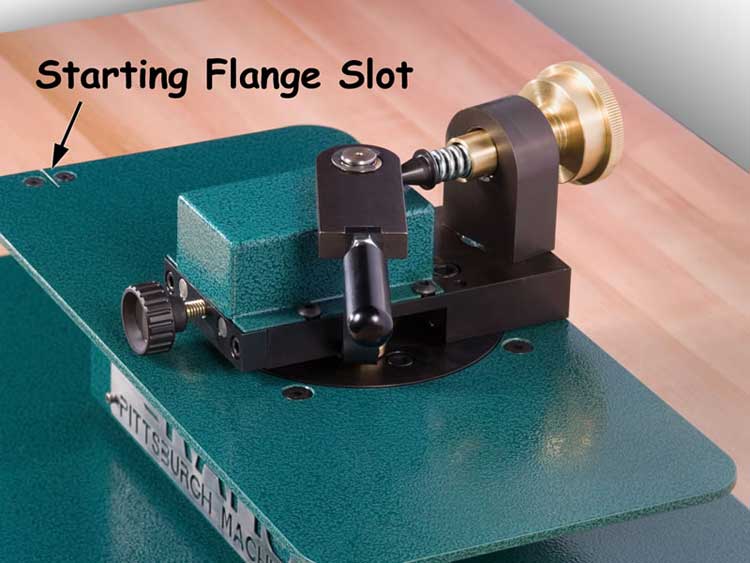

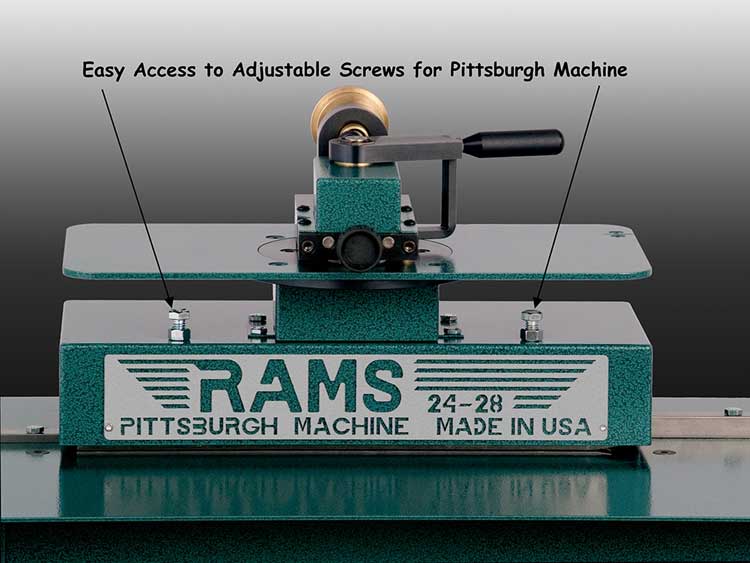

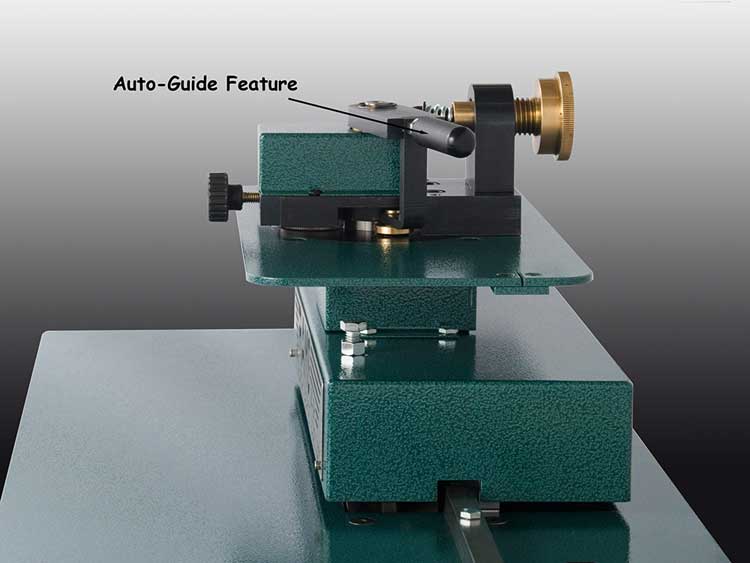

The unit can be mounted to the RAMS 24-28 Pittsburgh Machine. The RAMS-2003 Power Flanger will form a 7/32" right angle flange on either straight or curved pieces. It has an adjustable "auto-guide", which can be set to automatically hold the metal for turning the flange on both, a radius or a straight piece. This unit features Torrington needle bearings and hardened and ground shafts.

Maintance & Operating Instructions
Parts Diagram

s-h alt

Specifications
Model Rams-2003
Capacity 24 - 26 Ga. Min. Mild Steel
Dimensions 16" Long X 9 1/4" Wide x 6 1/4" High
Approx. Weight 30 Lbs

s-h alt

There are no listed accessories.

S-2003
24GA POWER FLANGER ATTCHMNT-BASE MODEL** SHIP WEIGHT 30 LBS, SHIP VIA UPS(30 X 14 X 10)
CALL 800-458-3687 X1 OR ADD TO CART FOR YOUR BROTHER-IN-LAW DEAL ON THIS RAMS ITEM
Mfg. item #: S-2003
RAMS-2003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,177.27
