ReechCraft PowerLift

Models and Acessories
PowerPole
4022800 PowerPole Climbing Unit
4022771 PowerLatch Assembly
4022772 Platform Support
4022179 Platform Support with PowerLatch Connector
4022756 Single Man Basket
4022785 Speedrail Midrail Post (2 Pack)
4022071 Speedrail Endrail (2 Pack)
4022432 PowerPole Standoff Tie
4022178 PowerPole Super Standoff Tie
4022754 PowerPole V-Brace
4022629 PowerPole Extendable V-Brace
4022084 PowerPole 12FT Pole Section
4022435 PowerPole 6FT Pole Section
4022096 PowerPole Coupler
4022465 10IN. X 10IN. Base Foot
4022791 PowerPole Outrigger
PowerMast
4026151 PowerMast Climbing Unit
4026156 PowerMast Platform Support
4027650 PowerMast Side Mount T-Bracket
4026375 PowerMast 5FT Mast
4022906 PowerMast 32IN. Mast
4026377 PowerMast Adjustable Tie
4026648 PowerMast Tie Extension (2 Pack)
4026650 PowerMast Freestanding Tri-Mast Tie
4027185 PowerMast Single Platform Assembly
4026382 PowerMast Base Foot
4026430 PowerMast Freestanding Base
4026795 PowerMast Single Man Basket
4026651 PowerMast 6FT Platform Basket
PowerLift
4027510 PowerLift PL65
4026833 Powerlift PL65 Fixed Base
4027517 PowerLift PL65 Platform Transport Wheel Kit
4027500 PowerLift PL65 Outrigger Base with Weights
4027365 PowerLift PL65 Straddle Base
4027399 PowerLift PL65 Straddle Base Leg Extensions
4027519 PowerLift PL65 and PL20 Tilt Back Handle Kit
4026236 PowerLift Hitch Hauler
4026408 PowerLift Narrow Platform PL60
4026616 PowerLift Crane Hook Kit
4027700 PowerLift PL20
4026190 PowerLift PL60
Bronco
4026200 Bronco Individually Packaged
4027324 Bronco Replacement Feet and Caps Kit

PL50 (Europe), PL52 (Australia / New Zealand), PL53 (Australia / New Zealand) and PL60C (Canada) call for export pricing and freight

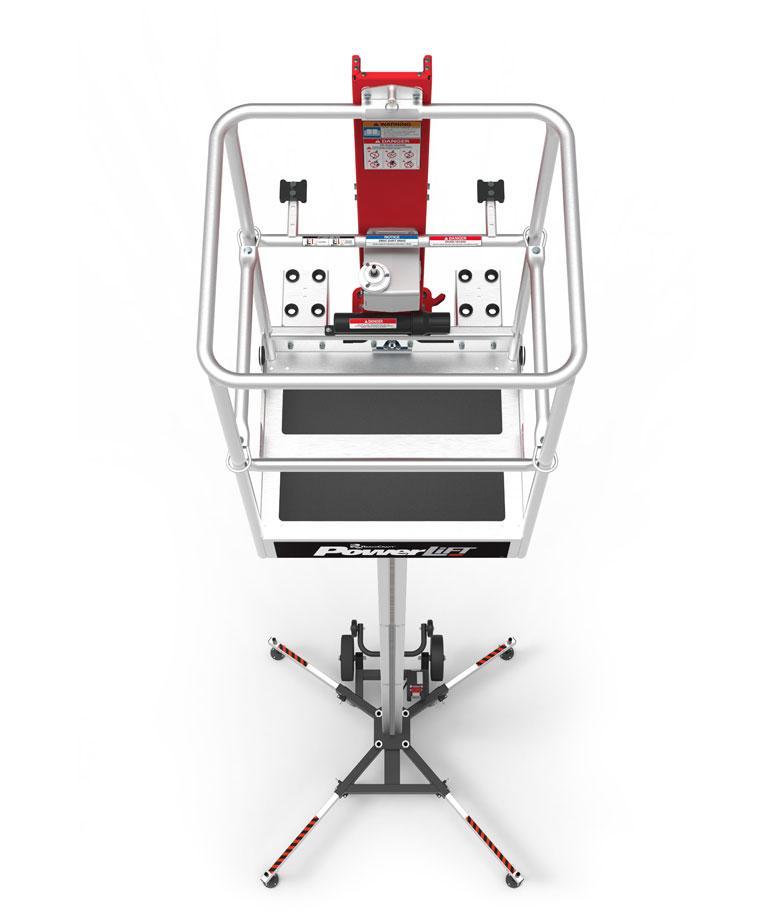

PowerLift PL20 Specifications
Conforming Standards
ANSI A92.20
Platform Capacity 350 lb (159 kg)
Power Source AC or DC Drill
Rated Horizontal Force 52.5 lbs (23.46 kg) (234 N)
Machine Weight 278 lb (126 kg)
Swivel/Lockable Caster Diameter 5 in. (127 mm)
Platform Size (L x W) 26 in. x 30 in. (660 mm x 762 mm)
Mast Section Weight 20.7 lb (9.4 kg)
Front Outrigger Weight 10.3 lb (4.7 kg)
Rear Outrigger Weight 7.8 lb (3.6 kg)
Drive Worm Drive with Integrated Drive Gear and Brake
Flat Free Transport Wheels 12 in. x 3.5 in. (305 mm x 89 mm)

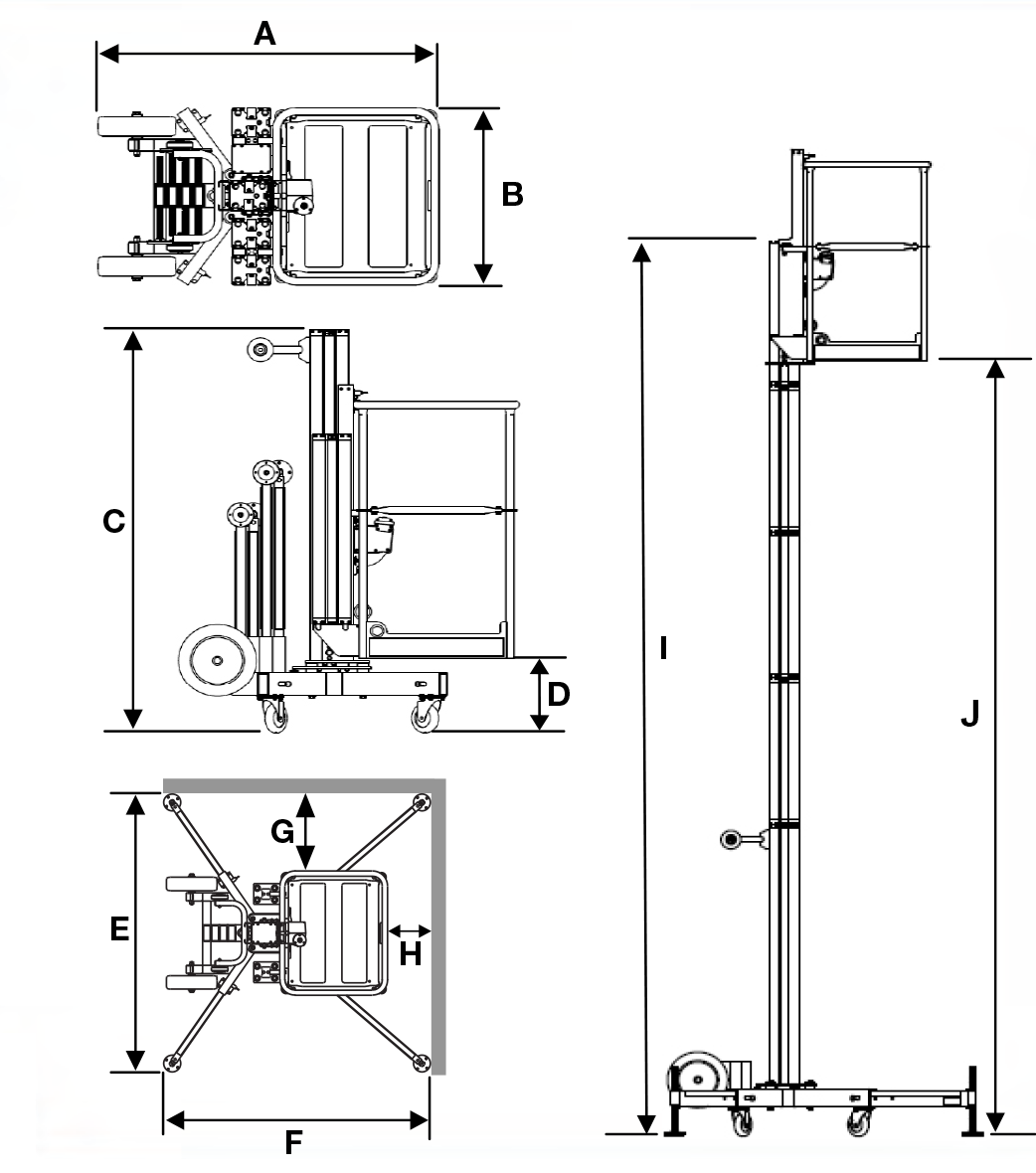

PowerLift PL20 Dimensions
A  Stowed Length 53 in. (1346 mm)
B – Stowed Width 30 in. (762 mm)
C – Stowed Height 69 in. (1741 mm)
D – Minimum Platform Height 12.9 in. (329 mm)
E – Outrigger Footprint Width 67.1 in. (1704 mm)
F – Outrigger Footprint Length 64.4 in. (1636 mm)
G – Distance from Wall Side 18.5 in. (470 mm)
H – Distance from Wall Front 10.3 in. (262 mm)
I – Erected Mast Height 16.3 ft (5.0 m)
J – Maximum Platform Height 14.3 ft (4.34 m)
Maximum Working Height (Maximum Platform Height plus 2 m.) 20.3 ft (6.19 m)

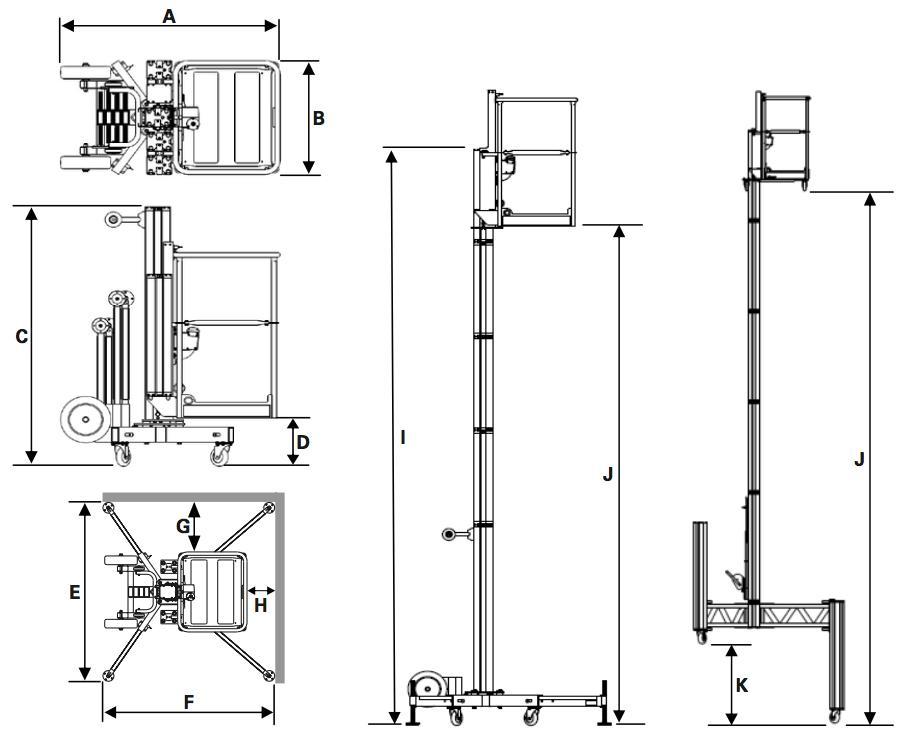

pt65-diag

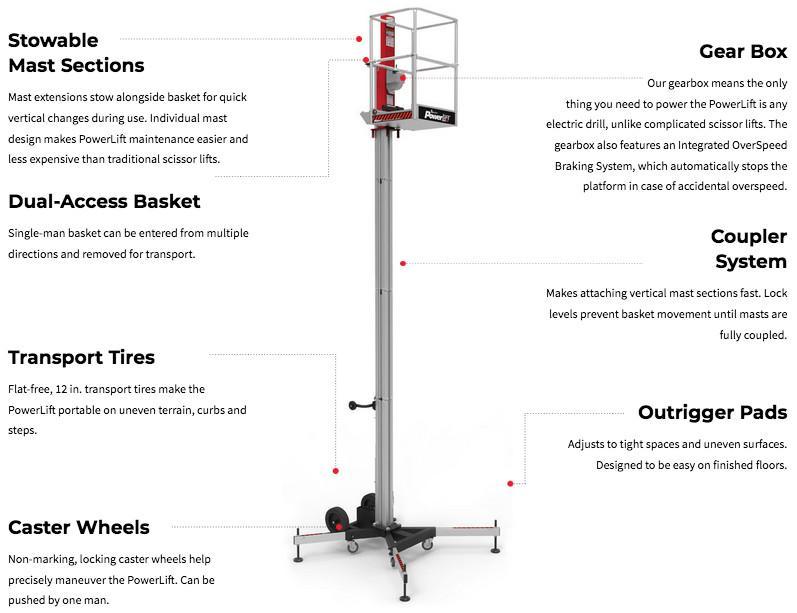

The PowerLift PL65 is the lightest, most versatile lift on the market! With three base options, this three-in-one lift makes reaching difficult places easy! PowerLift PL65 is available with a fixed base for an incredibly small footprint, our standard outrigger base for quick and easy set-up and a straddle base so you can work over obstacles like pews or theater seats. Like all of our PowerLifts, PL65 can easily be moved around on its casters by just one person. All of the components can be carried up slopes or stairs, so you can easily work in auditoriums, theaters, churches, and more. PowerLift’s only electrical component is the drill for power (corded or cordless). There are no expensive controls, sensors or switches to repair when they malfunction. PowerLift is very simple to operate. The PowerLift gearbox includes an integrated overspeed brake for added safety. For indoor use only.

Finally, there is a practical 3 in 1 lift that

makes reaching dif cult places easy in schools, churches, auditoriums, theaters, of ces and more.

POWERLIFT PL65 PRODUCT DETAILS:

  • 360 deg turning radius
  • Extremely portable
  • Complies with safety standards
  • Fully enclosed personnel basket
  • Emergency lowering system
  • Unlimited possibilities
Specifications
DESCRIPTION FIXED BASE OUTRIGGER BASE STRADDLE BASE STRADDLE BASE EXTENSIONS
Conforming Standard ANSI A92.3 ANSI A92.3 ANSI A92.3 ANSI A92.3
Platform Capacity 350 lbs (159 kg) 350 lbs (159 kg) 350 lbs (159 kg) 350 lbs (159 kg)
Power Source AC or DC Drill AC or DC Drill AC or DC Drill AC or DC Drill
Rated Horizontal Force 52.5 lbs (234 N) 52.5 lbs (234 N) 52.5 lbs (234 N) 52.5 lbs (234 N)
Machine Weight 220 lbs (100 kg) 310 lbs (141 kg) 475 lbs (216 kg) 500 lbs (227 kg)
Swivel/Lockable Caster Diameter 5 in. (127 mm) 5 in. (127 mm) 6 in. (152 mm) 6 in. (152 mm)
Platform Size (L x W) 26 in. x 30 in. (660 mm x 762 mm) 26 in. x 30 in. (660 mm x 762 mm) 26 in. x 30 in. (660 mm x 762 mm) 26 in. x 30 in. (660 mm x 762 mm)
Mast Section Weight 28.5 lbs (12.9 kg) 28.5 lbs (12.9 kg) 28.5 lbs (12.9 kg) 28.5 lbs (12.9 kg)
Rear Outrigger Weight 9.3 lbs (4.2 kg) 9.3 lbs (4.2 kg) 9.3 lbs (4.2 kg) 9.3 lbs (4.2 kg)
Front Outrigger Weight 10.6 lbs (4.8 kg) 10.6 lbs (4.8 kg) 10.6 lbs (4.8 kg) 10.6 lbs (4.8 kg)
Flat Free Transport Wheels 12 in. x 3.5 in. (305 mm x 89 mm) 12 in. x 3.5 in. (305 mm x 89 mm) 12 in. x 3.5 in. (305 mm x 89 mm) 12 in. x 3.5 in. (305 mm x 89 mm)
Drive Drive Worm Drive with Integrated Drive Gear and Brake
(A) Stowed Length 36.0 in. (914 mm) 53.4 in. (1356 mm) 36.0 in. (914 mm) 36.0 in. (914 mm)
(B) Stowed Width 30 in. (762 mm) 30 in. (762 mm) 30 in. (762 mm) 30 in. (762 mm)
(C) Stowed Height 60.0 in (1524mm) 68.5 in. (1741 mm) 60.0 in (1524 mm) 60.0 in (1524 mm)
(D) Minimum Platform Height 6 in. (152 mm) 12.9 in. (329 mm) 22 in. (559 mm) 22 in. (559 mm)
(E) Outrigger Footprint Width N/A 67.1 in. (1705 mm) 75 - 91.5 in. (1905 - 2324 mm) 75 - 91.5 in. (1905 - 2324 mm)
(F) Outrigger Footprint Length N/A 64.4 in. (1635 mm) 72 - 90 in. (1829 - 2286 mm) 2 - 90 in. (1829 - 2286 mm)
(G) Distance from Wall Side 0 in. (0 mm) 18.5 in. (471 mm) 22.5 - 30.5 in. (572 - 775 mm) 7 22.5 - 30.5 in. (572 - 775 mm)
(H) Distance from Wall Front 0 in. (0 mm) 10.3 in. (261 mm) 14.2 - 21.4 in. (361 - 544 mm) 14.2 - 21.4 in. (361 - 544 mm)
(I) Erected Mast Height 20.7 ft (6.31 m) 21.7 ft (6.60 m) 26.2 in (7.98 m) 26.2 in (7.98 m)
(J) Maximum Platform Height 18.5 ft (5.64 m) 19.5 ft (5.94 m) 24.0 ft (7.32 m) 24.0 (7.32 m)
(K) Maximum Leg Offset N/A N/A 42 in. (1067 mm) 66 in. (1676 mm)
Maximum Working Height 25 ft (7.64 m) 25.5 ft (7.77 m) 30.6 ft (9.32 m) 30.6 ft (9.32 m)

pt65-diag

Case Study :
PowerLift conservatively saved our subcontractor approximately 10,000 dollars and about a week's worth of work.
Ron Hansen - John T Jones Construction Co.

Job Description:
Large water treatment facility ceiling sealing project.

case study

Challenges:
Entire facility only accessible through 36 inch walk-through door.
Ceiling had gradual slope requiring adjustable working height throughout project.
Ceiling located above water with catwalks dividing multiple sections of the bulk storage bunker.

Equipment Options:
A standard push-around manlift weighing 700 lbs was evaluated. Railings would have needed to be removed and require several workers to transfer the lift to the floating platform. Based on the 700 lb weight, the lift would have needed to be located close to the platform center, leaving a large portion of the pool perimeter unreachable. Because the roof sloped, the work was at different heights throughout the project so scaffolding platform heights would have trouble providing effective access to the ceiling. In addition to multiple setups and teardowns, several trips would be required to bring material up and down, compromising safety and efficiency. Ladders would not provide required safety or reach.

Solution:
The PowerLifts compact and lightweight design allowed 2 workers to easily lift it up and over the guardrails and place on the floating platform. With the base anchored to the wood deck, operators were able to safely make several trips to the work. The light weight and 4 swivel casters also allowed the PowerLift to be easily positioned close to the edge of the platform to reach corners and sides of the ceiling above each pool. With ropes tied to the platform, two workers repositioned the work platform to reach the ceiling in all areas above the pool. Job was complete in only two days with a few workers.

Q: What is a PowerLift?

A: The PowerLift is an ultra-light and strong push around lift, making this the most portable powered lift available for indoor and outdoor use.

Q: What is PowerTrak™ Technology?

A: PowerTrak™ Technology is a patented drive system which features a specially designed gearbox coupled to a replaceable steel track.

Q: Is the PowerLift an aerial work platform (AWP)?

A: Yes, the PowerLift can also be known as an AWP, or as a Mobile Elevating Work Platform (MEWP), meeting the respective standards for that category of equipment in the various markets ReechCraft serves.

Q: What safety standards does the PowerLift comply with?

A: We have unique PowerLift models for each of these markets: ANSI A92.3 for US, CSA B354.1-04 for Canada, EN280 for Europe and AS 1418.10-2011 for Australia/New Zealand.

Q: Will cordless drills work?

A: Yes, many people enjoy the convenience of using a cordless drill. However, a corded drill provides more power and speed.

Q: What do I do if I lose power or my battery dies?

A: A manual crank is provided inside the basket to manually lower the unit. It is recommended to keep an extra battery while operating the PowerLift.

Q: Can I use additional masts to go higher?

A: No, it will no longer comply with the current safety standards.

Q: How much does the PowerLift weigh?

A: As different models may vary please refer to the specifications page.

Q: Does the lift mechanism have a fail-safe or clutch system?

A: Yes, the gearbox has a back drive brake and an overload clutch.

Q: Are replacement parts available?

A: Absolutely, contact your local dealer or ReechCraft directly.

Q: Are there any inspection and maintenance requirements?

A: Yes, the process is simple and easy. Please refer to your users manual.

Q: What is the warranty of the PowerLift?

A: 1 year warranty on parts.

Q: How do I get answers to questions that are not in the FAQs on this page?

A: You can contact us via phone at 888-600-6160, email at info@reechcraft.com or on our Contact Us website page.

hitch hauler

The convenient Hitch Hauler eliminates the need for a pickup or trailer to transport the PowerLift. This option allows any vehicle with a type III receiver hitch to transport PoweLift in town or down the highway. Loads, unloads and secures in under 15 seconds. No ropes, chains or straps required!

  • Load or unload PowerLift in under 15 seconds
  • Transport PowerLift by any vehicle with a 2 inch receiver hitch
  • Eliminate the need for trailer
  • Keep utilization of Pickup box or cargo area



4022800
POWERPOLE CLIMBING UNIT ** STILL MADE IN THE USA
Mfg. item #: 4022800
REC4022800
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,395.00

49
4022771
POWERLATCH ASSEMBLY
Mfg. item #: 4022771
REC4022771
FREE shipping when ordered with a machine from this manufacturer.20
$225.00

49
4022772
PLATFORM SUPPORT
Mfg. item #: 4022772
REC4022772
FREE shipping when ordered with a machine from this manufacturer.20
$125.00

49
4022179
PLATFORM SUPPORT WITH POWERLATCH CONNECTOR
Mfg. item #: 4022179
REC4022179
FREE shipping when ordered with a machine from this manufacturer.20
$195.00

49
4022756
SINGLE MAN BASKET
Mfg. item #: 4022756
REC4022756
FREE shipping when ordered with a machine from this manufacturer.20
$775.00

49
4022785
SPEEDRAIL MIDRAIL POST (2 PACK)
Mfg. item #: 4022785
REC4022785
FREE shipping when ordered with a machine from this manufacturer.20
$245.00

49
4022071
SPEEDRAIL ENDRAIL (2 PACK)
Mfg. item #: 4022071
REC4022071
FREE shipping when ordered with a machine from this manufacturer.20
$275.00

49
4022432
POWERPOLE STANDOFF TIE
Mfg. item #: 4022432
REC4022432
FREE shipping when ordered with a machine from this manufacturer.20
$199.00

49
4022178
POWERPOLE SUPER STANDOFF TIE
Mfg. item #: 4022178
REC4022178
FREE shipping when ordered with a machine from this manufacturer.20
$275.00

49
4022754
POWERPOLE V-BRACE
Mfg. item #: 4022754
REC4022754
FREE shipping when ordered with a machine from this manufacturer.20
$195.00

49
4022629
POWERPOLE EXTENDABLE V-BRACE
Mfg. item #: 4022629
REC4022629
FREE shipping when ordered with a machine from this manufacturer.20
$295.00

49
4022084
POWERPOLE 12FT POLE SECTION
Mfg. item #: 4022084
REC4022084
FREE shipping when ordered with a machine from this manufacturer.20
$295.00

49
4022435
POWERPOLE 6FT POLE SECTION
Mfg. item #: 4022435
REC4022435
FREE shipping when ordered with a machine from this manufacturer.20
$205.00

49
4022096
POWERPOLE COUPLER
Mfg. item #: 4022096
REC4022096
FREE shipping when ordered with a machine from this manufacturer.20
$105.00

49
4022465
10IN. X 10IN. BASE FOOT
Mfg. item #: 4022465
REC4022465
FREE shipping when ordered with a machine from this manufacturer.20
$89.00

49
4022791
POWERPOLE OUTRIGGER
Mfg. item #: 4022791
REC4022791
FREE shipping when ordered with a machine from this manufacturer.20
$655.00

49
4026151
POWERMAST CLIMBING UNIT ** STILL MADE IN THE USA
Mfg. item #: 4026151
REC4026151
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,495.00

49
4026156
POWERMAST PLATFORM SUPPORT
Mfg. item #: 4026156
REC4026156
FREE shipping when ordered with a machine from this manufacturer.20
$395.00

49
4027650
POWERMAST SIDE MOUNT T-BRACKET
Mfg. item #: 4027650
REC4027650
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$535.00

49
4026375
POWERMAST 5FT MAST
Mfg. item #: 4026375
REC4026375
FREE shipping when ordered with a machine from this manufacturer.20
$555.00

49
4022906
POWERMAST 32IN. MAST
Mfg. item #: 4022906
REC4022906
FREE shipping when ordered with a machine from this manufacturer.20
$425.00

49
4026377
POWERMAST ADJUSTABLE TIE
Mfg. item #: 4026377
REC4026377
FREE shipping when ordered with a machine from this manufacturer.20
$195.00

49
4026648
POWERMAST TIE EXTENSION (2 PACK)
Mfg. item #: 4026648
REC4026648
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

49
4026650
POWERMAST FREESTANDING TRI-MAST TIE
Mfg. item #: 4026650
REC4026650
FREE shipping when ordered with a machine from this manufacturer.20
$255.00

49
4027185
POWERMAST SINGLE PLATFORM ASSEMBLY
Mfg. item #: 4027185
REC4027185
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$750.00

49
4026382
POWERMAST BASE FOOT
Mfg. item #: 4026382
REC4026382
FREE shipping when ordered with a machine from this manufacturer.20
$255.00

49
4026430
POWERMAST FREESTANDING BASE
Mfg. item #: 4026430
REC4026430
lease to own for as little as:$65 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,250.00

49
4026795
POWERMAST SINGLE MAN BASKET
Mfg. item #: 4026795
REC4026795
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$900.00

49
4026651
POWERMAST 6FT PLATFORM BASKET
Mfg. item #: 4026651
REC4026651
lease to own for as little as:$52 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$2,595.00

49
4027510
POWERLIFT PL65 ** STILL MADE IN THE USA
Mfg. item #: 4027510
REC4027510
lease to own for as little as:$99 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$4,950.00

49
4026833

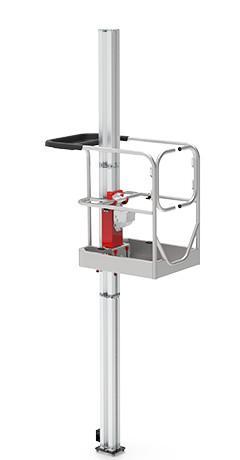

POWERLIFT PL65 FIXED BASE
Mfg. item #: 4026833
REC4026833
FREE shipping when ordered with a machine from this manufacturer.20
$240.00

49
4027517
POWERLIFT PL65 PLATFORM TRANSPORT WHEEL KIT
Mfg. item #: 4027517
REC4027517
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$180.00

49
4027500
POWERLIFT PL65 OUTRIGGER BASE WITH WEIGHTS
Mfg. item #: 4027500
REC4027500
lease to own for as little as:$54 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$2,695.00

49
4027365
POWERLIFT PL65 STRADDLE BASE
Mfg. item #: 4027365
REC4027365
lease to own for as little as:$80 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$3,990.00

49
4027399
POWERLIFT PL65 STRADDLE BASE LEG EXTENSIONS
Mfg. item #: 4027399
REC4027399
FREE shipping when ordered with a machine from this manufacturer.20
$585.00

49
4027519
POWERLIFT PL65 & PL20 TILT BACK HANDLE KIT
Mfg. item #: 4027519
REC4027519
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$225.00

49
4026236
POWERLIFT HITCH HAULER
Mfg. item #: 4026236
REC4026236
FREE shipping when ordered with a machine from this manufacturer.20
$750.00

49
4026408
POWERLIFT NARROW PLATFORM PL60
Mfg. item #: 4026408
REC4026408
FREE shipping when ordered with a machine from this manufacturer.20
$840.00

49
4026616
POWERLIFT CRANE HOOK KIT
Mfg. item #: 4026616
REC4026616
FREE shipping when ordered with a machine from this manufacturer.20
$55.00

49
4027700
POWERLIFT PL20 ** STILL MADE IN THE USA
Mfg. item #: 4027700
REC4027700
lease to own for as little as:$115 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$5,770.00

49
4026190
POWERLIFT PL60 ** STILL MADE IN THE USA
Mfg. item #: 4026190
REC4026190
lease to own for as little as:$130 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$6,495.00

49
4026200
BRONCO INDIVIDUALLY PACKAGED
Mfg. item #: 4026200
REC4026200
FREE shipping when ordered with a machine from this manufacturer.20
$199.99

49
4027324
BRONCO REPLACEMENT FEET & CAPS KIT
Mfg. item #: 4027324
REC4027324
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$8.95

49
Copyright © 2020 Smith-Hamilton, Inc
0.025 200807 10:09
