Rice Diaphragm Hydrostatic Test Pumps

DPH-3B Hydrostatic Test Pump 11 DPH-8 Hydrostatic Test Pump DPH-56/250 Hydrostatic Test Pump
DPH-3B Hydrostatic
Test Pump 2
DPH-8 Hydrostatic
Test Pump
DPH-56/250 Hydrostatic
Test Pump

PUMPS DISPLAYED ABOVE HAVE THE OPTIONAL WHEEL KIT AND / OR WATER TANK -
BOTH SOLD SEPARATELY

Diaphragm Series

The DP-series, diaphragm hydrostatic test pumps offer pressure ranges up to 600 PSI, and flow rates up to 56 GPM. Designed as medium pressure, large volume units capable of testing up to 96 inch and above diameter lines. Unique to the diaphragm hydrostatic test pumps are their ability to handle up to a 10 percent chlorine or similar solution and can be run dry without damage. Accessories include a wheel and handle kit for increased mobility, and a pressure feed tank for instant water supply. Built to Suit special order and custom options are available to fit your specific testing needs

RICE Hydro Hydrostatic Diaphram Test Pumps
DPH-3B Triple Diaphragm Pump - Honda Engine Option with Oil Guard - 11 GPM up to 550 PSI
DPV-3B Same as Above Except with 6 1/2 Hp Briggs & Stratton VANGUARD Industrial Engine
DP-3B Same as Above Except with 5 1/2 Hp Briggs & Stratton (Low Oil Alert) Engine
DPH-8 Triple Diaphragm Pump - Honda engine - 32 GPM up to 300 PSI
DPH56/250 Six Diaphragm Pump - Honda engine - 56 GPM up to 250 PSI
RI-8 Wheel and Handle Kit - For Easy Mobility
3B-PRESSURED 20 Gallon Pressure Feed Tank
8B-PRESSURED 40 Gallon Pressure Feed Tank

** Due to supply chain issues the Honda engines have been experiencing long delivery timea call 800-458-3687 x1 for availabilty. Posted 8/1/2021

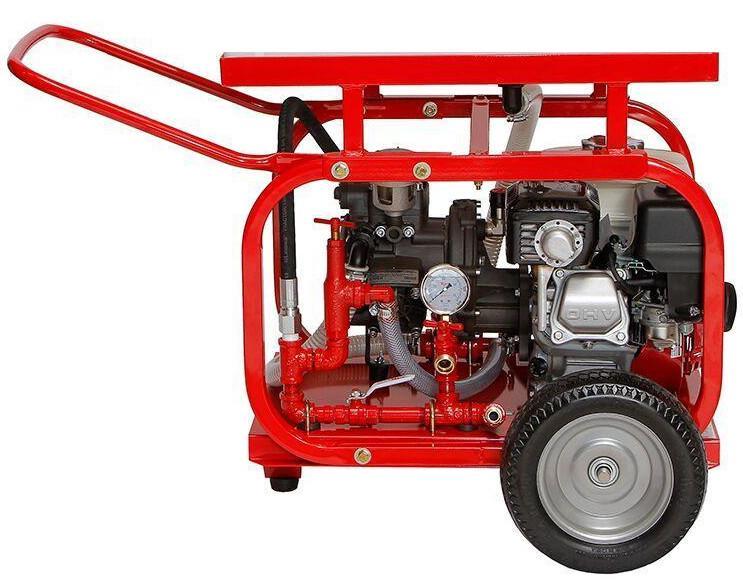

DPH-3B Hydrostatic Test Pump 11

Pictured with optional accessories.

Click here to download manual

Click here to download parts breackdown

The DPH-3B, a triple diaphragm pump, recognized as the most versatile sought after hydrostatic test pump on the market. Exceptionally smooth and quiet operation, capable of handling up to a 10 percent chlorine solution, and the ability to run dry without damage.  Diesel or electric power options available.

  • 11 GPM up to 550 PSI
  • Inlet - 1 inch with 9 foot inlet hose assembly and stainless steel mesh filter
  • Outlet - 1/2 inch high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator, from 70 to 550 PSI
  • Stainless Steel liquid-filled 0-600 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 196 CC 6.5 HP air cooled 4 cycle Honda engine, with OIL ALERT
  • 1 Year Warranty from Manufacturers Defect
  • Pump weight: 104 pounds
  • Dimensions:  25 X 21 X 17
  • Shipping: 125 pounds

Accessories available include a Wheel and Handle kit for mobility, and a Pressure Feed tank for an instant water supply; either can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options or custom build to meet your specific test requirements.

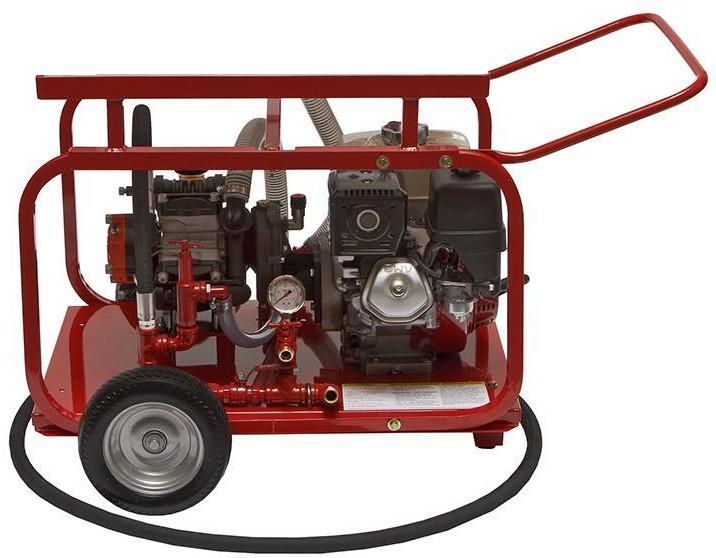

DPH-8 Hydrostatic Test Pump

Pictured with optional accessories

Click here to download manual

Click here to download parts breakdown

The DPH-8, is a triple diaphragm, gas powered Honda hydrostatic test pump, offering large volume at low pressures. Exceptionally smooth and quiet operation, capable of handling up to a 10 percent chlorine solution, and the ability to run dry without damage.

  • 32 GPM up to 300 PSI
  • Inlet - 1 and 1/2 inch with 9 foot inlet hose assembly and stainless steel mesh filter
  • Outlet - 3/4 inch high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator, from 70 to 300 PSI
  • Stainless Steel liquid-filled 0-600 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 270 CC 9 HP air cooled 4 cycle Honda engine, with OIL ALERT
  • 1 Year Warranty from Manufacturers defect
  • Pump weight: 188 pounds
  • Dimensions: 35 x 25 x 19
  • Shipping: 208 pounds
Accessories available include a Wheel and Handle kit for mobility, and a Pressure Feed tankfor an instant water supply; either can be added to your unit at any time.
All RICE units can be Built to Suit, contact the factory for special order options or custom build to meet your specific test requirements.

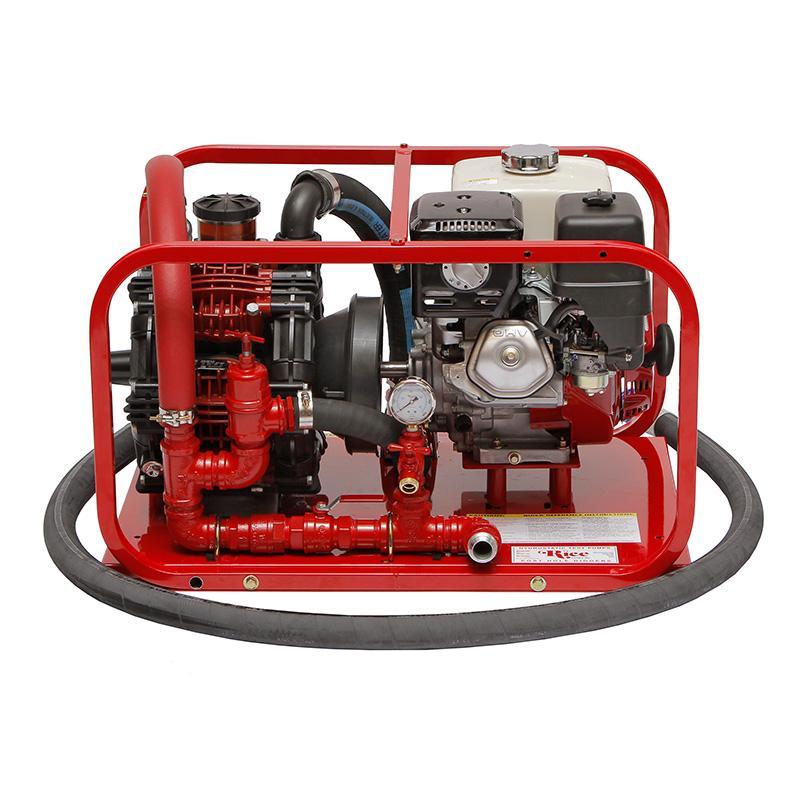

DPH-56/250 Hydrostatic Test Pump



Click here to download manual

Click here to download parts breakdown

The DPH-56/250, is a six diaphragm, gas powered Honda hydrostatic test pump, offering extremely large volume at low pressures. Capable of handling up to a 10 percent chlorine solution, and the ability to run dry without damage.

  • 56 GPM up to 250 PSI
  • Inlet - 2 inch Female National Thread
  • Outlet - 1 and 1/4 inch high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator, from 70 to 250 PSI
  • Stainless Steel liquid-filled 0-600 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 389 CC 13 HP air cooled 4 cycle Honda engine, with OIL ALERT
  • 1 Year Warranty from Manufacturers defect
  • Pump weight: 250 pounds
  • Dimensions: 35 x 25 x 19
  • Shipping: 275 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options or custom build to
meet your specific test requirements.



DPH-3B
11 GPM 550 PSI, TRIPLE DIAPHRAGM, PUMP WITH HONDA ENGINE
Mfg. item #: DPH-3B
RICDPH-3B
lease to own for as little as:$55 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,751.66

91
DPV-3B
13 GPM 550 PSI, TRIPLE DIAPHRAGM PUMP, BRIGGS VANGUARD ENGINE
Mfg. item #: DPV-3B
RICDPV-3B
lease to own for as little as:$55 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,751.66

91
DP-3B
11 GPM 550 PSI, TRIPLE DIAPHRAGM PUMP, BRIGGS ENGINE
Mfg. item #: DP-3B
RICDP-3B
lease to own for as little as:$56 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,785.00

91
DPH-8
32 GPM 300 PSI, TRIPLE DIAPHRAGM PUMP, HONDA ENGINE
Mfg. item #: DPH-8
RICDPH-8
lease to own for as little as:$94 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,690.29

91
DPH56/250
56 GPM 250 PSI, SIX DIAPHRAGM PUMP,
Mfg. item #: DPH56/250
RICDPH56/250
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

374
RI-8
WHEEL & HANDLE KIT, LARGE
Mfg. item #: RI-8
RICRI-8
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$217.50

91
3B-PRESSURED
20 GALLON PRESSURE FEED TANK
Mfg. item #: 3B-PRESSURED
RIC3B-PRESSURED
Call for freight quote on this item or we will confirm freight charges before shipping.1
$543.75

91
8B-PRESSURED
40 GALLON PRESSURE FEED TANK
Mfg. item #: 8B-PRESSURED
RIC8B-PRESSURED
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

374
