The EL-series, is a line of low volume high pressure hydrostatic test pumps, offering flow rates up to 8 GPM, and pressures up to 1800 PSI. Designed for testing sprinkler systems, irrigation lines,
pressure vessels, plant process piping, and small diameter water lines. Accessories include a wheel and handle kit for increased mobility, and a pressure feed tank for an instant water supply.
Motor options available include – various voltage, phase, explosion proof and hertz specifications. Built to Suit special order and custom options are available to fit your specific testing
needs.
|
Models and Accessories
|
|

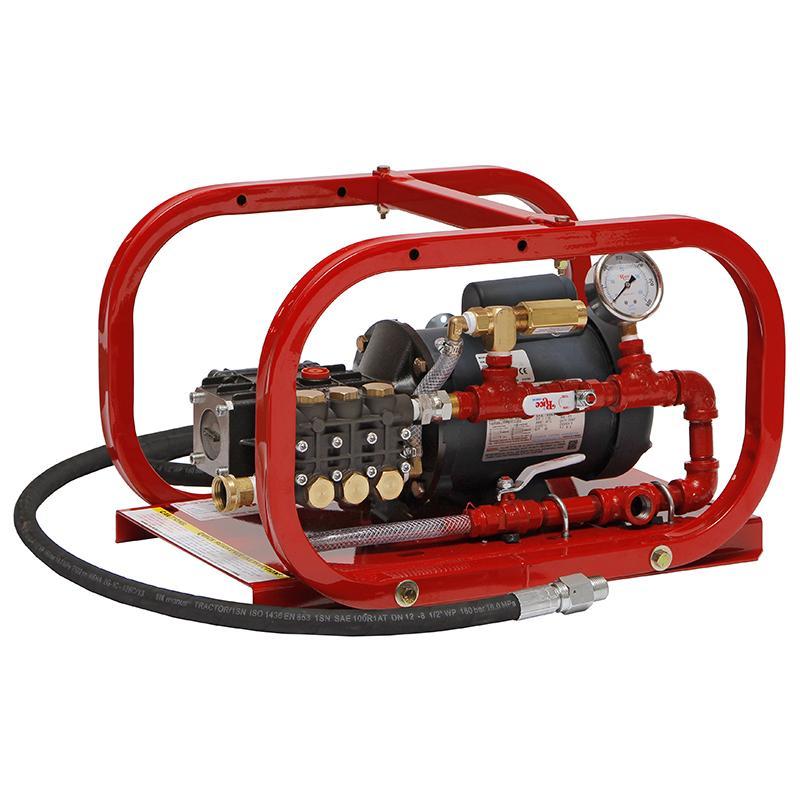

EL1
|
3 GPM 300 PSI, Plunger Pump, Electric, 60 HZ, 110/220V
|
|

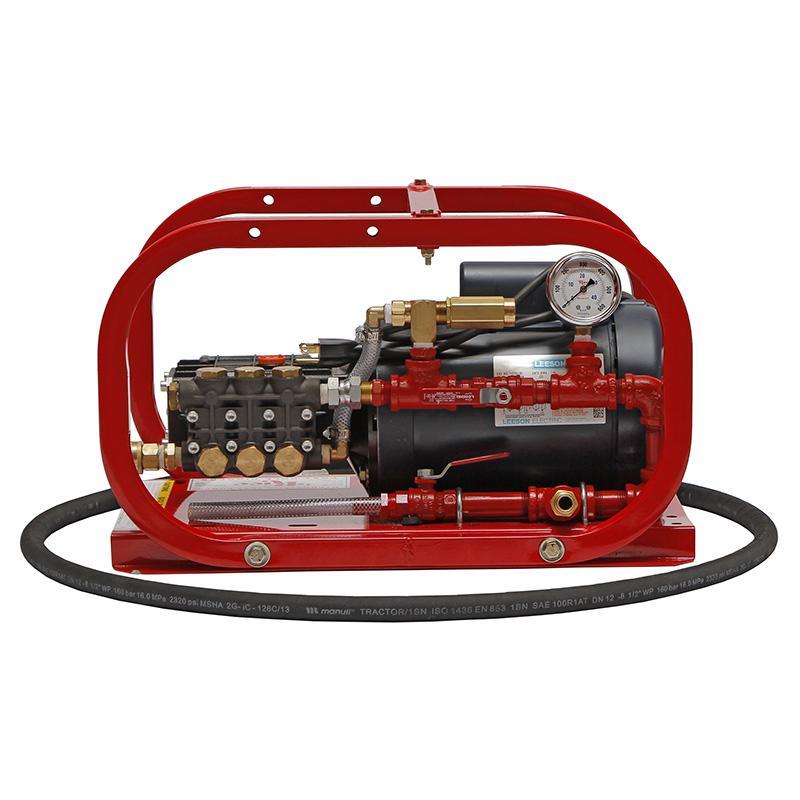

EL1A
|
3 GPM 500 PSI, Plunger Pump, Electric, 50/60 HZ, 110/220 V
|
|

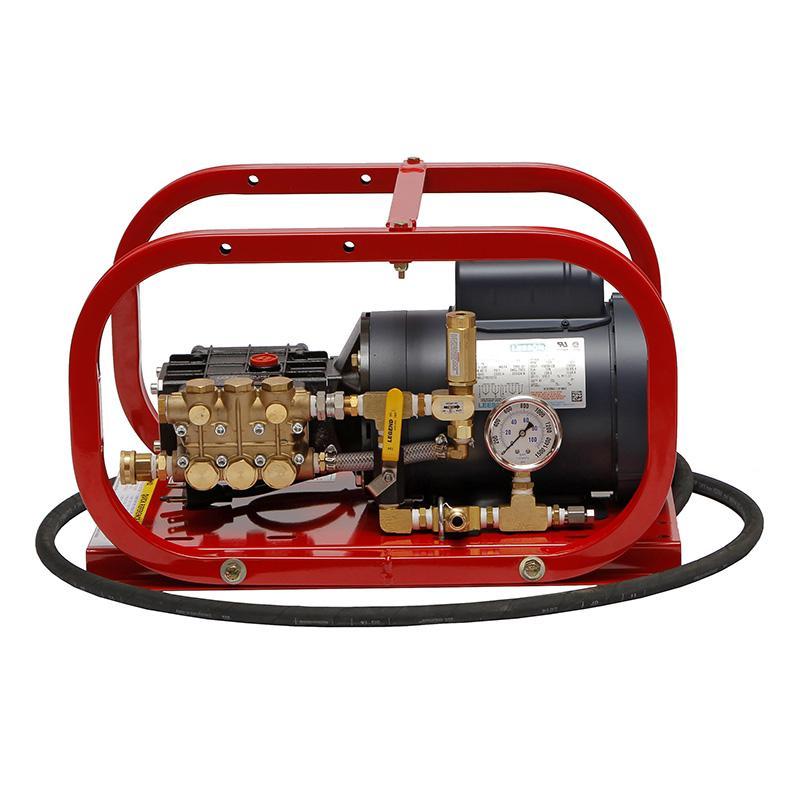

EL2
|
1.5 GPM 1000 PSI, Plunger Pump, Electric, 50/60HZ, 110/220V
|
|

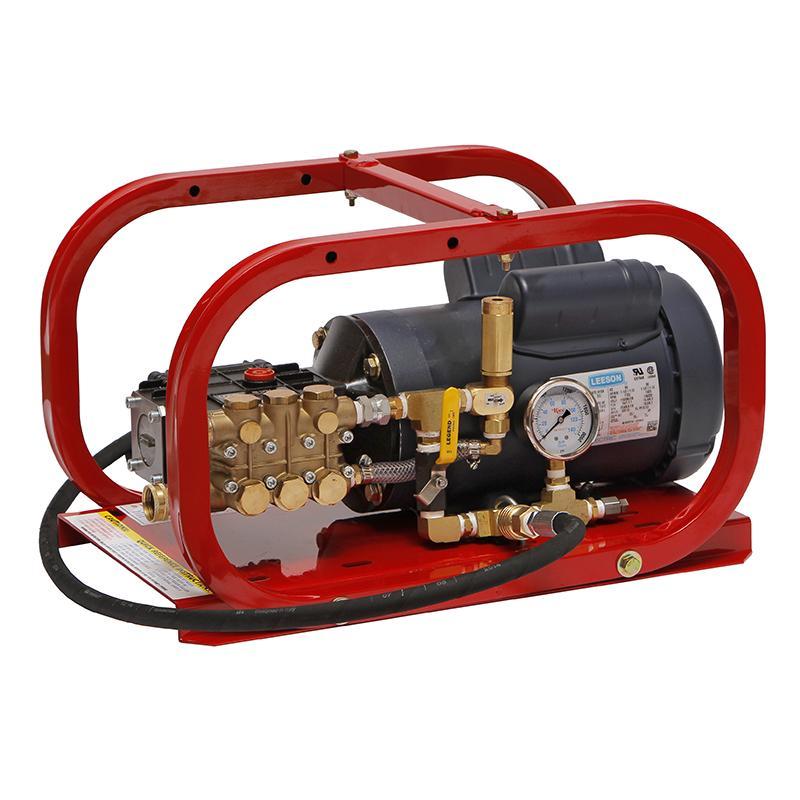

EL3
|
1.5 GPM 1500 PSI, Plunger Pump, Electric, 50/60 HZ, 110/220V
|
|
EL5/500
|
Hydrostatic Test Pump 5 GPM up to 500 PSI
|
|
EL-8/12
|
Hydrostatic Test Pump 8 GPM up to 1200 PSI
|
|
RI-6
|
Wheel and Handle Kit, small
|
|
RI-10
|
Wheel and Handle Kit, extra large
|
|
Click here to download manual
Click here to download parts breakdown
Click here to download schematic

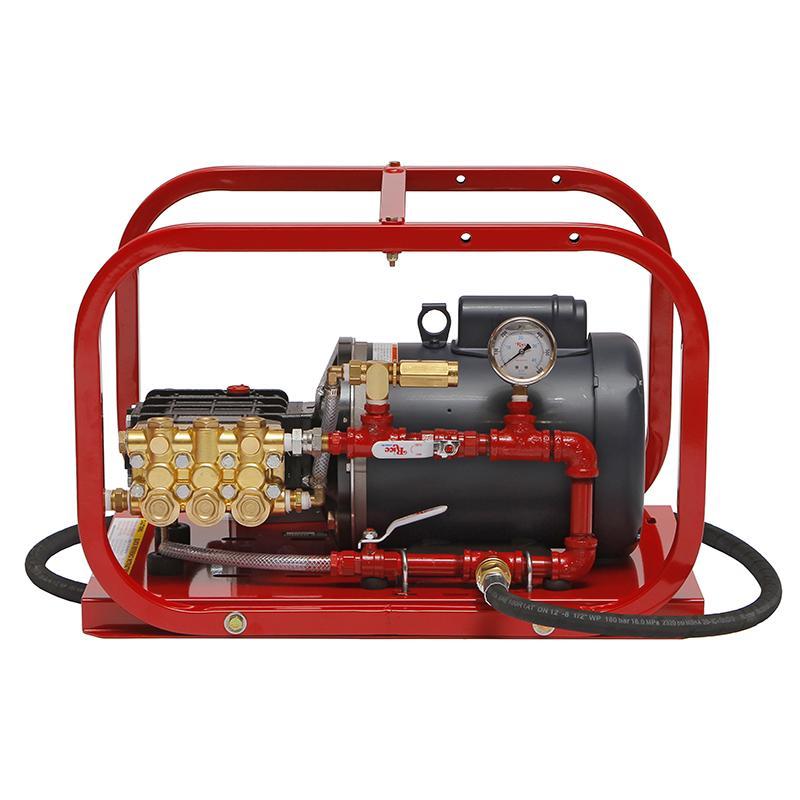

The EL-5/500 model hydrostatic test pump offers 5 GPM up to 500 PSI, is designed for testing sprinkler systems, plant process piping, pressure vessels, steam and small diameter water lines.
Triplex plunger pump with inner oil bath, powered by a totally enclosed 2 HP 50 or 60 Hertz motor with manual thermal overload protection. Wheel and Handle kit available for easily
maneuvering on job site.
Shipping DIM'S & WEIGHT = 143 Lbs / 40 x 25 x 24
-
5 GPM up to 500 PSI
-
2 HP Electric Motor, TEFC, 110/220 Volt, 60 HZ (requires a 23 amp breaker)
-
Adjustable pressure regulator, from 50 to 500 PSI
-
Stainless Steel liquid-filled gauge ensures accurate readings
-
Rugged roll cage construction, protects pump from damage
-
1 Year Warranty from Manufacturers Defect
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com
|
SPECIAL ORDER - Call 800-458-3687 ext 1 for pricing
|
Click here to download manual
Click here to download parts breakdown
Click here to download schematic

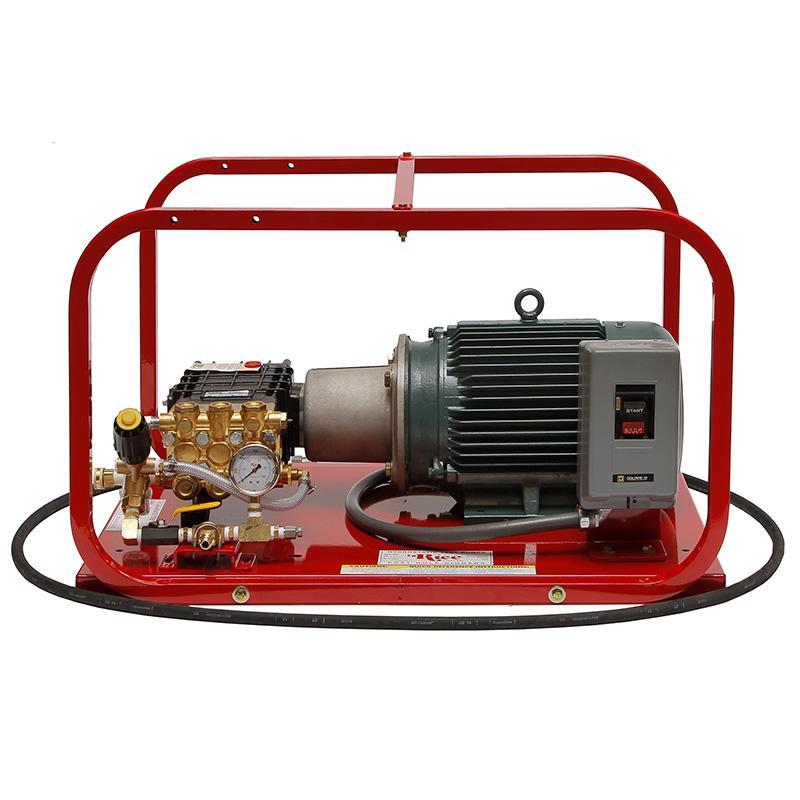

The EL-8/12 model hydrostatic test pump offers 8 GPM up to 1200 PSI, is designed for testing sprinkler systems, plant process piping, pressure vessels, steam and small diameter water lines.
Triplex plunger pump with inner oil bath, powered by a totally enclosed fan cooled 7.5 HP 60 Hertz 3 Phase motor with manual thermal overload protection. Wheel and Handle kit available for
easily maneuvering on job site. Explosion proof motor option available.
-
8 GPM up to 1200 PSI
-
7.5 HP Electric Motor, TEFC, 3 Phase, 60 HZ
-
Adjustable pressure regulator, from 500 to 1,500 PSI
-
Stainless Steel liquid-filled gauge ensures accurate readings
-
Heavy duty rugged roll cage construction, protects pump from damage
-
1 Year Warranty from Manufacturers Defect
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com
|
SPECIAL ORDER - Call 800-458-3687 ext 1 for pricing
