Rice High Pressure Plunger Pumps

TRH-2 Hydrostatic Test Pump 3 GPM up to 2000 PSI TRH-8 Hydrostatic Test Pump 4 GPM up to 3600 PSI TRH-10 Hydrostatic Test Pump 5 GPM up to 5000 PSI
 TRH-2 Hydrostatic Test Pump
3 GPM up to 2000 PSI 		 TRH-8 Hydrostatic Test Pump
4 GPM up to 3600 PSI 		 TRH-10 Hydrostatic Test Pump
5 GPM up to 5000 PSI

PUMPS DISPLAYED ABOVE HAVE THE OPTIONAL WHEEL KIT AND / OR WATER TANK -
BOTH SOLD SEPARATELY

The TR-series, is a line of high pressure hydrostatic test pumps, offering flow rates up to 10 GPM, and pressures up to 5000 PSI.  Designed for testing boilers, pressure vessels, plant process piping, steam and gas lines.  Triplex ceramic plunger pumps with an inner oil bath, ensuring long life and increased stability.  A “wheel and handle” kit accessory is available for increased mobility, while reducing user fatigue.  Units are available in gas, diesel or electric power sources.  Various voltage, phase, explosion proof and hertz specifications options.  “Built to Suit” special order and custom options are available to fit your specific testing needs.

Rice Plunger Test Pumps
TRH2 Triplex Plunger Pump - Honda engine - 3 GPM up to 2000 PSI
WK-STD Wheel & Handle Kit, standard for the TRH-2
TRH8 Triplex Plunger Pump - Honda engine - 4 GPM up to 3600 PSI
TRH-10 Triplex Plunger Pump - Honda engine - 4 GPM up to 5000 PSI
RI-10
Wheel and Handle Kit, extra large

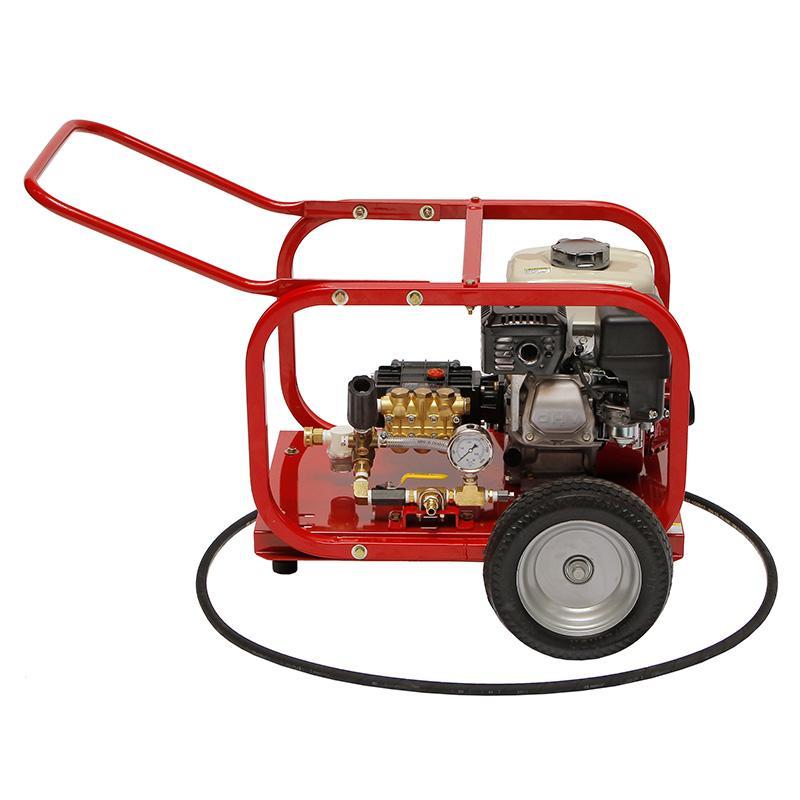

TRH-2 Hydrostatic Test Pump 3 GPM up to 2000 PSI

Pictured with optional accessories

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

TRH-2 Hydrostatic Test Pump 3 GPM up to 2000 PSI

The TRH-2 is a gas powered hydrostatic test pump offering 3 GPM up to 2000 PSI. Designed for testing boilers, pressure vessels, plant process piping, steam and gas lines. Engine options include electric start capability or diesel driven. Triplex ceramic plunger pump with an inner oil bath, ensuring long life and increased stability. A “wheel and handle” kit accessory is available for increased mobility, while reducing user fatigue. There are no external moving parts for operator safety and reduced liability risks. Virtually indestructible, enclosed in a rugged roll cage of welded heavy gauge steel. “Built to Suit” special order and custom options are available to fit your specific testing needs.

  • 3 GPM up to 2000 PSI
  • Outlet - 3/8" high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator from 200 - 2000 PSI
  • Stainless Steel liquid-filled 0 - 3000 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 196 CC 6.5 HP, air-cooled, 4 cycle Honda Engine w/Oil Alert
  • 1 Year Full Product Warranty from Manufacturers Defect
  • Weight: 95 pounds        Dimensions: 25 x 21 x 17     Shipping: 115 pounds
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be "Built to Suit", contact the factory for special order options at 800-458-3687 or email sales@southern-tool.com

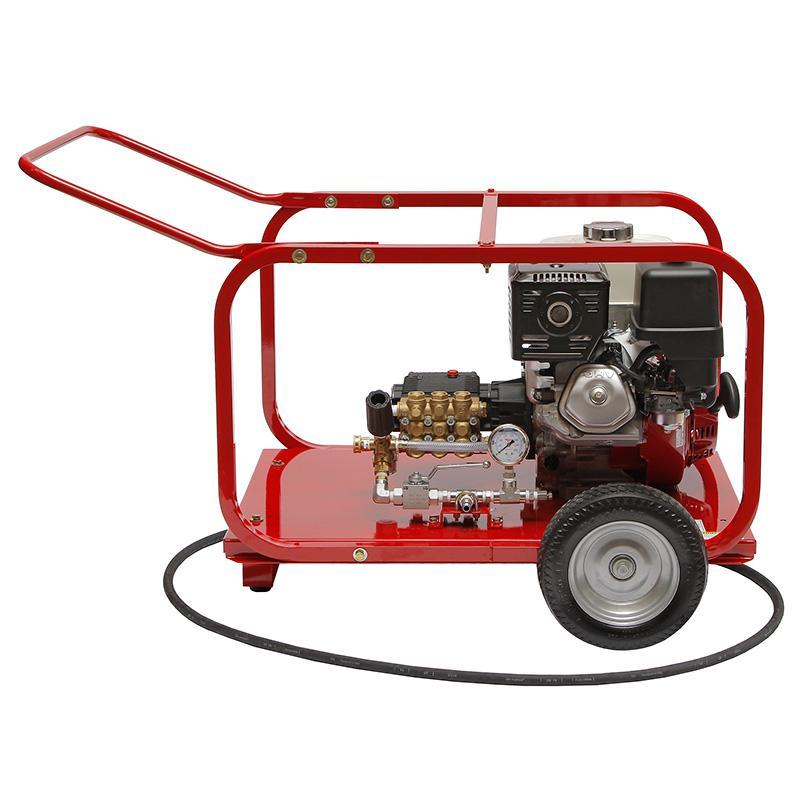

TRH-8 Hydrostatic Test Pump 4 GPM up to 3600 PSI

Pictured with optional accessories

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

 TRH-8 Hydrostatic Test Pump 4 GPM up to 3600 PSI

The TRH-8 is a gas powered hydrostatic test pump offering
4 GPM up to 3600 PSI. Designed for testing boilers, pressure vessels, plant process piping, steam and gas lines. Engine options include electric start capability or diesel driven. Triplex ceramic plunger pump with an inner oil bath, ensuring long life and increased stability. A “wheel and handle” kit accessory is available for increased mobility, while reducing user fatigue. There are no external moving parts for operator safety and reduced liability risks. Virtually indestructible, enclosed in a rugged roll cage of welded heavy gauge steel. “Built to Suit” special order and custom options are available to fit your specific testing needs.

  • 4 GPM up to 3600 PSI
  • Outlet - 3/8" high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator from 500 - 4000 PSI
  • Stainless Steel liquid-filled 0 - 4000 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 389 CC 13 HP, air-cooled, 4 cycle Honda Engine w/Oil Alert
  • 1 Year Full Product Warranty from Manufacturers Defect
  • Weight: 148 pounds
  • Dimensions: 35 x 25 x 19
  • Shipping: 168  pounds
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be "Built to Suit", contact the factory for special order options at 800-458-3687 or email sales@southern-tool.com

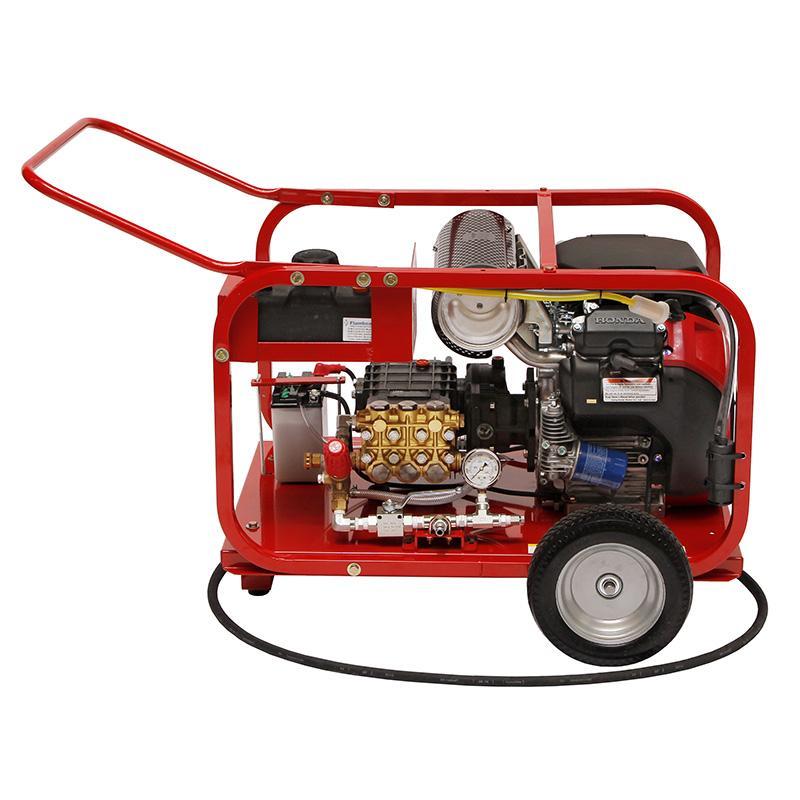

TRH-10 Hydrostatic Test Pump 5 GPM up to 5000 PSI

Pictured with optional accessories

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

 TRH-10 Hydrostatic Test Pump 5 GPM up to 5000 PSI

The TRH-10 is a gas powered hydrostatic test pump offering 5 GPM up to 5000 PSI. Designed for testing boilers, pressure vessels, plant process piping, steam and gas lines. Triplex ceramic plunger pump with an inner oil bath, ensuring long life and increased stability. A “wheel and handle” kit accessory is available for increased mobility, while reducing user fatigue. There are no external moving parts for operator safety and reduced liability risks. Virtually indestructible, enclosed in a rugged roll cage of welded heavy gauge steel. Electric power option available. “Built to Suit” special order and custom options are available to fit your specific testing needs.

  • 5 GPM up to 5000 PSI
  • Outlet - 3/8" high pressure 8 foot hose with quick connect couplings
  • Adjustable pressure regulator from 500 - 5000 PSI
  • Stainless Steel liquid-filled 0 - 6000 PSI gauge, ensures accurate readings
  • Rugged roll cage construction, protects pump from damage
  • 614 CC 20 HP, air-cooled, 4 cycle Electric start Honda Engine w/Oil Alert
  • 1 Year Full Product Warranty from Manufacturers Defect
  • Weight: 253 pounds
  • Dimensions: 35 x 25 x 19
  • Shipping: 283 pounds
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
All RICE units can be "Built to Suit", contact the factory for special order options at 800-458-3687 or email sales@southern-tool.com





TRH2
3 GPM 2000 PSI, PLUNGER PUMP, HONDA ENGINE
CALL OR ADD TO CART FOR THE BEST BROTHER-IN-LAW PRICING ON THIS RICEHYDRO PUMP
Mfg. item #: TRH2
RICTRH2
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,493.75

437
WK-STD
WHEEL & HANDLE KIT, STANDARD
Mfg. item #: WK-STD
RICWK-STD
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$217.50

437
TRH8
4 GPM 3600 PSI, PLUNGER PUMP, HONDA ENGINE
CALL OR ADD TO CART FOR THE BEST BROTHER-IN-LAW PRICING ON THIS RICEHYDRO PUMP
Mfg. item #: TRH8
RICTRH8
lease to own for as little as:$66 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,562.50

437
TRH-10
4.5 GPM 5000 PSI, PLUNGER PUMP, HONDA ENGINE
CALL OR ADD TO CART FOR THE BEST BROTHER-IN-LAW PRICING ON THIS RICEHYDRO PUMP
Mfg. item #: TRH-10
RICTRH-10
lease to own for as little as:$162 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,977.50

437
RI-10
WHEEL & HANDLE KIT, EXTRA LARGE
Mfg. item #: RI-10
RICRI-10
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$217.50

437
