Rice Pneumatic Hydrostatic Test Pumps

At a Glance
HP-1/55
HPD-6/35
HPD-6/55
HP-6/500
HP-7/10
HP-10
HP10-B
HP10-VT
hp-20
HP-25/35
HP-30
hp-30/25
HP-35/20

HP-Series, a line of pneumatic driven high pressure hydrostatic test pumps. Offering pressure ranges up to 30,000 PSI, and flow rates up to 7 GPM. Requiring only 100 PSI of standard shop air, these units have the ability to start/stop while under pressure. Our smaller lightweight compact units are designed for testing in confined spaces or remote locations, such as on board ships and oil rigs.

Models and accessories
HP-1/55	1 GPM, 5500 PSI, Plunger Pump, Pneumatic
HPD-6/35	HPD-6/35 Pneumatic Hydrostatic Test Pump
HPD-6/55	HPD-6/55 Pneumatic Hydrostatic Test Pump
HP-6/500	HP-6/500 Pneumatic Hydrostatic Test Pump
HP-7/10	HP-7/10 Pneumatic Hydrostatic Test Pump
HP-10	HP-10 Pneumatic Hydrostatic Test Pump
HP-10B	1000 to 10,000 PSI, Plunger Pump, Pneumatic, Enclosed Box
HP-10V	1000 to 10,000 PSI, Plunger Pump, Pneumatic, Verticle
HP-20	2000 to 20,000 PSI, Plunger Pump, Pneumatic
HP-25/35	2.5 GPM 3500 PSI, Plunger Pump, Pneumatic
HP-30	5000 to 30,000 PSI, Plunger Pump, Pneumatic
HP-30/25	HP-30/25 Pneumatic Hydrostatic Test Pump
HP-35/20	3.5 GPM 2000 PSI, Plunger Pump, Pneumatic

Test Pump Accessories
RI-6	Wheel and Handle Kit, small
RI-8	Wheel and Handle Kit, large standard
RI-10	Wheel and Handle Kit, DP3 Series
WK-KIT	Wheel and Handle Kit, standard
3B-PRESSURED	20 Gallon Pressure Feed Tank
6 / 8 B-PRESSURED	40 Gallon Pressure Feed Tank

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

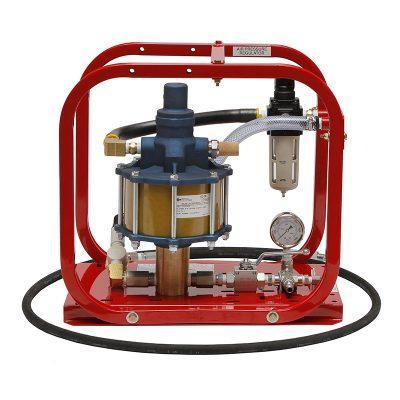

HP-1/55 Pneumatic Hydrostatic Test Pump

The HP-1/55 model is a pneumatic driven hydrostatic test pump with a pressure range of 550 to 5500 PSI, with a flow rate of 1 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals

550 to 5500 PSI, up to 1 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet 3/8in high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-6000 PSI gauge, ensures accurate readings
Needing only 100 PSI of standard shop air, for maximum operation
1 Year Warranty from Manufacturers defect
Weight: 50 pounds
Dimensions: 22 x 14 x 20
Shipping: 55 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

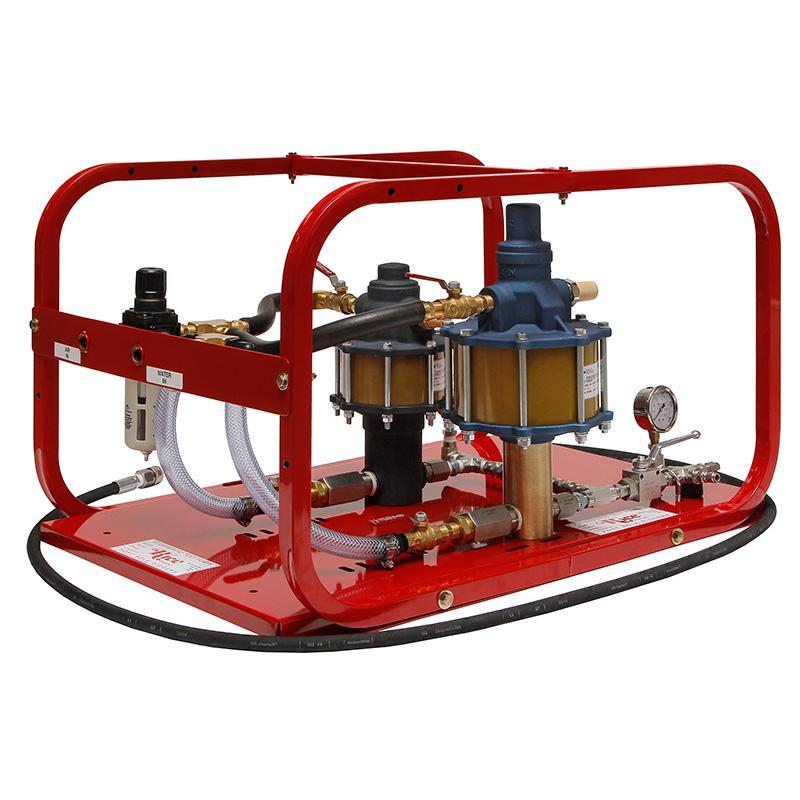

HPD-6/35 Pneumatic Hydrostatic Test Pump

The HPD-6/35 model is a pneumatic driven hydrostatic test pump, a dual pump unit for the best of both worldâs High Flow and Pressure. Pump 1 â offers a pressure range of 50 to 500 PSI, with a flow rate of 6 GPM; and Pump 2 â offers a pressure range of 350 to 3500 PSI, with a flow rate of 2.5 GPM. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

50 to 500 PSI, up to 6 GPM and 350 to 3500 PSI, up to 2.5 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled gauges, 0 to 600 and 0 to 4000 PSI
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 100 pounds
Dimensions: 35 X 25 x 19
Shipping: 120 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

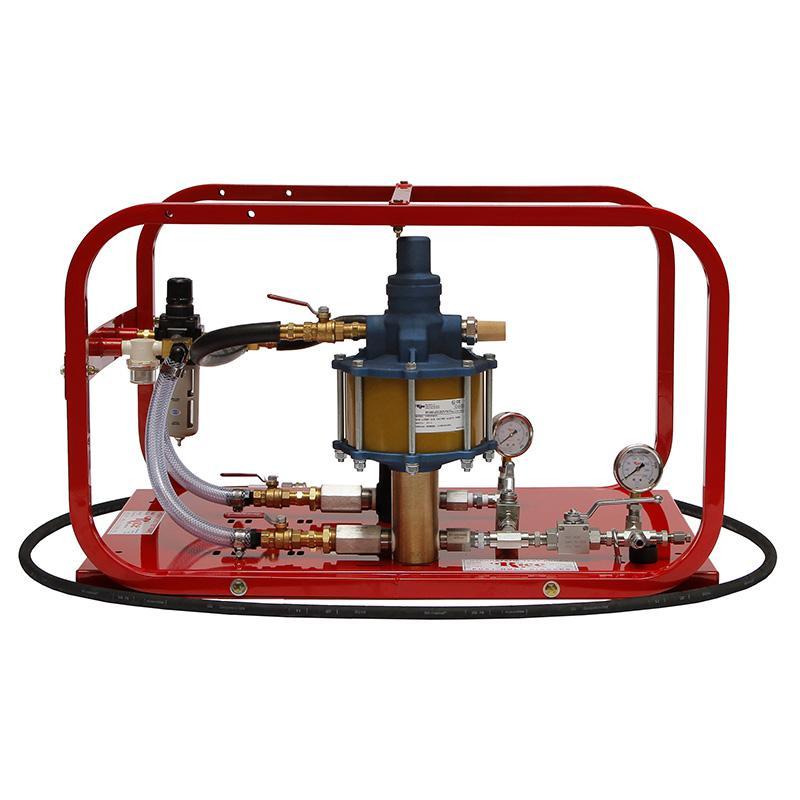

HPD-6/55 Pneumatic Hydrostatic Test Pump

The HPD-6/55 model is a pneumatic driven hydrostatic test pump, a dual pump unit for the best of both worldâs High Flow and Pressure.

Pump 1 â offers a pressure range of 50 to 500 PSI, with a flow rate of 6 GPM; and Pump 2 â offers a pressure range of 550 to 5500 PSI, with a flow rate of 1 GPM.

Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

50 to 500 PSI, up to 6 GPM and 550 to 5500 PSI, up to 1 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled gauges, 0 to 600 and 0 to 6000 PSI
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 100 pounds
Dimensions: 35 x 25 x 19
Shipping: 120 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

HPD-6/500 6 GPM 500psi Plunger pump, pneumatic

Click here to download manual

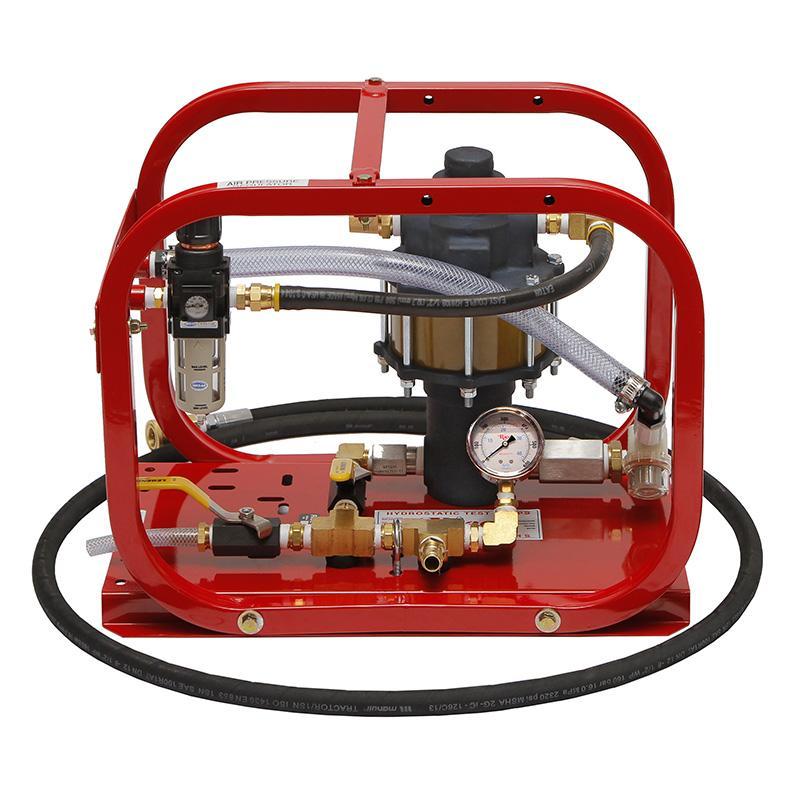

HPD-6/500 Pneumatic Hydrostatic Test Pump

The HP-6/500 model is a pneumatic driven hydrostatic test pump with a pressure range of 50 to 500 PSI, with a flow rate of 6 GPM. Lightweight at under 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals

50 to 500 PSI, up to 6 GPM and 550 to 5500 PSI, up to 1 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 1/2inch high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled gauges, 0 to 600 PSI gauge, ensures accurate readings
Needing only 100 PSI of standard shop air, for maximum operation
1 Year Warranty from Manufacturers defect
Weight: 47 pounds
Dimensions: 22 x 14 x 17
Shipping: 52 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

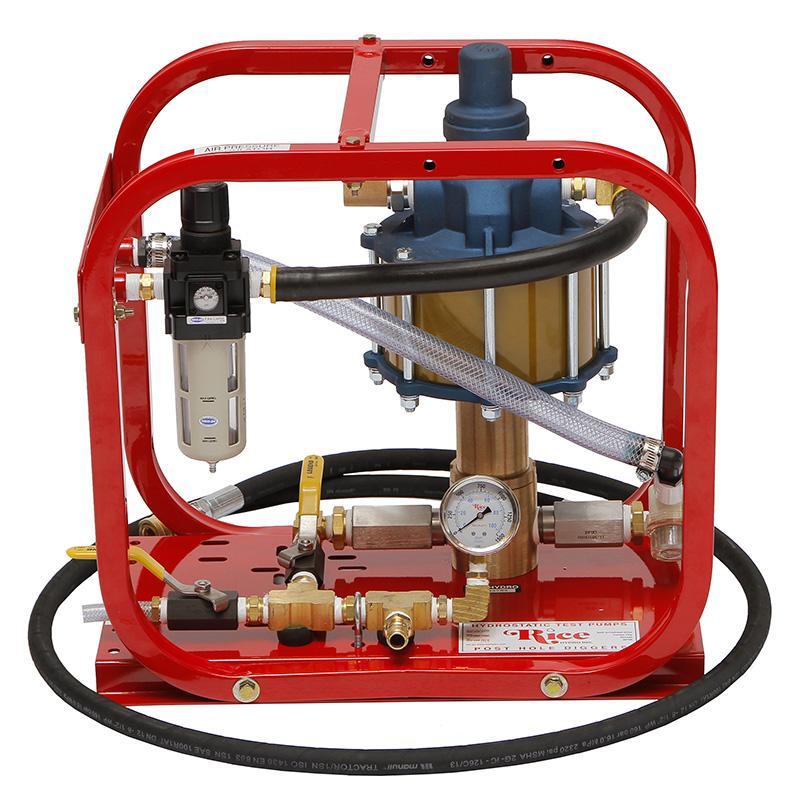

HP-7/10 Pneumatic Hydrostatic Test Pump

The HP-7/10 model is a pneumatic driven hydrostatic test pump with a pressure range of 100 to 1000 PSI, with a flow rate of 7 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

100 to 1000 PSI, up to 7 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 1/2" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-1500 PSI gauge, ensures accurate readings
Needing only 100 PSI of standard shop air, for maximum operation
1 Year Warranty from Manufacturers defect
Weight: 50 pounds
Dimensions: 22 x 14 x 20
Shipping: 55 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

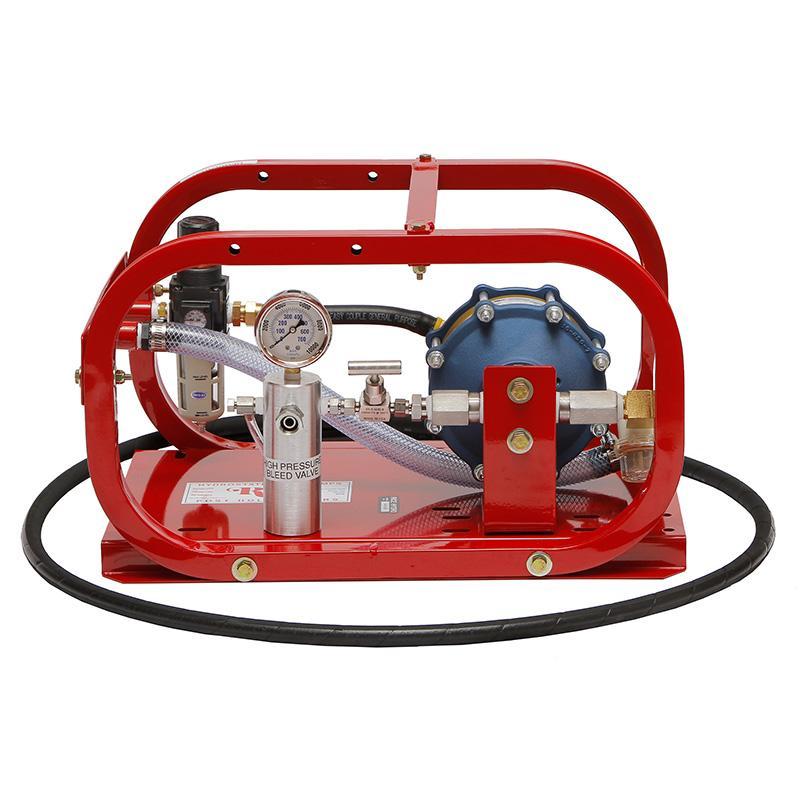

HP-10 Pneumatic Hydrostatic Test Pump

The HP-10 model is a pneumatic driven hydrostatic test pump with a pressure range of 1000 to 10,000 PSI. Lightweight, under 45 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and capable of handling various fuels, oils and chemicals.

1000 to 10,000 PSI
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-10,000 PSI gauge, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 42
Dimensions: 22 X 14 X 14
Shipping: 45 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

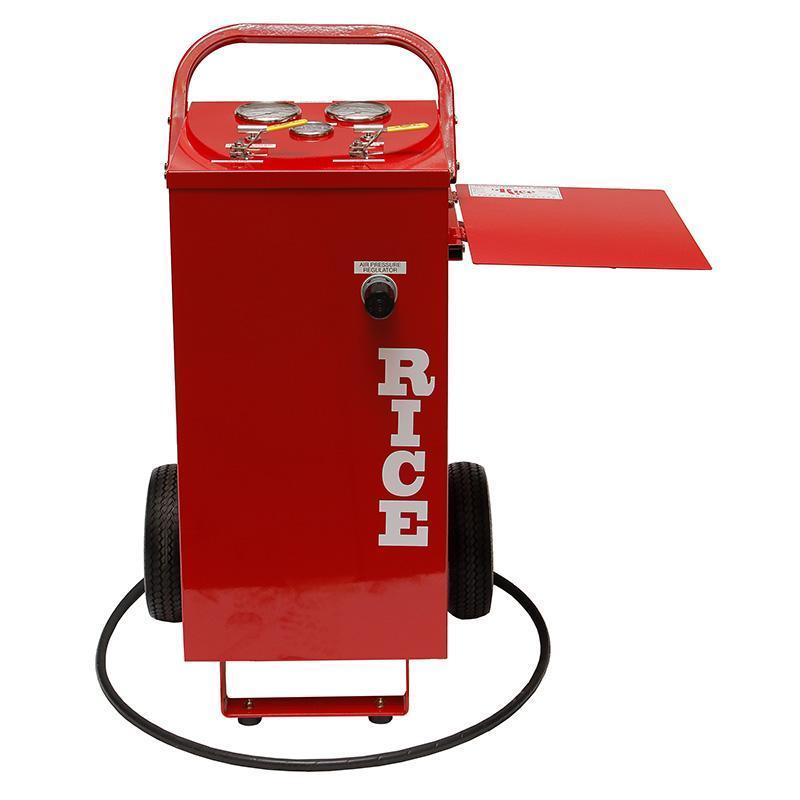

HP10-B Pneumatic Hydrostatic Test Pump

The HP10-B model is a pneumatic driven hydrostatic test pump with a pressure range of 1000 to 10,000 PSI. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. Rugged steel enclosure with wheels for portability, and dual pressure gauges for comparison readings. This unit has the ability to start/stop while under pressure, and capable of handling various fuels, oils and chemicals.

1000 to 10,000 PSI
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-10,000 PSI gauges, ensures accurate readings
Rugged steel enclosure, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 120 pounds
Dimensions: 26 x 25 x 43
Shipping: 155 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

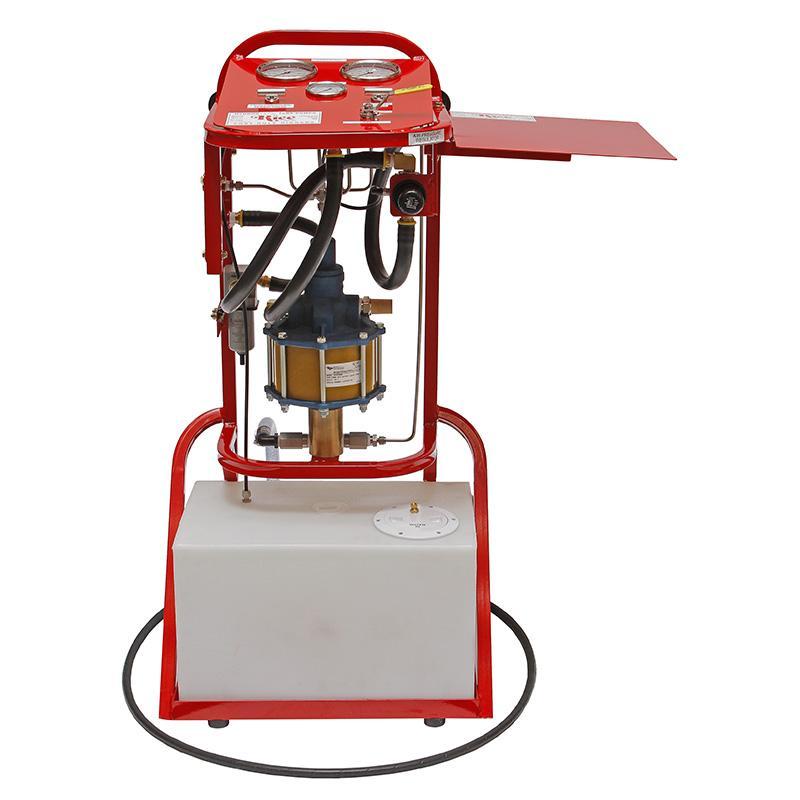

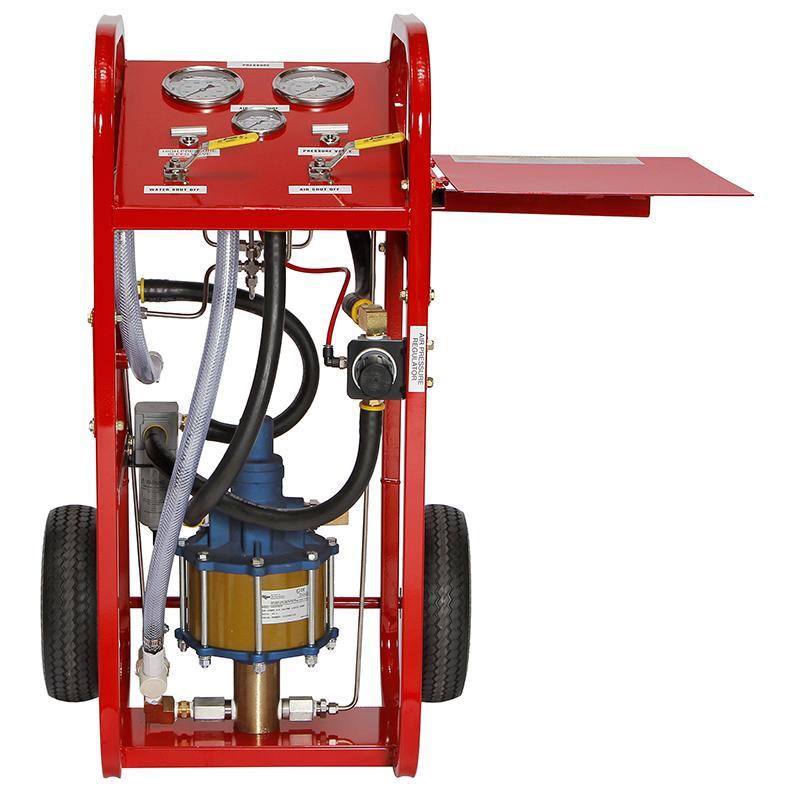

HP10-VT Pneumatic Hydrostatic Test Pump

The HP10-VT model is a pneumatic driven hydrostatic test pump with a pressure range of 1000 to 10,000 PSI. Heavy duty 15 gallon polypropylene reservoir tank. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. Rugged steel frame with wheels for portability, and dual pressure gauges for comparison readings. This unit has the ability to start/stop while under pressure, and capable of handling various fuels, oils and chemicals.

1000 to 10,000 PSI
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-10,000 PSI gauges, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 110 pounds
Dimensions: 25 x 26 x 48
Shipping: 140 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

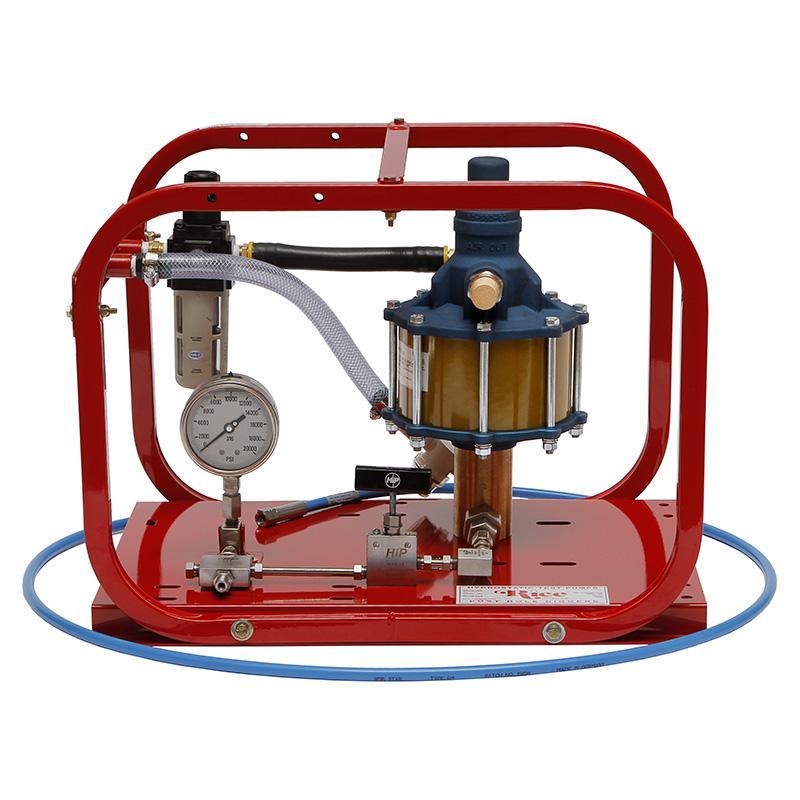

HP-20 Pneumatic Hydrostatic Test Pump

The HP-20 model is a pneumatic driven hydrostatic test pump with a pressure range of 2000 to 20,000 PSI. Lightweight, at 65 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and capable of handling various fuels, oils and chemicals.

2000 to 20,000 PSI
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 1/4" high pressure 8 foot hose
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-20,000 PSI gauge, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 65
Dimensions: 25 x 21 x 20
Shipping: 68 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

HP-25/35 Pneumatic Hydrostatic Test Pump

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

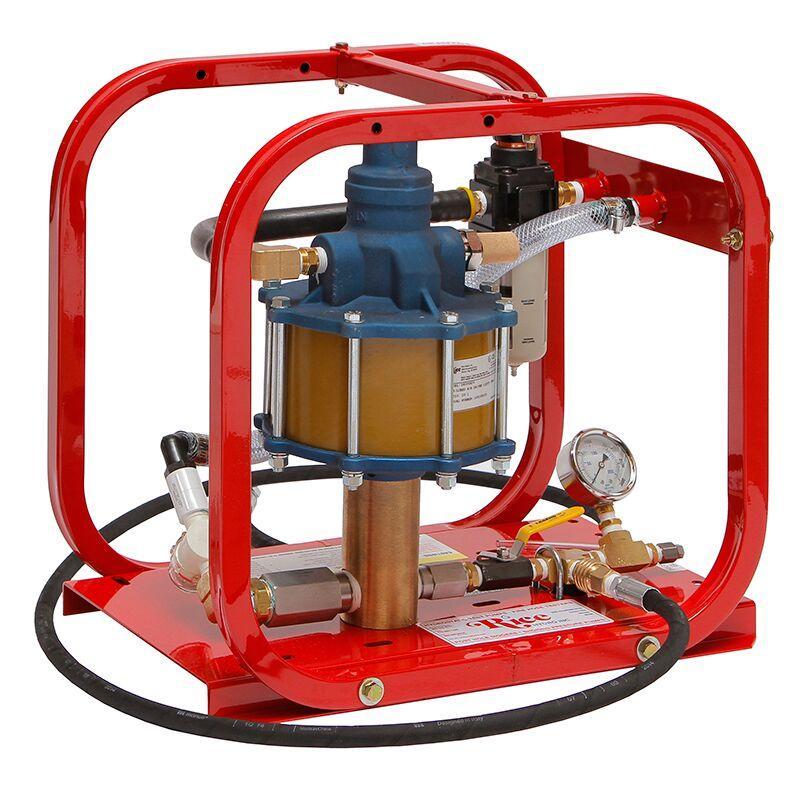

HP-25/35 Pneumatic Hydrostatic Test Pump

The HP-25/35 model is a pneumatic driven hydrostatic test pump with a pressure range of 350 to 3500 PSI, with a flow rate of 2.5 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-4000 PSI gauge, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 50
Dimensions: 22 x 14 x 20
Shipping: 55 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

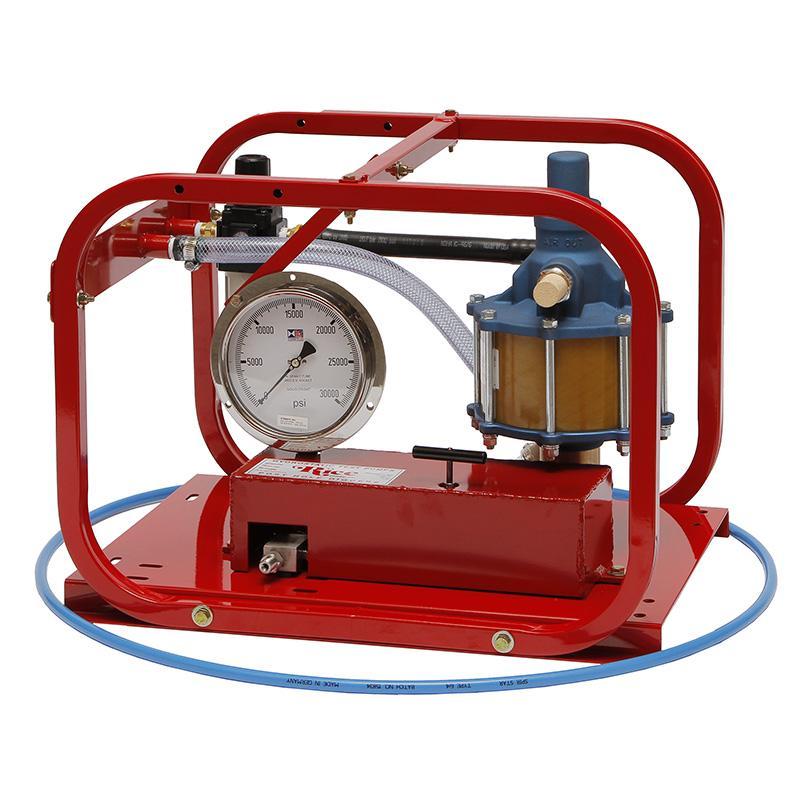

HP-30 Pneumatic Hydrostatic Test Pump

The HP-30 model is a pneumatic driven hydrostatic test pump with a pressure range of 3000 to 30,000 PSI. Lightweight, at 70 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and capable of handling various fuels, oils and chemicals.

3000 to 30,000 PSI
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 1/4" high pressure 8 foot hose
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-30,000 PSI gauge, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 70 pounds
Dimensions: 25 x 21 x 20
Shipping: 73 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

HP-30/25 Pneumatic Hydrostatic Test Pump

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

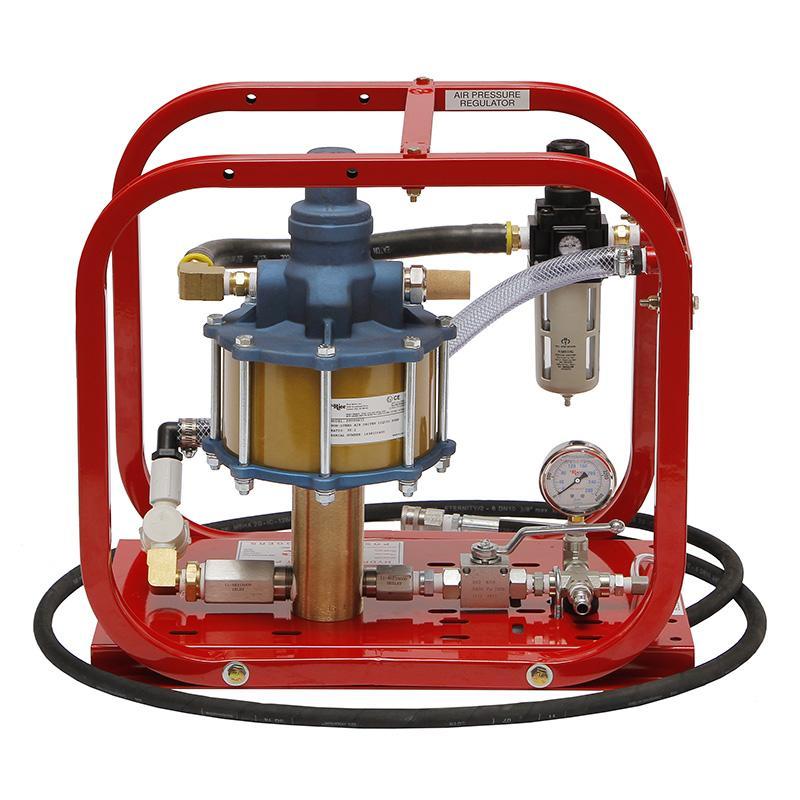

HP-30/25 Pneumatic Hydrostatic Test Pump

The HP-30/25 model is a pneumatic driven hydrostatic test pump with a pressure range of 250 to 2500 PSI, with a flow rate of 3 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

250 to 2500 PSI, up to 3 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-3000 PSI gauge, ensures accurate readings
Rugged roll cage construction, protects pump from damage
1 Year Warranty from Manufacturers defect
Weight: 50 pounds
Dimensions: 22 x 14 x 20
Shipping: 55 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com

HP-35/20 Pneumatic Hydrostatic Test Pump

Click here to download manual

Click here to download parts breakdown

Click here to download schematics

HP-35/20 Pneumatic Hydrostatic Test Pump

The HP-35/20 model is a pneumatic driven hydrostatic test pump with a pressure range of 200 to 2000 PSI, with a flow rate of 3.5 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.

200 to 2000 PSI, up to 3.5 GPM
Needing only 100 PSI of standard shop air, for maximum operation
Outlet - 3/8" high pressure 8 foot hose, with quick connect couplers
100 mesh stainless strainer, protecting pump from debris
Stainless Steel liquid-filled 0-3000 PSI gauge, ensures accurate readings
Needing only 100 PSI of standard shop air, for maximum operation
1 Year Warranty from Manufacturers defect
Weight: 50 pounds
Dimensions: 22 x 14 x 20
Shipping: 55 pounds

Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.

All RICE units can be Built to Suit, contact the factory for special order options at 800-458-3687 OR email sales@southern-tool.com
