Rikon Air Filtration

Model 62-450 Air Filtration System Model 62-1100 Air Filtration System
Model 62-450 Air Filtration System Model 62-1100 Air Filtration System





Models and Accessories
62-450 3 Speeds 250, 350, Or 450 CFM
62-1100 3 Speeds 560, 750, or 1100 CFM
Accessories for model 62-450
62-901F Disposable Outer Filter 9-1/2X16-1/2" X 2" SEP Pleated Filter Merv 8 for 62-400
62-902F Inner Filter Bag 9-1/2"X16-1/2" X 3/4" Merv 12 for 62-400
Accessories for model 62-1100
61-912F Outer Filter (5 micron) for 61-200/ 62-1100 / 61-750
61-905 Inner Filter Bag (1 micron) for 61-200, 61-750, 62-1100
61-910C Outer Charcoal Filter for 61-200, 61-750, 62-1100



Model 62-450: Air Filtration System

Click here to download manual

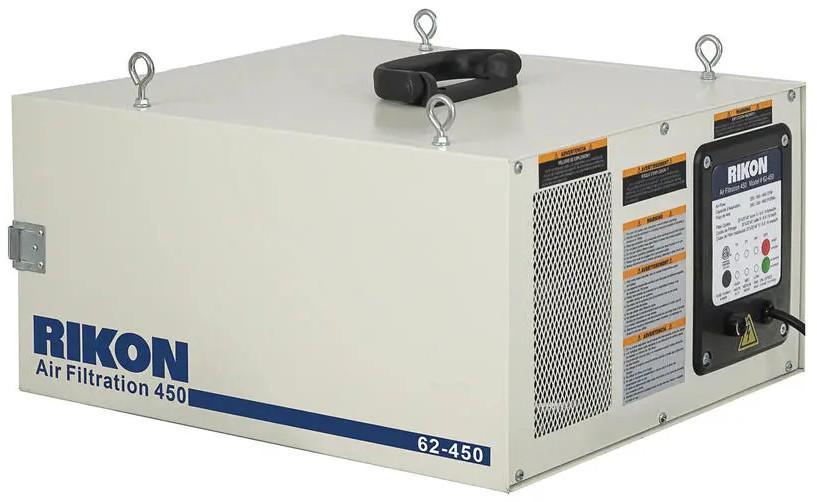

Model 62-450 Air Filtration System

The 62-450 is designed for smaller workshops that measure up to 20’x20’x8’, for cleaning and circulating air up to 7 Times Per Hour. Choose between 3 speeds - 250, 350 or 450 CFM depending on the amount of filtration needed. 3 timer settings also let you filter shop air for 1, 2 or 4 hour segments before it automatically shuts off. The 1/4HP motor is very quiet and the system can be operated directly, or with its remote control. 2-filters change easily without tools.



Features:

  • Air Filtration Keeps Your Shops Air Breathable
  • 3 Speeds 250, 350, Or 450 CFM
  • 3 Timer Settings 1, 2 Or 4 Hours
  • Convenient Remote
  • Quick Release Latch System
  • Easily Mount On Work Bench Or Mount From Ceilings



Specifications
Horsepower 1/4 HP
Amps 1.5
Volts 120V, 60 Hz
Speeds 250, 350, or 450 CFM
Cubic Feet Per Minute 450 CFM
Filter Size 9-1/2 x 16-1/2 x 2 inch
Filter (Microns) Outer 5, Inner 1
Sound Rating on High 57-68 dB
Timer Settings 1, 2, or 4 Hour Segments
Cleans 20’ x 20’ x 8’ Room 7 Times Per Hour
Construction
Cabinet 20 Gauge Steel
Blower Wheel Material Steel
Blower Type Squirrel Cage
Overall
Length 19-3/4 inch
Width 16-3/4 inch
Height 10 inch
Net Weight 29 lbs.
Shipping Weight 32.5 lbs.
Shipping Carton 23-1/4 x 20 x 13 inch
Warranty 5 Years



Model 62-450: Air Filtration System

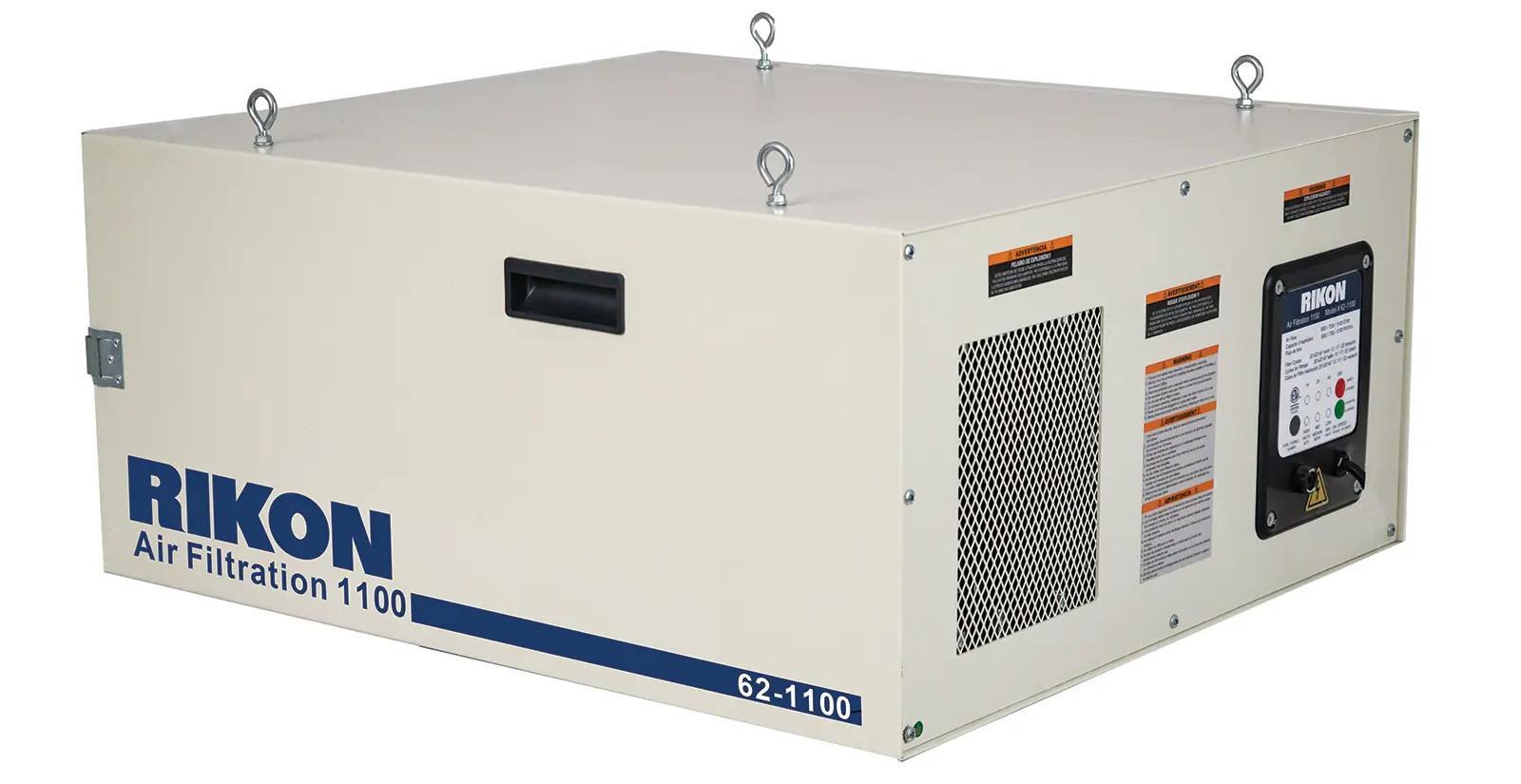

Model 62-1100 Air Filtration System

The 62-1100 has three speed settings and a powerful 1/2HP motor that provides 560, 750, or 1100 CFM of filtered air. Three timer settings will filter air in 1, 2 or 4 hour segments. The 62-1100 will scrub the air of a 20’x20’x8’ room 22 times per hour. Convenient remote that will control on/off, three speeds and three timer settings.

Features:

  • Air Filtration Keeps Your Shops Air Breathable
  • 3 Speeds 560, 750, or 1100 CFM
  • 3 Timer Settings 1, 2 Or 4 Hours
  • Convenient Remote
  • Quick Release Latch System
  • Easily Mount On Work Bench Or Mount From Ceilings
Specifications
Horsepower 1/2 HP
Amps 4.2
Volts 120V, 60 Hz
Speeds 560, 750, or 1100 CFM
Cubic Feet Per Minute 1100 CFM
Filter Size 12 x 24 x 1 inch
Filter (Microns) Outer 5, Inner 1
Sound Rating on High 73 dB on high
Timer Settings 1, 2, or 4 Hour Segments
Cleans 20’ x 20’ x 8’ Room 22 Times Per Hour
Construction
Cabinet 20 Gauge Steel
Blower Wheel Material Steel
Blower Type Squirrel Cage
Overall
Length 27-3/4 inch
Width 24-1/2 inch
Height 12-1/2 inch
Net Weight 61 lbs.
Shipping Weight 66 lbs.
Shipping Carton 31 x 27 x 14-3/4 inch
Warranty 5 Years







Warranty

RIKON Power Tools Inc. (Seller) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, guide bearings or belts and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To ensure you get the best service possible, please register your product online.

62-450
AIR FILTRATION SYSTEM 250,350,450 CFM W/REMOTE, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT33PRICE
Mfg. item #: 62-450
RIK62-450
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$296.99

38
62-1100
AIR FILTRATION SYSTEM 560,750,1100 CFM, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT66PRICE
Mfg. item #: 62-1100
RIK62-1100
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$566.99

38
62-901F
DISPOSABLE OUTER FILTER 9-1/2X16-1/2 X 2 SEP PLEATED FILTER MERV 8 FOR 62-400, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT2PRICE
Mfg. item #: 62-901F
RIK62-901F
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$19.99

38
62-902F
INNER FILTER BAG 9-1/2X16-1/2 X 3/4 MERV 12 FOR 62-400, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT2PRICE
Mfg. item #: 62-902F
RIK62-902F
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$24.99

38
61-912F
STANDARD 5 MICRON OUTER FILTER FOR 62-1100, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT1PRICE
Mfg. item #: 61-912F
RIK61-912F
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$25.99

38
61-905
F8 1 MICRON INNER FILTER FOR 61-200, 61-750, 62-100, 62-1100, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT2PRICE
Mfg. item #: 61-905
RIK61-905
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$60.00

38
61-910C
CHARCOAL FILTER FOR 61-200, 61-750, 62-100 ALUM FRAME, SHIPS GROUND UPS/FEDEX OR SHIPS FREE WITH ANY LTL FREIGHT TRUCK ITEM.SHIP WGT2PRICE
Mfg. item #: 61-910C
RIK61-910C
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$52.50

38
