Rikon Planers / Jointers



rikon 25-135H 13 inch Portable Planer w/Helical Style Cutterhead

rikon Model 20-600H: 6 inch Helical-style Benchtop Jointer

 Model 20-800H: 8 inch Helical-style Benchtop Jointer


 Model 25-210H: 12 inch Helical Planer/ Jointer

25-135H 13 inch Portable Planer w/Helical Style Cutterhead 20-600H: 6 inch Helical-style Benchtop Jointer

8 inch Helical-style Benchtop Jointer 12 inch Helical Planer/ Jointer



Models and Accessories
25-135H 13" Portable Planer with Helical Cutterhead
20-600H 6" Benchtop Jointer  w/ Helical Cutterhead
20-800H 8″ Helical-style Benchtop Jointer
25-210H 12″ Helical Planer/ Jointer
25-905 Optional Mobility Kit
25-499 HSS 2-Edge Inserts (10 Pack)
25-499C Carbide 2-Edge Inserts (10 Pack)
25-599 Replacement 4 Sided Carbide Inserts (10 Pack)
25-410 Optional Planer Stand Plywood/Wood Top Required for Mounting Machine to Stand

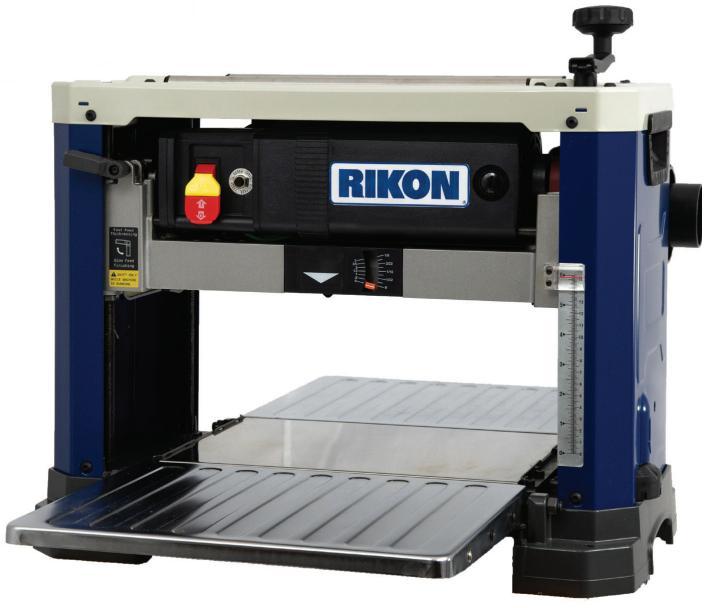

25-135H 13†Portable Planer w/Helical Style Cutterhead

25-135H 13 inch Portable Planer w/Helical Style Cutterhead

13” PORTABLE PLANER 25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.

Features:

  • Powerful 15 AMP Motor
  • Helical Style Cutterhead
  • 2-Speed Feed Rate
  • All Steel Construction
  • Easy Blade Access
  • Infeed/Outfeed Table Extensions
Specifications
Motor Amps 15
Motor Volts 115V, 60 Hz
Motor Speed (no load) 22,000
Maximum Planer Capacity (Height) 6 inch
Maximum Planer Width 13 inch
Maximum Depth of Cut 1/16 inch at 6 inch to 13 inch wide, 1/8 inch within 6 inch wide
Minimum Length Of Workpiece 7 inch
Cutterhead Speed 10,000 RPM
Number of Knives/ Inserts 26
Cutterhead Diameter 2 inch
Knife/ Insert Size 14.2mm x 14.2mm x 2mm
Number Of Cutterhead Rows 6
Feed Speed 16 and 26 SF/MIN
Dust Port Diameter 4 or 2-1/2 inch Diameter
Overall Height 19-1/4 inch
Overall Width 22 inch
Overall Depth 34-1/4 inch
Overall Base Size 22 x 13-3/8 inch
Overall Net Weight 68 lbs.
Warranty 5 years





rikon 20-600H 6 inch benchtop jointer with helical style cutterhead



Model 20-600H: 6 inch Helical-style Benchtop Jointer

6 inch Benchtop Jointer 20-600H has a 6 row helical-style cutter head with 12 HSS, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Features rigid, all-metal construction, machined aluminum tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90 deg to 45 deg quickly and accurately, spring-loaded safety guard, 2-1/2 inch dust port, front safety on/off switch and two push blocks

Features:

  • Powerful 10 amp motor
  • Helical style cutterhead
  • All steel construction
  • High speed steel insert knives
  • Easy blade access
  • Large 30 x 6-3/16 inch table

Motor
Amps 10
Volts 120V, 60 Hz
Speed (No Load) 20,000 RPM

Fence
Size 19-3/4 x 4-3/8 inch
Tilt 90 deg - 135 deg
Table (L X W) 30 x 6-3/16 inch
Cutterhead
Diameter 2 inch
Speed 12,000 RPM
Number of HSS Inserts (2 sided) 12
HSS Insert Size 14.2mm x 14.2mm x 2mm
Number of Insert Rows 6
Maximum Depth of Cut 1/8 inch
Maximum Cutting Width 6 inch
Minimum Length of Stock 10 inch
Minimum Width of Stock 3/4 inch
Minimum Thickness of Stock 1/2 inch
Dust Port (OD) Diameter 2-1/2 inch
Dust Collection Minimum CFM 100
Noise Level (No Load) at 3 Feet <100dB
Overall
Height 13 inch
Width 17-1/2 inch
Length 30 inch
Base Size 19 x 9-3/8 inch
Net Weight 36 lbs.
Shipping Weight 41 lbs.
Shipping Carton 31-1/2 x 12-1/2 x 11-1/8 inch
Warranty 5 years



Model 20-800H: 8″ Helical-style Benchtop Jointer

Model 20-800H: 8 inch Helical-style Benchtop Jointer

8 inch Benchtop Jointer 20-800H has a 6-row helical-style cutter head with 16 CARBIDE, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2 inch to 51-1/2 inch. Features rigid, all-metal construction, machined aluminum tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90 to 45 deg quickly and accurately, spring-loaded safety guard, 4 and 2-1/2 inch dust ports, front safety on/off switch and two push blocks.

Features:

  • Helical-style Cutter head with 16 two-sided carbide inserts
  • Large 19-3/4 x 4-3/8 inch Fence tilts 90 to 135 deg
  • Safety on/off switch
  • Easy read depth scale
  • Portable at only 49 lbs
  • Full table size 30-1/2 x 8-3/16 inch extends to 51-1/2 x 8-3/16 inch
Motor
Amps 10
Volts 120V, 60 Hz
Speed (No Load) 20,000 RPM
Fence
Size 19-3/4 x 4-3/8 inch
Tilt 90 - 135 deg
Cutterhead
Diameter 2 inch
Speed 12,000 RPM
Number of Carbide Inserts (2 sided) 16
Carbide Insert Size 14.2mm x 14.2mm x 2mm
Number of Insert Rows 6
Maximum Depth of Cut 1/8 inch
Maximum Cutting Width 8 inch
Minimum Length of Stock 10 inch
Minimum Width of Stock 3/4 inch
Minimum Thickness of Stock 1/2 inch
Overall Table Size (LxW) 30-1/2 x 8-3/16 inch
Overall Table Size w/Extensions (LxW) 51-1/2 x 8-3/16 inch
Dust Port (OD) Diameter 4 and 2-1/2 inch
Dust Collection Minimum CFM 100
Noise Level (No Load) at 3 Feet <100dB
Overall
Height 13 inch
Width 18-3/4 inch
Length 51-1/2 inch
Base Size 19 x 11-1/4 inch
Net Weight 49 lbs.
Shipping Weight 61 lbs.
Shipping Carton 36.25 x 15.5 x 11.5 inch
Warranty 5 years

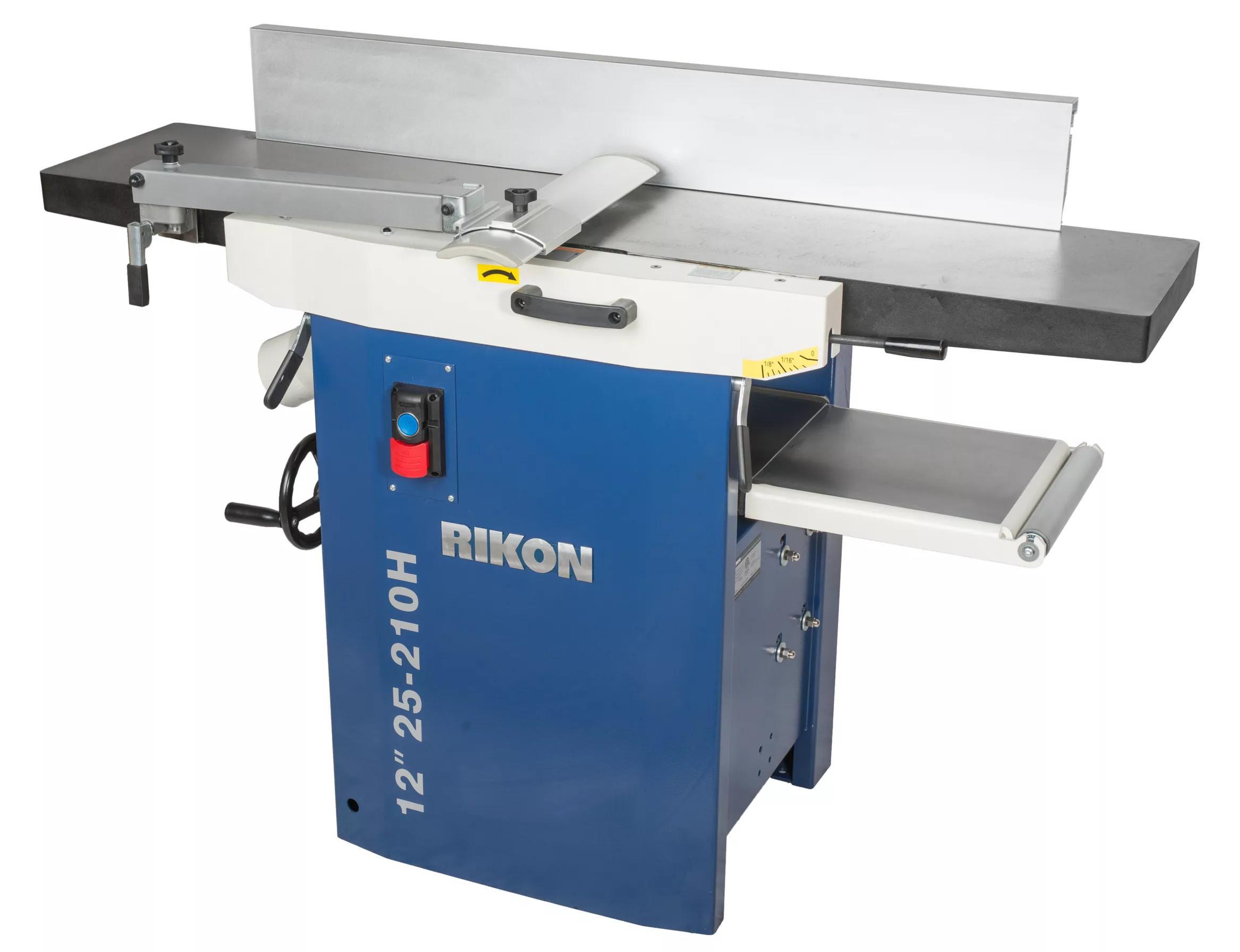

Model 25-210H: 12″ Helical Planer/ Jointer

Model 25-210H: 12 inch Helical Planer/ Jointer

12 inch Planer / Jointer 25-210H are equipped with a larger 12 inch cutter head and powerful 3HP motors that make quick work in milling the hardest, or widest rough-sawn lumber. A favorite of production shops, the jointer and planer tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. The 25-210H has a 4-row, helical cutter head with 56 four-sided, carbide insert cutters. 220V motors require 3-wire electrical plugs to match your electrical receptacles.

Features:

  • Powerful 3 HP Motor
  • 4 Row Helical Head Design
  • Precision Cast Iron Tables
  • Heavy Duty Design
  • Rubber Outfeed Rollers
  • Dual Planer / Jointer Combination
Motor
Horsepower 3 HP
Amps 12
Volts 220V, 60 Hz
RPM 3,400
Cutterhead
Speed 5,000 RPM
Number of Carbide Inserts
(4 Sided)
56
Carbide Insert Size 15mm x 15mm x 2.5mm
Number of Insert Rows 4
Cuts Per Minute 20,000 CPM
Diameter 2-3/4 inch
Fence
Size 6 x 43 inch
Tilts 0 to 45 deg
Positive Stops 90 and 45 deg
Planer
Maximum Cutting Width 12 inch
Maximum Cutting Height 7-7/8 inch
Maximum Depth of Cut 1/8 inch
Feed Speed SF/MIN 23
Table Size 21-3/8 x 12-1/16 inch
Jointer
Maximum Cutting Width 12 inch
Maximum Cutting Depth 1/8 inch
Table Size 12-1/2  x 55-1/2 inch
Table Height from Floor 33-1/2 inch
Overall
Height 39-1/2 inch
Width 22-1/2 inch
Depth 55-3/4 inch
Base Size 21-1/4 x 19-1/4 inch
Dust Port 1 at 4 inch
Net Weight 494 lbs.
Shipping Weight 594 lbs.
Shipping Carton 58-3/8 x 22-1/2 x 44-1/4 inch
Warranty 5 years





Warranty

RIKON Power Tools Inc. (Seller) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, guide bearings or belts and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To ensure you get the best service possible, please register your product online.

25-135H
13 PORTABLE PLANER WITH HELICAL STYLE CUTTERHEAD 2-SPEED FEED RATE ** SHIPS GROUND UPS/FEDEX = 76 LBS
Mfg. item #: 25-135H
RIK25-135H
Call for freight quote on this item or we will confirm freight charges before shipping.1
$700.00

362
20-600H
6 BENCHTOP JOINTER W/ HELICAL CUTTER HEAD ** SHIPS GROUND UPS/FEDEX = 41 LBS
Mfg. item #: 20-600H
RIK20-600H
Call for freight quote on this item or we will confirm freight charges before shipping.1
$541.32

362
20-800H
8 BENCHTOP JOINTER W/ INSERT CUTTER HEAD ** SHIPS GROUND UPS/FEDEX = 61 LBS
Mfg. item #: 20-800H
RIK20-800H
Call for freight quote on this item or we will confirm freight charges before shipping.1
$653.32

362
25-210H
12 PLANER/JOINTER MW/HELICAL CUTTER HEAD ** SHIPS LTL FREIGHT TRUCK = 580 LBS
Mfg. item #: 25-210H
RIK25-210H
lease to own for as little as:$81 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,032.00

362
25-905
MOBILITY KIT FOR 25-210(H) PLANER/JOINTER ** SHIPS GROUND UPS/FEDEX = 13.3 LBS
Mfg. item #: 25-905
RIK25-905
Call for freight quote on this item or we will confirm freight charges before shipping.1
$85.74

362
25-499
HSS 2-EDGE INSERTS FOR 25-130H PLANER 10 PK ** SHIPS GROUND UPS/FEDEX = 0.81 LBS
Mfg. item #: 25-499
RIK25-499
Call for freight quote on this item or we will confirm freight charges before shipping.1
$59.99

362
25-499C
CARBIDE 2-EDGE INSERTS FOR 25-130H PLANER 10 PK ** SHIPS GROUND UPS/FEDEX = 0.81 LBS
Mfg. item #: 25-499C
RIK25-499C
Call for freight quote on this item or we will confirm freight charges before shipping.1
$85.74

362
25-599
CARBIDE 4-EDGE HELICAL CUTTER INSERTS FOR STATIONARY PLANER, PLANER/JOINTERS PACK 10 ** SHIPS GROUND UPS/FEDEX = 0.81 LBS
Mfg. item #: 25-599
RIK25-599
Call for freight quote on this item or we will confirm freight charges before shipping.1
$77.17

362
25-410
METAL STAND FOR 25-130, 25-130H, 25-131, 25-131H ** SHIPS GROUND UPS/FEDEX = 20 LBS
Mfg. item #: 25-410
RIK25-410
Call for freight quote on this item or we will confirm freight charges before shipping.1
$92.89

362
