Jet Scissor Lift Tables

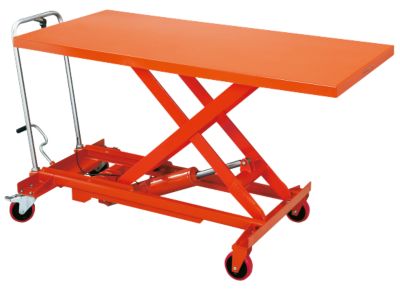

 The Jet SLT-1100, Jumbo Table, Quick-Lift Pump, 1,100-lb. Capacity

SLT-330F / SLT-660F / SLT-1650

DSLT-770

SLT-1100 SLT-330F / SLT-660F / SLT-1650 DSLT-770



140780 Manual

The Jet SLT-1100, Jumbo Table, Quick-Lift Pump, 1,100-lb. Capacity
has a 5 Year warranty

  • Lift, position and transport heavy loads with ease
  • Heavy-duty steel frame and extra large table surface
  • Easy-to-use hydraulic foot pump Feature safety overload and top-of-stroke bypass protection
  • Quick lifting action with no load
  • Convenient patent pending pump release handle
  • Easy rolling poly over nylon casters, two swivel and two fixed
  • Foot operated parking brake prevents movement
Detailed Specifications
Part Number 140780
Brand Jet
Capacity 1100 Lbs
Handle Height 37 in
Height 12 inch
Length 62.5 inch
Maximum Height 35 7/16 in
Minimum Height 11 5/8 in
Model Number SLT-1100
Net Weight 295 pound
Number of strokes to reach Max Height 16
Overall Length 73 1/2 in
Table Length 63 in
Table Width 31 1/2 in
Width 32.75 inch

SLT-1100, JUMBO SCISSOR TABLE, 1,100-LB. CAPACITY

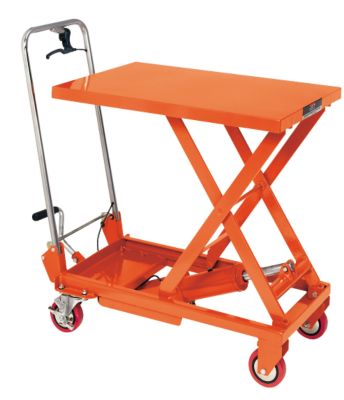

 The Jet SLT-330F, Folding Handle, 330-lb. Capacity
 The Jet SLT-660F, Folding Handle, Quick-Lift Pump, 660-lb. Capacity
  The Jet SLT-1650, Quick-Lift Pump, 1,650-lb. Capacity
has a 5 Year warranty

  • Ideal for lifting, positioing and transporting heavy materials around the shop, factory, warehouse or office
  • Ergonomic answer to preventing back injuries
  • Heavy-duty steel frame and table
  • Smooth rolling poly over nylon casters, two swicel and two fixed with parking brake
  • Easy-to-use hydraulic foot pump raises table to multiple heights
  • Quick lifting action with no load
  • Safety overload and top-of-stroke bypass system provides maximum pump protection
  • SLT-330F abd SLT-660F models feature fold-down handles
  • SLT-1650 model Featurerugged poly over stell casters
Detailed Specifications
Part Number 140771 140777 140779
Brand Jet  Jet Jet
Capacity 330 Lbs 660 Lbs 1650 Lbs
Handle Height 34 1/8 in 39 in 38 1/8 in
Height 11 inch 16 inch 16 inch
Length 32 inch 37 inch 46 inch
Maximum Height 28 3/4 in 35 7/16 in 39 3/8 in
Minimum Height 8 5/8 in 10 5/8 in 16 1/8 in
Model Number SLT-330F  SLT-660F SLT-1650
Net Weight 91.3 pound 165 pound 259.5 pound
Number of strokes to reach Max Height 16  13 17
Overall Length 36 in 42 1/8 in 46 in
Table Length 27 1/2 in 32 1/4 in 39 3/8 in
Table Width 17 3/4 in 19 5/8 in 20 1/8 in
Width 19 inch 21 inch 24 inch

SLT-330F, SCISSOR LIFT TABLE, FOLDING HANDLE, 330-LB. CAPACITY

140778 Manual

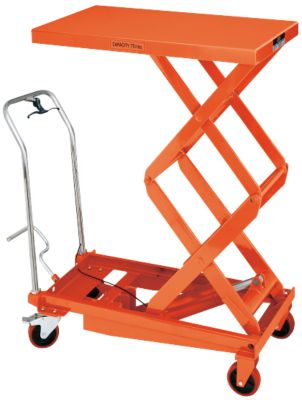

The Jet DSLT-770, Double Scissors, 51-1/8 in Max Ht, Quick-Lift Pump, 770-lb. Capacity
has a 5 Year warranty

  • Ergonomic answer to preventing back injuries
  • Heavy-duty steel frame and table
  • Smooth rolling poly over nylon casters, two swivel and two fixed, with parking brake
  • Easy-to-use hydraulic foot pump raises table to multiple heights
  • Quick lifting action with no load
  • Safety overload and top-of-stroke bypass system provides maximum pump protection
Detailed Specifications
Part Number 140778
Brand Jet
Capacity 770 Lbs
Handle Height 37 1/4 in
Height 13.5 inch
Length 46 inch
Maximum Height 51 1/8 in
Minimum Height 13 9/16 in
Model Number DSLT-770
Net Weight 235 pound
Number of strokes to reach Max Height 21
Overall Length 45 3/4 in
Table Length 35 5/8 in
Table Width 20 1/8 in
Width 21 inch

DSLT-770, DOUBLE SCISSOR LIFT TABLE, 770-LB. CAPACITY

  WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



There are no listed accessories.

JT9-140780
SLT-1100, JUMBO SCISSOR TABLE, 1,100-LB. CAPACITY , MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 295 LBS
Mfg. item #: JT9-140780
WMH140780
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,143.00

1
JT9-140771
SLT-330F, SCISSOR LIFT TABLE, FOLDING HANDLE, 330-LB. CAPACITY, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 91.3 LBS
Mfg. item #: JT9-140771
WMH140771
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1020
$528.00

1
JT9-140777
SLT-660F, SCISSOR LIFT TABLE, FOLDING HANDLE, 660-LB. CAPACITY, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 165 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-140777
WMH140777
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1020
$681.00

1
JT9-140779
SLT-1650, SCISSOR LIFT TABLE, 1,650-LB. CAPACITY, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 259.5 LBS
Mfg. item #: JT9-140779
WMH140779
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,080.00

1
JT9-140778
DSLT-770, DOUBLE SCISSOR LIFT TABLE, 770-LB. CAPACITY, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 235 LBS
Mfg. item #: JT9-140778
WMH140778
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$923.00

1
