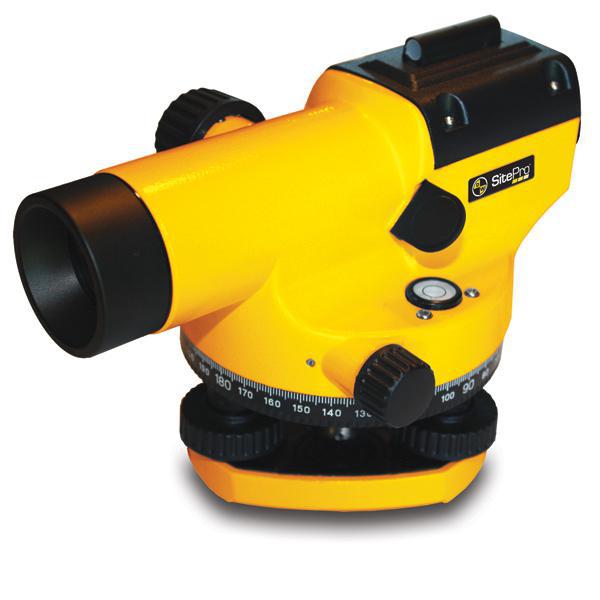

SitePro SP24XC 24-Power Automatic Level

Features:

  • Magnetically dampened, automatic compensator for optimum range and accuracy
  • 24-power magnification
  • Crisp, clear optics that allow for brighter, sharper images-especially in low light conditions
  • Horizontal and vertical cross hairs with 1:100 stadia lines - measures level, alignment & estimates distance
  • Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement
  • Solid leveling metal base with three precision leveling screws provides stability in all weather and jobsite conditions
  • 360 degree Graduated horizontal circle in 1-degree increments for layout applications
  • 8 ’ / 2 mm circular bubble vial with 90-degree mirror for quick and accurate set-up
Specifications
Magnification 24X
Leveling Accuracy Up to 1/16-in at 150-ft (1.5mm at 45m)
Angular Accuracy 1 Sec.
Working Range Up to 300-ft (92m)
Field of View 1 degree 30 ft or 2.6ft@100f
Minimum Focus 1.64 feet
Compensator range +/-15 ft
Comp Setting +/-0.5 inch
Models and Accessories
Model Description
25-SP24XC SP24XC 24-Power Automatic Level
Includes: Level, Lens Cover, Plumb Bob, Adjustment Tools, Carrying Case, User Manual
25-SP24XC PKG SP24XC 24-Power Automatic Level
Includes: Level, Lens Cover, Plumb Bob, Adjustment Tools, Carrying Case, User Manual with tripod and rod




25-SP24XC
SITEPRO SP24XC 24-POWER AUTOMATIC LEVEL 71AUTO LEVEL; LENS COVER; PLUMB BOB; ADJUSTMENT TOOLS; CARRYING CASE; USER GUIDE
Mfg. item #: 25-SP24XC
SIT25-SP24XC
"Ships by UPS, see freight calculator at checkout."2
$193.50

455
25-SP24XC PKG
SP24XC 24-POWER AUTOMATIC LEVEL - INCLUDES: LEVEL, LENS COVER, PLUMB BOB, ADJUSTMENT TOOLS, CARRYING CASE, USER MANUAL WITH TRIPOD AND ROD
Mfg. item #: 25-SP24XC PKG
SIT25-SP24XC{00
Ships FREE via UPS to lower 48 states.5
$250.08

1939
