Cantek Sliding Table Saws

Models
D405ANC	1-Axis Sliding Table Saw
P25	10â³ Sliding Table Saw
P30	5â² Sliding Table Saw
P305	10â Sliding Table Saw
D405M-8	8â² Sliding Table Saw

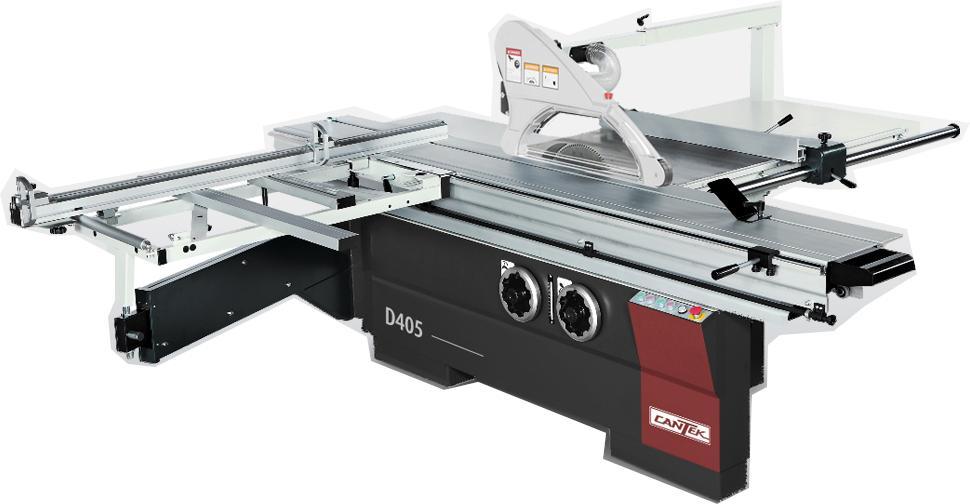

D405M-10	10â² Sliding Table Saw
D405M-10E	10â² Sliding Table Saw

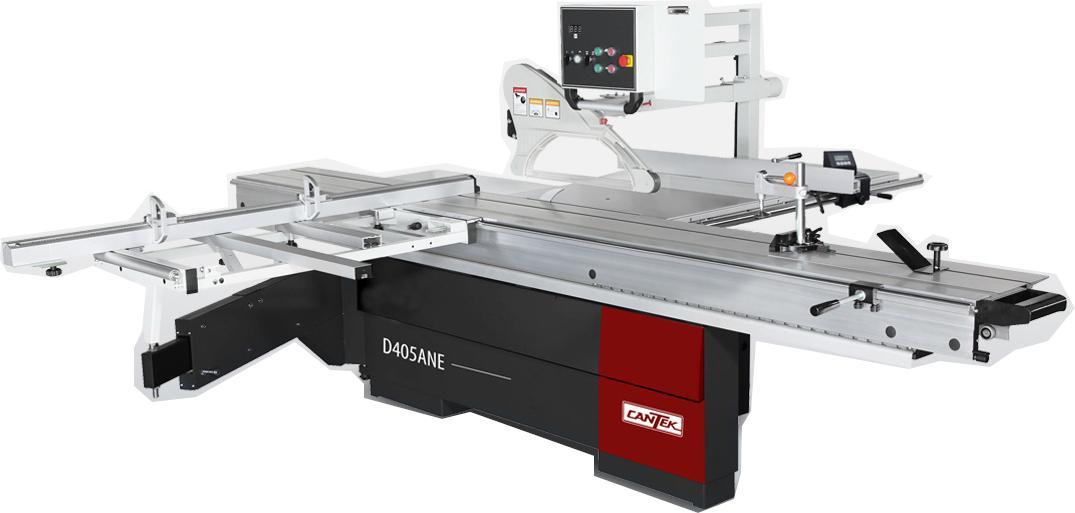

D405ANE	Sliding Table Saw

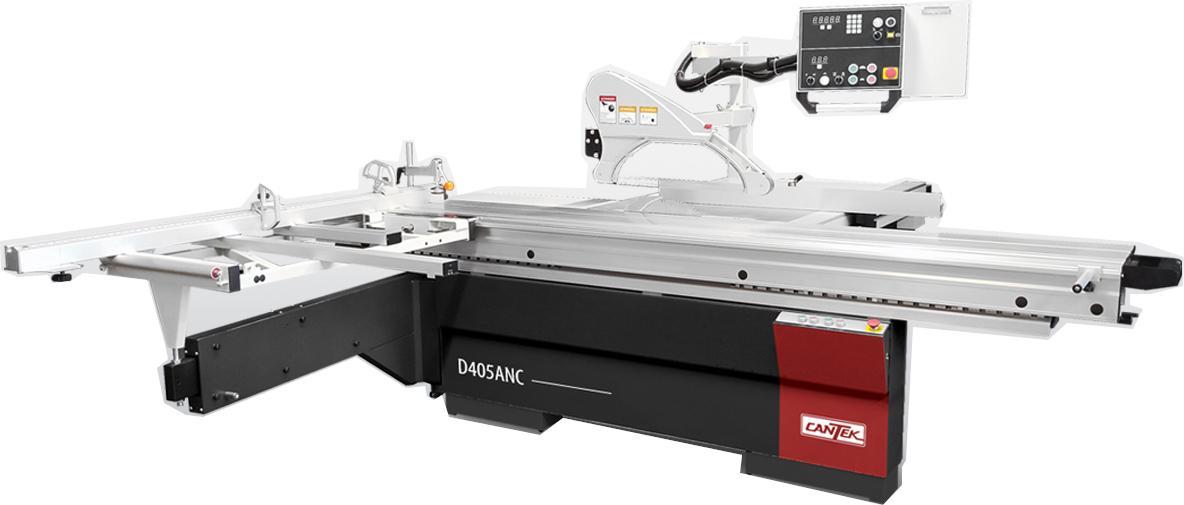

Cantek D405ANC 1-Axis Sliding Table Saw

Cantek D405ANC 1-Axis Sliding Table Saw

Industrial sliding table saw with programmable rip fence.

The Cantek D405ANC 1-Axis Sliding Table Saw is the ideal sliding panel saw for high-accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more. The programmable rip fence provides the operator with the added convenience of setting the rip width automatically through an eye level control. This saves time while providing a high level of accuracy and repeatability. The sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. Available in three different table lengths of 10 ft, 8 ft, and 12 ft

Why Cantek D405ANC 1-Axis Sliding Table Saw?

Programmable rip fence saves time and provides high level of accuracy and repeatability
Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
Powerful 7.5 HP main motor and separate 1HP scoring motor
Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors
Accurate crosscut miter fence for fast length and angle setting

Features:

Programmable rip fence with maximum cutting width of 51 inch by means of a precision ball screw
Motorized blade rise/fall
Motorized blade tilting with electronic angle display on control panel
Overhead control panel can be adjusted for operator convenience
Convenient external manual scoring adjustment
7.5 HP main motor with 1HP scoring motor
(3) saw blade speeds for optimum cutting results in various materials
Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Overhead CE blade guard with dust port
Complete with eccentric clamp and wedge for solid wood cutting

Specifications
Sliding table dimensions	3200 x 395mm (Optional: 2600 or 3800mm 126 inch x 15.5 inch (Optional: 8 ft or 12 ft)
Cast iron table dimensions	548 x 896mm 21.6 inch x 35.3 inch
Extension table (rear)	952 x 896mm 38.7 inch x 35.25 inch
Extension table (front)	830 x 320mm 32.7 inch x 12.6 inch
Table size	1500 x 1726mm 59 inch x 68 inch
Main saw blade (Max.)	400mm 16 inch
Main saw bore dia.	30mm
Max. cutting height at 90o (355mm)	105mm 4.13 inch
Max. cutting height at 90o (400mm)	130mm 5.12 inch
Max. cutting height at 45o (355mm)	70mm 2.75 inch
Main motor power	7.5 HP
Main blade speed	3000 / 4000 / 5000 RPM
Scoring blade dia.	120mm
Scoring blade bore dia.	20mm
Scoring blade motor power	1 HP
Scoring blade speed	8000 RPM
Max. rip cutting width	1300mm 51 inch
Cutting width adjustment	Motorized
Saw blade tilting adjustment	0~45 deg (Motorized)
Scoring saw adjustment	Manual
Dust collection outlets	120 / 100mm 4.72 inch x 4 inch
Machine shipping dimensions	2110 x 1150 x 1120mm 83 inch x 45.25 inch x 44 inch
Machine NW / GW	558 / 649 kgs 1228 / 1428 lbs
Sliding table shipping dimensions	3480 x 490 x 370mm 137 inch x 19.3 inch x 14.6 inch
Sliding table NW / GW	141 / 173 kgs 310 / 381 lbs
Rip fence shipping dimensions	1860 x 320 x 330mm 73.25 inch x 12.6 inch x 13 inch
Rip Fence NW / GW	41 / 52 kgs 90 / 115 lbs
Machine total weight NW / GW	740 / 874 kgs 1628 / 1923 lbs
Electrics	230/3/60 =26.20 Full total Amps

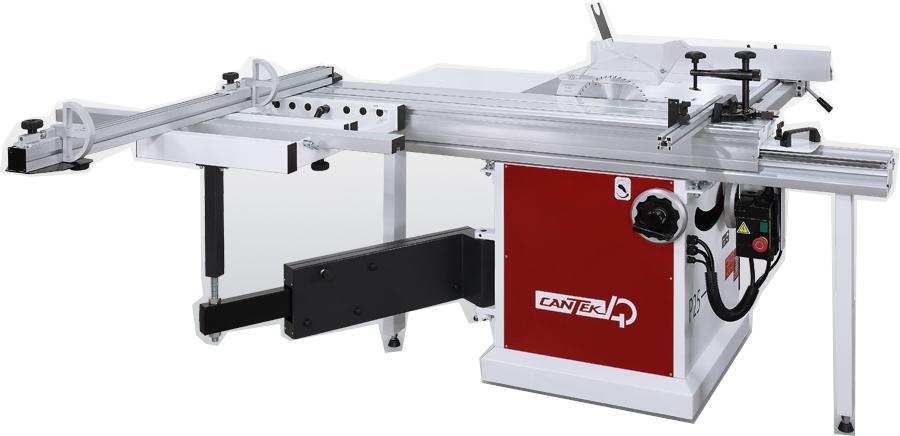

Cantek P25 10 inch Sliding Table Saw

Cantek P25 10 inch Sliding Table Saw

Powerful features in a small footprint sliding panel saw.

The Cantek P25 10 inch Sliding Table Saw delivers exceptional accuracy and performance in a compact, easy-to-use design. It combines the versatility of a traditional table saw with the precision and efficiency of a sliding table sawâperfect for cabinet shops and custom woodworkers alike. The P25 provides full-sheet crosscut and mitering capacity, along with an impressive 33 inch rip capacity for larger panels. A built-in scoring blade ensures a chip-free finish on coated panels by pre-scoring the surface before the main 10 inch blade completes the cut. The result is a smooth, professional edge every time. The heavy-duty aluminum sliding table (12-1/4 inch x 63 inch ) glides effortlessly on precision ball-bearing guides for consistent, accurate cuts. The integrated 2-1/2 inch dust port, mounted directly to the riving knife assembly, provides effective dust extraction to keep the cutting area clean. The robust crosscut fence extends up to 78-3/4 inch for superior workpiece support and allows crosscuts up to 63 inch wide. For miters, the fence easily pivots and locks at any angle, providing precise cuts up to 48 inch wide at 45 deg. Built for accuracy, reliability, and long-term performance, the Cantek P25 is the perfect solution for shops looking to maximize cutting precision and productivity.

Why Cantek P25 5â² Sliding Table Saw?

Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement.
Powerful 5 HP motor
Fast locking rip fence with 33 inch width cutting capacity.
Aluminum crosscut miter fence with (2) flip stops.
Manual rise/fall of the main saw blade.
Manual tilting of the saw blades with angle indicator.

Features:

Solid cast iron main table, which is ground and polished.
Precise outrigger for strong support of workpiece during cutting operations.
Fine scoring adjustment for tateral and vertical positioning of the scoring blades for chip free cutting
Extension tables at side and back of the main table.
Miter gauge fence with material hold-down clamp.
Clear blade guard with dust extraction port is mounted to a steel riving knife.
Comes with a set of sawblades: (1) 10 inch (254mm) diameter main blade; (1) 3 1/8 inch (80mm) scoring blade

Specifications
Saw motor	5 HP
Main saw blade diameter	10 inch 254mm
Main saw blade bore diameter	5/8 inch
Main saw blade speed	4000 RPM
Saw blade tilt	0 ~ 45o
Scoring saw blade diameter	3 1/8 inch 80mm
Scoring saw bore diameter	7/8 inch 22mm
Scoring saw blade speed	8000 RPM
Maximum cutting height at 45o	2 Â¼ inch 57mm
Maximum dado width capacity	13/16 inch 20.65mm
Maximum rip width	33 inch 837mm
Maximum crosscut length	78 Â¾ inch 2000mm
Cast Iron table	27 inch x 14 3/8 inch 686 x 365mm
Table size with extensions (LxW)	47 inch x 40 inch 1194 x 1016mm
Table height from floor	33 5/8 inch 854mm
Dust ports	(1) 4 inch , (1) 2.3 inch (1) 100mm, (1) 60mm
Machine weight	532 lbs 242 kgs
Saw floor space requirement	148 inch x 100 inch 3750 x 2538mm
Shipping weight (Total)	645 lbs 293 kgs
Shipping dimensions	Machine: 42 inch x 45 inch x 41 inch Table: 67 inch x 19 inch x 10 inch Machine: 1060x1150x1050mm Table: 1700x480x251mm
Electrical requirements	230/1/60 = 28 Full Load Amps 230/3/60 = 15.2 Full Load Amps

Cantek P30 5ÃÂ¢Ã¢âÂ¬ÃÂ² Sliding Table Saw

Cantek P30 5â² Sliding Table Saw

Powerful features in a small footprint sliding panel saw.

The Cantek P30 5â² Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (Â¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51 inch . Equipped with a crosscut miter fence and (2) flip stops.

Why Cantek P30 5â² Sliding Table Saw?

Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
Powerful 5 HP main motor with Â¾ HP scoring motor
Heavy duty cast-iron rip fence with 51 inch cutting capacity
Aluminum crosscut miter fence with (2) flip stops
Manual rise/fall the main saw blade
Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel
Overarm blade guard with build in dust port

Features:

Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Solid rip fence with manual fine adjustment and locking lever
Easy to access external scoring adjustment
Extension table at side and back of main table
Optional Equipment Included:
- Eccentric hold down clamp
- CE Overarm Guard with Dust Port
- Wedge for Solid Wood Ripping

Specifications
Sliding table dimension	63 inch x 12.4 inch 1600 x 315mm
Cast Iron table	21-1/2 inch x 35-1/4 inch 548x896mm
Extension table (rear)	18 inch x 17-1/2 inch 470x896mm
Extension table (front)	12-1/2 inch x 32-1/2 inch 320x830mm
Table size	39-1/2 inch x 68 inch 1018x1726mm
Main saw blade (Max.)	12 inch 305mm
Main saw bore	30mm
Max. cutting height at 90Â° (355mm)	3.54 inch 90mm
Max. cutting height at 45Â° (355mm)	2.48 inch 63mm
Main motor power	5 HP Main blade speed 4000 RPM
Scoring saw blade	120mm
Scoring saw blade bore	20mm
Scoring blade motor power(optional)	3/4 HP
Scoring blade speed	8000 RPM
Cutting width â ripping	51 inch 1300mm
Cutting width adjustment	Manual
Main saw blade tilting adjustment	Manual (0 ~ 45 deg)
Main saw height adjustment	Manual
Scoring saw height adjustment	Manual
Saw guard	CE Guard Included
Dust collection ports	(1) 4 inch / (1) 2.3 inch (1) 100mm / (1) 60mm
Machine weight	984 lbs 447 kgs
Shipping weight	1151 lbs 523 kgs
Shipping dimensions	83 inch x 46 inch x 44 inch 2110 x 1150 x 1160mm
Electrics	230/1/60 = 34.9 Full Load Amps 230/3/60 = 18.4 Full Load Amps 575/3/60 = 7.4 Full Load Amps

Cantek P305 10ÃÂ¢Ã¢âÂ¬Ã¢âÂ¢ Sliding Table Saw

Cantek P305 10â Sliding Table Saw

Powerful features in a small footprint sliding panel saw.

The Cantek P305 10â Sliding Table Saw is built for the budget conscious user that still wants precision and accuracy. The P305 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (1 HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51 inch . Equipped with a extendable crosscut miter fence and flip stops.

Why Cantek P305 10â² Sliding Table Saw?

Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
Powerful 5 HP main motor with 1 HP scoring motor
Heavy duty cast-iron rip fence with 51 inch cutting capacity
Aluminum crosscut miter fence with (2) flip stops and dual inch/metric scales
Manual rise/fall the main saw blade
Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel
Overarm blade guard with build in dust port

Features:

Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Solid rip fence with manual fine adjustment and locking lever
Easy to access external scoring adjustment
Convenient eccentric manual scoring adjustment
Extension table at side and back of main table
Equipped with set of main and scoring blades
Included: Eccentric hold down clamp & wedge for solid wood ripping included

Specifications
Cast iron fixed table dimension	59 inch x 68 inch 1500 x 1726mm
Sliding table dimension	126 inch x 14 inch 3200 x 360mm
Max. main saw blade diameter	12 inch 305 mm
Main saw bore	30mm
Max. cutting height with blade at 90o	3.54 inch 90 mm
Max. cutting height with blade at 45o	2.48 inch 63 mm
Main motor power	5 HP
Main blade speed	4000 RPM
Scoring saw blade	120 mm
Scoring saw blade bore	20 mm
Scoring blade motor power	1 HP
Scoring blade speed	8000 RPM
Blade tilt	0 â 45o
Max. ripping width	51 inch 1300mm
Dust collection ports	(1) 4 inch / (1) 2.3 inch (1) 100mm / (1) 60mm
Machine weight	1206 lbs. 548 kgs
Machine shipping weight	1435 lbs. 652 kgs
Machine shipping dimensions	83 inch x 45 Â½ inch x 44 inch 2110 x 1150 x 1120mm
Sliding table weight	176 lbs. 80 kgs
Sliding table shipping weight	227 lbs. 103 kgs
Sliding table shipping dimensions	130 inch x 17 inch x 9 inch 3300 x 430 x 220mm
Electrics	230/1/60 = 36 Full Load Amps 230/3/60 = 19.4 Full Load Amps 575/3/60 = 8 Full Load Amps

Cantek D405M-8 8â€² Sliding Table Saw

Cantek D405M-8 8′ Sliding Table Saw

Industrial manually operated sliding table saw for the space conscious shop.

The Cantek D405M-8 8′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but have limited floorspace. The D405M-8 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results

Why Cantek D405M-8 8′ Sliding Table Saw?

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement
Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
Manual blade rise, fall, and tilting with convenient pointer for blade angle display
Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
Overarm safety guard with quick change system for changing between straight and bevel cutting guards

Features:

Powerful 7 ½ HP main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1 HP scoring motor
Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
Heavy-duty outrigger for strong support of workpiece during cutting operations
Dual inch and metric scales for both rip and crosscut fences
Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included
Overhead saw blade guard with built in dust port included (CE-type)

Specifications
Sliding table dimension	102.4″ x 14.9″ 2600 x 378 mm
Cast iron table	21.6″ x 35.3″ 548 x 896 mm
Extension table (rear)	37.5″ x 35.3″ 952 x 896 mm
Extension table (front)	12.6″ x 32.7″ 320x 830 mm
Table size	59″ x 68″ 1500 x 1726 mm
Round rail	1.97″ 50mm
Maximum main saw blade dia.	16″ 400 mm (16″)
Main saw bore	30mm
Max. cutting height at 90° (355mm)	4.13″ 105 mm
Max. cutting height at 45° (355mm)	2.76″ 70mm
Main motor power	7.5 HP (3ph) / 5HP (1ph) 5.5 kW (3ph) /3.7 kW (1ph)
Main blade speed (3)	3000/4000/5000 RPM
Scoring saw blade	120 mm
Scoring saw blade bore	20mm
Scoring blade motor power	1 HP 0.75 kW
Scoring blade speed	8000 RPM
Cutting width	51.2″ 1300 mm
Cutting width adjustment	Manual
Main saw blade tilting adjustment	Manual (0°~45°)
Main saw height adjustment	Manual
Scoring saw adjustment	Manual
Dust ports (machine / guard)	4.72″ / 2.5″ 120mm / 64 mm
Machine total weight	1612 lbs. 733 kgs
Machine shipping details	1428 lbs (83″x46″x44″) 649 kgs (2110x1150x1120mm)
Sliding table shipping details	363 lbs (137″x20″x15″) 165 kgs (2880x490x370mm)
Overhead guard shipping details	80 lbs (40″x36″x6″) 36 kgs (1000x900x140mm)
Electrics	230/3/60 = 26.2 Full Load Electrics 230/1/60 = 36 Full Load Amps

Cantek D405M-10E 10Ã¢â¬Â² Sliding Table Saw

Cantek D405M-10 10â² Sliding Table Saw

Industrial manually operated sliding table saw.

The Cantek D405M-10 10â² Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but only require manual adjustments. The D405M-10 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results

Why Cantek D405M-10 10â² Sliding Table Saw?

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement
Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
Manual blade rise, fall, and tilting with convenient pointer for blade angle display
Heavy duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
Overarm safety guard with quick change system for changing between straight and bevel cutting guards

Features:

Powerful 7 Â½ HP main motor for 3 Phase or 5HP main motor for Single Phase, with separate 1HP scoring motor
Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
Heavy-duty outrigger for strong support of workpiece during cutting operations
Dual inch and metric scales for both rip and crosscut fences
Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience
Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included
Overhead saw blade guard with built in dust port included (CE-type)

Specifications
Sliding table dimension	126â³ x 14.9â³ 3200 x 378 mm
Cast iron table	21.6â³ x 35.3â³ 548 x 896 mm
Extension table (rear)	37.5â³ x 35.3â³ 952 x 896 mm
Extension table (front)	12.6â³ x 32.7â³ 320x 830 mm
Table size	59â³ x 68â³ 1500 x 1726 mm
Round rail	1.97â³ 50mm
Maximum main saw blade dia.	16â³ 400 mm (16â³)
Main saw bore	30mm
Max. cutting height at 90Â° (355mm)	4.13â³ 105 mm
Max. cutting height at 45Â° (355mm)	2.76â³ 70mm
Main motor power	7.5 HP (3ph) / 5HP (1ph) 5.5 kW (3ph) /3.7 kW (1ph)
Main blade speed (3)	3000/4000/5000 RPM
Scoring saw blade	120 mm
Scoring saw blade bore	20mm
Scoring blade motor power	1 HP 0.75 kW
Scoring blade speed	8000 RPM
Cutting width	51.2â³ 1300 mm
Cutting width adjustment	Manual
Main saw blade tilting adjustment	Manual (0Â°~45Â°)
Main saw height adjustment	Manual
Scoring saw adjustment	Manual
Dust ports (machine / guard)	4.72â³ / 2.5â³ 120mm / 64 mm
Machine total weight	1612 lbs. 733 kgs
Machine shipping details	1428 lbs (83â³x46â³x44â³) 649 kgs (2110x1150x1120mm)
Sliding table shipping details	380 lbs (137â³x20â³x15â³) 173 kgs (3480x490x370mm)
Overhead guard shipping details	80 lbs (40â³x36â³x6â³) 36 kgs (1000x900x140mm)
Electrics	230/3/60 = 26.2 Full Load Electrics 230/1/60 = 36 Full Load Amps

Cantek D405M-10E 10 ft Sliding Table Saw

Cantek D405M-10E 10â² Sliding Table Saw

Industrial manually operated sliding table saw.

The Cantek D405M-10E 10â² Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops that need a precision saw but only require manual adjustments. The D405M-10E combines heavy-duty construction with a cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly, and the crosscut miter fence can be easily and accurately adjusted for optimum results.

Why Cantek D405M-10E 10â² Sliding Table Saw?

Manual rip fence with fine adjustment & electronic digital display for precise positioning.
Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides for smooth and effortless table movement.
Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts.
Manual blade rise, fall, and tilting with a convenient pointer for blade angle display.
Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro-adjustment knob.
Overarm safety guard with a quick-change system for changing between straight and bevel cutting guards.

Features:

Powerful 7 Â½ HP main motor for 3 Phase or 5 HP main motor for Single Phase, with separate 1 HP scoring motor.
Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine.
Heavy-duty outrigger for strong support of workpiece during cutting operations.
Electronic Digital Readout with scale for manual positioning on fence.
Dual inch and metric scales for crosscut fences.
Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience.
Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included.
Overhead saw blade guard with built-in dust port included (CE-type).
Comes with a set of sawblades: (1) 14â (355mm) diameter main blade; (1) scoring blade

Specifications
Sliding table dimension	126â³ x 14.9â³ 3200 x 378 mm
Cast iron table	21.6â³ x 35.3â³ 548 x 896 mm
Extension table (rear)	37.5â³ x 35.3â³ 952 x 896 mm
Extension table (front)	12.6â³ x 32.7â³ 320x 830 mm
Table size	59â³ x 68â³ 1500 x 1726 mm
Round rail	1.97â³ 50mm
Maximum main saw blade dia.	16â³ 400 mm (16â³)
Main saw bore	30mm
Max. cutting height at 90Â° (355mm)	4.13â³ 105 mm
Max. cutting height at 45Â° (355mm)	2.76â³ 70mm
Main motor power	7.5 HP (3ph) / 5HP (1ph) 5.5 kW (3ph) /3.7 kW (1ph)
Main blade speed (3)	3000/4000/5000 RPM Scoring saw blade 120 mm
Scoring saw blade bore	20mm
Scoring blade motor power	1 HP 0.75 kW
Scoring blade speed	8000 RPM
Cutting width	51.2â³ 1300 mm
Cutting width adjustment	Manual
Main saw blade tilting adjustment	Manual (0Â°~45Â°)
Main saw height adjustment	Manual
Scoring saw adjustment	Manual
Dust ports (machine / guard)	120 / 60mm = 825 CFM 4.72â³ / 2.4â = 825 CFM
Machine total weight	1612 lbs. 733 kgs
Machine shipping details	1428 lbs (83â³x46â³x44â³) 649 kgs (2110x1150x1120mm)
Sliding table shipping details 3	80 lbs (137â³x20â³x15â³) 173 kgs (3480x490x370mm)
Overhead guard shipping details	80 lbs (40â³x36â³x6â³) 36 kgs (1000x900x140mm)
Electrics	230/3/60 = 26.2 amps 230/1/60 = 36 amps 575/3/60 = 10.3 amps

Cantek D405ANE Sliding Table Saw

Powered up and down blade and tilt to make it easier.

The Cantek D405ANE Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials to produce kitchen cabinetry, furniture, millwork operations, and more. This is our most industrial saw with manual setting rip fence. The 10â sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. It has motorized rise/fall and tilt of the blades.

Why Cantek D405ANE Sliding Table Saw?

Motorized blade height & tilt adjustment with a digital angle readout
Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
Powerful 7.5 HP main motor and separate 1HP scoring motor
Ergonomic eye level control panel for adjusting the blade height, and blade angle along with on/off switches for the main and scoring motors
Accurate crosscut miter fence for fast length and angle setting

Features:

Motorized blade rise/fall
Motorized blade tilting with electronic angle display on control panel
Overhead control panel can be adjusted for operator convenience
Convenient external manual scoring adjustment
Powerful 7.5 HP main motor with separate 1HP scoring motor
(3) saw blade speeds for optimum cutting results in various materials
Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Overhead CE blade guard with dust port
Complete with eccentric clamp and wedge for solid wood cutting

Specifications
Sliding table dimensions	3200 x 395mm 126 x 15.5â³
Cast iron table dimensions	548 x 896mm 21.6â³ x 35.3â³
Extension table (rear)	952 x 896mm 38.7â³ x 35.25â³
Extension table (front)	830 x 320mm 32.7â³ x 12.6â³
Main saw blade (Max.)	400mm 16â³
Main saw bore dia.	30mm
Max. cutting height @ 90o (355mm)	105mm 4.13â³
Max. cutting height @ 90o (400mm)	130mm 5.12â³
Max. cutting height @ 45o (355mm)	70mm 2.75â³
Main motor power	7.5 HP
Main blade speed	3000 / 4000 / 5000 RPM
Scoring blade dia.	120mm
Scoring blade bore dia.	20mm
Scoring blade motor power	1 HP
Scoring blade speed	8000 RPM
Max. rip cutting width	1300mm 51â³
Cutting width adjustment	Manual
Saw height adjustment	Motorized
Saw blade tilting adjustment	0~45o (Motorized)
Scoring saw adjustment	Manual
Dust collection outlets	120 / 60mm 4.72â³ / 2.4â
Machine shipping dimensions	2110 x 1150 x 1120mm 83â³ x 45.25â³ x 44â³
Machine NW / GW	575 / 666 kgs 1265 / 1465 lbs
Sliding table shipping dimensions	3480 x 490 x 370mm 137â³ x 19.3â³ x 14.6â³
Sliding table NW / GW	141 / 173 kgs 310 / 381 lbs
Machine total weight NW / GW	740 / 874 kgs 1628 / 1923 lbs
Electrics	230/3/60 =26.20 Full total Amps


Cantek D405ANC 1-Axis Sliding Table Saw	Cantek P25 10 inch Sliding Table Saw	Cantek P30 5 feet Sliding Table Saw	Cantek P305 10 feet Sliding Table Saw

Cantek D405M-8 8 feet Sliding Table Saw	Cantek D405M-10 10 feet Sliding Table Saw	Cantek D405M-10E 10 feet Sliding Table Saw	Cantek D405ANE Sliding Table Saw

Cantek Sliding Table Saws

Industrial sliding table saw with programmable rip fence.

Why Cantek D405ANC 1-Axis Sliding Table Saw?

Powerful features in a small footprint sliding panel saw.

Why Cantek P25 5â² Sliding Table Saw?

Powerful features in a small footprint sliding panel saw.

Why Cantek P30 5â² Sliding Table Saw?

Powerful features in a small footprint sliding panel saw.

Why Cantek P305 10â² Sliding Table Saw?

Industrial manually operated sliding table saw for the space conscious shop.

Why Cantek D405M-8 8′ Sliding Table Saw?

Industrial manually operated sliding table saw.

Why Cantek D405M-10 10â² Sliding Table Saw?

Industrial manually operated sliding table saw.

Why Cantek D405M-10E 10â² Sliding Table Saw?

Powered up and down blade and tilt to make it easier.

Why Cantek D405ANE Sliding Table Saw?

Why Cantek P25 5â² Sliding Table Saw?

Why Cantek P30 5â² Sliding Table Saw?

Why Cantek P305 10â² Sliding Table Saw?

Why Cantek D405M-10 10â² Sliding Table Saw?

Why Cantek D405M-10E 10â² Sliding Table Saw?
