JET Slip Rolls

SR-2024M, 24" x 20 Gauge Bench Model Slip Roll

SR-2236M, 36" x 22 Gauge Bench Model Slip Roll

/store/cms//686.jpeg
SR-2024M, 24 inch x 20 Gauge
Bench Model Slip Roll
SR-2236M, 36 inch x 22 Gauge
Bench Model Slip Roll

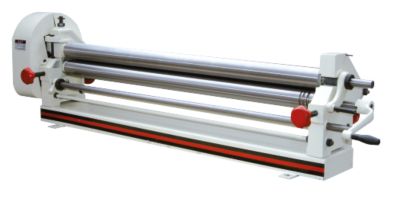

SR-1650M, 50 inch x 16 Gauge
Bench Model Slip Roll
Shown with optional stand
wmh756027 ESR-1650-1T, 50" x 16 Gauge Electric Slip Roll 1Ph wmh756027 ESR-1650-3T, 50" x 16 Gauge Electric Slip Roll 3Ph 756030 14 inch x 60 inch Electric Plate Roller
ESR-1650-1T 50 inch x 16 Gauge
Electric Plate Roller
ESR-1650-3T 50 inch x 16 Gauge
Electric Plate Roller
ESR-1460-3 60 inch x 14 Gauge
Electric Plate Roller

jet 2 year warranty logo



JET Slip Rolls, Bench Models
756020 SR-2024M, 20 Gauge, 24 in Capacity
756026 SR-2236M, 22 Gauge, 36 in Capacity
756050 SR-1650M, 16 Gauge, 50 in Capacity
JET Slip Rolls, Electrical Power Models
756027 ESR-1650-1T, 50 inch x 16 Gauge Electric Slip Roll 1Ph
756028 ESR-1650-3T, 50 inch x 16 Gauge Electric Slip Roll 3Ph
756030 EPR-1460-3 14Ga x 60 inch Electric Plate Roller
Optional Accessories
754024 S-24N Stand for 24 in SR-2024N
754036 S-36N Stand for 36 in SR-2236N
754051 S-50N Stand for 50 in SR-1650N

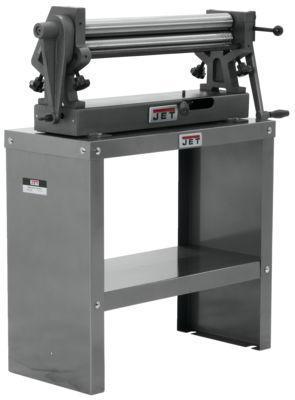

SR-2024M, 24" x 20 Gauge Bench Model Slip Roll

754020 Manual

 SR-2024M, 24 inch x 20 Gauge Bench Model Slip Roll has a 2 Year warranty

  • Perfect tool for sheet metal forming in HVAC and FAB-shops
  • Suitable for many industrial, educational and vocational shop uses
  • Precision turned carbon steel rolls that are ground and polished
  • Large roll adjusting screws facilitate lifting upper roll for easy material removal
  • Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N

jet 2 year warranty logo
Shown with optional stand

Detailed Specifications
Part Number 756020
Mild Steel Capacity (Gauge) 20
Maximum Forming Length (In.) 24
Number and Diameter of Rolls (In.) 3, 2
Minimum Forming Radius (In.)
Wire Grooves (In.) 3/16, 1/4, 5/16
Overall Dimensions (L x W x H) (In.) 50 x 14 x 14
Weight (Lbs.) 216
Height 18.5000
Length 36.5000
Weight 216.0000
Width 17.0000

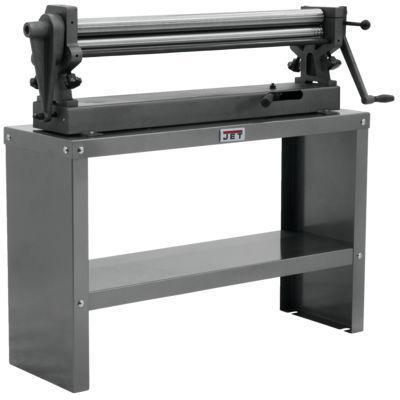

SR-2236M, 36" x 22 Gauge Bench Model Slip Roll

SR-2236M, 36" x 22 Gauge Bench Model Slip Roll has a 2 Year warranty

  • Perfect tool for sheet metal forming in HVAC and FAB-shops
  • Suitable for many industrial, educational and vocational shop uses
  • Precision turned carbon steel rolls that are ground and polished
  • Large roll adjusting screws facilitate lifting upper roll for easy material removal
  • Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N

jet 2 year warranty logo
Shown with optional stand

Detailed Specifications
Part Number 756026
Mild Steel Capacity (Gauge) 22
Maximum Forming Length (In.) 36
Number and Diameter of Rolls (In.) 3, 2
Minimum Forming Radius (In.)
Wire Grooves (In.) 3/16, 1/4, 5/16
Overall Dimensions (L x W x H) (In.) 62 x 14 x 14
Weight (Lbs.) 256
Height 18.0000
Length 47.2500
Weight 256.0000
Width 16.0000



/store/cms//686.jpegjet 2 year warranty logo

SR-1650M, 50 inch x 16 Gauge Bench Model Slip Roll has a 2 Year warranty

  • Perfect tool for sheet metal forming in HVAC and FAB-shops
  • Suitable for many industrial, educational and vocational shop uses
  • Precision turned carbon steel rolls that are ground and polished
  • Large roll adjusting screws facilitate lifting upper roll for easy material removal
  • Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N
Detailed Specifications
Part Number 756050
Mild Steel Capacity (Gauge) 16
Maximum Forming Length (In.) 50
Number and Diameter of Rolls (In.) 3, 3
Minimum Forming Radius (In.)
Wire Grooves (In.) 1/4, 5/16, 3/8
Overall Dimensions (L x W x H) (In.) 67 x 16 x 20
Weight (Lbs.) 565
Height 23.0000
Length 69.2500
Weight 573.0000
Width 19.0000

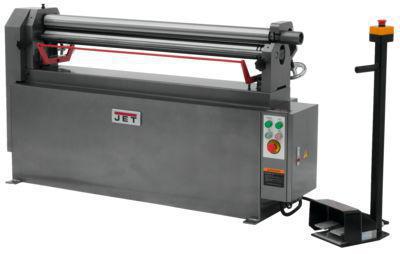

ESR-1650-1T, 50 inch x 16 Gauge Electric Slip Roll 1Ph has a 2 Year warranty

  • Perfect tool for sheet metal forming in HVAC and FAB-shops
  • Roll drive is controlled by foot pedal for immediate forward and reverse action
  • Rolls are made of hardened polished high-carbon steel.
  • Forming roll has attached position scale for equal pressure adjustment
  • Heavy duty cast iron frame and enclosed base insure precise sheet metal rolling.
  • Easy to setup and operate
  • Convenient foot-control assembly with emergency-button
  • All electrical and rotating parts are designed for safety and ease of use
  • Satety Brake
Detailed Specifications
Part Number 756027
Mild Steel Capacity (Gauge) 16
Maximum Forming Length (In.) 50
Number and Diameter of Rolls (In.) 3, 3
Minimum Forming Radius (In.)
Wire Grooves (In.) 5/16, 3/8, 1/2
Motor (HP) 1-1/2 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 71 x 24 x 43
Weight (Lbs.) 877
Height 43.0000
Length 71.0000
Weight 877.0000
Width 24.0000



ESR-1650-3T, 50 inch x 16 Gauge Electric Slip Roll 3Ph has a 2 Year warranty

  • Perfect tool for sheet metal forming in HVAC and FAB-shops
  • Roll drive is controlled by foot pedal for immediate forward and reverse action
  • Rolls are made of hardened polished high-carbon steel.
  • Forming roll has attached position scale for equal pressure adjustment
  • Heavy duty cast iron frame and enclosed base insure precise sheet metal rolling.
  • Easy to setup and operate
  • Convenient foot-control assembly with emergency-button
  • All electrical and rotating parts are designed for safety and ease of use
  • Satety Brake
Detailed Specifications
Part Number 756028
Mild Steel Capacity (Gauge) 16
Maximum Forming Length (In.) 50
Number and Diameter of Rolls (In.) 3, 3
Minimum Forming Radius (In.)
Wire Grooves (In.) 5/16, 3/8, 1/2
Motor (HP) 1 HP, 230/460V Prewired 230V, 3Ph
Overall Dimensions (L x W x H) (In.) 71 x 24 x 43
Weight (Lbs.) 877
Height 43.0000
Length 71.0000
Weight 877.0000
Width 24.0000



DURABILITY

  • Three-roll design with two drive rolls
  • Rolls are made of hardened polished high carbon steel
  • Heavy duty frame and base insure precise sheet metal rolling

SAFETY

  • CSA/US: Following strict guidelines and electrical requirements, this JET Plate Roller is CSA/US certified
  • Foot-control assembly with emergency-stop
  • Integrated safety bar system along entire bending length permits quick stoppage of machine

EASE OF USE

  • Forming roll has attached position scale for equal pressure adjustment
  • Weight and rigidity; scale and precision; strength and simplicity define exceptional comfort and ease of operation
  • Easy to use forward and reverse foot pedal
  • Conical attachments for ease of rolling cones, tapers and conicals

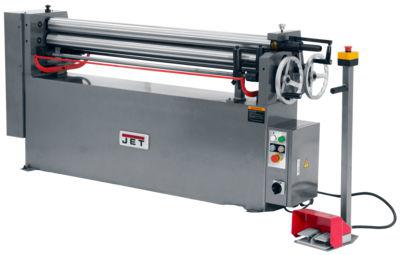

Specifications
STOCK NO. 756030
Model Number EPR-1460-3
Mild Steel Capacity (Gauge) 14
Maximum Forming Length (In.) 60
Number and Diameter of Rolls (In.) 3 at 3-1/2
Minimum Forming Radius (In.) 5-1/4
Wire Grooves (In.) 3/8, 1/2 and 5/8
Electrics 2HP, 230/460V, 3-Phase
Prewired 230V
Overall Dimensions (LxWxH) (In.) 87-1/2 x 31-1/2 x 48
Net Weight (Lbs.) 1345
Gross Weight (Lbs.) 1543



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.










JT9-756020
SR-2024M, 24 X 20 GAUGE BENCH MODEL SLIP ROLL, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 216 LBS
Mfg. item #: JT9-756020
WMH756020
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,057.69

1
JT9-756026
SR-2236M, 36 X 22 GAUGE BENCH MODEL SLIP ROLL, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 256 LBS
Mfg. item #: JT9-756026
WMH756026
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,332.10

1
JT9-756050
SR-1650M, 50 X 16 GAUGE BENCH MODEL SLIP ROLL, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 573 LBS
Mfg. item #: JT9-756050
WMH756050
lease to own for as little as:$52 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,619.00

1
JT9-756027
ESR-1650-1T, 50 X 16 GAUGE ELECTRIC SLIP ROLL 1PH, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 877 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-756027
WMH756027
lease to own for as little as:$100 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,069.00

1
JT9-756028
ESR-1650-3T, 50 X 16 GAUGE ELECTRIC SLIP ROLL 3PH, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 877 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-756028
WMH756028
lease to own for as little as:$100 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,069.00

1
JT9-756030
EPR-1460-3, 60 X 14GAUGE ELECTRIC PLATE ROLLER, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 1543 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-756030
WMH756030
lease to own for as little as:$215 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$11,299.00

1
JT9-754024
S-24N, STAND FOR 24 SLIP ROLL, MADE IN CHINA, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 42 LBS
Mfg. item #: JT9-754024
WMH754024
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$299.00

1
JT9-754036
S-36N, STAND FOR 36 SLIP ROLL, MADE IN CHINA, SHIPS VIA UPS/FEDEX PACKAGE & WEIGHT = 43.95 LBS
Mfg. item #: JT9-754036
WMH754036
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$432.58

1
JT9-754051
SRS-50N, STAND FOR 50 SLIP ROLL, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 70 LBS
Mfg. item #: JT9-754051
WMH754051
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1020
$505.27

1
