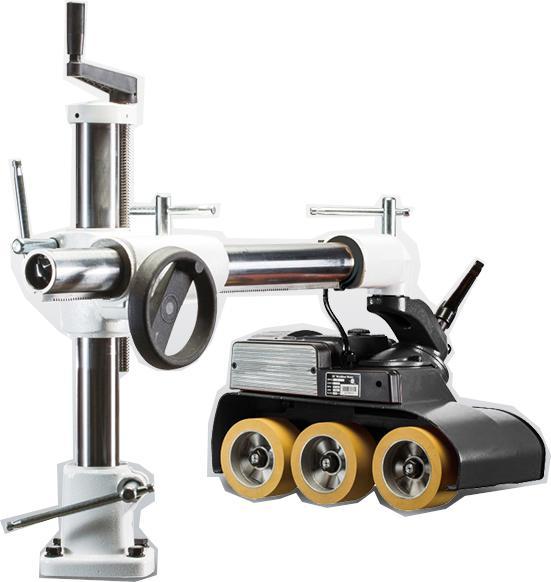

Cantek DC30 3-Roll Variable Speed Power Feeder
Consistent, safe, and powerful power feeder with the right speed for your job.
The Cantek DC30 3-Roll Variable Speed Power Feeder is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a
constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed
speed according to the specific job. The universal stand allows for quick positional adjustment from a horizontal to vertical positioning and everything in between.
Why Cantek DC30 3-Roll Variable Speed Power Feeder?
- High efficiency DC brushless servo motor
- High efficiency = more power, more torque!
- Saves +50 percent power output over other feeders of the same size
- Electronic variable feed speed adjustment for optimum cut quality
Features:
- 2/3 HP DC Brushless Servo Motor with electronic speed display
- SG13 heavy duty universal stand for fast setup
- (3) rubber feed rollers
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed
- Optional Dual Rollers for saw or cutter clearance
|
Specifications
|
|
Roller Size
|
4.72 x 2.36 inch (Standard)
4.72 x 1 inch (Optional)
|
120 x 60 mm (Standard)
120 x 25 mm (Optional)
|
|
Rollers
|
3
|
3
|
|
Feeding Speed
|
7-72 FPM
|
2-22 m/min
|
|
Horsepower
|
2/3 HP
|
500W
|
|
Packing Size: Body
|
23 Ã 12-3/4 Ã 12 inch
|
588 x 326 x 306 mm
|
|
Packing Size: Stand
|
30-3/8 x 12-5/8 x 11-1/2 inch
|
770 x 320 x 290 mm
|
|
Machine Weight
|
51 + 66 lbs = 117 lbs total
|
23 + 30 kgs = 53 kgs total
|
|
Shipping Weight
|
55 + 72 lbs = 127 lbs total
|
25 + 32 kgs = 57 kgs total
|

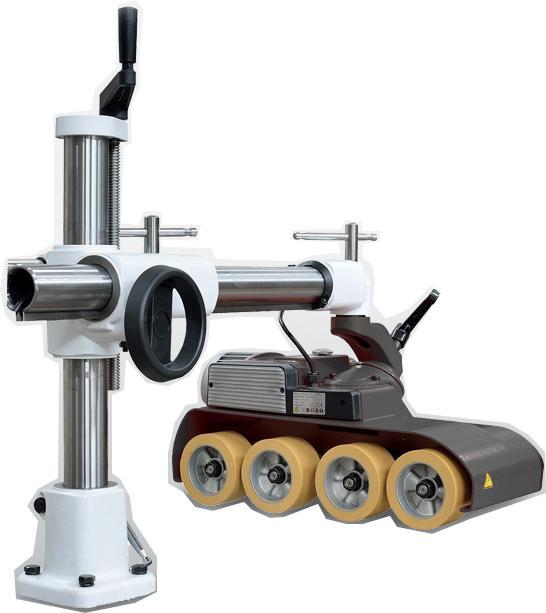

Cantek DC40 4-Roll Variable Speed Power Feeder
Consistent, safe, and powerful power feeder with the right speed for your job.
The Cantek DC40 4-Roll Variable Speed Power Feeder is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a
constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed
speed according to the specific job. The universal stand allows for quick positional adjustment from a horizontal to vertical positioning and everything in between.
Why Cantek DC40 4-Roll Variable Speed Power Feeder?
- High efficiency DC brushless servo motor
- High efficiency = more power, more torque!
- Saves +50 percent power output over other feeders of the same size
- Electronic variable feed speed adjustment for optimum cut quality
Features:
- 2/3 HP DC Brushless Servo Motor with electronic speed display
- SG13 heavy duty universal stand for fast setup
- (4) rubber feed rollers
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed
- Optional Dual Rollers for saw or cutter clearance
|
Specifications
|
|
Roller Size
|
4.72 x 2.36 inch (Standard)
4.72 x 1 inch (Optional)
|
120 x 60 mm (Standard)
120 x 25 mm (Optional)
|
|
Rollers
|
4
|
4
|
|
Feeding Speed
|
7-72 FPM
|
2-22 m/min
|
|
Horsepower
|
2/3 HP
|
500W
|
|
Packing Size: Body
|
27 Ã 12-3/4 Ã 12-3/8 inch
|
685 x 326 x 316 mm
|
|
Packing Size: Stand
|
30-3/8 x 12-5/8 x 11-1/2 inch
|
770 x 320 x 290 mm
|
|
Machine Weight
|
57 + 66 lbs = 123 lbs total
|
26 + 30 kgs = 56 kgs total
|
|
Shipping Weight
|
62 + 72 lbs = 134 lbs total
|
28 + 32 kgs = 60 kgs total
|

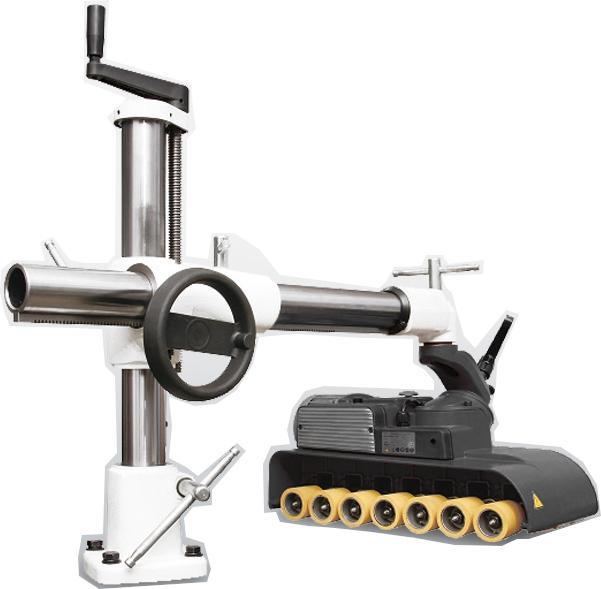

Cantek DC70 Short Stock Variable Speed Power Feeder
Consistent, safe, and powerful power feeder with the right speed for your job.
The Cantek DC70 Short Stock Variable Speed Power Feeder is a patented 7-wheel variable speed power feeder and is the newest power feeder in the award-winning DC series line. For woodworkers
looking for the capability of feeding smaller parts that tend to wobble with standard 3 and 4-wheel power feeders, the DC70 is the perfect fit. It is ideal for automatically feeding
cabinet door parts, furniture parts, and more to a shaper.
Why Cantek DC70 Short Stock Variable Speed Power Feeder?
- Ideal for feeding of short material
- 7-rolls at 2.36 inch (60mm) which are closely coupled with a center to center distance of 2.43 inch (61.7mm)
- Universal stand allows the operator to change the feeder for vertical to horizontal feeding direction or angles as desired
- DC brushless servo motor requires 75 percent less energy with high torque
- Infinitely variable feed speed from from 7~86 FPM
Features:
-
Capable of Feeding Short-Stock
- Feed shorter parts while maintaining secure hold-down due to the shorter distance between the rollers from center to center
-
DC Brushless Servo Motor
- Save over 75 percent in energy costs while producing similar torque as 1 horsepower AC motor feeders, especially at lower speeds
-
Instant 90° Memo-Locking Swivel Adjustment
- Swivel the power feeder and lock it in instantly â perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders.
-
Variable Speed & Digital Controls
- No more gear change-out. Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 7-86
fpm
-
Universal Stand
- The gooseneck attachment on the end of the Power Feeder Stand allows for a quick 90-degree adjustment to position the feeder against the table or at a perfect angle against
the fence â No more tinkering around with the joints to make sure it is in perfect position. Also adjust the feeder to incline feed when needed. An incline feeding adjustment
indicator helps position the feeder at the desired angle.
|
Specifications
|
|
Roller Size
|
60 x 60 mm (2.36 x 2.36 inch)
|
|
Number of Rollers
|
7
|
|
Feeding Speed
|
2 â 26 M/min (7 â 86 FPM)
|
|
Max. Power Output
|
500W
|
|
Horsepower
|
2/3 HP Voltage
100-120V / 1 Phase 200-240V / 1 or 3 Phase
|
|
Machine Weight
|
24 kg (53 lbs)
|
|
Stand Weight
|
30 kg (66 lbs)
|
|
Packing Size: Machine
|
630 x 350 x 310mm (24.8 Ã 13.8 Ã 12.2 inch)
|
|
Packing Size: Stand
|
758 x315 x 285mm (29.8 x 12.4 x 11.2 inch)
|
|
Packing Weight: Machine
|
26 kg (57 lbs)
|
|
Packing Weight: Stand
|
32 kg (72 lbs)
|

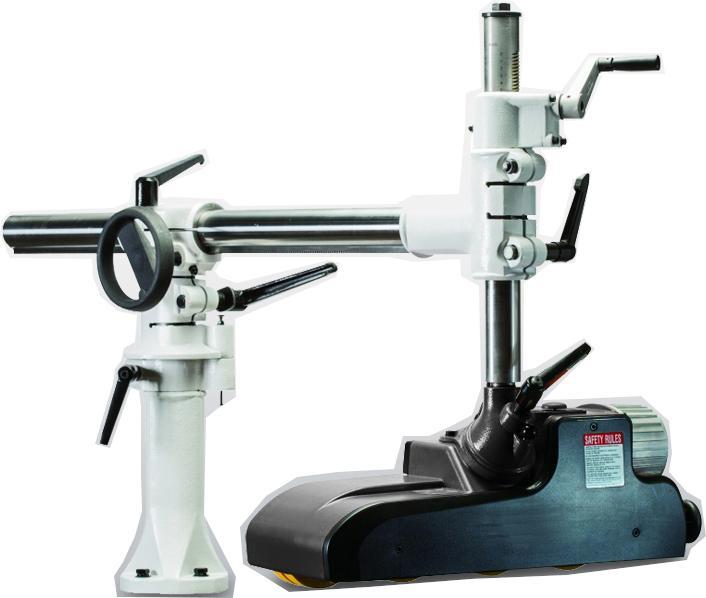

Cantek DS400 4-Roll Variable Speed Power Feeder with SMART Stand
Consistent, safe, and powerful power feeder with the right speed for your job.
The Cantek DS400 4-Roll Variable Speed Power Feeder with SMART Stand is safe on consistent feeding unit for shaper, table saws, and more. The rubber feed wheels grip the workpiece
firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for
setting the optimum feed speed according to the specific job, The DC400 includes the SS03 Heavy Duty Smart Stand which features an extra-long support column and extension arm which allows for
use of this mount and stand on larger woodworking machinery. The horizontal rotation also has a clutch and memory-lock, making quick cutter blade switches a safer and quicker task.
Why Cantek DS400 4-Roll Variable Speed Power Feeder with SMART Stand?
- High efficiency DC brushless servo motor
- High efficiency = more power, more torque!
- Saves +50% power output over other feeders of the same size
- Electronic variable feed speed adjustment for optimum cut quality
- Includes SS103 Heavy Duty Smart Stand with the following features
- 42â horizontal adjustment arm for even greater reach
- Front mounted vertical adjustment for added operator convenience
- Memo-locking allows for quick and accurate relocation of the feeder unit after adjusting it out of position
Features:
- 2/3 HP DC Brushless Servo Motor with electronic speed display
- (4) rubber feed rollers
- Variable speed 2-22 M/min (7-72 FPM)
- Forward/reverse feed
- Optional Dual Rollers for saw or cutter clearance
|
Specifications
|
|
Horsepower / Rotation
|
2/3 HP (500 Watt),1 or 3PH; Forward/Reverse
|
|
Range of Speeds (50Hz) (60Hz)
|
2-22 M/Min (7-72 FPM)
|
|
Rollers
|
120 x 25 mm x 8 rolls (split)
|
|
Roller Suspension
|
18mm (3/4 inch)
|
|
Net Weight
|
23 + 41 + 10 Kg (51 + 91 + 22 Lb)
|
|
Gross Weight
|
25 + 43 + 11 Kg (55 + 95 + 24 Lb)
|
|
Carton for Body
|
686 à 326 à 316 mm (27 inch à 12-3/4 inch à 12-3/8 inch)
|
|
Carton for Stand
|
770 x 320 x 290 mm (30-3/8 inch x 12-5/8 inch x 11-1/2 inch)
|
|
Carton for Overarm
|
1080 x 60 x 60 mm (42-1/8 inch x 2-3/8 inch x 2-3/8 inch)
|

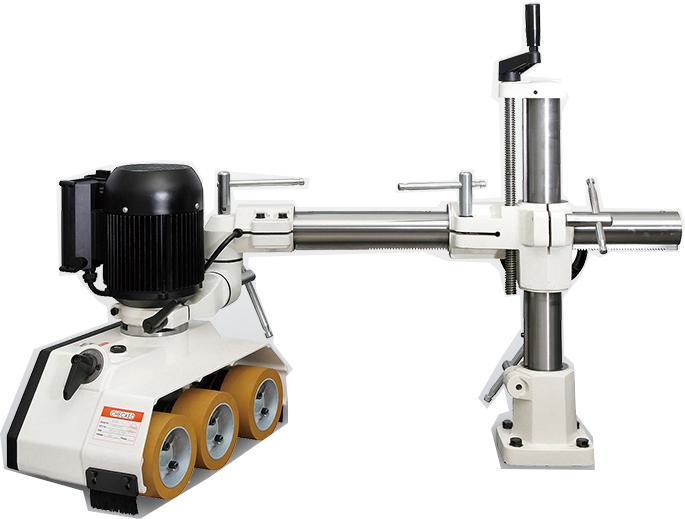

Cantek AF38 3-Roll Power Feeder
A versatile all-purpose feeder.
The Cantek AF38 3-Roll Power Feeder features a robust design and can be easily mounted to shapers, table saws, and various other woodworking machines to boost productivity while ensuring
reliable performance.
Why Cantek AF38 3-Roll Power Feeder?
- Designed for heavy-duty use and can be easily mounted to shapers, table saws, and various other woodworking machines.
- Offers eight feed speeds for optimal flexibility.
- Includes an interchangeable gear set for even more speed options.
- Reverse feed function available via a selector switch.
- Abrasion-resistant rollers ensure a secure, non-marking grip.
- All rollers are spring-loaded to maintain consistent pressure.
- Roller suspension allows up to 18mm (3/4 inch ) of travel.
|
Specifications
|
|
Number of rollers
|
3
|
|
Number of feed speeds
|
8
|
|
Feed speeds (Ft/min)
|
6.5, 13, 18, 22, 36, 43, 55, 108 FPM
|
|
Rollers size
|
4.73 inch x 2.36 inch (120mm x 60mm)
|
|
Roller spring suspension
|
0.71 inch (18mm)
|
|
Motor
|
1 HP
|
|
Rotations
|
Forward and reverse
|
|
Packaging dimensions
|
22 inch x 21.25 inch x 11.42 inch 30.3 inch x 12.6 inch x 11.42 inch
|
|
Shipping weight
|
147 lbs.
|
|
Electrical
|
460/3/60, 575/3/60
|
Cantek AF48 4-Roll Power Feeder
A versatile all-purpose feeder.
The Cantek AF48 4-Roll Power Feeder features a robust design and can be easily mounted to shapers, table saws, and various other woodworking machines to boost productivity while ensuring
reliable performance.
Why Cantek AF48 4-Roll Power Feeder?
- Designed for heavy-duty use and can be easily mounted to shapers, table saws, and various other woodworking machines.
- Offers eight feed speeds for optimal flexibility.
- Includes an interchangeable gear set for even more speed options.
- Reverse feed function available via a selector switch.
- Abrasion-resistant rollers ensure a secure, non-marking grip.
- All rollers are spring-loaded to maintain consistent pressure.
- Roller suspension allows up to 18mm (3/4 inch ) of travel.
|
Specifications
|
|
Number of rollers
|
4
|
|
Number of feed speeds
|
8
|
|
Feed speeds (Ft/min)
|
6.5, 13, 18, 22, 36, 43, 55, 108 FPM
|
|
Rollers size
|
4.73 x 2.36 inch (120mm x 60mm)
|
|
Roller spring suspension
|
0.71 inch (18mm)
|
|
Motor
|
1 HP
|
|
Rotations
|
Forward and reverse
|
|
Packaging dimensions
|
30.3 inch x 22 inch x 11.42 inch 30.3 inch x 12.6 inch x 11.42 inch
|
|
Shipping weight
|
158 lbs.
|
|
Electrical
|
460/3/60 = 2.1 Full Load Amps
|

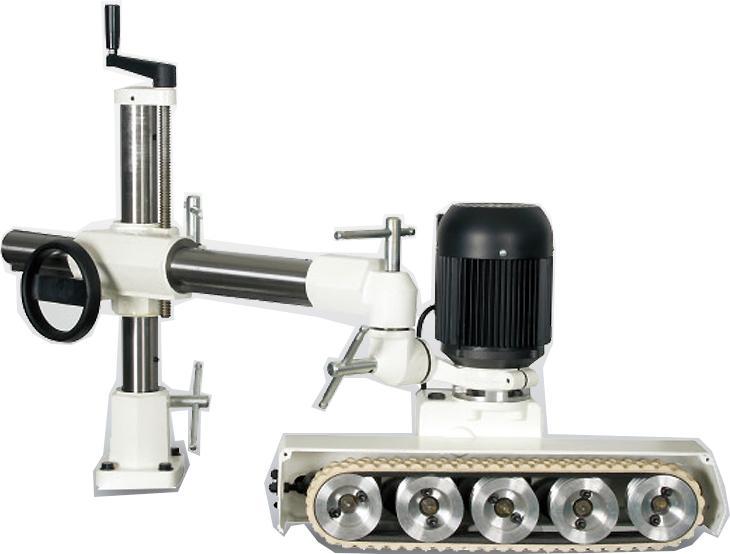

Cantek AF04 Track Feeder
An all-purpose feeder intended to assist with feeding small workpieces.
The Cantek AF04 Track Feeder is specifically designed for feeding small workpieces which can not be fed properly using a conventional 3 and 4 roller feeders. The (3) synthetic rubber
belts run on (5) feeder wheels which are closely coupled together. The result is the workpiece is held between the rollers allowing for the feeding of short and/or small
material. The universal stand allows you to easily adjust the height and position of the feeder. It can also be positioned from a horizontal to vertical feed.
The AF04 can be easily adapted to your shaper or table saw.
Why Cantek AF04 Track Feeder?
- Designed for feeding shorter pieces or for cross feeding pieces 90 degrees to cutterhead
- (3) synthetic rubber belts over (5) spring loaded rollers
- Safe operation of equipment as your hands remain away from the cutterhead or sawblade
- Stable feeding of workpieces due to the close coupling of the rollers and belts which span the rollers
- Universal stand allows for fast and convenient setting of the feeder unit
Features:
- 1 HP motor
- 4 feed speeds
- Forward/reverse feed
- Universal stand included
- 3/4 inch roller suspension
|
Specifications
|
|
Motor
|
1HP
|
|
Feed speeds
|
4 (13, 26, 33, 66 FPM)
|
|
Rotation
|
Forward and Reverse
|
|
Belts
|
44 inch x 1/2 inch x 3 pcs
|
|
Roller suspension
|
0.79 inch
|
|
Distance between rollers
|
4.2 inch -4.1 inch -3.9 inch -4.2 inch
|
|
Shipping dimensions: Body
|
30.3â³ x 22 inch x 11.5 inch
|
|
Shipping dimensions: Stand
|
30.3 inch x 12.6 inch x 11.5 inch
|
|
Shipping weight
|
154 lbs.
|
|
Electrics
|
230/1/60 = 8 amps 230/3/60 = 4.2 amps 460/3/60 = 2.1 amps
|

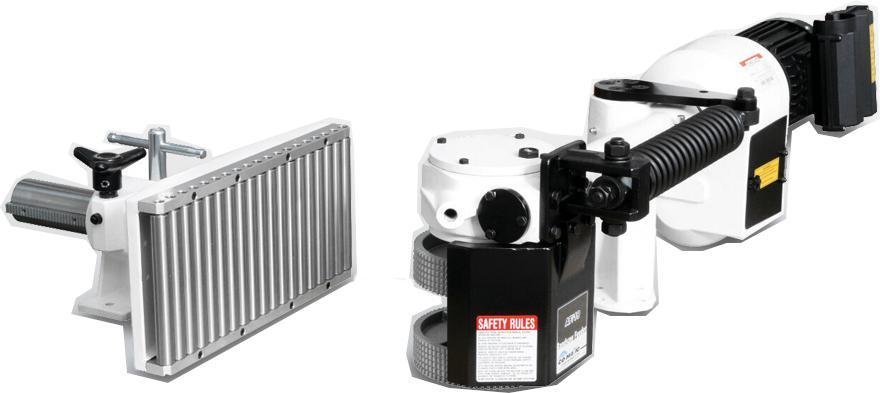

Cantek AF19 Bandsaw / Resaw Feeder
Smooth and Precise Resaw Feeding.
The Cantek AF19 Bandsaw / Resaw Feeder is a heavy-duty, spring-loaded feeder designed for bandsaws over 24 inch . Featuring an adjustable spring tension and a roller fence, it ensures smooth,
even, and precise material feeding, making it ideal for demanding resawing applications.
Why Cantek AF19N Resaw Feeder?
- Specifically designed for use on bandsaws bigger than 24 inch
- Consistent feeding for bandsaws and resaws
- Spring loaded pressure with roller infeed fence.
- Line bar roller fence is easily adjusted by rack and pinion handle
- Comes with steel serrated rollers
- Voltage: 230/3/60 (Single phase available: factory order)
|
Specifications
|
|
Motor
|
1/2HP
|
|
Feed speeds
|
(10) 4,/8.5/8.5/14/17/25/28/30/50/60 FPM
|
|
Maximum roller stroke
|
8 inch
|
|
Fence dimensions
|
16 inch x 7 7/8 inch
|
|
Max. Roller-Blade Clearance
|
8 1/4 inch
|
|
Distance between rollers
|
4.2 inch -4.1 inch -3.9 inch -4.2 inch
|
|
Shipping dimensions
|
1220 x 480 x 470mm (48 inch x 18-7/8 inch x 18-1/2 inch )
|
|
Shipping weight
|
209 lbs.
|
|
Electrics
|
230/1/60 = 8 amps
230/3/60 = 4.2 amps
460/3/60 = 2.1 amps
575/3/60 = 1.7 amps
|
Cantek AF19N Resaw Feeder
Consistent and reliable automatic feeder for your resaw or bandsaw.
The Cantek AF19N Resaw Feeder is designed to allow consistent and automated feeding of material through vertical bandsaw or resaws. The AF19N is pneumatically actuated by a switch in
the fence so no foot pedal is required making for a simple and convenient operation. With 10 feed speeds to choose from you can dial in the optimum feed speed for your material.
Intended to be fit on bandsaws which are over 24 inch but could be fitted on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is
mounted.
Why Cantek AF19N Resaw Feeder?
- Consistent feeding for bandsaws and resaws
- Pneumatic activation of feeding unit, no foot pedal required
- 10 feed speeds for optimum control
- Line bar roller fence is easily adjusted by rack and pinion handle
- Comes with (2) adjustable steel serrated rollers
- Can be mounted to almost any bandsaw/resaw (recommended for 24 inch and up)
Features:
- Heavy duty construction
- Adjustable feed wheels to accommodate for the height of your material
- Roller fence aids in feeding of material
|
Specifications
|
|
Feed Speeds (10)
|
4/8.5/8.5/14/17/25/28/30/50/60 FPM
|
1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min
|
|
Roller size
|
6-7/8 inch x 1-9/16 inch x 2 pcs / Cast Steel
|
175 x 40 mm x 2 pcs
|
|
Motor
|
1/2 HP (0.375 KW), 3 phase; Forward
|
1/2 HP
|
|
Maximum roller stroke
|
8 inch
|
200mm
|
|
Fence dimensions
|
16 inch x 7 7/8 inch
|
400 x 200mm
|
|
Max. Roller-Blade Clearance
|
8 1/4 inch
|
210mm
|
|
Net Weight
|
176 Lbs
|
79 Kg
|
|
Gross Weight
|
209 Lbs
|
97 Kg
|
|
Packing Size
|
48 inch x 18-7/8 inch x 18-1/2 inch
|
1220 x 480 x 470mm
|
