SuperMax SuperBrush 24", 36" And 49" Wid

SuperMax SuperBrush 24, 36 And 49 s-h alt

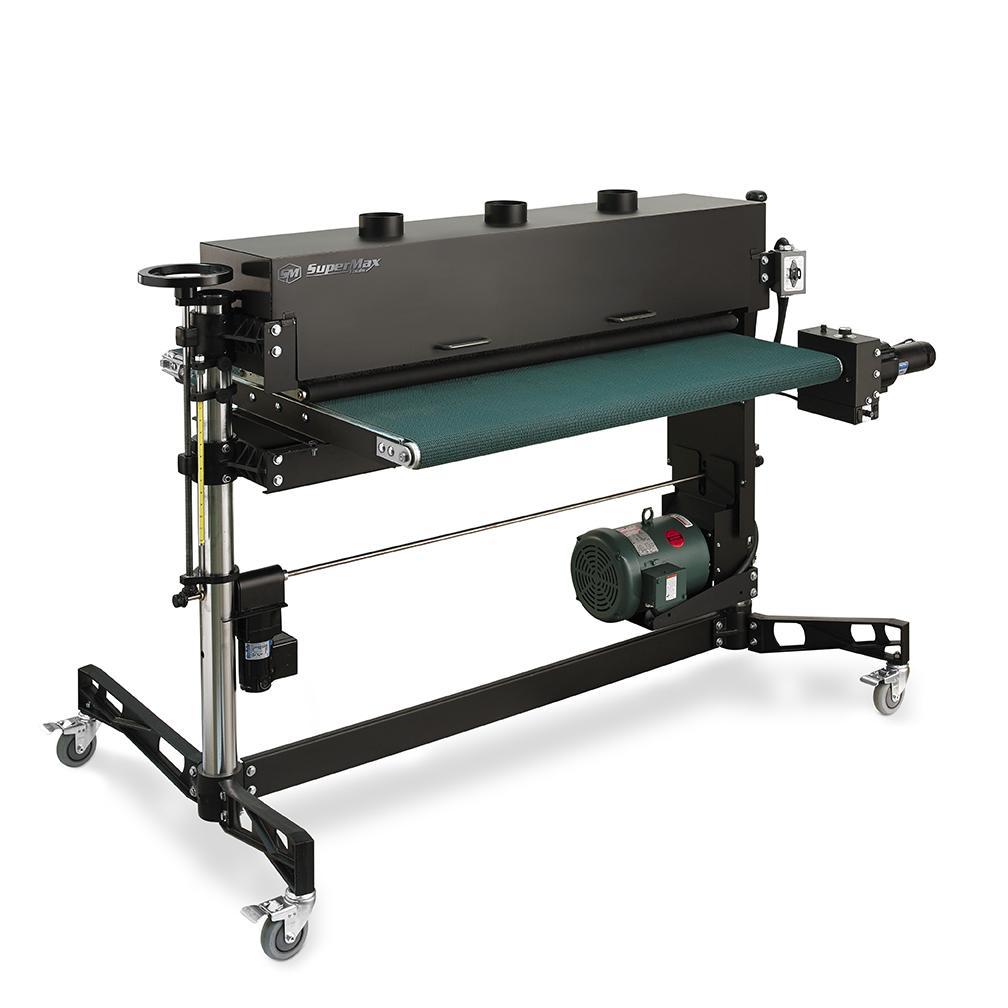

Shown with optional accessories
SuperBrush Machine Prices Inclued One FREE Brush Of Your Choice!

Brochure

User Manual

Overview
The SuperBrush can do it all! Easily sand profiles, raw wood sand, sealer sand, clean reclaimed wood, wire brush, and more! The SuperBrush is available in 24, 36 and 49 inch widths. Its also available with two brush heads.

SuperBrush Benefits
The SuperBrush has these great benefits over hand finishing:

  • Faster output
  • Reduce rework
  • Greater surface consistency

Free Sample Testing
We offer free sample testing from our lab that will find the right machine and brush head for your application.

Features:

  • Infinitely variable brush speed and conveyor feed rate allows for a wide variety of finishes
  • Quickly change brush heads or abrasive loadings
  • Fully adjustable tension rollers prevent stock slippage
  • Reinforced steel conveyor bed with a poly conveyor belt
  • Precision height adjustment
  • Bristle Contact Gauge included

Applications

Dozens of brush heads available to effectively sand a wide variety of applications.

  • Raw Wood Sanding, White Wood Sanding, Break sharp edges, Open grain for even finish absorption, Blend out minor defects
  • Sealer Sanding, Primer Sanding, Scuff Sanding, Removes raised fibers and grain (denib/defuzz)
  • Degloss previously finished wood
  • Clean reclaimed wood
  • Wire brushing, Distress (weathered/Southwest finish), Pull out soft grain to create textured surface

What is a SuperBrush brush sander?

A SuperBrush brush sander is a machine that can be equipped with different types of sanding heads to achieve a wide variety of finishes on wood or plastic composite material. It is commonly used for applications that would traditionally be done by hand, such as profile sanding mouldings or raised panel doors, or to achieve labor-intensive finishes like distressing. Unlike a drum sander which can only dimension a flat surface, the bristles on the brushes flex and bend to conform to profiles.

What do the different types of brush heads do?

The main categories of brush heads are flatter, nylon, and wire. There are many variations of brush heads within those categories, resulting in dozens of brush head options. For example, using a flatter style brush will help you to achieve a hand-sanded finish on profiles like mouldings and raised panel doors. It is also commonly used in raw wood sanding to open the grain for stain, and then used for sealer sanding in between coats of stain or primer simply by changing the grit of flatter strip. Wire brushes are most commonly used to achieve a distressed or weathered finish. Nylon brushes work well for cleaning reclaimed wood or light distressing. These are just a few of the different applications for each brush type.

What are some of the benefits of a SuperBrush?

Increase Output: SuperBrush sanders are able to run material up to 30ft a minute (depending on the model you choose), much faster than sanding by hand!

Increase Consistency: When hand sanding, an employee is likely going to produce a different result at 8 a.m than he is at 5 p.m. With a SuperBrush sander, the results are the same time after time.

Low Learning Curve: A SuperBrush sander is not difficult to operate. After a short training period, nearly anyone can run a SuperBrush sander.

Versatility: Perhaps the biggest benefit of a SuperBrush sander is its versatility. Vastly different finishes can be achieved by changing the brush head, or more finite changes can be achieved by changing the speed of the conveyor, the RPM of the brush head, or the depth of bristle penetration.

Specifications
Sanding Capacity Maximum Width (in): 24, 36, or 49
Minimum Length (in): 10
Maximum Thickness (in): 11, varies with brush style
Minimum Thickness (in): 1/32
Dimensions HxWxD (in): 24 inch model: 52 x 46 x 35
36 inch model: 52 x 58 x 35
49 inch model: 50 x 71 x 31
Brush (in): 9-11 typical diameter
Typical Bristle Length: 1-1/2 – 3 inch
Speed: ranged variable, 400-1200 RPM brush
Dust Hood: 24 inch model: steel with hinged back, one (1) 4 inch vacuum port, 600 CFM min.
36 inch model: steel with hinged back, two (2) 4 inch vacuum ports, 1200 CFM min.
49 inch model: steel with hinged back, three (3) 4 inch vacuum ports, 1800 CFM min.
Drive Motor (TEFC): 5 HP
Power Requirements: 208-230V, 60HZ; 1 PH, 30 amp service; 3 PH, 20 amp service
Shipping Weight (lbs): 24 inch model: 525
36 inch model: 605
49 inch model: 775



220 Volt Model SuperBrush 24, 36 and 49 inch (Includes one brush of your choice)
91267 SuperBrush 24, 1Ph, (one brush head included)
93267 SuperBrush 24, 3Ph, (one brush head included)
91367 SuperBrush 36, 1Ph, (one brush head included)
93367 SuperBrush 36, 3Ph, (one brush head included)
71497 SuperBrush 49, 1Ph, (one brush head included)
73497 SuperBrush 49, 3Ph, (one brush head included)
Accessories SuperBrush 24, 36 and 49 inch
98-0130 Casters (set of 4)
98-2501 25 inch Infeed / Outfeed tables
98-3701 37 inch Infeed / Outfeed tables
98-0118 ProScaleDRO (Digital Depth Gauge)
98-0025 Lowrider Legs with 4 casters. Lowers machine 5 1/2 inch



Brushes and Abrasives
WB24-1 Brush Head, 24 inch - Wire or Nylon
WB24-1B Brush Head, 24 inch - Flatter (with strips)
WB24-1A Flatter Strip Set, 24 inch,  18 ct.  - Specify Grit
WB36-1 Brush Head, 36 inch - Wire or Nylon
WB36-1B Brush Head, 36 inch - Flatter (with strips)
WB36-1A Flatter Strip Set, 36 inch, 18 ct.  - Specify grit
WB48-1 Brush Head, 49 inch - Wire or Nylon
WB48-1B Brush Head, 49 inch  - Flatter (with strips)
WB48-1A Flatter Strips, 49 inch,  18 ct.  - Specify Grit



91267
** SUPERBRUSH 24 220V, 1PH (INCLUDES 1 BRUSH) FAST FEED OPTION OF 30 FPM IS AVAILABLE ON 24 & 36 AVAILABLE
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 91267
SMT91267
lease to own for as little as:$155 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
NEW ITEM
$7,999.00

75
93267
** SUPERBRUSH 24 220V, 3PH (INCLUDES 1 BRUSH) FAST FEED OPTION OF 30 FPM IS AVAILABLE ON 24 & 36 AVAILABLE
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 93267
SMT93267
lease to own for as little as:$155 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
NEW ITEM
$7,999.00

75
91367
** SUPERBRUSH 36 220V, 1PH (INCLUDES 1 BRUSH) FAST FEED OPTION OF 30 FPM IS AVAILABLE ON 24 & 36 AVAILABLE
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 91367
SMT91367
lease to own for as little as:$193 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
NEW ITEM
$9,999.00

75
93367
** SUPERBRUSH 36 220V, 3PH (INCLUDES 1 BRUSH) FAST FEED OPTION OF 30 FPM IS AVAILABLE ON 24 & 36 AVAILABLE
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 93367
SMT93367
lease to own for as little as:$193 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
NEW ITEM
$9,999.00

75
71497
** SUPERBRUSH 49 220V, 1PH (INCLUDES 1 BRUSH)
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 71497
SMT71497
lease to own for as little as:$353 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
$18,699.00

75
73497
** SUPERBRUSH 49 220V, 3PH (INCLUDES 1 BRUSH)
CALL TODAY FOR A BROTHER-IN-LAW DEAL ON THIS SUPERMAX SANDER
Mfg. item #: 73497
SMT73497
lease to own for as little as:$353 per month!
FREE Truck Shipping to any Location within the Lower 48 States, Lift-gate included at no charge when requested1046
$18,699.00

75
98-0130
CASTER WHEELS, SET OF 4 (FOR USE WITH OPEN STAND)
Mfg. item #: 98-0130
SMT98-0130
FREE shipping when ordered with a machine from this manufacturer.20
$98.79

75
98-2501
INFEED/OUTFEED TABLES ** FITS 25 & 25X2 SANDERS / SHELF SIZE = 10D X 25W
Mfg. item #: 98-2501
SMT98-2501
FREE shipping when ordered with a machine from this manufacturer.20
$269.00

75
98-3701
INFEED/OUTFEED TABLES ** FITS 37X2 SANDER / SHELF SIZE = 10D X 37W
Mfg. item #: 98-3701
SMT98-3701
FREE shipping when ordered with a machine from this manufacturer.20
$309.00

75   1
98-0118
PROSCALE DRO - DIGITAL READ OUT - DEPTH GAUGE
Mfg. item #: 98-0118
SMT98-0118
FREE shipping when ordered with a machine from this manufacturer.20
$449.00

75
98-0025
NLA - PLEASE CALL 800-458-3687 X1 FOR REPLACEMENT DETAILS
Mfg. item #: 98-0025
SMT98-0025
"Ships by UPS, see freight calculator at checkout."2
Call for Price

377
WB24-1
BRUSH HEAD, 24 - WIRE OR NYLON
Mfg. item #: WB24-1
SMTWB24-1
FREE shipping when ordered with a machine from this manufacturer.20
$1,999.00

75
WB24-1B
BRUSH HEAD, 24 - FLATTER (WITH STRIPS)
Mfg. item #: WB24-1B
SMTWB24-1B
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,499.00

75
WB24-1A
FLATTER STRIP SET, 24, 18 CT. - SPECIFY GRIT
Mfg. item #: WB24-1A
SMTWB24-1A
FREE shipping when ordered with a machine from this manufacturer.20
$449.00

75
WB36-1
BRUSH HEAD, 36 - WIRE OR NYLON
Mfg. item #: WB36-1
SMTWB36-1
FREE shipping when ordered with a machine from this manufacturer.20
$2,499.00

75
WB36-1B
BRUSH HEAD, 36 - FLATTER (WITH STRIPS)
Mfg. item #: WB36-1B
SMTWB36-1B
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,999.00

75
WB36-1A
FLATTER STRIP SET, 36, 18 CT. - SPECIFY GRIT
Mfg. item #: WB36-1A
SMTWB36-1A
FREE shipping when ordered with a machine from this manufacturer.20
$679.00

75
WB48-1
BRUSH HEAD, 49 - WIRE OR NYLON
Mfg. item #: WB48-1
SMTWB48-1
lease to own for as little as:$68 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$3,499.00

371
WB48-1B
BRUSH HEAD, 49 - FLATTER (WITH STRIPS)
Mfg. item #: WB48-1B
SMTWB48-1B
lease to own for as little as:$68 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$3,499.00

371
WB48-1A
FLATTER STRIPS, 49, 18 CT. - SPECIFY GRIT
Mfg. item #: WB48-1A
SMTWB48-1A
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$949.00

371
