| Cantek TAT10 and TAT10-5 Industrial 10 inch cabinet table |
Cantek TA12 Industrial 12 inch cabinet table saw |
Cantek TA14 Industrial 14 inch cabinet table saw |
Cantek TA1214 Industrial 14 inch cabinet table saw |
Cantek TA16B Industrial 16 inch cabinet table saw |
| Models | |
|---|---|
| TAT10 | TAT10 Industrial 10 inch cabinet table with 3HP motor |
| TAT10-5 | TAT10-5 Industrial 10 inch cabinet table with 5HP motor |
| TA12 | TA12 Industrial 12 inch cabinet table saw with 5HP motor |
| TA14 | TA14 Industrial 14 inch cabinet table saw with 7.5HP motor |
| TA1214 | TA1214 Industrial 14 inch cabinet table saw with 10HP motor |
| TA16B | TA16B Industrial 16 inch cabinet table saw with 10HP motor |

Industrial 10 inch cabinet table saw with 3HP motor.
The Cantek TA10 10 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 3HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 10 inch |
| Max. depth of cut at 90 deg | 3 inch |
| Max. depth of cut at 45 deg | 2 inch |
| Arbor diameter | 5/8 inch |
| Dado arbor diameter | 5/8 inch |
| Arbor speed | 4200 RPM |
| Table size | 36 inchx27 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 3HP |
| Electrical | 230/1/60 = 17 Full Load Amps |
| Net weight | 407 lbs |
| Gross weight | 497 lbs |
| Packing size (LxWxH) | 29 inchx36 inchx42 inch |

Industrial 10 inch cabinet table saw with 5HP motor.
The Cantek TA10-5 10 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 10 inch |
| Max. depth of cut at 90 deg | 3 inch |
| Max. depth of cut at 45 deg | 2 inch |
| Arbor diameter | 5/8 inch |
| Dado arbor diameter | 5/8 inch |
| Arbor speed | 4200 RPM |
| Table size | 36 inchx27 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 5HP |
| Electrical | 230/1/60 = 17 Full Load Amps |
| Net weight | 407 lbs |
| Gross weight | 497 lbs |
| Packing size (LxWxH) | 29 inchx36 inchx42 inch |

Industrial 12 inch cabinet table saw with 5HP motor.
The Cantek TA12 12 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 12 inch |
| Max. depth of cut at 90 deg | 4 inch |
| Max. depth of cut at 45 deg | 2-3/4 inch |
| Arbor diameter | 1 inch |
| Dado arbor diameter | 5/8 inch |
| Arbor speed | 4000 RPM |
| Table size | 48x x 30 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 5HP |
| Electrical | 230/3/60 = 15.2 Full Load Amps 230/1/60 = 28 Full Load Amps |
| Net weight | 572 lbs |
| Gross weight | 704 lbs |
| Packing size (LxWxH) | 32 inch x 36 inch x 42 inch |

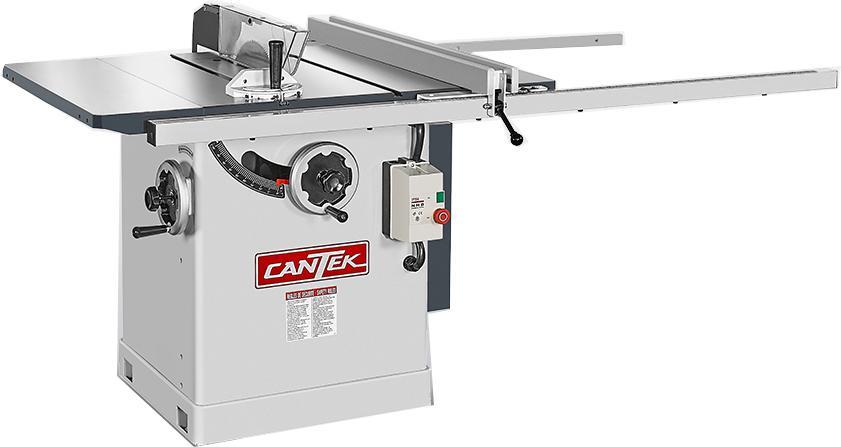

Industrial 14 inch cabinet table saw with 7.5HP motor.
The Cantek TA14 14 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 7.5HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 14 inch |
| Max. depth of cut at 90 deg | 5 inch |
| Max. depth of cut at 45 deg | 3-1/2 inch |
| Arbor diameter | 1 inch |
| Dado arbor diameter | 1 inch |
| Arbor speed | 3750 RPM |
| Table size | 48 x 38 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 7.5HP |
| Electrical | 230/3/60 = 22 Full Load Amps |
| Net weight | 874 lbs |
| Gross weight | 1012 lbs |
| Packing size (LxWxH) | 37 inch x 44 inch x 42 inch |

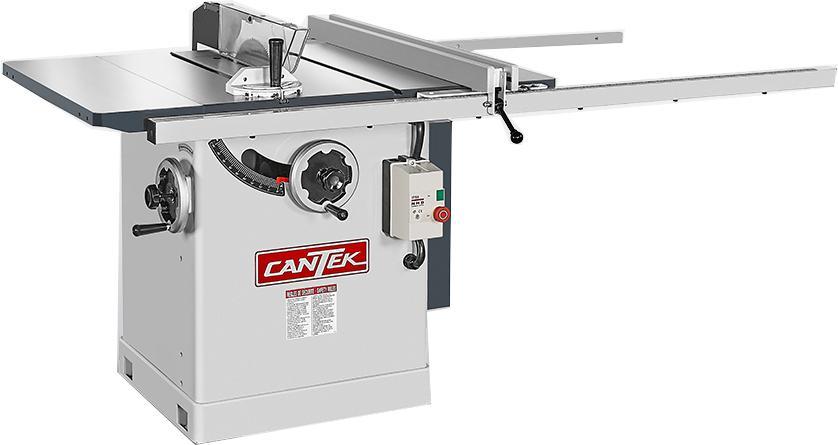

Industrial 14 inch cabinet table saw with 10HP motor.
The Cantek TA1214 14 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 10HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 14 inch |
| Max. depth of cut at 90 deg | 5 inch |
| Max. depth of cut at 45 deg | 3-1/2 inch |
| Arbor diameter | 1 inch |
| Dado arbor diameter | 1 inch |
| Arbor speed | 3750 RPM |
| Table size | 48 x 38 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 10 HP |
| Electrical |
230/3/60 = 28 Full Load Amps 460/3/60 = 14 Full Load Amps |
| Net weight | 874 lbs |
| Gross weight | 1012 lbs |
| Packing size (LxWxH) | 37 inch x 44 inch x 42 inch |

Industrial 16 inch cabinet table saw with 10HP motor.
The Cantek TA16B 16 inch Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground and polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch and metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 10HP motor it can make the cuts you need effortlessly.
Features:
| Specifications | |
|---|---|
| Saw Blade Diameter | 16 inch |
| Max. depth of cut at 90 deg | 5-1/2 inch |
| Max. depth of cut at 45 deg | 3-7/8 inch |
| Arbor diameter | 1 inch |
| Dado arbor diameter | 1 inch |
| Arbor speed | 3750 RPM |
| Table size | 48 x 38 inch |
| Table height | 34 1/4 inch |
| Max. rip to right of blade | 50 inch |
| Motor | 10 HP |
| Electrical |
230/3/60 = 28 Full Load Amps 460/3/60 = 14 Full Load Amps |
| Net weight | 869 lbs |
| Gross weight | 1036 lbs |
| Packing size (LxWxH) | 37 inch x 44 inch x 42 inch |
