Ensign 1000 Thern Davit Crane


Longer mast and boom provide increased hook height, making the Ensign 500
an excellent choice for clearing tall objects, such as hand rails, or lifting tall loads.

models
at a glance
Specifications
dimensions
Wire Rope

5PA10 SERIES - Portable Davit Crane
Popular Configurations
5PA10-M1	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with M4312PB-K spur gear hand winch - powder coat crane ** Weight = 160 lbs
5PA10G-M1	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with M4312PB-K spur gear hand winch galvanized crane ** Weight = 160 lbs
5PA10-M2	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with 4WM2V-K worm gear hand winch - powder coat crane ** Weight = 185 lbs
5PA10G-M2	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with 4WM2V-K worm gear hand winch - galvanized crane ** Weight = 185 lbs
5PA10S-M3	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with M4312PBSS-K spur gear hand winch stainless steel crane ** Weight = 167 lbs
5PA10-E2	5PA10 SERIES - Portable Davit Crane up to 1200 lb capacity with 4WP2V-K electric winch - powder coat crane ** Weight = 228 lbs
5PA10 Series Crane Only
5PA10	5PA10 Series Crane Only up to 1200 lb capacity - base model - powder coat finish ** Weight = 143 lbs
5PA10G	5PA10 Series Crane Only up to 1200 lb capacity - base model - galvanized finish ** Weight = 143 lbs
5PA10S	5PA10 Series Crane Only up to 1200 lb capacity - base model - 304 stainless steel finish ** Weight = 143 lbs
5PA10S316	5PA10 Series Crane Only up to 1200 lb capacity - base model - 316 stainless steel finish ** Weight = 143 lbs
5PA10X	5PA10 Series Crane Only up to 1200 lb capacity - base model - epoxy gray finish ** Weight = 143 lbs
5PA10 Winch Options (sold separately)
M1-5PA10	M4312PB-K spur gear hand winch only zinc plated - 5PA10 Winch Options (sold separately) ** Weight = 17 lbs
M2-5PA10	4WM2V-K worm gear hand winch only powder coat - 5PA10 Winch Options (sold separately) ** Weight = 42 lbs
M2X-5PA10	4WM2VEGRA-K worm gear hand winch only - epoxy gray - 5PA10 Winch Options (sold separately) ** Weight = 42 lbs
M3-5PA10	M4312PBSS-K spur gear hand winch only stainless steel - 5PA10 Winch Options (sold separately) ** Weight = 24 lbs
E2-5PA10	4WP2V-K electric winch 115/1/60 VAC with 6 ft pendant control enamel - 5PA10 Winch Options (sold separately) ** Weight = 85 lbs
E2X-5PA10	4WP2VEGRA-K electric winch 115/1/60 VAC with 6 ft pendant control epoxy gray - 5PA10 Winch Options (sold separately) ** Weight = 85 lbs
E4-5PA10	4777-K electric winch 115/1/60 VAC with 6 ft pendant control enamel - 5PA10 Winch Options (sold separately) ** Weight = 110 lbs
E4X-5PA10	4777EGRA-K electric winch 115/1/60 VAC with 6 ft pendant control epoxy gray - 5PA10 Winch Options (sold separately) ** Weight = 110 lbs
E4DC-5PA10	4777DC-K electric winch 12 volt DC with 10 ft pendant control enamel - 5PA10 Winch Options (sold separately) ** Weight = 105 lbs
E4DCX-5PA10	4777DCEGRA-K electric winch 12 volt DC with 10 ft pendant control epoxy gray - 5PA10 Winch Options (sold separately) ** Weight = 105 lbs
5PA10 Pedestal Base
5BP10-5PA10	5PA10 pedestal base - powder coat finish - upright mount (sold separately) ** Weight = 52 lbs
5BP10G-5PA10	5PA10 pedestal base - galvanized finish - upright mount (sold separately) ** Weight = 52 lbs
5BP10S-5PA10	5PA10 pedestal base - 304 stainless steel finish - upright mount (sold separately) ** Weight = 52 lbs
5BP10S316-5PA10	5PA10 pedestal base - 316 stainless steel finish - upright mount (sold separately) ** Weight = 52 lbs
5BP10X-5PA10	5PA10 pedestal base - gray epoxy finish - upright mount (sold separately) ** Weight = 52 lbs
5PA10 Socket Base
5BF10-5PA10	5PA10 socket base - powder coat finish - flush mount (sold separately) ** Weight = 44 lbs
5BF10G-5PA10	5PA10 socket base - galvanized finish - flush mount (sold separately) ** Weight = 44 lbs
5BF10S-5PA10	5PA10 socket base - 304 stainless steel finish - flush mount (sold separately) ** Weight = 44 lbs
5BF10S316-5PA10	5PA10 socket base - 316 stainless steel finish - flush mount (sold separately) ** Weight = 44 lbs
5BF10X-5PA10	5PA10 socket base - gray epoxy finish - flush mount (sold separately) ** Weight = 44 lbs
5PA10 Wall Mount Base
5BW10-5PA10	5PA10 wall mount base - powder coat finish (sold separately) ** Weight = 48 lbs
5BW10G-5PA10	5PA10 wall mount base - galvanized finish (sold separately) ** Weight = 48 lbs
5BW10S-5PA10	5PA10 wall mount base - 304 stainless steel finish (sold separately) ** Weight = 48 lbs
5BW10S316-5PA10	5PA10 wall mount base - 316 stainless steel finish (sold separately) ** Weight = 48 lbs
5BW10X-5PA10	5PA10 wall mount base - gray epoxy finish (sold separately) ** Weight = 48 lbs
5PA10 Base Extension
5BE10-15-5PA10	5PA10 base extension - powder coat finish (sold separately) ** Weight = 33 lbs
5BE10-15G-5PA10	5PA10 base extension - galvanized finish (sold separately) ** Weight = 33 lbs
5BE10-15S-5PA10	5PA10 base extension - 304 stainless steel finish (sold separately) ** Weight = 33 lbs
5BE10-15S316-5PA10	5PA10 base extension - 316 stainless steel finish (sold separately) ** Weight = 33 lbs
5BE10-15X-5PA10	5PA10 base extension - gray epoxy finish (sold separately) ** Weight = 33 lbs
5PA10 Series Crane Accessories
5PA10LS-EL-5PA10	5PA10 limit switch electric - see page 29 for limit switch ready winch options (sold separately) ** Weight = 5 lbs

How to build the Portable David Crane to meet your needs ?

1. What capacity do I need (How much weight am I going to lift) ?
2. How do I want to lift that load (Hand winch or power winch) ?
3. What Finish is required (Is this for Marine or perhaps a Corrosive environment) ?
4. How do I want to mount this (Wall or Flush Mount)
5. How much wire rope do I need (How high am I lifting the material) ?

Winch (Except on the popular configuration models) Pedestal Base and Wire Rope Sold SEPARATELY

Click here to download manual

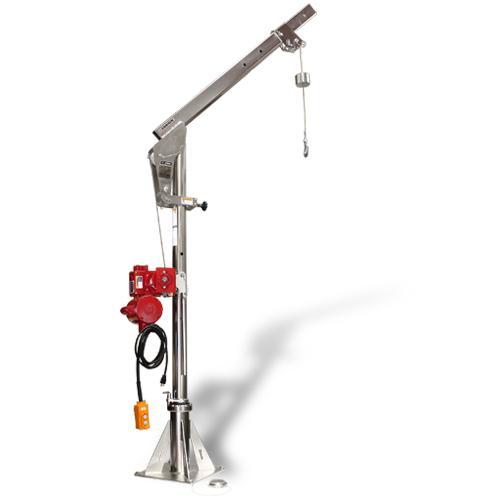

ENSIGN 1000

Shorter horizontal reach than the Commander Series, the Ensign 1000 features increased vertical hook height for clearing tall objects, such as handrails, or lifting tall loads.

QUICK FACTS

Load ratings up to 1200 lbs (544 kg)
Electric, Hydraulic or Pneumatic Operation
Rotates 360Âº
Quick-Disconnect Anchor
Available in 5 finishes
2-Year Standard Warranty

SERIES MODELS

5PA10

Features

Welded Steel Construction

Crane boom, mast and base fabricated from heavy-duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.

Adjustable Height and Reach

Sheave adjusts to 4 different positions along boom, and boom angle adjusts in height while with an easy-to-use adjustment screw.

Manual or Power Operation

Thern davit cranes can be configured with a spur or worm gear manual winch or power winch. Choose from Therns spur or worm gear hand winches or power winch with 115/1/60 as standard. Other voltages available as well as pneumatic, hydraulic or DC Volt power operation.
Adjustable Winch Mount Plate

The winch mount plate adjusts to 3 different positions on the mast and is easily removed with quick connect pins. Rotational handle attached to winch mounting plate.

Corrosion Resistant Finish

Electrostatic powder coated crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized, stainless steel and epoxy finishes.

360 Degree Rotation
Tapered roller bearing allows smooth and easy 360 deg crane rotation under load.
Easy Assembly/Disassembly

Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.

Quick Disconnect Anchor

For quickly attaching or removing wire rope equipped with a swaged ball fitting. This allows the operator to leave the wire rope attached to the load at all times and simply remove the rope from the winch and attach to the optional wire rope keeper, cable reel.

Variety of Bases (sold separately)

Pedestal, flush and wall mount bases allow for a variety of mounting solutions and are easily installed. Heavy-duty base cap included with lanyard keeps water and debris out of base when crane is removed. Standard powder coat finish on pedestal, flush and wall mounts. Other finish options available including galvanized, stainless steel and epoxy finishes.
Two-Year Warranty

Industry-leading two-year limited warranty on all our products.

IMPORTANT:

It is the owners or operators responsibility to determine the suitability of the equipment to its intended use. Study all applicable codes, manuals and regulations. Be sure to read the Owners Manual supplied with the equipment before operating

Ensign 1000 Lift Below Floor Level²
Lift Below Floor Level¹				Wire Rope Diameter		Wire Rope Length³		Winch Configurations
Min Pos B4		Max Pos B1						M1	M2	M3	E2
(ft)	(m)	(ft)	(m)	(in)	(mm)	(ft)	(m)
5	1.5	9	2.7	3/16	4.8	28	8.5	â¢	â	â¢	â
13	3.9	17	5.1	3/16	4.8	36	10.9	â¢	â	â¢	â
22	6.7	26	7.9	3/16	4.8	45	13.7	â¢	â	â¢	â
37	11.2	41	12.4	3/16	4.8	60	18.2	â¢	â	â¢	â
52	15.8	56	17.0	3/16	4.8	75	22.8	â¢	â	â¢	â
67	20.4	71	21.6	3/16	4.8	90	27.4	â¢	â	â¢	â

5	1.5	9	2.7	1/4	6.4	28	8.5	â¢	â¢	â¢	â¢
13	3.9	17	5.1	1/4	6.4	36	10.9	â¢	â¢	â¢	â¢
22	6.7	26	7.9	1/4	6.4	45	13.7	â¢	â¢	â¢	â¢
37	11.2	41	12.4	1/4	6.4	60	18.2	â	â¢	â¢	â¢
52	15.8	56	17.0	1/4	6.4	75	22.8	â	â	â	â

5	1.5	9	2.7	5/16	7.9	28	8.5	â¢	â	â¢	â
13	3.9	17	5.1	5/16	7.9	36	10.9	â¢	â	â¢	â
22	6.7	26	7.9	5/16	7.9	45	13.7	â	â	â	â

Crane Dimensions with Flush or Wall-Mount Base

Wire Rope
WA31-45DS	galvanized aircraft cable with swivel hook and unfinished end
WA38-36DS	galvanized aircraft cable with swivel hook and unfinished end
WS38-36DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA25-75NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA38-45DS	galvanized aircraft cable with swivel hook and unfinished end
WS19-75NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS25-75NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS31-45DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA31-60DS	galvanized aircraft cable with swivel hook and unfinished end
WS38-45DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA38-60DS	galvanized aircraft cable with swivel hook and unfinished end
WS31-60DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA31-75DS	galvanized aircraft cable with swivel hook and unfinished end
WS38-60DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA38-75DS	galvanized aircraft cable with swivel hook and unfinished end
WS31-75DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WS38-75DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA19-20NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WS19-20NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS19-28NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WA19-28NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-36NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA25-20NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WS19-36NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WA25-28NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WS25-20NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS25-28NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WA25-36NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA31-20DS	galvanized aircraft cable with swivel hook and unfinished end
WS25-36NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS31-20DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA19-45NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA25-45NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WA31-28DS	galvanized aircraft cable with swivel hook and unfinished end
WS19-45NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS25-45NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS31-28DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA31-36DS	galvanized aircraft cable with swivel hook and unfinished end
WA38-28DS	galvanized aircraft cable with swivel hook and unfinished end
WS38-28DS	304 stainless steel wire rope with SS swivel hook and unfinished end
WA25-60NS	galvanized aircraft cable with swivel hook and swaged ball fitting
WS19-60NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS25-60NS	304 stainless steel wire rope with SS swivel hook and swaged ball fitting
WS31-36DS	304 stainless steel wire rope with SS swivel hook and unfinished end

Wire Rope Assemblies for the THERN 5122 Davit Crane
WA19-20NS	3/16 in x 20 ft galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-28NS	3/16 in x 28 ft galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-36NS	3/16 in x 36 ft galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-45NS	3/16 in x 45 ft galvanized aircraft cable with swivel hook and swaged ball fitting
WS19-20NS	3/16 in x 20 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting
WS19-28NS	3/16 in x 28 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting
WS19-36NS	3/16 in x 36 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting
WS19-45NS	3/16 in x 45 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting
WS19-60NS	3/16 in x 60 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting
WS19-75NS	3/16 in x 75 ft 304 stainless steel wire rope with SS oval hook and swaged ball fitting

Ensign 1000 Thern Davit Crane
