Thern Wire Rope Assemblies

All Thern winches and cranes are sold without wire rope.

We can custom make any size wire rope assembly required
simply call 1-800-458-3687 today!

Wire Rope Assemblies
Made to Order for Your Winch or Crane.

Thern winches and cranes are sold without wire rope. However, we carry standard wire rope assemblies specifically designed for use with our winches and cranes. We also offer a wide variety of hooks and special end fittings, which allow us to customize a wire rope assembly to suit your application.

Whether you need winch ropes or crane rope, galvanized stainless steel or synthetic rope, our sales team can help you select the right wire rope assembly for your needs.

Tips for Ordering a Wire Rope Assembly
The breaking strength of new wire rope should be five times the size of the largest load for lifting applications, and three times the size of the larges load for pulling applications.

RESOURCES

WireRopePrimer-thumb-100

Wire Rope Primer
Wire Rope Assemblies



Available Standard Wire Rope Assemblies

  • 7 - 9 304 Stainless Steel wire rope assemblies for diameters up to 3/8 inch
  • 6 - 37 IWRC IPS wire rope assemblies for diameters between 3/8 and 1-1/2 inches
  • 6 - 37 IWRC EIPS wire rope assemblies for diameters between 3/8 and 1-1/2 inches

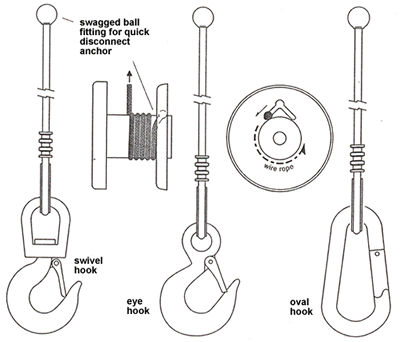

Available hooks and end fittings include swivel hooks, eye hooks and swaged ball anchors.

If you have questions about how to order a wire rope assembly for your winch or crane, Call 800 458-3687 Ext 1 today

thern hook styles

Available Standard Wire Rope Assemblies

  • 7x9 304 Stainless Steel wire rope assemblies for diameters up to 3/8 inch
  • 6x37 IWRC IPS wire rope assemblies for diameters between 3/8 and 1-1/2 inches
  • 6x37 IWRC EIPS wire rope assemblies for diameters between 3/8 and 1-1/2 inches

Available hooks and end fittings include swivel hooks, eye hooks and swaged ball anchors.

Breaking Strength of New Wire Rope (lb)
wire rope diameter 7 x 19 Galvanized Aircraft Cable 7 x 19 304 Stainless Steel wire rope
1/8 in    (.13) 2,000 1,760
3/16 in   (.19) 4,200 3,700
1/4 in    (.25) 7,000 6,400
5/16 in   (.31) 9,800 9,000
3/8 in    (.38) 14,400 12,000
wire rope diameter 6 x 37 IWRC IPS
(Improved Plow Steel) wire rope
6 x 37 IWRC EIPS
(Extra Improved Plow Steel) wire rope
3/8 in (.38) 12,400 15,100
7/16 in (.44) 16,500 20,400
1/2 in (.50) 23,000 26,600
9/16 in (.56) 29,000 33,600
5/8 in (.63) 35,800 41,200
3/4 in (.75) 51,200 58,800
7/8 in (.88) 69,200 79,600
1 in(1.00) 89,800 103,400
1-1/8 in (1.13) 113,000 130,000
1-1/4 in (1.25) 138,800 159,800
1-1/2 in (1.50) 197,800 228,000
Values shown are for reference only. When selecting a wire rope, use thebreaking strength specified by the rope manufacturer.



How to Order Wire Rope
The breaking strength of new wire rope should be 5 times the size of the largest load
for lifting applications, and 3 times the size of the largest load for pulling applications

Click on the part number below for pricing
Note: Made to Order of any size wire rope available - Call 800-458-3687





Wire Rope Assemblies
model number wire rope diameter x length  approx ship weight
galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-20NS 3/16 in x 20 ft 3 lb
WA19-28NS 3/16 in x 28 ft 4 lb
WA19-36NS 3/16 in x 36 ft 4 lb
WA19-45NS 3/16 in x 45 ft 7 lb
WA25-20NS 1/4 in x 20 ft 4 lb
WA25-28NS 1/4 in x 28 ft 5 lb
WA25-36NS 1/4 in x 36 ft 6 lb
WA25-45NS 1/4 in x 45 ft 7 lb
WA25-60NS 1/4 in x 60 ft 9 lb
WA25-75NS 1/4 in x 75 ft 11 lb
galvanized aircraft cable with swivel hook and unfinished end
WA31-20DS 5/16 in x 20 ft 6 lb
WA31-28DS 5/16 in x 28 ft 7 lb
WA31-36DS 5/16 in x 36 ft 8 lb
WA31-45DS 5/16 in x 45 ft 10 lb
WA31-60DS 5/16 in x 60 ft 12 lb
WA31-75DS 5/16 in x 75 ft 15 lb
304 stainless steel wire rope with SS oval hook and swagedball fitting -
swivel hook also available please call
WS19-20NS 3/16 in x 20 ft 3 lb
WS19-28NS 3/16 in x 28 ft 3 lb
WS19-36NS 3/16 in x 36 ft 4 lb
WS19-45NS 3/16 in x 45 ft 7 lb
WS19-60NS 3/16 in x 60 ft 9 lb
WS19-75NS 3/16 in x 75 ft 11 lb
304 stainless steel wire rope with SS eye hook and swagedball fitting -
swivel hook also available please call
WS25-20NE 1/4 in x 20 ft 5 lb
WS25-28NE 1/4 in x 28 ft 5 lb
WS25-36NE 1/4 in x 36 ft 6 lb
WS25-45NE 1/4 in x 45 ft 7 lb
WS25-60NE 1/4 in x 60 ft 9 lb
WS25-75NE 1/4 in x 75 ft 11 lb
304 stainless steel wire rope with SS eye hook and unfin-ished end -
swivel hook also available please call
WS31-20DE 5/16 in x 20 ft 6 lb
WS31-28DE 5/16 in x 28 ft 7 lb
WS31-36DE 5/16 in x 36 ft 9 lb
WS31-45DE 5/16 in x 45 ft 11 lb
WS31-60DE 5/16 in x 60 ft 14 lb
WS31-75DE 5/16 in x 75 ft 17 lb



WA19-20NS
3/16 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 8 LBS
Mfg. item #: WA19-20NS
THEWA19-20NS
FREE shipping when ordered with a machine from this manufacturer.20
$111.97

35
WA19-28NS
3/16 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 10 LBS
Mfg. item #: WA19-28NS
THEWA19-28NS
FREE shipping when ordered with a machine from this manufacturer.20
$116.64

35
WA19-36NS
3/16 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 12 LBS
Mfg. item #: WA19-36NS
THEWA19-36NS
FREE shipping when ordered with a machine from this manufacturer.20
$121.30

35
WA19-45NS
3/16 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 15 LBS
Mfg. item #: WA19-45NS
THEWA19-45NS
FREE shipping when ordered with a machine from this manufacturer.20
$139.97

35
WA25-20NS
1/4 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 8 LBS
Mfg. item #: WA25-20NS
THEWA25-20NS
FREE shipping when ordered with a machine from this manufacturer.20
$121.30

35
WA25-28NS
1/4 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 10 LBS
Mfg. item #: WA25-28NS
THEWA25-28NS
FREE shipping when ordered with a machine from this manufacturer.20
$125.97

35   1
WA25-36NS
1/4 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 11 LBS
Mfg. item #: WA25-36NS
THEWA25-36NS
FREE shipping when ordered with a machine from this manufacturer.20
$135.30

35
WA25-45NS
1/4 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 14 LBS
Mfg. item #: WA25-45NS
THEWA25-45NS
FREE shipping when ordered with a machine from this manufacturer.20
$153.96

35
WA25-60NS
1/4 IN X 60 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 17 LBS
Mfg. item #: WA25-60NS
THEWA25-60NS
FREE shipping when ordered with a machine from this manufacturer.20
$172.62

35
WA25-75NS
1/4 IN X 75 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 15 LBS
Mfg. item #: WA25-75NS
THEWA25-75NS
FREE shipping when ordered with a machine from this manufacturer.20
$200.62

35
WA31-20DS
5/16 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 18 LBS
Mfg. item #: WA31-20DS
THEWA31-20DS
FREE shipping when ordered with a machine from this manufacturer.20
$149.30

35
WA31-28DS
5/16 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 21 LBS
Mfg. item #: WA31-28DS
THEWA31-28DS
FREE shipping when ordered with a machine from this manufacturer.20
$172.62

35
WA31-36DS
5/16 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 26 LBS
Mfg. item #: WA31-36DS
THEWA31-36DS
FREE shipping when ordered with a machine from this manufacturer.20
$181.95

35
WA31-45DS
5/16 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 31.5 LBS
Mfg. item #: WA31-45DS
THEWA31-45DS
FREE shipping when ordered with a machine from this manufacturer.20
$195.95

35
WA31-60DS
5/16 IN X 60 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 3 LBS
Mfg. item #: WA31-60DS
THEWA31-60DS
FREE shipping when ordered with a machine from this manufacturer.20
$205.28

35
WA31-75DS
5/16 IN X 75 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END ** SHIPPING WEIGHT = 3 LBS
Mfg. item #: WA31-75DS
THEWA31-75DS
FREE shipping when ordered with a machine from this manufacturer.20
$219.28

35
WS19-20NS
3/16 IN X 20 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 6 LBS
Mfg. item #: WS19-20NS
THEWS19-20NS
FREE shipping when ordered with a machine from this manufacturer.20
$191.29

35
WS19-28NS
3/16 IN X 28 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 7 LBS
Mfg. item #: WS19-28NS
THEWS19-28NS
FREE shipping when ordered with a machine from this manufacturer.20
$200.62

35
WS19-36NS
3/16 IN X 36 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 9 LBS
Mfg. item #: WS19-36NS
THEWS19-36NS
FREE shipping when ordered with a machine from this manufacturer.20
$214.61

35
WS19-45NS
3/16 IN X 45 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 11 LBS
Mfg. item #: WS19-45NS
THEWS19-45NS
FREE shipping when ordered with a machine from this manufacturer.20
$228.61

35
WS19-60NS
3/16 IN X 60 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 14 LBS
Mfg. item #: WS19-60NS
THEWS19-60NS
FREE shipping when ordered with a machine from this manufacturer.20
$256.60

35
WS19-75NS
3/16 IN X 75 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING ** SHIPPING WEIGHT = 17 LBS
Mfg. item #: WS19-75NS
THEWS19-75NS
FREE shipping when ordered with a machine from this manufacturer.20
$289.26

35
WS25-20NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-20NE
THEWS25-20NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS25-28NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-28NE
THEWS25-28NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS25-36NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-36NE
THEWS25-36NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS25-45NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-45NE
THEWS25-45NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS25-60NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-60NE
THEWS25-60NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS25-75NE
OLD PART # DO NOT USE !
Mfg. item #: WS25-75NE
THEWS25-75NE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-20DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-20DE
THEWS31-20DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-28DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-28DE
THEWS31-28DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-36DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-36DE
THEWS31-36DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-45DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-45DE
THEWS31-45DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-60DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-60DE
THEWS31-60DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
WS31-75DE
OLD PART # DO NOT USE !
Mfg. item #: WS31-75DE
THEWS31-75DE
"Ships by UPS, see freight calculator at checkout."2
Call for Price

35
