Call 800-458-3687 For Expert Advice, Serving Customers For Almost 100 Years !

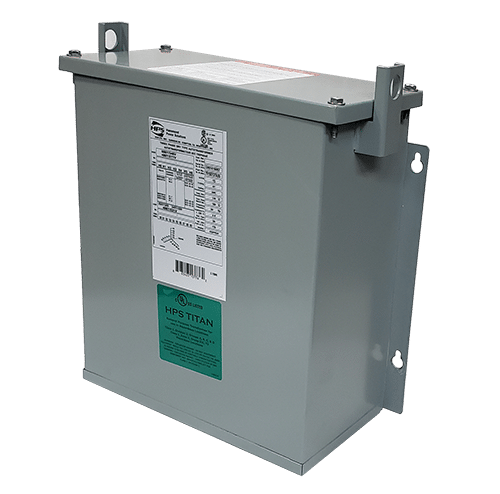

small-transformer.

transformer-square

Three Phase Transformer

UL and CUL Listed
60 Hz
Multiple knockouts for easy installation
Dimensions are listed in (L x W x H)

Note:
Transformer inventory levels can change quickly, for live inventory please call us! It is recommended to size a transformer 20% larger per motor starting loads. We carry MANY MORE Transformers, please call us if your specific request is not here!

at a glance
Accessories

Transformer Sizing Chart:

Three Phase Dry Type Transformer Data
	Voltage Rating						Voltage Rating
KVA Rating	208v	240v	380/400v	480v	600v	KVA Rating	208v	240v	380/400v	480v	600v
3	8.33	7.22	4.3	3.61	2.89	112.5	312	271	162	135	108
9	25	21.7	13	10.8	8.66	150	416	361	216	180	144
15	41.6	36.1	21.7	18	14.4	225	625	541	324	271	217
30	83.3	72.2	43.3	36.1	28.9	300	833	722	433	361	289
45	125	108	65	54.1	43.3	500	1388	1203	721	601	481
75	208	180	108	90.2	72.2

AUTO TRANSFORMERS
TFHAMY009CECB3L0U	9KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY009QTCF3L0U	9KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY015CECB3L0U	15KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY015QTCF3L0U	15KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY030CECF3L0U	30KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY030QTCN3L0U	30KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY045CECF3L0U	45KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY045QTCH3L0U	45KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY075CECN3L0U	75KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY075QTCH3L0U	75KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY112QTCH3L0U	112KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY150QTCH3L0U	150KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
ISOLATION TRANSFORMERS
ARSG3A0015BK	15KVA 3ph 208-480v Isolation Transformer
ARSG3A0015DB	15KVA 3ph 240-208v Isolation Transformer
ARSG3A0015DK	15KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0030BK	30KVA 3ph 208-480v Isolation Transformer
ARSG3A0030DB	30KVA 3ph 240-208v Isolation Transformer
ARSG3A0030DK	30KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0045BK	45KVA 3ph 208-480v Isolation Transformer
ARSG3A0045DB	45KVA 3ph 240-208v Isolation Transformer
ARSG3A0045DK	45KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0075BK	75KVA 3ph 208-480v Isolation Transformer
ARSG3A0075DB	75KVA 3ph 240-208v Isolation Transformer
ARSG3A0075DK	75KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0112BK	112KVA 3ph 208-480v Isolation Transformer
ARSG3A0112DB	112KVA 3ph 240-208v Isolation Transformer
ARSG3A0112DK	112KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0150BK	150KVA 3ph 208-480v Isolation Transformer
ARSG3A0150DB	150KVA 3ph 240-208v Isolation Transformer
ARSG3A0150DK	150KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0225DB	225KVA 3ph 240-208v Isolation Transformer
ARSG3A0225DK	225KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0300DB	300KVA 3ph 240-208v Isolation Transformer
ARSG3A0300DK	300KVA 3ph 240 to 480v Isolation Transformer
