Triangle High Velocity Fans

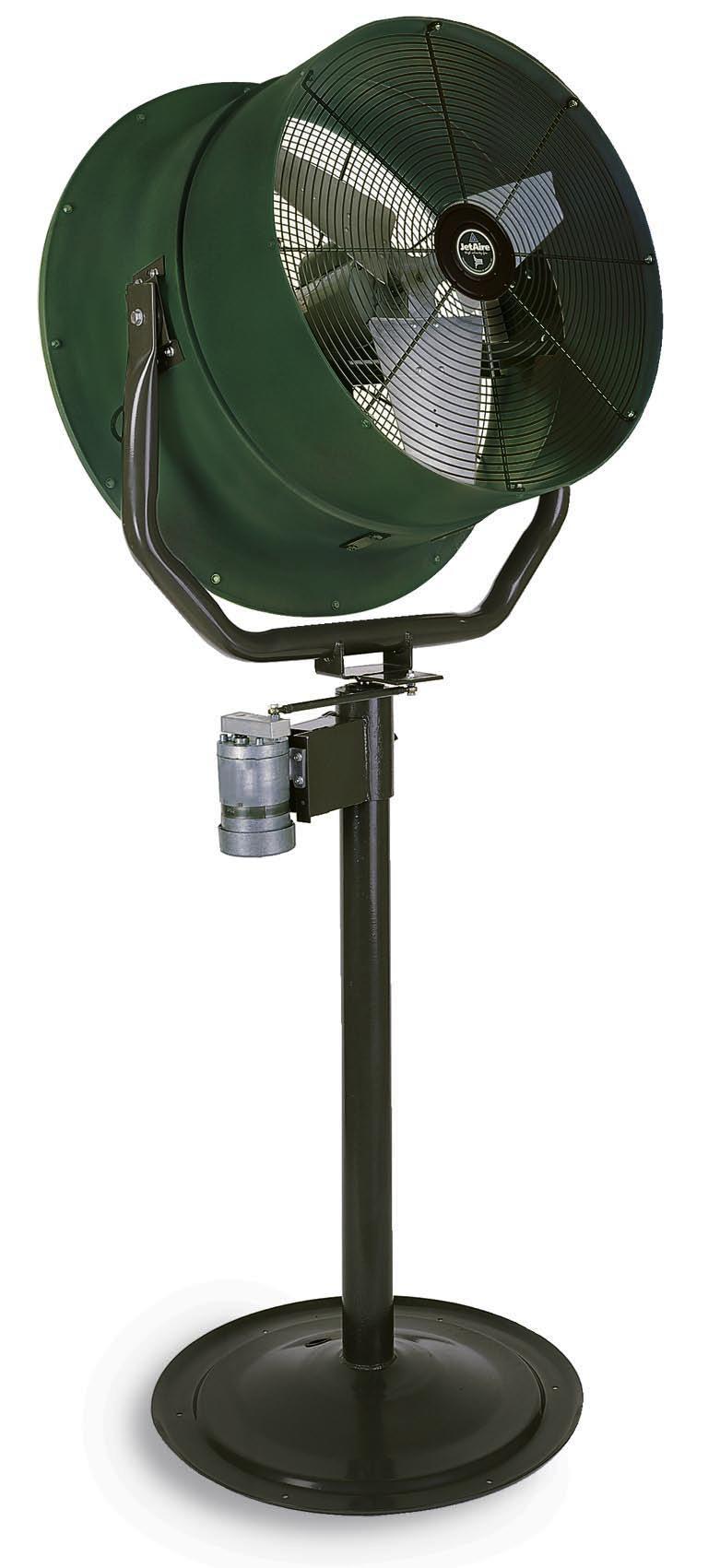

Fan Shown with Optional Stand



High Velocity Fans



   Brochure

   Jetaire High Velocity Manual

   54 inch Golf Course Fan Manual

Fan Fan



Triangles JetAire High Velocity Fans are manufactured with durable polypropylene barrels and equipped with totally enclosed motors

  • Available with 24" and 30" dia. fan blades
  • Ideal for industrial/commercial and Golf Course applications
  • Available with or without oscillation
  • Moves a large concentration of air at distances of 100 feet or more
  • Tiltable head for desired direction of air flow
  • Optional mounting equipment for adapting fans to various applications such as pole, tree, column, or beam mount
  • Motors are available in single or three phase
  • Can be equipped with cool mist system
  • Choice of Industrial Gray or Hunter Green

JetAire
High-Velocity Fans Versatile, Powerful & Ideally Suited for
Factory, Golf Course, Warehouse, and Dairy Operations

Concentrated air velocity at distances of 100 ft. or more!

Standard Features

  • Perfectly suited for dusty or moist environments: totally enclosed motor wit Polypropylene barrel

  • Metal components finished with moisture-resistant polyester powder-coat for outdoor use

  • Can be equipped with mist type cooling system

  • Can be tilted to direct air flow

  • Choice of single or 3-phase motors

  • Choice of five mounting options

JETAIRE HIGH VELOCITY FANS*
Model No. Blade
Dia.
CFM RPM Motor
HP
Amps Volts Ship
Wt. (lbs)
115/230 volt, 60 Hertz, single phase with Totally Enclosed Motor
HV 2413 24" 5,600 1,075 1 / 2 8.0 / 4.0 115 / 230 173
HV 2413 OC 183
HV 2415 24" 5,900 1,140 1 10.6 / 5.3 115 / 230 178
HV 2415 OC 188
HV 3013 30" 7,900 1,075 1 / 2 8.0 / 4.0 115 / 230 173
HV 3013 OC 183
HVD 3013 221
HV 3015 30" 10,600 1,140 1 10.6 / 5.3 115 / 230 178
HV 3015 OC 188
HVD 3015 218
230/460 volt, 60 Hertz, three phase with Totally Enclosed Motor
HV 2413-460 24" 5,600 1,075 1/2 2.6 / 1.3 230 / 460 171
HV 2413 OC-460 181
HV 2415-460 24" 5,900 1,140 1 3.6 / 1.8 230 / 460 176
HV 2415 OC-460 186
HV 3013-460 30" 7,900 1,075 1/2 2.6 / 1.3 230 / 460 171
HV 3013 OC-460 181
HV 3015-460 30" 10,600 1,140 1 3.6 / 1.8 230 / 460 176
HV 3015 OC-460 186

Specifications Subject to change without notice.

Post or Tree Mount Post or Tree Mount Dolly Mount
s-h alt s-h alt s-h alt
For HV 24 or HV 30 Fans For HV 24 or HV 30 Fans Models HDV3013 & HVD3015

** On 54" Golf Course Fans the customer will need to provide a pedestal mount (2" pipe) from your local lumber store and secure it iin the ground with concrete



Mounting Hardware for HV 24 or HV 30 Fans
HMB2430 JetAire High Velocity  Fan-Horizontal Mounting Bracket-plus $20./ ft. if over 16"
PB2430 Pedestal Base with 42" Pole For JETAIRE High Velocity Fans, 5lbs
JET AIRE - High Velocity Fans
HV2413 JetAire High Velocity Fan-24" Blade, CFM-5600, RPM-1075, 115/230V, 1/2HP, 8/4A, 118lbs
HV2413-460 JetAire High Velocity Fan-24" Blade, CFM-5600, RPM-1075, 230/460V, 1HP, 2.6/1.3A, 118lbs
HV2413OC JetAire High Velocity Oscillating Fan-24" Blade, CFM-5600, RPM-1075, 115/230V, 1/2HP, 8/4A, 122lbs
HV2413OC-460 JetAire High Velocity Oscillating Fan-24" Blade, CFM-5600, RPM-1075, 230/460V, 1HP, 10.6/5.3A, 122lbs
HV2415 JetAire High Velocity Fan-24" Blade, CFM-5900, RPM-1140, 115/230V, 1HP, 10.6/5.3A, 141lbs
HV2415-460 JetAire High Velocity Fan-24" Blade, CFM-5900, RPM-1140, 115/230V, 1/2HP, 3.6/1.8A, 141lbs
HV2415OC JetAire High Velocity Oscillating Fan-24" Blade, CFM-5900, RPM-1140, 115/230V, 1HP, 10.6/5.3A, 146lbs
HV2415OC-460 JetAire High Velocity Oscillating Fan-24" Blade, CFM-5900, RPM-1140, 230/460V, 1/2HP, 3.6/1.8A, 146lbs
HV3013 JetAire High Velocity Fan-30" Blade, CFM-7900, RPM-1075, 115/230V, 1/2HP, 8/4/1.8A, 156lbs
HV3013OC-460 JetAire High Velocity Oscillating Fan-30" Blade, CFM-7900, RPM-1075, 230/460V, 1/2HP, 2.6/4/1.3A, 159lbs
HV3013-460 JetAire High Velocity Fan-30" Blade, CFM-7900, RPM-1075, 230/460V, 1/2HP, 2.6/4/1.3A, 159lbs
HV3013OC JetAire High Velocity Oscillating Fan-30" Blade, CFM-7900, RPM-1075, 115/230V, 1/2HP, 8/4/1.8A, 159lbs
HV3015 JetAire High Velocity Fan-30" Blade, CFM-10,600, RPM-1140, 115/230V, 1HP, 10.6/5.3A, 163lbs
HV3015OC-460 JetAire High Velocity Oscillating Fan-30" Blade, CFM-10,600, RPM-1140, 230/460V, 1HP, 3.6/1.8A, 166lbs
HV3015-460 JetAire High Velocity Fan-30" Blade, CFM-10,600, RPM-1140, 230/460V, 1HP, 3.6/1.8A, 163lbs
HV3015OC JetAire High Velocity Oscillating Fan-30" Blade, CFM-10,600, RPM-1140, 115/230V, 1HP, 10.6/5.3A, 166lbs
HV5418 JetAire High Velocity Golf Course Fan-54" Blade, CFM-27,900, RPM-410, 230/460V, 3HP, 8.6/4.3A, 459lbs
HV5418-230 JetAire High Velocity Golf Course Fan-54" Blade, CFM-27,900, RPM-410, 230V, 3HP, 14A,483lbs
HV5418OC JetAire High Velocity Golf Course Oscillating Fan-54" Blade, CFM-27,900, RPM-410, 230/460V, 3HP, 8.6/4.3A, 489lbs
HV5418OC-230 JetAire High Velocity Golf Course Oscillating Fan-54" Blade, CFM-27,900, RPM-410, 230V, 3HP, 14A, 513lbs
HV5419 JetAire High Velocity Golf Course Fan-54" Blade, CFM-42,500, RPM-500, 230/460V, 5HP, 13.2/6.6A,475lbs
HV5419-230 JetAire High Velocity Golf Course Fan-54" Blade, CFM-42,500, RPM-500, 230V, 5HP, 22A,518lbs
HV5419OC JetAire High Velocity Oscillating Golf Course Fan-54" Blade, CFM-42,500, RPM-500, 230/460V, 5HP, 13.2/6.6A,505lbs
HV5419OC-230 JetAire High Velocity Oscillating Golf Course Fan-54" Blade, CFM-42,500, RPM-500, 230V, 5HP, 22A,505lbs
HVD3013 JetAire High Velocity Fan-30", CFM-7900, RPM, 1075, 115/230V, 1/2HP, 8/4A, 156lbs
HVD3015 JetAire High Velocity Fan-30", CFM-10,600, RPM, 1140, 115/230V, 1HP, 10.6/5.3A, 208lbs



** OC Indicates Oscilating Fan

Note: Mounting Post for 54" Fans not available must be provided by the customer

Fan Accessories
VMB2430 VERTICAL MOUNTING BRACKET
HMB2430 HORZONITAL MOUNTING BRACKET
PB2430 PEDISTAL BASE



Mounting brackets must be purchased on all HV 24 or HV 30 fans. On HV 54 Golf Course Fans the customer will need to provide a mounting pedistal (PIPE) from your local lumber or hardware store and secure with concrete at the desired loaction.

HMB2430
HORIZONTAL MOUNTING BRACKET - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 34 LBS
Mfg. item #: HMB2430
TRIHMB2430
Call for freight quote on this item or we will confirm freight charges before shipping.1
$158.42

132
PB2430
PEDESTAL BASE - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 45 LBS
Mfg. item #: PB2430
TRIPB2430
Call for freight quote on this item or we will confirm freight charges before shipping.1
$223.38

132
HV2413
24 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 173 LBS
Mfg. item #: HV2413
TRIHV2413
Call for freight quote on this item or we will confirm freight charges before shipping.1
$975.60

132
HV2413-460
24 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 171 LBS
Mfg. item #: HV2413-460
TRIHV2413-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$943.68

132
HV2413OC
24 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 183 LBS
Mfg. item #: HV2413OC
TRIHV2413OC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,473.11

132
HV2413OC-460
24 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 181 LBS
Mfg. item #: HV2413OC-460
TRIHV2413OC-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,442.82

132
HV2415
24 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 178 LBS
Mfg. item #: HV2415
TRIHV2415
Call for freight quote on this item or we will confirm freight charges before shipping.1
$972.25

132
HV2415-460
24 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 176 LBS
Mfg. item #: HV2415-460
TRIHV2415-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$979.59

132
HV2415OC
24 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 188 LBS
Mfg. item #: HV2415OC
TRIHV2415OC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,500.69

132
HV2415OC-460
24 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 186 LBS
Mfg. item #: HV2415OC-460
TRIHV2415OC-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,476.89

132
HV3013
30 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 173 LBS
Mfg. item #: HV3013
TRIHV3013
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,000.38

132
HV3013OC-460
30 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 181 LBS
Mfg. item #: HV3013OC-460
TRIHV3013OC-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,499.06

132
HV3013-460
30 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 171 LBS
Mfg. item #: HV3013-460
TRIHV3013-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$971.15

132
HV3013OC
30 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 183 LBS
Mfg. item #: HV3013OC
TRIHV3013OC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,528.27

132
HV3015
30 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 178 LBS
Mfg. item #: HV3015
TRIHV3015
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,028.50

132
HV3015OC-460
30 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 186 LBS
Mfg. item #: HV3015OC-460
TRIHV3015OC-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,533.13

132
HV3015-460
30 JETAIRE HIGH VELOCITY DIRECT DRI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 176 LBS
Mfg. item #: HV3015-460
TRIHV3015-460
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,005.34

132
HV3015OC
30 OSCILLATING - JETAIRE HIGH VELO - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 188 LBS
Mfg. item #: HV3015OC
TRIHV3015OC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,555.85

132

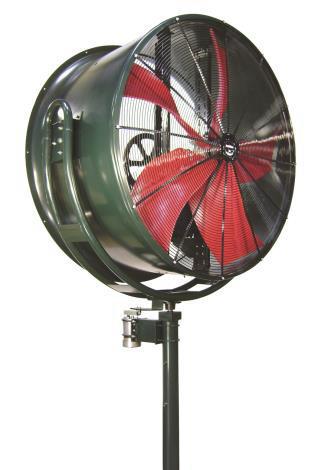

HV5418
54 GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 3 HP - 230/460 VOLT, 60 HERTZ, 3 PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5418
TRIHV5418
lease to own for as little as:$111 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$5,550.66

812
HV5418-230
54 GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 3 HP - 230 VOLT, 60 HERTZ, SINGLE PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5418-230
TRIHV5418-230
lease to own for as little as:$117 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$5,873.96

812
HV5418OC
54 OSCILLATING GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 3 HP - 230/460 VOLT, 60 HERTZ, 3 PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5418OC
TRIHV5418OC
lease to own for as little as:$124 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$6,196.72

812
HV5418OC-230
54 OSCILLATING GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 3 HP - 230 VOLT, 60 HERTZ, SINGLE PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5418OC-230
TRIHV5418OC-230
lease to own for as little as:$130 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$6,519.48

812
HV5419
54 GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 5 HP - 230/460 VOLT, 60 HERTZ, 3 PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5419
TRIHV5419
lease to own for as little as:$113 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$5,632.42

812
HV5419-230
54 GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 5 HP - 230 VOLT, 60 HERTZ, SINGLE PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5419-230
TRIHV5419-230
lease to own for as little as:$119 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$5,954.65

812
HV5419OC
54 OSCILLATING GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 5 HP - 230/460 VOLT, 60 HERTZ, 3 PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5419OC
TRIHV5419OC
lease to own for as little as:$126 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$6,277.94

812
HV5419OC-230
54 OSCILLATING GOLF COURSE FAN - BELT DRIVEN / TILTING HEAD - 5 HP - 230 VOLT, 60 HERTZ, SINGLE PHASE WITH TOTALLY ENCLOSED MOTOR
Mfg. item #: HV5419OC-230
TRIHV5419OC-230
lease to own for as little as:$132 per month!
Free Shipping to commercial address OR terminal pickup. Residential or Limited Access add $75.00.
Items over 100lbs require a forklift or dock or add a $50.00 liftgate fee.1033
$6,600.71

812

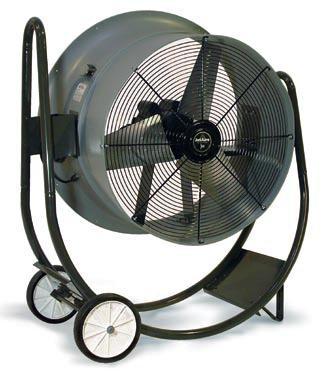

HVD3013
30 DOLLY MOUNT - DIRECT DRIVE / TI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 221 LBS
Mfg. item #: HVD3013
TRIHVD3013
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,274.64

132
HVD3015
30 DOLLY MOUNT - DIRECT DRIVE / TI - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 245 LBS
Mfg. item #: HVD3015
TRIHVD3015
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,302.76

132
VMB2430
VERTICAL MOUNTING BRACKET - JETAIRE HIGH VELOCITY FANS (HV SERIES) ** WGT = 26 LBS
Mfg. item #: VMB2430
TRIVMB2430
Call for freight quote on this item or we will confirm freight charges before shipping.1
$186.34

132
Copyright © 2017 Smith-Hamilton, Inc
0.016 150419 18:39
