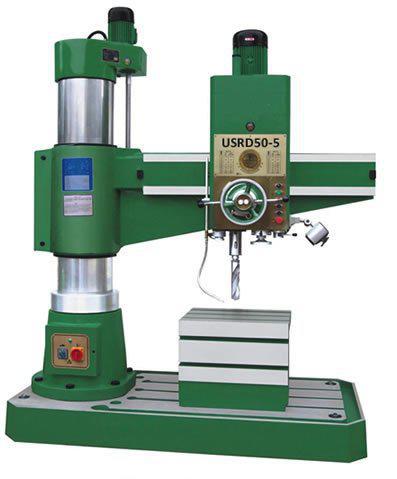

USI USRD50-5 49 inch Radial Drill Press

STANDARD EQUIPMENT: (All of the following comes with the machine)

  • Morse Taper 5 Spindle
  • Two side box work table, t-slotted
  • T-slotted base
  • Flood Coolant System
  • Power Arm Elevation
  • Manual Arm Clamp
  • High Precision, Low Noise Ground Gears
  • 12 inch + drilling depth
Specifications
Model RD50-5
Drilling Capacity (inch) 2
Minimum and Maximum spindle to column (inch) 13.8 to 49.2
Diameter of column (inch) 13.8
Morse Taper 5 Spindle
Spindle Travel 12.4 inch
Spindle speeds (16 speed gear driven) 25 to 1220 RPM
spindle feeds in Inches Per Revolution (16 feeds) (inch) 0.0016 to 0.126
Minimum and Maximum distance spindle to base (inch) 13.8 to 48
Box Table dimensions (inch) 24.8 x 19.7 x 19.7
Base dimensions (inch) 80.7 x 39.4 x 7.9
Overall dimensions (inch) 84.6 x 41.7 x 104.3
main spindle drive 5.4 HP  (208-240 OR 440-480 Volts, 3 phase)
Gross/Net weight lbs 7716/6820



There are no listed accessories.

RD50-5
49 RADIAL ARM DRILL PRESS
Mfg. item #: RD50-5
USIRD50-5
Ships by motor freight. Call for instant freight quote.3
Call for Price
