UnderWunder Underground Boring Machines

CALL 1-800-458-3687 FOR FREE FREIGHT
Some conditions may apply but never surprise handling charges when ordering

logo
Still Proudly Made In The Great State of Texas

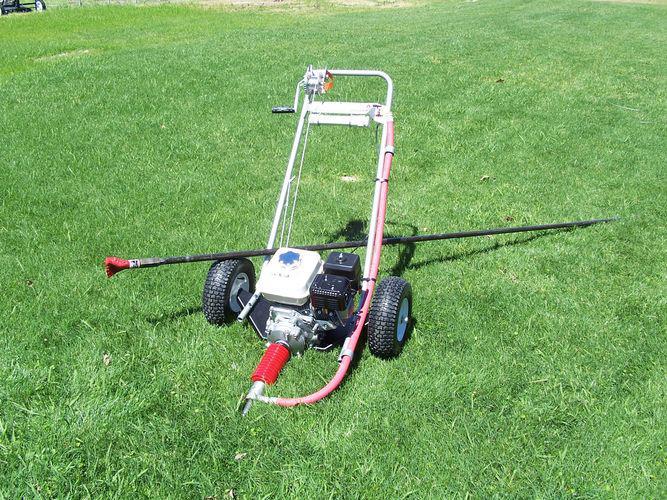

underground boring machine

Scroll down for more product details, and Accessories

H40
Mfg. item #: H40
UNDH40
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,187.50

4823
H55
Mfg. item #: H55
UNDH55
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,271.25

4823



THE ORIGINAL PORTABLE BORING MACHINE AMERICAN MADE
Since 1970, proven boring machines design for easy underground boring under existing structures manufacturing 2 to 6 inch hole diameters!

USED IN ALL KINDS OF INDUSTRIES
Landscape irrigation, Landscape lighting, Cable and fiber optic, Plumbing, water management, and many more!

SAVES TIME AND EMPLOYEES
Time is money. The UnderWunder at  96 LBS, Carbide bits, Heavy walled drill stem, and Alignment tools for accuracy and safety at affordable pricing can save you  both time, energy and money.

ALL ABOUT OUR BORING MACHINES
Our mission is to provide a quality piece of equipment at an affordable price.  We have since set the standard for durability and function since 1970.   All of our products have been designed by a seasoned irrigation professional.  We do not offer silly gadgets or pre-packaged concepts only what you need when you need it.  We are proud to state the vast majority of the components compromising our line are manufactured in-house.

TECHNICAL
Our machines weigh in at 96lbs. and are specifically designed to be transported without the use of a trailer.  Our bits are three-bladed and have leading carbide tipped edges arranged in a serrated pattern.  Water is used to keep the bits cool and to create slurry.  Our drill stem is manufactured from 1" O.D. extra heavy domestic steel pipe and come in sizes so that a pipe rack is not needed.

PERFECT BORES ALWAYS!!
By utilizing our boring machine on job sites you will be able to offer you and your customers a way to keep their existing structures (shrubs, trees, sidewalks, roads, etc.) looking perfect!  no more wasted time cutting concrete and unsightly concrete patches.  Complete your horizontal boring in minutes rather than hours and leave the job site looking as if you were never there.

Our selection of carbide bits and reamers remove only the amount of soil yo need, leaving the soil under the existing structure intact.  Our bits will cut through most rock, tree roots, and soil conditions.

 Allow our machine to do the work for you.  it is winch driven and does not require the operator to use brute force.  No more expending energy by hammer, drive, or force trying to lay pipe underground.  Remove the burden of boring from the operator and place it on the machine.



underwunder motors design extra low
Honda, Briggs and Stratton and Kohler (testing) in various sizes each with gear reduction and extra heavy duty flexible coupling. Dependable, Light weight, powerful proven design to complete your horizontal underground boring needs! Extra low out put to minimize the need for excessive redirection and a hand crank winch so manual pushing is not needed!
bits and reamers  drill stems sigh and alightment
Bits and reamers are made with proprietary extra durable steel and segmented carbide teeth on three blades to increase serrated cutting action. Extra heavy walled drill stems for durability and the flexibility needed. Each drill stem has male and female welded couplings that are hexagon shaped to assist in there disassembly Customers have questions, you have answers. Display the most frequently asked questions, so everybody benefits



FAQs

  •  Why does your machine use the 5.5hp engine?
  • With almost 40 years of experience, it has been proven the use of the 5.5hp engine is enough power to safely get the job done.
  • Your bits have multiple pieces of carbide rather than one large piece, why?
  • Carbide is a very hard substance but it can and will shatter.  Our experience has shown us that using multiple pieces of carbide and strategically staggering them over the surface of the bits will work like a serrated knife to chip and cut through rock and tough conditions thus limiting damage to the carbide itself.
  • Why do you recommend the 4 piece "Sight and Alignment Package?"
  • This accessory helps to keep the drill stem on target while keeping the operator away from all rotating pieces.
  • How far can I bore with your machine?
  • We have found the majority of Horizontal boring completed with our machine are usually not over 50'.  Operators of our machine often comment boring over 100'.
  • What can I bore?
  • Our machine will easily bore through dirt, soil, clay, roots, sandstone, and most types of rock.
  • What is the winch for?
  • The winch provides over 300lbs of forward pressure.  At 96lbs a drive-train would not work the  way directional drilling machines do.
  • Why not use a clutch?
  • Our machine is designed to be efficient not overpowered.  At 5.5hp and 96lbs there is no need for a clutch to prevent rollover thus there is no need to have tracks like tunnel boring machines.



There are no listed accessories.
H40
Mfg. item #: H40
UNDH40
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,187.50

4823
H55
Mfg. item #: H55
UNDH55
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,271.25

4823
2003BC
Mfg. item #: 2003BC
UND2003BC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$117.50

4823
3503BC
Mfg. item #: 3503BC
UND3503BC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$163.75

4823
400RR
Mfg. item #: 400RR
UND400RR
Call for freight quote on this item or we will confirm freight charges before shipping.1
$250.00

4823
600RR
Mfg. item #: 600RR
UND600RR
Call for freight quote on this item or we will confirm freight charges before shipping.1
$271.25

4823
DT10
Mfg. item #: DT10
UNDDT10
Call for freight quote on this item or we will confirm freight charges before shipping.1
$110.00

4823
DT12
Mfg. item #: DT12
UNDDT12
Call for freight quote on this item or we will confirm freight charges before shipping.1
$122.50

4823
DT20
Mfg. item #: DT20
UNDDT20
Call for freight quote on this item or we will confirm freight charges before shipping.1
$136.25

4823
DT9
Mfg. item #: DT9
UNDDT9
Call for freight quote on this item or we will confirm freight charges before shipping.1
$110.00

4823
SAPKG
Mfg. item #: SAPKG
UNDSAPKG
Call for freight quote on this item or we will confirm freight charges before shipping.1
$187.50

4823
WPC
Mfg. item #: WPC
UNDWPC
Call for freight quote on this item or we will confirm freight charges before shipping.1
$27.50

4823
