VBS-1207VS-DC 12 inch Continuous Variable Speed Vertical Bandsaw |
VBS-1408, 14 inch VERTICAL BANDSAW |
VBS-1610, 16 inch VERTICAL BANDSAW |
VBS-1813VS-DC 18 inch Continuous Variable Speed Vertical Bandsaw |
|
|
|
|
|
|
VBS-2012VS-DC 20 inch Continuous Variable Speed Vertical Bandsaw |
VBS-2012, 20 inch VERTICAL BANDSAW |
VBS-3612, 36 inch VERTICAL BANDSAW |
| Models | |
|---|---|
| JT1-1375 | VBS-1207VS-DC 12 VS VERTICAL BANDSAW |
| 414483 | VBS-1408, 14 VERTICAL BANDSAW |
| 414485 | VBS-1610, 16 VERTICAL BANDSAW |
| JT1-1376 | VBS-1813VS-DC 18 VS VERTICAL BANDSAW |
| JT1-1377 | VBS-2012VS-DC 20 VS VERTICAL BANDSAW |
| 414482 | VBS-2012, 20 VERTICAL BANDSAW |
| 414470 | VBS-3612, 36 VERTICAL BANDSAW |
|

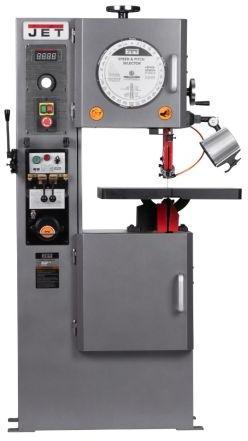

12 inch Continuous Variable Speed Vertical Bandsaw VBS-1207VS-DC Precision Meets Compact Design Elevate your metalworking capabilities with the JET 12 inch Continuous Variable Speed Vertical Bandsaw. Perfect for small to mid-sized projects, this compact yet powerful bandsaw is engineered to deliver exceptional performance with precision and efficiency. Featuring a robust brushless DC (BLDC) motor, it ensures smooth and accurate cuts across various materials. The continuous speed control allows for seamless adjustments, providing versatility for different cutting needs. The JET 12 inch Bandsaw is equipped with advanced safety features including blade guards and a blade breakage sensor, offering a secure working environment. Integrated LED lighting and an internal chip blower enhance visibility and maintain a clean workspace, making this bandsaw an excellent choice for craftsmen and fabricators seeking a reliable, space-saving tool. Ideal Applications:
Features:
|
| Specifications | |
|---|---|
| Stock Number | JT1-1375 |
| Model Number | VBS-1207VS-DC |
| Warranty | 2 Year |
| Blade Length (In.) | 98.81-102.27 |
| Blade Speeds Metal (SFPM) | Variable 80 - 1200 |
| Blade Width (Min.-Max.) (In.) | .118 - 0.51 |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height (In.) | 34.84 |
| Table Size (L x W) (In.) | 15.94 x 19.68 |
| Table Tilt (Deg.) | 45°R & 15°L |
| Throat Capacity (In.) | 12 |
| Motor Phase | Single |
| Motor (HP) | 1 |
| Motor Voltage (V.) | 110 |
| Motor Amps | 15 |
| Net weight | 348 |
| Assembled Machine Dimensions (L x W x H) (In.) | 33.07 x 22.83 x 61.42 |
| Gross Weight | 382 |
|
The Jet 14 inch Vertical Bandsaw, 1HP, 115/230V, 1 Ph, 115/230V The line of JET Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. An exclusive gear box design permits variety of cutting applications. Features you've come to expect, backed by the industry-leading JET Two Year Warranty
|
| Detailed Specifications | |
|---|---|
| Part Number | 414483 |
| Blade Length (in.) | 1/2 X 114 |
| Blade Size (in.) | 1/8 - 1/2 |
| Blade Speeds (SFPM) | 82 - 330 |
| Blade Width (Min-Max/ in.) | 1/8 - 1/2 |
| Brand | Jet |
| Cutting Capacity Height (in.) | 8 |
| Height | 71.5 inch |
| Length | 26 inch |
| Model Number | VBS-1408 |
| Motor | 1HP, 115/230V, 1Ph, Prewired 115V |
| Net Weight | 643 pound |
| Overall Dimensions | 34 x 24 x 68-1/2 inch |
| Table Height at 90 Degrees (in.) | 39 |
| Table Size (in.) | 20 x 20 |
| Table Tilt (deg.) | 8 F & B, 12 L & 15 R |
| Throat Depth (in.) | 14 |
| Welder (KVA) | 1.5 KVA |
| Width | 36 inch |
|
VBS-1610, 16 inch Vertical Bandsaw has a 2 Year warranty
|
| Detailed Specifications | |
|---|---|
| Part Number | 414485 |
| Blade Speeds (SFPM) | 82 - 3,950 |
| Height Capacity (Max.) (In.) | 10 |
| Throat Capacity (In.) | 15-1/2 |
| Table Size (L x W) (In.) | 22 x 24 |
| Table Tilt (Deg.) | 8 F & B, 12 L & 15 R |
| Blade Length (In.) | 123-1/2 |
| Blade Width (Min.-Max.) (In.) | 1/8 - 5/8 |
| Table Height (In.) | 40 |
| Motor (HP) | 2 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 37 x 28 x 72-1/2 |
| Weight (Lbs.) | 944 |
| Height | 78.0000 |
| Length | 38.5000 |
| Weight | 944.0000 |
| Width | 29.5000 |
|

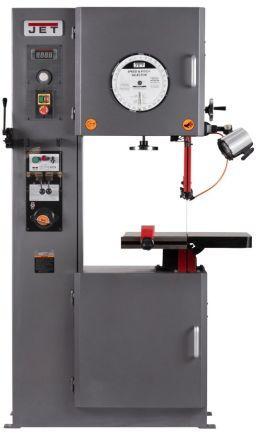

VBS-1813VS-DC 18 inch Continuous Variable Speed Vertical Bandsaw Power and Versatility Combined Take your metalworking to the next level with the JET 18 inch Continuous Variable Speed Vertical Bandsaw. Designed for larger projects and more demanding applications, this bandsaw features a generous throat capacity and a powerful brushless DC (BLDC) motor that handles big workpieces with ease. The continuous variable speed control allows for precise adjustments to match different materials, ensuring optimal cutting performance. Safety is paramount with advanced features like blade breakage sensors and LED lighting, which provide both protection and visibility. The JET 18 inch Bandsawâs robust construction and versatile capabilities make it an ideal addition to professional workshops looking for a dependable, high-performance tool. Ideal Applications:
Heavy-duty metal fabrication and cutting large metal sheets and profiles. Features:
|
| Specifications | |
|---|---|
| Stock Number | JT1-1376 |
| Model Number | VBS-1813VS-DC |
| Warranty | 2 Year |
| Blade Length (In.) | 145.66 - 418.33 |
| Blade Speeds Metal (SFPM) | Variable 90 - 1600 |
| Blade Width (Min.-Max.) (In.) | .118 - 0.51 |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height (In.) | 33.26 |
| Table Size (L x W) (In.) | 19.68 x 21.25 |
| Table Tilt (Deg.) | 45°R & 15°L |
| Throat Capacity (In.) | 18 |
| Motor Phase | 1 |
| Motor (HP) | 1 |
| Motor Voltage (V.) | 110 |
| Motor Amps | 15 |
| Blade Thickness | 0.025 |
| Blade Wheel Diameter (In.) | 18 |
| Net weight | 501 |
| Assembled Machine Dimensions (L x W x H) (In.) | 43.3 x 32.28 x71.65 |
| Gross Weight | 697 |
|
VBS-2012VS-DC 20 inch Continuous Variable Speed Vertical Bandsaw Ultimate Performance for Demanding Jobs Experience the pinnacle of power and precision with the JET 20 inch Continuous Variable Speed Vertical Bandsaw. Engineered for the most demanding industrial applications, this bandsaw boasts a 2 HP brushless DC motor and an expansive 20 inch throat capacity, making it perfect for tackling the toughest cuts. Continuous speed control ensures seamless adjustments for various materials, providing exceptional cutting accuracy. The JET 20 inch Bandsaw is equipped with comprehensive safety features, including blade breakage sensors and full blade guards, ensuring operator protection. The spacious table integrated LED lighting, and internal chip blower makes this bandsaw an excellent choice for high-volume workshops that require top-tier performance and reliability. Ideal Applications:
Features:
|
| Specifications | |
|---|---|
| Stock Number | JT1-1377 |
| Model Number | VBS-2012VS-DC |
| Warranty | 2 Year |
| Blade Length (In.) | 157.67 - 159.44 |
| Blade Speeds Metal (SFPM) | Variable 90 - 1600 |
| Blade Width (Min.-Max.) (In.) | 0.11 - 0.63 |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height (In.) | 38.58 |
| Table Size (L x W) (In.) | 21.65 x 23.62 |
| Table Tilt (Deg.) | 45°R & 15°L |
| Throat Capacity (In.) | 20 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 |
| Motor Amps | 15 |
| Blade Thickness | 0.025 |
| Net weight | 772 |
| Assembled Machine Dimensions (L x W x H) (In.) | 47.24 x 35.43 x 77.12 |
| Gross Weight | 851 |
|
VBS-2012, 20 inch Vertical Bandsaw has a 2 Year warranty
|
| Detailed Specifications | |
|---|---|
| Part Number | 414482 |
| Blade Speeds (SFPM) | 65 - 3,280 |
| Height Capacity (Max.) (In.) | 12 |
| Throat Capacity (In.) | 20 |
| Table Size (L x W) (In.) | 24 x 22-1/2 |
| Table Tilt (Deg.) | 8 F & B, 15 R & 12 L |
| Blade Length (In.) | 156-1/2 |
| Blade Width (Min.-Max.) (In.) | 1/8 - 1 |
| Table Height (In.) | 39-1/2 |
| Motor (HP) | 2 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 42 x 30 x 79 |
| Weight (Lbs.) | 1,244 |
| Height | 84.0000 |
| Length | 45.0000 |
| Weight | 1244.0000 |
| Width | 34.0000 |
|
VBS-3612, 36 inch Vertical Bandsaw has a 2 Year warranty
|
| Detailed Specifications | |
|---|---|
| Part Number | 414470 |
| Blade Speeds (SFPM) | 50 - 4,925 |
| Height Capacity (Max.) (In.) | 12 |
| Throat Capacity (In.) | 36 |
| Table Size (L x W) (In.) | 23-5/8 x 27-1/2, 17-3/4 x 27-1/2 |
| Table Tilt (Deg.) | 10 L, 45 R |
| Blade Length (In.) | 197 |
| Blade Width (Min.-Max.) (In.) | 1/8 - 1 |
| Table Height (In.) | 40 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 69 x 32 x 81 |
| Weight (Lbs.) | 1,760 |
| Height | 84.0000 |
| Length | 67.0000 |
| Weight | 2014.0000 |
| Width | 34.5000 |
|
2 YEAR WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848. |
