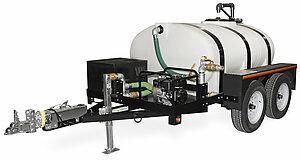

Mi-T-M Water Transport Trailer - MWT-0510-2MHD
510 GAL WATER TRAILER
Mfg. item #: MWT-0510-2MHD
MTMMWT-0510-{00
lease to own for as little as:$287 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
|
MWT-0510-2MHD
Tame dust, clean parking lots or haul water with this water transport trailer. This unit features a 510-gallon water tank, rear spray, hose hook-ups and more.
- Tank - 510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent
- Central Manifold - Easy-to-operate butterfly brass valves
- Plumbing - 1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 2 1/2-inch hose · Dual rear spray heads
· Garden hose connector · Manifold discharge system · Water hammer prevention valve
- Trailer - DOT approved · 12-inch under-clearance at axle · 7,000-lb. side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights
· Wire storage basket · Two safety chains with snap hooks · (4) ST225-75 15-inch tires
- Semi-Trash Pump - 2-inch suction and discharge that handles solids up to 3/4-inch diameter · Heavy-duty powder coated wraparound frame · Silicone carbide mechanical seals
· Precision molded cast iron impeller and volute for reduced vibration and wear
|
|
|
Specifications
|
|
Displacement / Engine
|
196cc Honda GX200 OHV
|
|
Pump
|
2 in. Semi-Trash
|
|
Hitch
|
2 in. Ball
|
|
Axle
|
(2) 3,500 lb. Tandem with Hydraulic Surge Brakes
|
|
Bed Frame
|
5 ft. x 8 ft.
|
|
Trailer Weight (Loaded)
|
5,900 lb.
|
|
Net Weight
|
1580.00 lbs
|
|
Shipping Weight
|
1580.00 lbs
|
|
Length
|
164.40 in.
|
|
Width
|
81.60 in.
|
|
Height
|
69.60 in.
|
Options - must be ordered with unit and cannot be added later.
|
Options
|
|
TX-0008
|
Hard Suction Option - Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays
flat for easy storage. Fits all models without TX-0024 water bypass option.
|
|
TX-0010
|
Adjustable Trailer Coupler Hitch - Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball
socket
|
|
TX-0019
|
Lunette Ring Hitch - Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
|
|
TX-0024
|
Water Bypass - Allows you to bypass water from the outlet back to the tank. This can be used to reduce outlet pressure and flow for desired application. Fits all
models without the TX-0008 hard suction option.
|
Warranty Information
- 1 Year Trailer
- 2 Year Pump
- 3 Year Honda Engine
- 3 Year Water Tank
OPTION-HARD SUCTION FEED
Mfg. item #: TX-0008
MTMTX-0008
Call for freight quote on this item or we will confirm freight charges before shipping.1
OPTION-DUAL AXLE HITCH
Mfg. item #: TX-0010
MTMTX-0010
Call for freight quote on this item or we will confirm freight charges before shipping.1
OPTION - 3 PINTLE DUAL AXLE
Mfg. item #: TX-0019
MTMTX-0019
Call for freight quote on this item or we will confirm freight charges before shipping.1
WATER BYPASS OPTION
Mfg. item #: TX-0024
MTMTX-0024
Call for freight quote on this item or we will confirm freight charges before shipping.1
