Technical Sales 1–800–458–3687

Wilton Bullet Vises

COMBINATION PIPE AND BENCH Machinist Vise Tradesman VIse TRADESMAN XC vise
Combo Pipe and Bench Machinist Vise Tradesman VIse Tradesman XC VIse

lifetime warratny logo

Combo Pipe and Bench Vises
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in) Base Type
28825 3-1/2 5 4-1/2 1/4 - 2-1/2 360 Deg Dwivel
28826 4-1/2 7 4-3/4 1/4 - 3-1/2 360 Deg Dwivel
28827 5 7-7/8 5-1/2 3/8 - 4-1/2 360 Deg Dwivel
28828 6 10-1/4 6-1/2 1/2 - 6 360 Deg Dwivel
Machinist Vise
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Base Type
28830 3 4-3/4 2-5/8 360 deg swivel
28831 4 6-1/2 3-1/2 360 deg swivel
28832 5 8 4-1/2 360 deg swivel
28833 6 10 5-1/2 360 deg swivel
28834 8 12 5-13/16 360 deg swivel
28839 8 12 5-13/16 360 deg swivel
Tradesman Vise
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in)
28805 4-1/2 3-1/2 3-1/4 1/4 - 2-1/2
28806 5-1/2 5 3-3/4 1/4 - 3
28806A 5-1/2 5 3-3/4 1/4- 3
28807 6-1/2 6 4 1/4 - 3-1/2
28808 8 6-3/4 4-3/4 1/8 - 3-1/2
Tradesman XC Vise
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in)
28840 4-1/2 3-1/2 3-1/4 1/4 - 2-1/2
28841 5-1/2 5 3-3/4 1/4 - 3
28842 6-1/2 6 4 1/4- 3-1/2
28843 8 6-3/4 4-3/4 1/8 - 3-1/2



Combination Pipe and Bench vise

Sealed Construction  Large Anvil  Precision Slide Bar

Proudly made in the USA, the Combination Pipe and Bench vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Features:

  • Massive cast iron vise body is virtually indestructible, weighing up to 30 percent more than competing models
  • Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque
  • Self-centering pipe jaws hold up to 2.5 in pipe safely anReplaceable steel pipe jaws hold up to 6 in pipe safely and securelyd securely
  • Large anvil designed to take a beating while forming and shaping materials
  • Locking swivel base with double lockdowns for non-slip hold in any position

Combo Pipe and Bench Vises
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in) Base Type
28825 3-1/2 5 4-1/2 1/4 - 2-1/2 360 Deg Dwivel
28826 4-1/2 7 4-3/4 1/4 - 3-1/2 360 Deg Dwivel
28827 5 7-7/8 5-1/2 3/8 - 4-1/2 360 Deg Dwivel
28828 6 10-1/4 6-1/2 1/2 - 6 360 Deg Dwivel



Combination Pipe and Bench vise

Sealed Construction  Largest Working Capacity  Precision Slide Bar

Proudly made in the USA, the Combination Pipe and Bench vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Features:

  • Massive cast iron vise body is virtually indestructible, weighing up to 30 percent more than competing models
  • Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque
  • Large anvil designed to take a beating while forming and shaping materials
  • Locking swivel base with double lockdowns for non-slip hold in any position

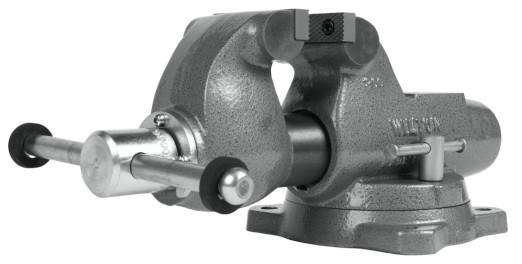

Machinist Vise
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Base Type
28830 3 4-3/4 2-5/8 360 deg swivel
28831 4 6-1/2 3-1/2 360 deg swivel
28832 5 8 4-1/2 360 deg swivel
28833 6 10 5-1/2 360 deg swivel
28834 8 12 5-13/16 360 deg swivel
28839 8 12 5-13/16 360 deg swivel




Tradesman 1745 Vise

Sealed Construction  Largest Working Capacity  Precision Slide Bar

The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Features:

  • Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Redesigned spindle assembly improves overall product life and durability
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
  • Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
  • 60,000 PSI ductile iron body, jaw and base is virtually indestructible with 2X the strength of grey cast iron
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Large anvil designed to take a beating while forming and shaping materials

Tradesman Vise
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in)
28805 4-1/2 3-1/2 3-1/4 1/4 - 2-1/2
28806 5-1/2 5 3-3/4 1/4 - 3
28806A 5-1/2 5 3-3/4 1/4- 3
28807 6-1/2 6 4 1/4 - 3-1/2
28808 8 6-3/4 4-3/4 1/8 - 3-1/2



Tradesman 1745XC

Sealed Construction  Largest Working Capacity  Precision Slide Bar

The Tradesman XC vise is designed to handle the most demanding clamping applications under the most extreme environmental conditions. Unlike most vises that have a fixed center nut, all Tradesman round channel vises use a nut anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, all Tradesman vises are equipped with main jaws, pipe jaws and a machined anvil work surface. The Tradesman XC models also include electroless nickel coating of key components, prolonging life in corrosive environments, saving hundreds of dollars on repairs and avoiding countless hours of lost work downtime.

Features:

  • Coated components last up to 5x longer before onset of corrosion*
  • Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Redesigned spindle assembly improves overall product life and durability
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Machined steel serrated jaws with electroless nickel coating provide increased durability and an extended life of use
  • Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
  • 60,000 PSI ductile iron body, jaw and base is virtually indestructible with 2X the strength of grey cast iron
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Large anvil designed to take a beating while forming and shaping materials
  • 360 deg swivel base with double lockdowns for easy and secure access while in use

Tradesman XC
Stock No. Jaw Width (In.) Opening Cap Max (In.) Throat Depth (In.) Pipe Jaw Cap (in)
28840 4-1/2 3-1/2 3-1/4 1/4 - 2-1/2
28841 5-1/2 5 3-3/4 1/4 - 3
28842 6-1/2 6 4 1/4- 3-1/2
28843 8 6-3/4 4-3/4 1/8 - 3-1/2





lifetime warratny logo WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Wilton® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848



There are no listed accessories.

28825
C0, COMBINATION PIPE AND BENCH 3-1/2" JAW ROUND CHANNEL VISE WITH SWIVEL BASE, WGT = 51 LBS
Mfg. item #: 28825
WMH28825
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$769.52

5
28826
C1, COMBINATION PIPE AND BENCH 4-1/2" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 78 LBS
Mfg. item #: 28826
WMH28826
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,099.99

5
28827
C2, COMBINATION PIPE AND BENCH 5" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 100 LBS
Mfg. item #: 28827
WMH28827
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,429.99

5
28828
C3, COMBINATION PIPE AND BENCH 6" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 204 LBS
Mfg. item #: 28828
WMH28828
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$2,089.99

5
28830
** 300S MACHINIST 3" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 28830
WMH28830
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$589.99

5
28831
400S MACHINIST 4" JAW ROUND CHANNEL VISE WITH SWIVEL BASE, WGT = 62 LBS
Mfg. item #: 28831
WMH28831
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$724.99

5
28832
500S MACHINIST 5" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 96 LBS
Mfg. item #: 28832
WMH28832
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,149.99

5
28833
600S MACHINIST 6" JAW ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 156 LBS
Mfg. item #: 28833
WMH28833
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,529.99

5
28834
++ 800S MACHINIST 8" JAW ROUND CHANNEL VISE WITH SWIVEL BASE -- WHILE SUPPLIES LAST ** SHIPS LTL TRUCK FREIGHT, WGT = 238 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28834
WMH28834
lease to own for as little as:$73 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,799.99

5
28839
++ 800N, MACHINIST 8" JAW ROUND CHANNEL VISE WITH STATIONARY BASE -- WHILE SUPPLIES LAST ** SHIPS LTL TRUCK FREIGHT, WGT = 220 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28839
WMH28839
lease to own for as little as:$71 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$3,739.99

5
28805
** 1745, TRADESMAN 4-1/2" ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 28805
WMH28805
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
$499.99

5
28806
** 1755, TRADESMAN 5-1/2" ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 28806
WMH28806
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$609.99

5
28806A
** SE BLACK 1755 TRADESMAN VISE AND 20416 ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 28806A
WMH28806A
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.8
NEW ITEM
$399.99

5
28807
1765, TRADESMAN 6-1/2" ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 68 LBS
Mfg. item #: 28807
WMH28807
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$689.99

5
28808
++ 1780A, TRADESMAN 8" ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 100 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28808
WMH28808
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,019.99

5
28840
** 1745XC, TRADESMAN XC 4-1/2" XTREME CONDITION ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS FROM OUR STORE IN MIAMI, FL
Mfg. item #: 28840
WMH28840
Expedited shipping at no additional cost when ordered with a Jet, Powermatic or Wilton machine.1020
$699.99

5
28841
++ 1755XC, TRADESMAN XC 5-1/2" XTREME CONDITION ROUND CHANNEL VISE WITH SWIVEL BASE, WGT = 50 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28841
WMH28841
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$859.99

5
28842
++ 1765XC, TRADESMAN XC 6-1/2" XTREME CONDITION ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 68 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28842
WMH28842
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$999.99

5
28843
++ 1780XC, TRADESMAN XC 8" XTREME CONDITION ROUND CHANNEL VISE WITH SWIVEL BASE ** SHIPS LTL TRUCK FREIGHT, WGT = 100 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 28843
WMH28843
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,485.99

5
